1-41 — FUEL PIPING; CHASSIS (#79792) — 135 parça

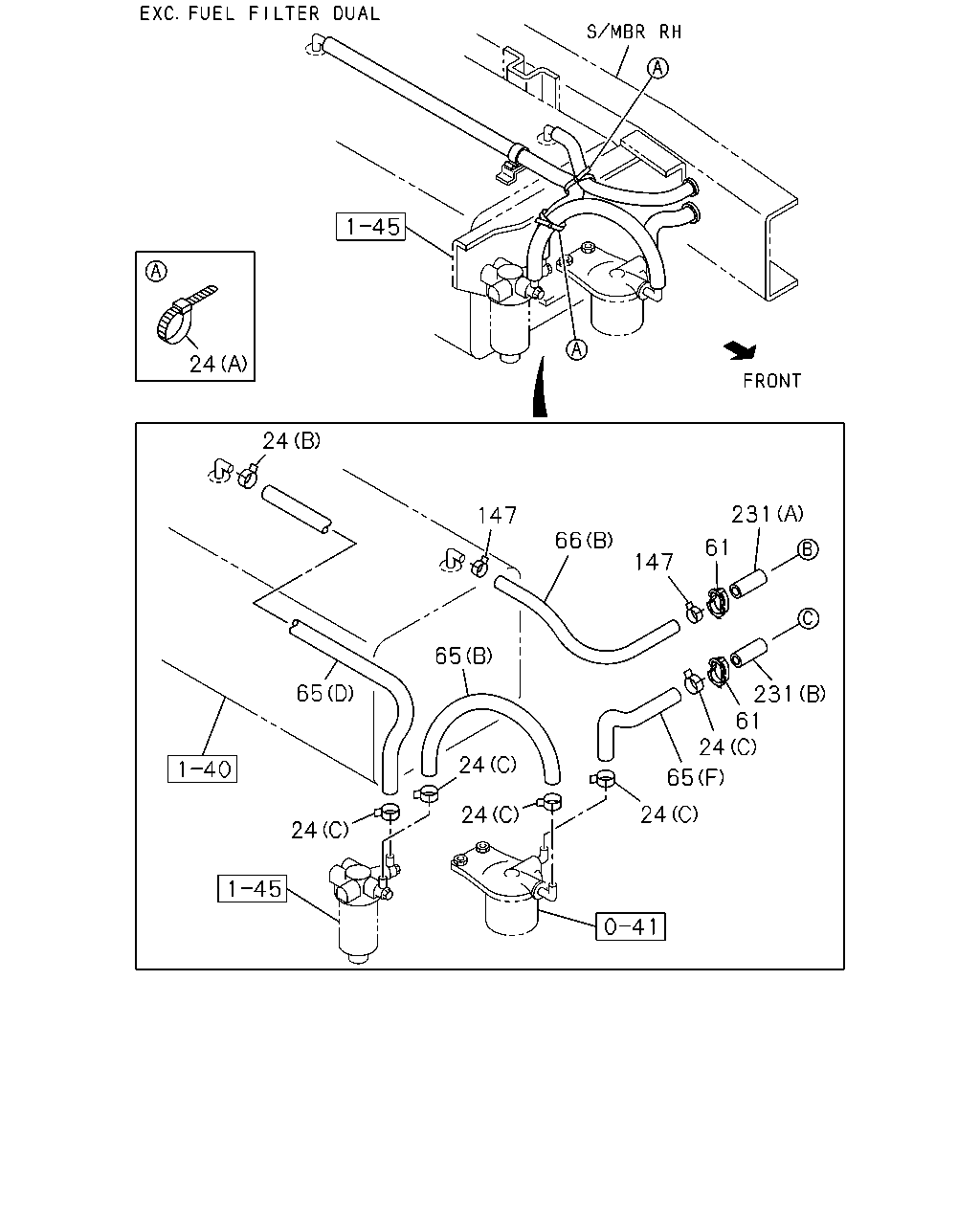

24 24 147 66 147 231 61 231 61 24 65 24 24 65 24 65 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	01	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	01	1	1309-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1011-1308	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) (D) L=350	8-97353-528-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (F)	8-97091-765-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1206-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) 03.003 (C) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=380	8-97353-524-0	01	1	1011-1205	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) L=380	8-97353-524-0	01	1	1206-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) L=380	8-97353-524-0	01	1	1309-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (D) L=380	8-97353-524-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1205	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1206-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1309-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1308	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1309-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1205	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1206-	●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1011-1308	●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1309-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1011-1308	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1309-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	1011-1308	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	1309-	●	●

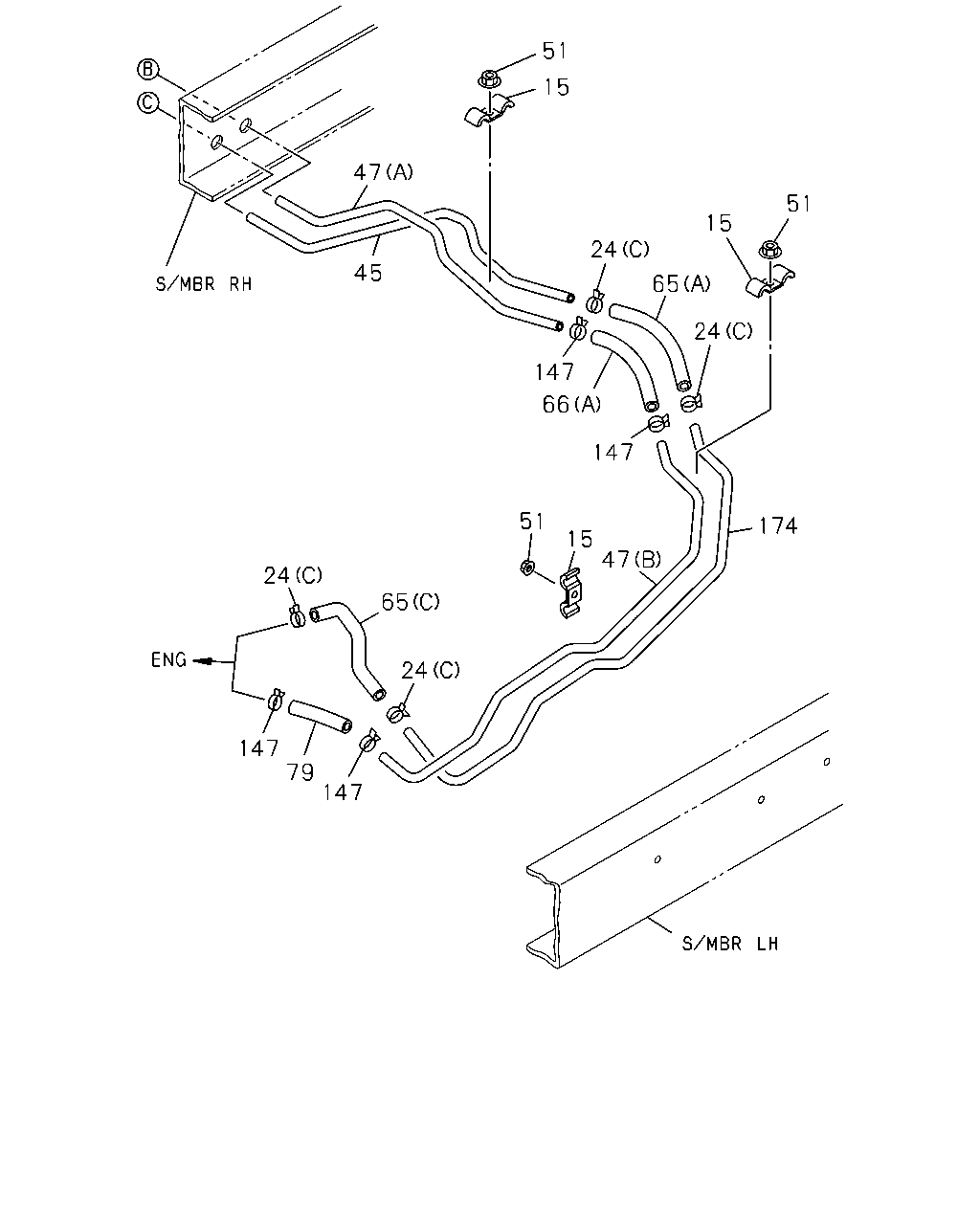

147 79 147 24 65 24 51 15 47 174 147 66 147 24 65 15 51 24 45 47 15 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 00.785 ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	1011-1308	●
15	03.162 CLIP; FUEL PIPE 00.785 ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	1309-1410	●	●
15	03.162 CLIP; FUEL PIPE ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	01	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	01	1	1309-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97075-972-3	01	1	1309-		●
45	03.163 PIPE; FUEL,DELIVERY	8-97070-373-2	01	1	1011-1205	●
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97070-373-2	01	1	1206-1402	●
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-98270-101-0	01	1	1403-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B)	8-98204-243-0	01	1	1309-		●
47	03.163 PIPE; FUEL,RETURN (A)	8-97090-339-3	01	1	1309-		●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B)	8-98201-157-0	01	1	1206-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-97088-710-2	01	1	1011-1205	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-97088-710-2	01	1	1206-1402	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A)	8-98270-102-0	01	1	1403-	●
47	03.163 PIPE; FUEL,RETURN (B)	8-97354-091-0	01	1	1011-1201	●
47	03.163 PIPE; FUEL,RETURN 4JB1-NA ENG(RLF) (B)	8-97354-091-0	01	1	1202-1205	●
47	03.163 PIPE; FUEL,RETURN 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B)	8-97354-091-0	01	1	1206-	●
51	03.162 NUT; CLIP,PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	1011-1308	●
51	03.162 NUT; CLIP,PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) (D) L=350	8-97353-528-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (F)	8-97091-765-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1206-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) 03.003 (C) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=380	8-97353-524-0	01	1	1011-1205	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) L=380	8-97353-524-0	01	1	1206-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) L=380	8-97353-524-0	01	1	1309-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (D) L=380	8-97353-524-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1205	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1206-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1309-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1308	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1309-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1205	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1206-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT)	8-98201-251-0	01	1	1206-1308	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT)	8-98201-251-0	01	1	1309-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1201	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-NA ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	1202-	●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1011-1308	●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1309-	●	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT)	8-98192-830-0	01	1	1309-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-98201-156-0	01	1	1206-	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97091-493-1	01	1	1011-1205	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-NA ENG(RLF) WHEEL BASE 3300MM(33W)	8-97091-493-1	01	1	1206-1412	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97091-493-1	01	1	1501-	●

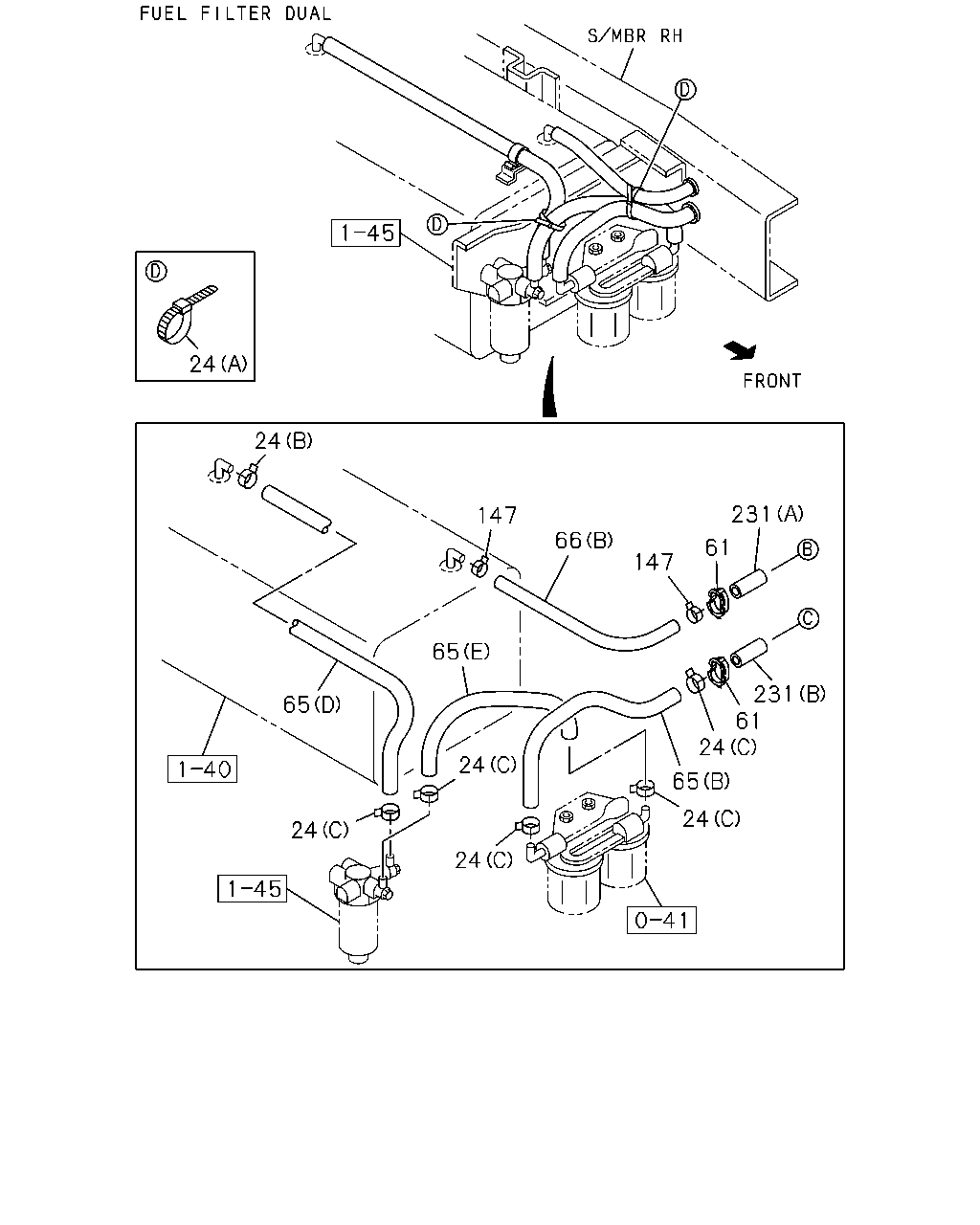

24 24 147 66 147 231 61 65 65 24 24 24 231 61 24 65 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	09	1	1309-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	01	1	1011-1308	●
24	03.162 CLIP; FUEL HOSE (B) ID=19	8-98150-356-0	01	1	1309-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1011-1308	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) (D) L=350	8-97353-528-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (F)	8-97091-765-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1206-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98201-250-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FUEL FILTER DUAL(S6B) 03.003 (E) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-NA ENG(RLF) 03.003 (C) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1011-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	1309-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=380	8-97353-524-0	01	1	1011-1205	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) L=380	8-97353-524-0	01	1	1206-1308	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) L=380	8-97353-524-0	01	1	1309-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) (D) L=380	8-97353-524-0	01	1	1309-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1011-1205	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. FUEL FILTER DUAL(S6B) 03.003 (F) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	1206-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1309-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1308	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	1309-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1205	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	1206-	●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1011-1308	●
147	03.162 CLIP; FUEL PIPE TO HOSE ID=13	8-98150-357-0	06	1	1309-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1011-1308	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	1309-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	1011-1308	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	1309-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
