1-40 — FUEL TANK (#79791) — 102 parça

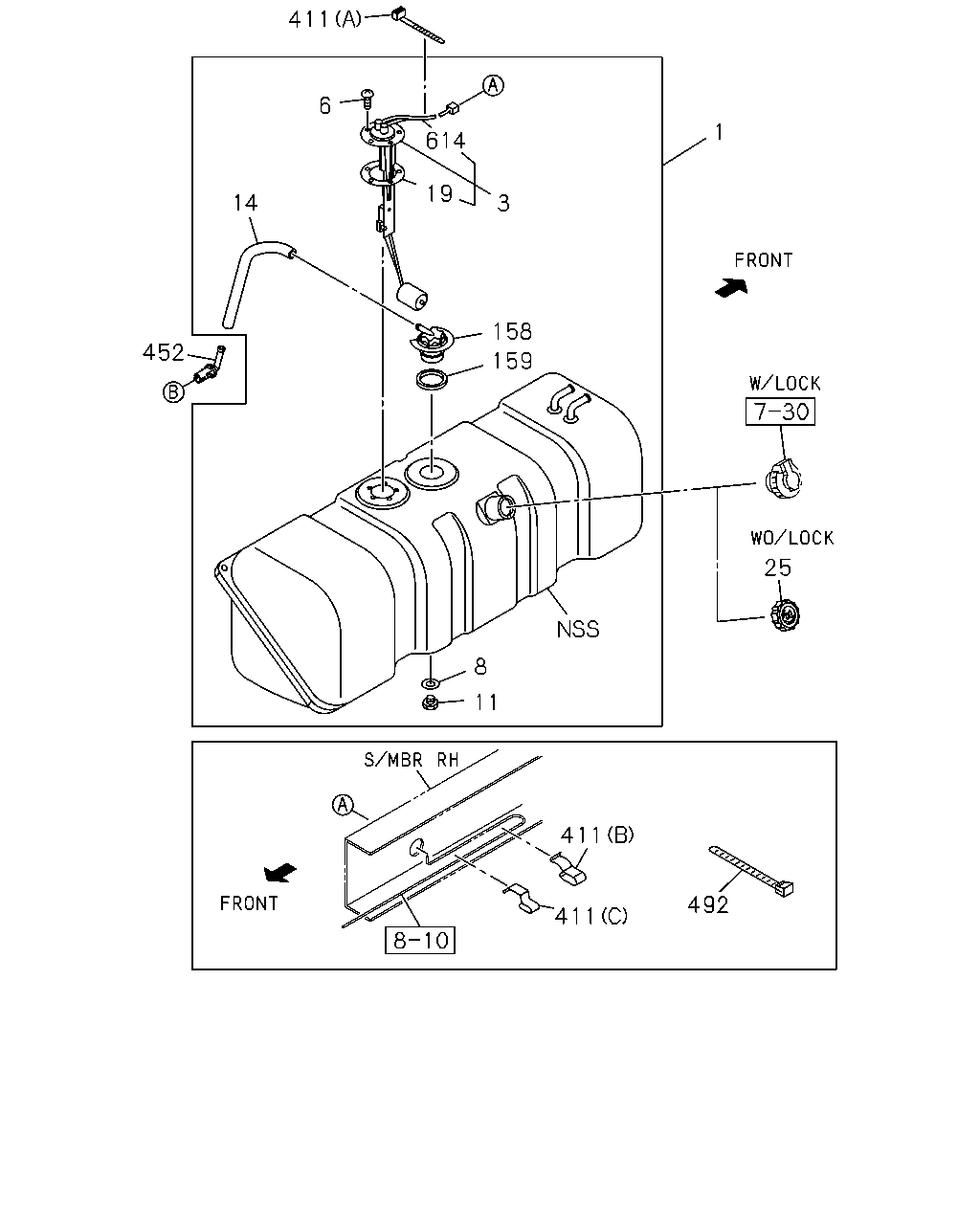

411 6 614 19 3 1 158 14 159 452 8 11 411 411 492 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> 732X375X375 75L	8-98280-475-0	01	1	1411-	●
1	03.001 TANK; FUEL PROVISIONAL PACKAGE SPEC<BCC> EXC. IDENTIFICATION LABEL FOR KD<6UT> 732X375X375 75L	8-98280-480-0	01	1	1411-	●
1	03.001 TANK; FUEL PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT> 979X380X375 100L	8-98280-479-0	01	1	1411-		●
1	03.001 TANK; FUEL PROVISIONAL PACKAGE SPEC<BCC> EXC. IDENTIFICATION LABEL FOR KD<6UT> 979X380X375 100L	8-98280-481-0	01	1	1411-		●
1	03.001 TANK; FUEL IDENTIFICATION LABEL FOR KD<6UT> 732X375X375 75L	8-97375-633-4	01	1	1309-1410	●
1	03.001 TANK; FUEL IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> 732X375X375 75L	8-97375-633-4	01	1	1411-	●
1	03.001 TANK; FUEL EXC. IDENTIFICATION LABEL FOR KD<6UT> 732X375X375 75L	8-98215-287-1	01	1	1309-1410	●
1	03.001 TANK; FUEL EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> 732X375X375 75L	8-98215-287-1	01	1	1411-	●
1	03.001 TANK; FUEL 979X380X375 100L	8-97375-634-4	01	1	1011-1205		●
1	03.001 TANK; FUEL IDENTIFICATION LABEL FOR KD<6UT> 979X380X375 100L	8-97375-634-5	01	1	1206-1410		●
1	03.001 TANK; FUEL IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC> 979X380X375 100L	8-97375-634-5	01	1	1411-		●
1	03.001 TANK; FUEL EXC. IDENTIFICATION LABEL FOR KD<6UT> 979X380X375 100L	8-98215-288-1	01	1	1206-1410		●
1	03.001 TANK; FUEL EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> 979X380X375 100L	8-98215-288-1	01	1	1411-		●
3	03.107 UNIT; FUEL TANK,SUB PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT>	8-98278-777-0	01	1	1411-	●	●
3	03.107 UNIT; FUEL TANK,SUB PROVISIONAL PACKAGE SPEC<BCC> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98278-778-0	01	1	1411-	●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98195-752-0	01	1	1206-1308		●
3	03.107 UNIT; FUEL TANK,SUB EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98195-752-0	01	1	1309-1410	●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT>	8-98195-752-0	01	1	1411-	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-97363-006-0	01	1	1011-1205		●
3	03.107 UNIT; FUEL TANK,SUB IDENTIFICATION LABEL FOR KD<6UT>	8-97363-006-0	01	1	1206-1308		●
3	03.107 UNIT; FUEL TANK,SUB IDENTIFICATION LABEL FOR KD<6UT>	8-97363-006-0	01	1	1309-1410	●	●
3	03.107 UNIT; FUEL TANK,SUB IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97363-006-0	01	1	1411-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1011-1308		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1309-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1011-1308		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1309-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1011-1308		●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1309-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1309-	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1011-1308		●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1309-		●
19	03.112 GASKET; FUEL TANK UNIT EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71	5-83148-001-0	01	1	1206-1308		●
19	03.112 GASKET; FUEL TANK UNIT EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71	5-83148-001-0	01	1	1309-1410	●	●
19	03.112 GASKET; FUEL TANK UNIT EXC. PROVISIONAL PACKAGE SPEC<BCC>, IDENTIFICATION LABEL FOR KD<6UT> ID=42 OD=71	5-83148-001-0	01	1	1411-	●	●
19	03.112 GASKET; FUEL TANK UNIT PROVISIONAL PACKAGE SPEC<BCC> ID=42 OD=71	5-83148-001-0	01	1	1411-	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-97363-616-0	01	1	1011-1205		●
19	03.112 GASKET; FUEL TANK UNIT IDENTIFICATION LABEL FOR KD<6UT>	8-97363-616-0	01	1	1206-1308		●
19	03.112 GASKET; FUEL TANK UNIT IDENTIFICATION LABEL FOR KD<6UT>	8-97363-616-0	01	1	1309-1410	●	●
19	03.112 GASKET; FUEL TANK UNIT IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97363-616-0	01	1	1411-	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	1011-1308		●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	1309-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1011-1308		●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1309-	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1011-1308		●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1309-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=4.5 & 9	8-97371-947-0	AR	1	1210-1308		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) T=4.5 & 9	8-97371-947-0	AR	1	1309-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=5.5	8-97371-951-0	AR	1	1210-1308		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=5.5	8-97371-951-0	AR	1	1309-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140	5-09707-031-1	01	1	1206-1308		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140	5-09707-031-1	01	1	1309-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	1011-1205		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140	5-09707-031-1	02	1	1206-1308		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> 03.162 (A) L=140	5-09707-031-1	02	1	1309-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) T=9.2	5-09709-013-0	AR	1	1011-1209		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> (B) T=9.2	5-09709-013-0	AR	1	1210-1308		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> (B) T=9.2	5-09709-013-0	AR	1	1309-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	AR	1	1011-1209		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> 02.525 (C) T=4.5 & 9	5-09709-023-0	AR	1	1210-1308		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> 02.525 (C) T=4.5 & 9	5-09709-023-0	AR	1	1309-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 02.525 (C) T=9.2 & 9	5-09709-025-0	AR	1	1011-1209		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> 02.525 (C) T=9.2 & 9	5-09709-025-0	AR	1	1210-1308		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> 02.525 (C) T=9.2 & 9	5-09709-025-0	AR	1	1309-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 01.240 (B) T=5.5	5-09709-047-0	AR	1	1011-1209		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> 01.240 (B) T=5.5	5-09709-047-0	AR	1	1210-1308		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS IDENTIFICATION LABEL FOR KD<6UT> 01.240 (B) T=5.5	5-09709-047-0	AR	1	1309-	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1011-1308		●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1309-	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.559 L=250	5-09707-030-1	01	1	1503-	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	02	1	1206-1308		●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	02	1	1309-1502	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 02.559 L=250	5-09707-030-1	02	1	1503-	●	●
614	03.028 HARNESS; FUEL PROVISIONAL PACKAGE SPEC<BCC> IDENTIFICATION LABEL FOR KD<6UT>	8-98285-440-0	01	1	1411-	●	●
614	03.028 HARNESS; FUEL	8-97363-614-0	01	1	1011-1205		●
614	03.028 HARNESS; FUEL IDENTIFICATION LABEL FOR KD<6UT>	8-97363-614-0	01	1	1206-1308		●
614	03.028 HARNESS; FUEL IDENTIFICATION LABEL FOR KD<6UT>	8-97363-614-0	01	1	1309-1410	●	●
614	03.028 HARNESS; FUEL IDENTIFICATION LABEL FOR KD<6UT> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97363-614-0	01	1	1411-	●	●

49 49 43 322 653 42 43 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1011-1308		●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1309-	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-516-0	01	1	1309-1310	●
43	03.015 BRACKET; FUEL TANK RR BODY FLAT BED(RS6) FRONT	8-97035-516-0	01	1	1311-	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-223-0	01	1	1309-1310	●
43	03.015 BRACKET; FUEL TANK RR BODY FLAT BED(RS6) REAR	8-97181-223-0	01	1	1311-	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	1011-1308		●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	1309-1310		●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	1311-		●
43	03.015 BRACKET; FUEL TANK EXC. RR BODY FLAT BED(RS6) FRONT	8-97035-517-0	01	1	1311-	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	1011-1308		●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	1309-1310		●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	1311-		●
43	03.015 BRACKET; FUEL TANK EXC. RR BODY FLAT BED(RS6) REAR	8-97181-220-0	01	1	1311-	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1011-1308		●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1309-	●	●
322	03.895 BOLT; BRKT FIX 4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W) 07.068 M10X30 FLANGE	0-28661-030-0	06	1	1501-		●
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1011-1308		●
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1309-1412	●	●
322	03.895 BOLT; BRKT FIX 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1501-		●
322	03.895 BOLT; BRKT FIX 4JB1-NA ENG(RLF) WHEEL BASE 3300MM(33W) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1501-		●
322	03.895 BOLT; BRKT FIX 4JB1-TC ENG(RDT) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1501-	●
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	1011-1308		●
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	1309-	●	●

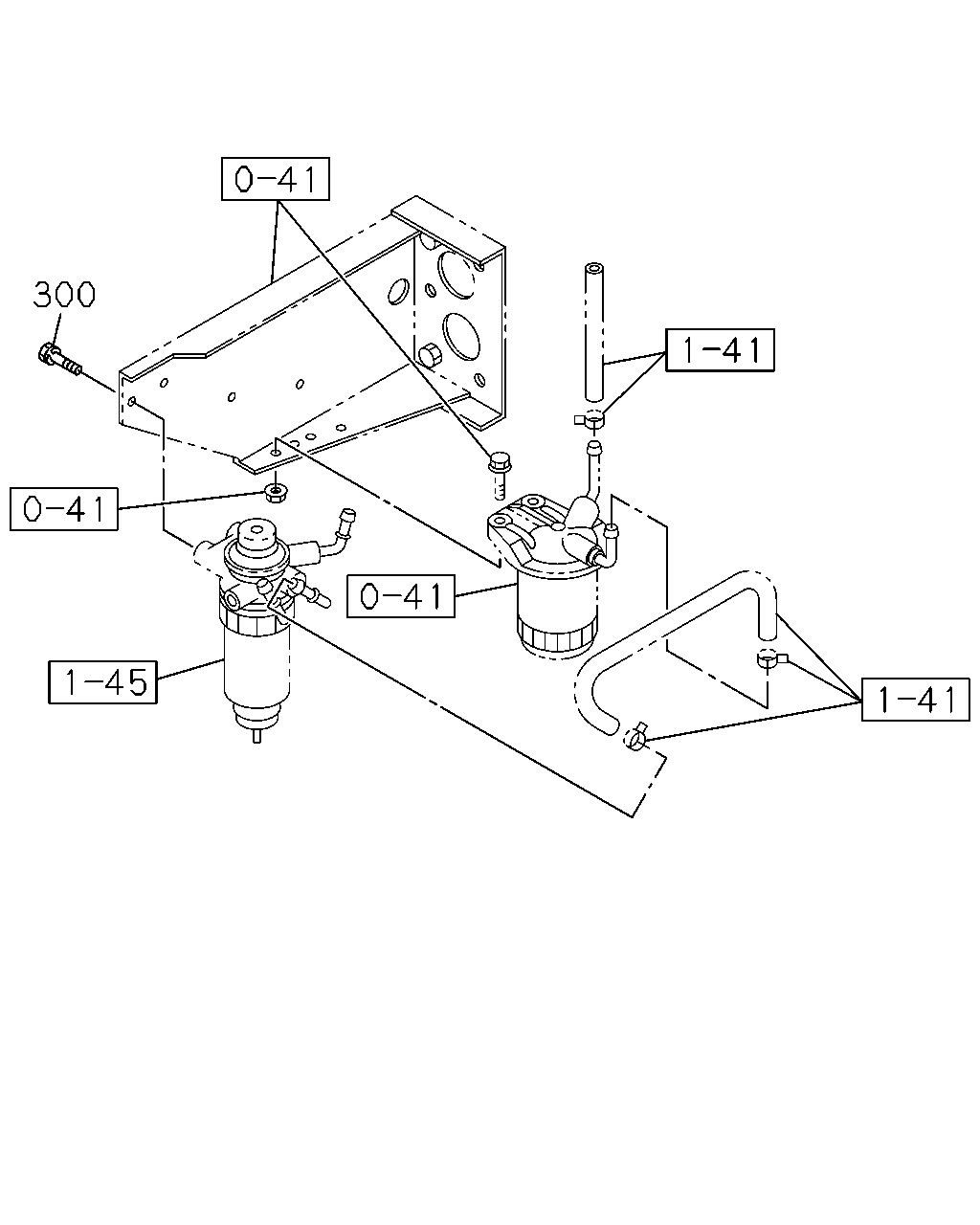

300

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	300	03.162 BOLT; BRKT TO BODY 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1011-		●
