◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#79790) — 300 parça

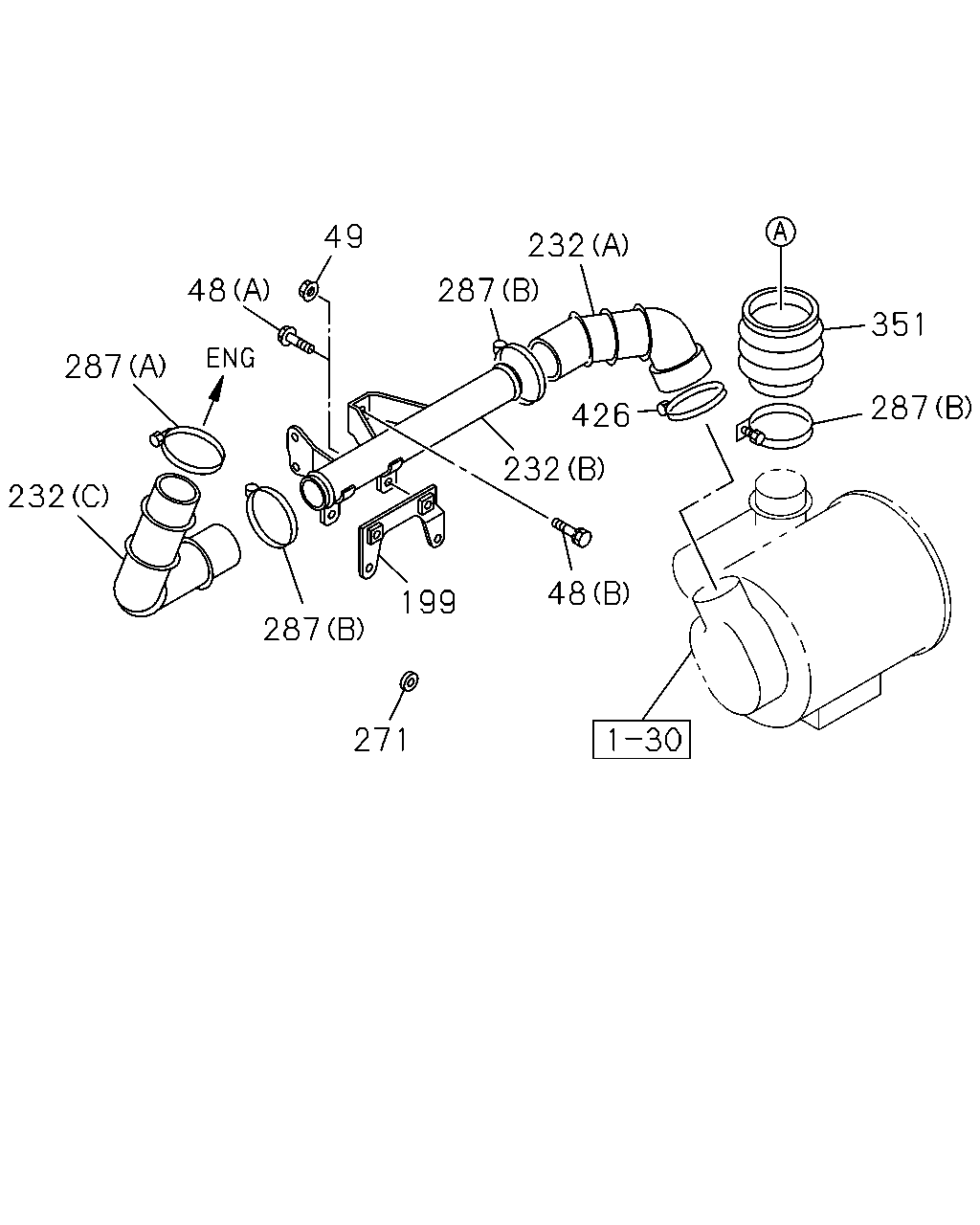

çizim 92047
232 287 48 49 287 232 351 287 48 232 426 199 287 271
BalonParca AdiParca NoAdetTipApplied Date A B
48 03.417 BOLT; AIR DUCT
4JB1-NA ENG(RLF) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1011- ●
48 03.417 BOLT; AIR DUCT
4JB1-NA ENG(RLF) 02.483 (A) M10X16 FLANGE 		0-28051-016-0 02 1 1011-1106 ●
49 03.417 NUT; AIR DUCT
4JB1-NA ENG(RLF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1107- ●
199 03.417 BRACKET; PIPE
4JB1-NA ENG(RLF) 		8-94155-425-1 01 1 1011-1106 ●
199 03.417 BRACKET; PIPE
4JB1-NA ENG(RLF) 		8-98166-945-0 01 1 1107- ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (D) 		8-98069-040-2 01 1 1206-1308 ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (D) 		8-98069-040-2 01 1 1309-1509 ● ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (E) 		8-98327-660-0 01 1 1510- ● ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (A) 		8-94110-075-3 01 1 1011- ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (B) 		8-94417-173-1 01 1 1011-1106 ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (B) 		8-98170-481-1 01 1 1107- ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (C) 		8-97107-173-1 01 1 1011- ●
271 03.417 SPACER; BRKT,ACL
4JB1-NA ENG(RLF) 00.851 		8-94369-173-0 01 1 1011-1106 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.407 (D) ID=112 		9-09915-074-1 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.407 (D) ID=112 		9-09915-074-1 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-NA ENG(RLF) 03.407 (A) ID=92 		9-09915-072-1 01 1 1011- ●
287 03.417 CLIP; AIR DUCT
4JB1-NA ENG(RLF) 03.407 (B) ID=79 		9-09915-734-1 03 1 1011- ●
351 03.407 DUCT; AIR
4JB1-TC ENG(RDT) 		8-98115-594-0 01 1 1206-1308 ●
351 03.407 DUCT; AIR
4JB1-TC ENG(RDT) 		8-98115-594-0 01 1 1309- ● ●
351 03.407 DUCT; AIR
4JB1-NA ENG(RLF) 03.417 		5-14231-115-1 01 1 1011- ●
426 03.417 CLIP; DUCT
4JB1-TC ENG(RDT) 03.407 D=101.6 		9-09915-502-1 01 1 1206-1308 ●
426 03.417 CLIP; DUCT
4JB1-TC ENG(RDT) 03.407 D=101.6 		9-09915-502-1 01 1 1309- ● ●
426 03.417 CLIP; DUCT
4JB1-NA ENG(RLF) 03.407 ID=87 		8-97087-432-0 01 1 1011- ●

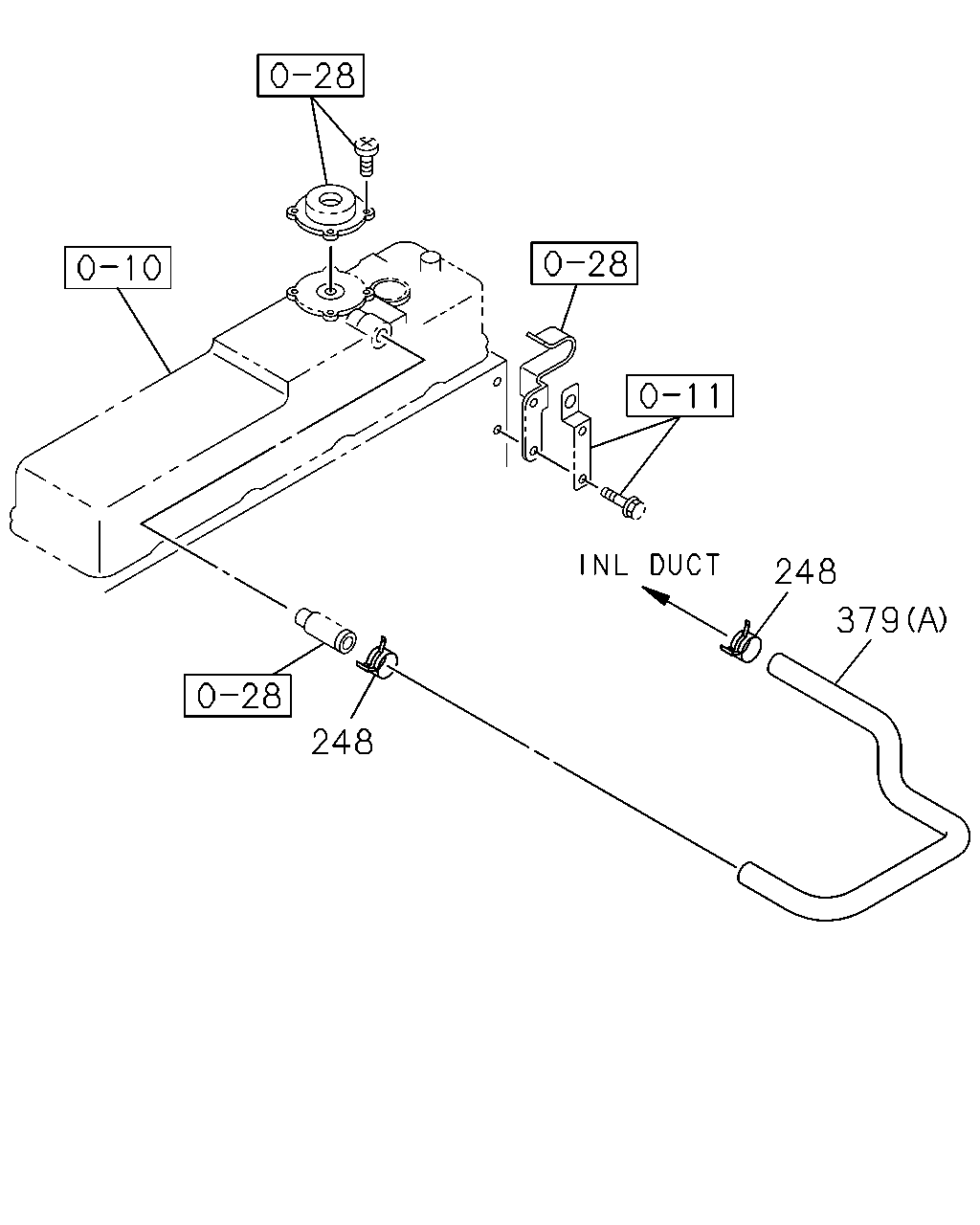

çizim 92286
248 379 248
BalonParca AdiParca NoAdetTipApplied Date A B
248 03.417 CLIP; RUBBER HOSE
4JB1-NA ENG(RLF) 03.265 ID=20.4 		8-94121-113-0 02 1 1011-1205 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1206-1308 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1309- ●
248 03.417 CLIP; RUBBER HOSE
4JB1-TC ENG(RDT) 03.265 ID=20.4 		8-94121-113-0 02 1 1309- ●
379 03.675 HOSE; RUBBER
4JB1-TC ENG(RDT) (B) 		8-98178-711-0 01 1 1206-1308 ●
379 03.675 HOSE; RUBBER
4JB1-TC ENG(RDT) (B) 		8-98178-711-0 01 1 1309- ● ●
379 03.675 HOSE; RUBBER
4JB1-NA ENG(RLF) 03.265 (A) 		8-97253-667-0 01 1 1011- ●

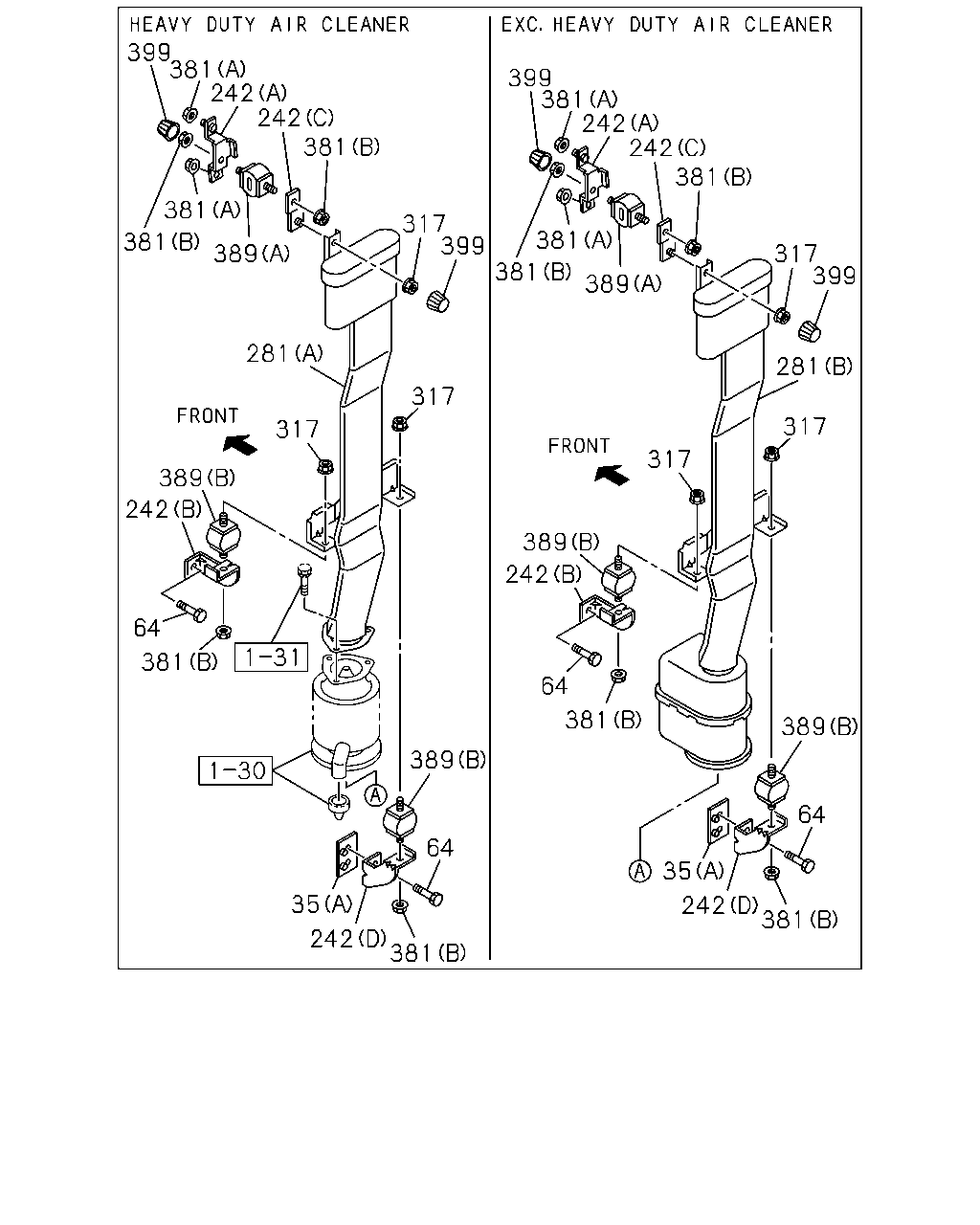

çizim 191753
242 35 381 64 389 381 64 242 317 389 317 281 389 381 381 399 381 242 242 381 317 399 381 242 35 64 389 381 64 242 389 317 317 281 399 317 381 242 242 381 399 381 381 389
BalonParca AdiParca NoAdetTipApplied Date A B
35 03.406 SEAL; DUCT,INT
4JB1-TC ENG(RDT) (B) 		8-98029-332-0 01 1 1206-1308 ●
35 03.406 SEAL; DUCT,INT
4JB1-TC ENG(RDT) (B) 		8-98029-332-0 01 1 1309- ● ●
35 03.406 SEAL; DUCT,INT
03.403 (A) 		8-97853-699-2 01 1 1011- ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98278-681-0 01 1 1510- ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-97226-059-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-97226-059-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (F) 		8-97312-894-1 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (F) 		8-97312-894-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (G) 		8-97329-201-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (G) 		8-97329-201-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (H) 		8-97329-306-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (H) 		8-97329-306-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1309-1509 ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1510- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (D) 		8-97856-935-0 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (A) 		8-97856-956-1 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (C) 		8-97856-958-0 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (B) 		8-97856-967-1 01 1 1011- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-994-2 01 1 1206-1308 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-994-2 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-97369-706-0 01 1 1206-1308 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-97369-706-0 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-NA ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A) 		8-97089-948-2 01 1 1011- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-NA ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-97076-959-2 01 1 1011- ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 (A) M6 FLANGE 		1-09984-018-0 02 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
4JB1-NA ENG(RLF) (B) M8 W/LK WASHER 		8-97581-234-0 01 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
(B) M8 W/LK WASHER 		8-97581-234-0 03 1 1011- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) (C) 		8-98036-825-0 01 1 1206-1308 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) (C) 		8-98036-825-0 01 1 1309- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) 03.417 (D) 		8-98036-826-0 02 1 1206-1308 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) 03.417 (D) 		8-98036-826-0 02 1 1309- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-NA ENG(RLF) 03.417 (A) 		8-97080-149-0 01 1 1011- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-NA ENG(RLF) 03.417 (B) 		8-97081-886-0 02 1 1011- ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 1011-1308 ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 1309- ● ●

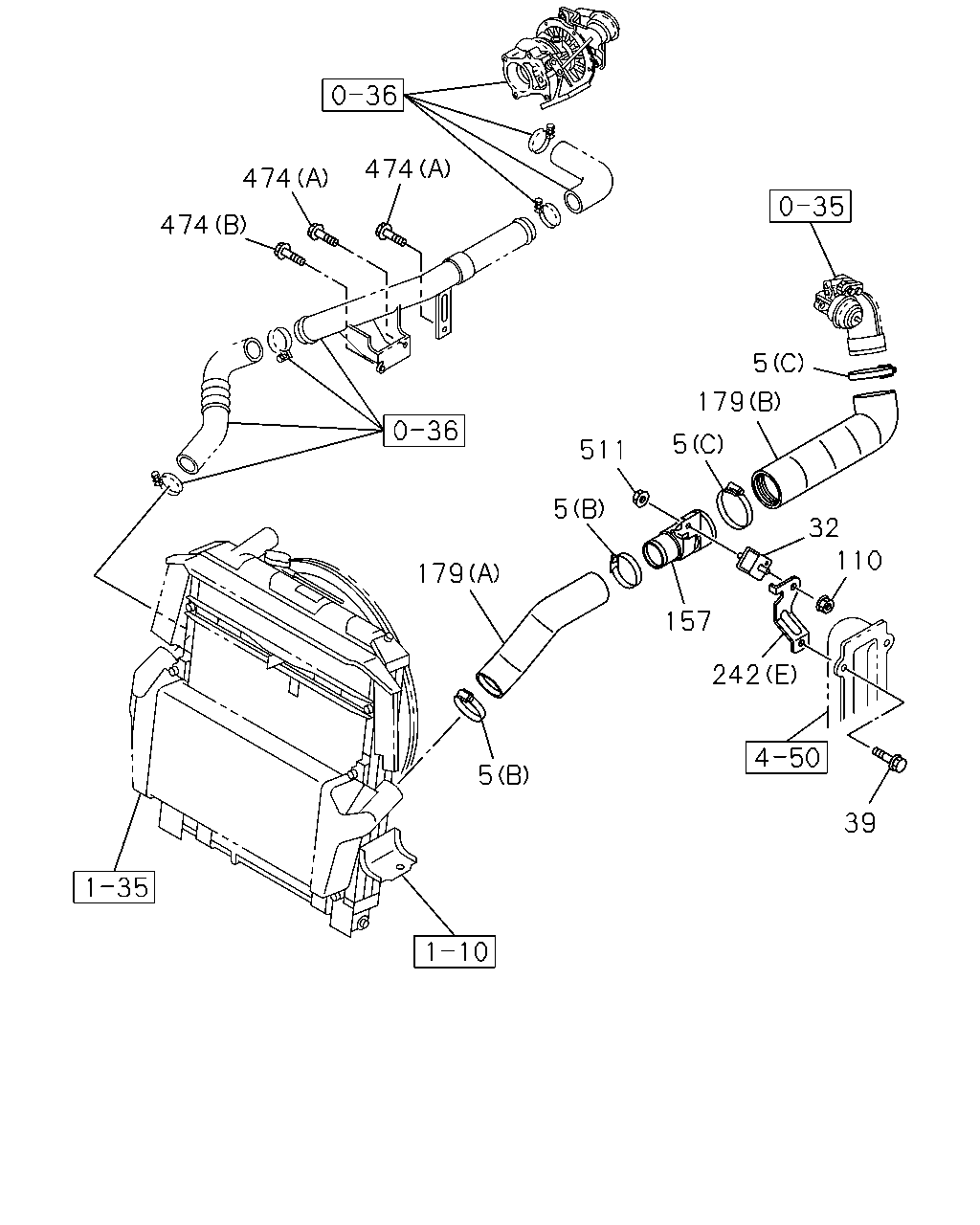

çizim 288243
5 179 474 474 474 511 5 5 179 5 32 110 242 39 157
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=127 		1-14239-263-0 01 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=127 		1-14239-263-0 01 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50 		8-98133-347-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50 		8-98133-347-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75 		8-98133-349-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75 		8-98133-349-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79 		1-09707-136-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79 		1-09707-136-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60 		8-94175-940-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60 		8-94175-940-0 02 1 1309- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JB1-TC ENG(RDT) 03.405 		8-94158-155-1 01 1 1206-1308 ●
32 03.417 RUBBER; AIR DUCT MTG
4JB1-TC ENG(RDT) 03.405 		8-94158-155-1 01 1 1309- ● ●
39 03.417 BOLT; BRKT
4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1206-1308 ●
39 03.417 BOLT; BRKT
4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1309- ● ●
110 03.403 NUT; RUBBER MTG
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206-1308 ●
110 03.403 NUT; RUBBER MTG
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309- ● ●
157 03.417 PIPE; AIR
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 		8-97693-079-0 01 1 1206-1308 ●
157 03.417 PIPE; AIR
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 		8-97693-079-0 01 1 1309- ● ●
157 03.417 PIPE; AIR
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97228-660-0 01 1 1206-1308 ●
157 03.417 PIPE; AIR
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97228-660-0 01 1 1309- ● ●
179 03.417 HOSE; AIR INT
4JB1-TC ENG(RDT) (B) 		8-97228-658-2 01 1 1206-1308 ●
179 03.417 HOSE; AIR INT
4JB1-TC ENG(RDT) (B) 		8-97228-658-2 01 1 1309- ● ●
179 03.417 HOSE; AIR INT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98219-491-0 01 1 1206-1303 ●
179 03.417 HOSE; AIR INT
4JB1-TC ENG(RDT) (A) 		8-98219-491-0 01 1 1304-1308 ●
179 03.417 HOSE; AIR INT
4JB1-TC ENG(RDT) (A) 		8-98219-491-0 01 1 1309- ● ●
179 03.417 HOSE; AIR INT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97228-657-1 01 1 1206-1303 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98278-681-0 01 1 1510- ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-97226-059-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-97226-059-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (F) 		8-97312-894-1 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (F) 		8-97312-894-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (G) 		8-97329-201-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (G) 		8-97329-201-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (H) 		8-97329-306-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (H) 		8-97329-306-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1309-1509 ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1510- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (D) 		8-97856-935-0 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (A) 		8-97856-956-1 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (C) 		8-97856-958-0 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (B) 		8-97856-967-1 01 1 1011- ●
474 03.417 BOLT; PIPE
4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1206-1308 ●
474 03.417 BOLT; PIPE
4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1309- ● ●
474 03.417 BOLT; PIPE
4JB1-TC ENG(RDT) 06.225 (B) M10X12 FLANGE 		0-28051-012-0 01 1 1206-1308 ●
474 03.417 BOLT; PIPE
4JB1-TC ENG(RDT) 06.225 (B) M10X12 FLANGE 		0-28051-012-0 01 1 1309- ● ●
511 03.417 NUT; PIPE
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206-1308 ●
511 03.417 NUT; PIPE
4JB1-TC ENG(RDT) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1309- ● ●

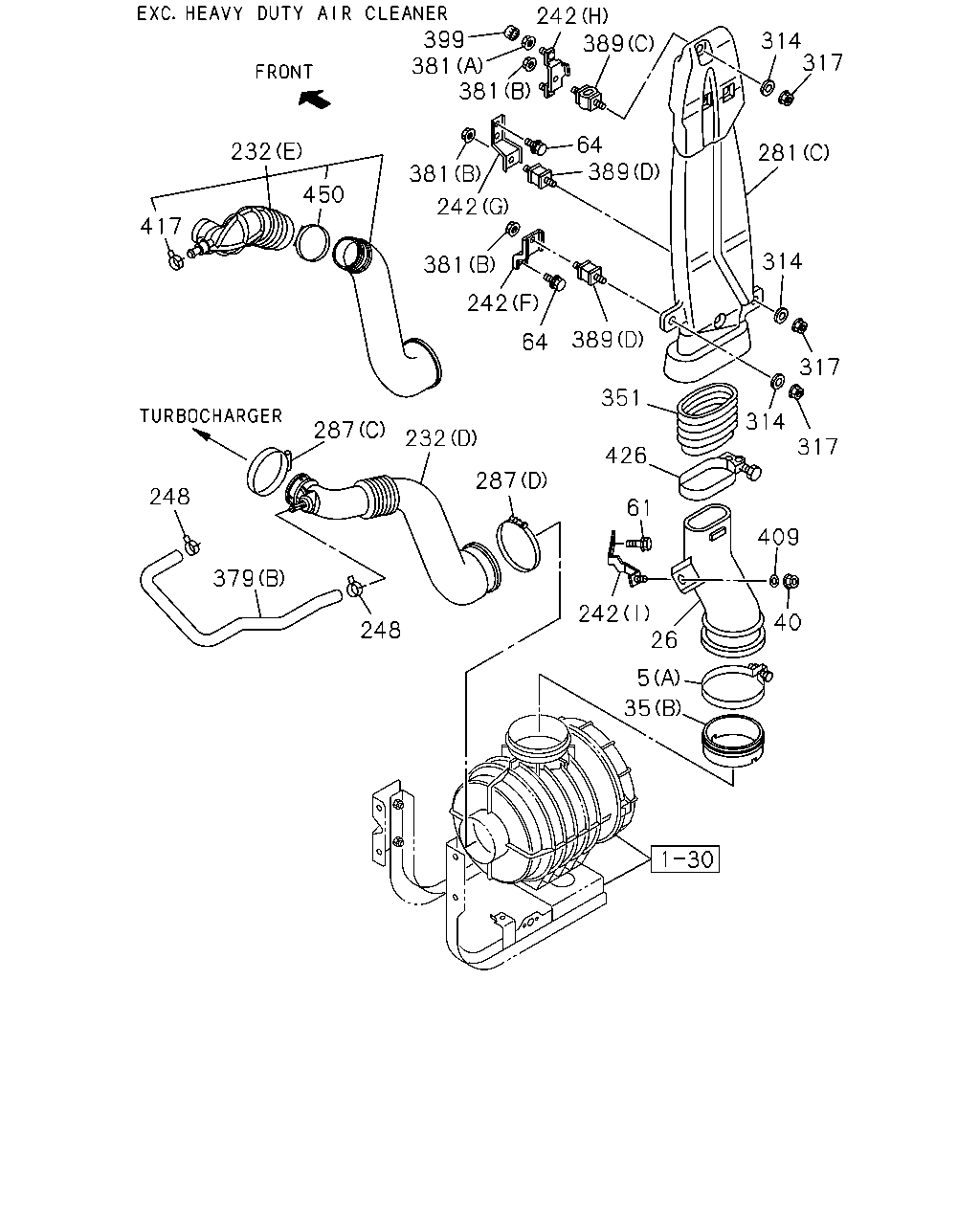

çizim 289423
399 242 389 381 381 314 317 281 64 389 381 242 381 242 64 389 351 426 61 409 317 314 317 314 40 26 242 5 35 248 379 248 287 232 287 450 232 417
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=127 		1-14239-263-0 01 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=127 		1-14239-263-0 01 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50 		8-98133-347-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50 		8-98133-347-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75 		8-98133-349-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75 		8-98133-349-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79 		1-09707-136-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79 		1-09707-136-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60 		8-94175-940-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60 		8-94175-940-0 02 1 1309- ● ●
26 03.417 DUCT; AIR INT
4JB1-TC ENG(RDT) 		8-98278-682-0 01 1 1510- ●
26 03.417 DUCT; AIR INT
4JB1-TC ENG(RDT) 		8-98177-803-0 01 1 1206-1308 ●
26 03.417 DUCT; AIR INT
4JB1-TC ENG(RDT) 		8-98177-803-0 01 1 1309-1509 ● ●
26 03.417 DUCT; AIR INT
4JB1-TC ENG(RDT) 		8-98177-803-0 01 1 1510- ●
35 03.406 SEAL; DUCT,INT
4JB1-TC ENG(RDT) (B) 		8-98029-332-0 01 1 1206-1308 ●
35 03.406 SEAL; DUCT,INT
4JB1-TC ENG(RDT) (B) 		8-98029-332-0 01 1 1309- ● ●
35 03.406 SEAL; DUCT,INT
03.403 (A) 		8-97853-699-2 01 1 1011- ●
40 03.417 NUT; AIR INT DUCT
4JB1-TC ENG(RDT) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1206-1308 ●
40 03.417 NUT; AIR INT DUCT
4JB1-TC ENG(RDT) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1206-1308 ●
61 03.417 BOLT; BRKT,AIR DUCT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1011- ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (D) 		8-98069-040-2 01 1 1206-1308 ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (D) 		8-98069-040-2 01 1 1309-1509 ● ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (E) 		8-98327-660-0 01 1 1510- ● ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (A) 		8-94110-075-3 01 1 1011- ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (B) 		8-94417-173-1 01 1 1011-1106 ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (B) 		8-98170-481-1 01 1 1107- ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (C) 		8-97107-173-1 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98278-681-0 01 1 1510- ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-97226-059-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-97226-059-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (F) 		8-97312-894-1 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (F) 		8-97312-894-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (G) 		8-97329-201-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (G) 		8-97329-201-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (H) 		8-97329-306-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (H) 		8-97329-306-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1309-1509 ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1510- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (D) 		8-97856-935-0 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (A) 		8-97856-956-1 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (C) 		8-97856-958-0 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (B) 		8-97856-967-1 01 1 1011- ●
248 03.417 CLIP; RUBBER HOSE
4JB1-NA ENG(RLF) 03.265 ID=20.4 		8-94121-113-0 02 1 1011-1205 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1206-1308 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1309- ●
248 03.417 CLIP; RUBBER HOSE
4JB1-TC ENG(RDT) 03.265 ID=20.4 		8-94121-113-0 02 1 1309- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-994-2 01 1 1206-1308 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-994-2 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-97369-706-0 01 1 1206-1308 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-97369-706-0 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-NA ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A) 		8-97089-948-2 01 1 1011- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-NA ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-97076-959-2 01 1 1011- ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.407 (D) ID=112 		9-09915-074-1 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.407 (D) ID=112 		9-09915-074-1 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-NA ENG(RLF) 03.407 (A) ID=92 		9-09915-072-1 01 1 1011- ●
287 03.417 CLIP; AIR DUCT
4JB1-NA ENG(RLF) 03.407 (B) ID=79 		9-09915-734-1 03 1 1011- ●
314 03.417 WASHER; PL,AIR INT DUCT
4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1206-1308 ●
314 03.417 WASHER; PL,AIR INT DUCT
4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1309- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1011- ●
351 03.407 DUCT; AIR
4JB1-TC ENG(RDT) 		8-98115-594-0 01 1 1206-1308 ●
351 03.407 DUCT; AIR
4JB1-TC ENG(RDT) 		8-98115-594-0 01 1 1309- ● ●
351 03.407 DUCT; AIR
4JB1-NA ENG(RLF) 03.417 		5-14231-115-1 01 1 1011- ●
379 03.675 HOSE; RUBBER
4JB1-TC ENG(RDT) (B) 		8-98178-711-0 01 1 1206-1308 ●
379 03.675 HOSE; RUBBER
4JB1-TC ENG(RDT) (B) 		8-98178-711-0 01 1 1309- ● ●
379 03.675 HOSE; RUBBER
4JB1-NA ENG(RLF) 03.265 (A) 		8-97253-667-0 01 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 (A) M6 FLANGE 		1-09984-018-0 02 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
4JB1-NA ENG(RLF) (B) M8 W/LK WASHER 		8-97581-234-0 01 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
(B) M8 W/LK WASHER 		8-97581-234-0 03 1 1011- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) (C) 		8-98036-825-0 01 1 1206-1308 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) (C) 		8-98036-825-0 01 1 1309- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) 03.417 (D) 		8-98036-826-0 02 1 1206-1308 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) 03.417 (D) 		8-98036-826-0 02 1 1309- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-NA ENG(RLF) 03.417 (A) 		8-97080-149-0 01 1 1011- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-NA ENG(RLF) 03.417 (B) 		8-97081-886-0 02 1 1011- ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 1011-1308 ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 1309- ● ●
409 03.417 WASHER; PL,BRKT
4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1206-1308 ●
409 03.417 WASHER; PL,BRKT
4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1309- ● ●
417 03.278 CLIP; WATER HOSE
4JB1-TC ENG(RDT) 08.846 ID=23 		8-94382-402-0 01 1 1510- ● ●
426 03.417 CLIP; DUCT
4JB1-TC ENG(RDT) 03.407 D=101.6 		9-09915-502-1 01 1 1206-1308 ●
426 03.417 CLIP; DUCT
4JB1-TC ENG(RDT) 03.407 D=101.6 		9-09915-502-1 01 1 1309- ● ●
426 03.417 CLIP; DUCT
4JB1-NA ENG(RLF) 03.407 ID=87 		8-97087-432-0 01 1 1011- ●
450 03.417 CLAMP; HOSE
4JB1-TC ENG(RDT) 03.407 ID=65-85 		8-98133-350-0 01 1 1510- ● ●

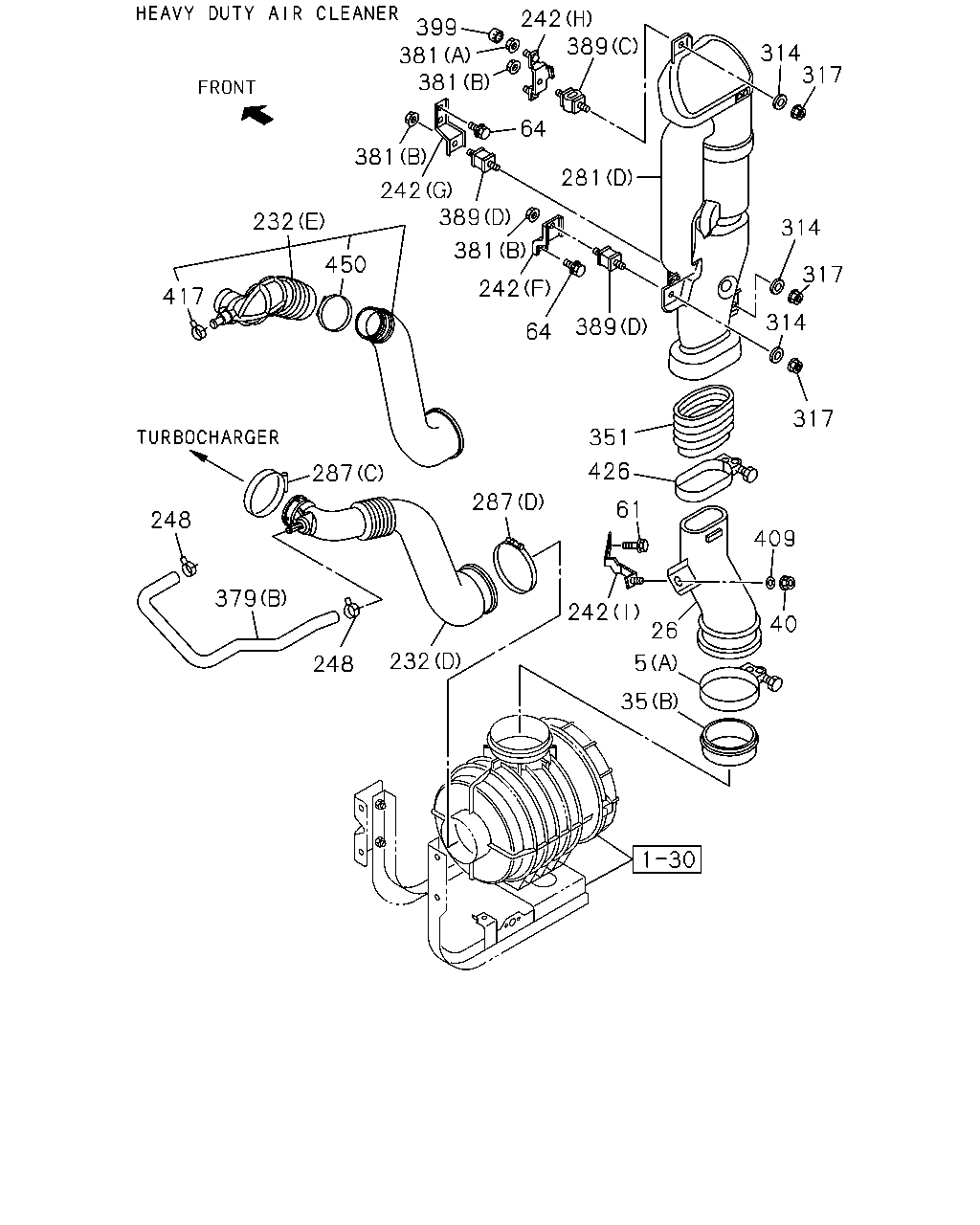

çizim 289437
399 242 389 314 317 314 317 314 317 409 40 5 35 232 248 379 248 287 287 242 26 61 426 351 64 389 242 381 389 450 232 417 242 381 381 381 64 281
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=127 		1-14239-263-0 01 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=127 		1-14239-263-0 01 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50 		8-98133-347-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (B) ID=40-50 		8-98133-347-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75 		8-98133-349-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75 		8-98133-349-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79 		1-09707-136-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79 		1-09707-136-0 02 1 1309- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60 		8-94175-940-0 02 1 1206-1308 ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (B) ID=44-60 		8-94175-940-0 02 1 1309- ● ●
26 03.417 DUCT; AIR INT
4JB1-TC ENG(RDT) 		8-98278-682-0 01 1 1510- ●
26 03.417 DUCT; AIR INT
4JB1-TC ENG(RDT) 		8-98177-803-0 01 1 1206-1308 ●
26 03.417 DUCT; AIR INT
4JB1-TC ENG(RDT) 		8-98177-803-0 01 1 1309-1509 ● ●
26 03.417 DUCT; AIR INT
4JB1-TC ENG(RDT) 		8-98177-803-0 01 1 1510- ●
35 03.406 SEAL; DUCT,INT
4JB1-TC ENG(RDT) (B) 		8-98029-332-0 01 1 1206-1308 ●
35 03.406 SEAL; DUCT,INT
4JB1-TC ENG(RDT) (B) 		8-98029-332-0 01 1 1309- ● ●
35 03.406 SEAL; DUCT,INT
03.403 (A) 		8-97853-699-2 01 1 1011- ●
40 03.417 NUT; AIR INT DUCT
4JB1-TC ENG(RDT) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1206-1308 ●
40 03.417 NUT; AIR INT DUCT
4JB1-TC ENG(RDT) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1309- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1206-1308 ●
61 03.417 BOLT; BRKT,AIR DUCT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1309- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1011- ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (D) 		8-98069-040-2 01 1 1206-1308 ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (D) 		8-98069-040-2 01 1 1309-1509 ● ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (E) 		8-98327-660-0 01 1 1510- ● ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (A) 		8-94110-075-3 01 1 1011- ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (B) 		8-94417-173-1 01 1 1011-1106 ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (B) 		8-98170-481-1 01 1 1107- ●
232 03.417 HOSE; CONN
4JB1-NA ENG(RLF) (C) 		8-97107-173-1 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98278-681-0 01 1 1510- ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-97226-059-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (E) 		8-97226-059-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (F) 		8-97312-894-1 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (F) 		8-97312-894-1 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (G) 		8-97329-201-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (G) 		8-97329-201-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (H) 		8-97329-306-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (H) 		8-97329-306-0 01 1 1309- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1206-1308 ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1309-1509 ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (I) 		8-98177-804-0 01 1 1510- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (D) 		8-97856-935-0 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (A) 		8-97856-956-1 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (C) 		8-97856-958-0 01 1 1011- ●
242 03.417 BRACKET; AIR DUCT
4JB1-NA ENG(RLF) (B) 		8-97856-967-1 01 1 1011- ●
248 03.417 CLIP; RUBBER HOSE
4JB1-NA ENG(RLF) 03.265 ID=20.4 		8-94121-113-0 02 1 1011-1205 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1206-1308 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1309- ●
248 03.417 CLIP; RUBBER HOSE
4JB1-TC ENG(RDT) 03.265 ID=20.4 		8-94121-113-0 02 1 1309- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-994-2 01 1 1206-1308 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-994-2 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-97369-706-0 01 1 1206-1308 ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-97369-706-0 01 1 1309- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-NA ENG(RLF) HEAVY DUTY AIR CLEANER<K46> (A) 		8-97089-948-2 01 1 1011- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JB1-NA ENG(RLF) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-97076-959-2 01 1 1011- ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.407 (D) ID=112 		9-09915-074-1 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.407 (D) ID=112 		9-09915-074-1 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1206-1308 ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1309- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-NA ENG(RLF) 03.407 (A) ID=92 		9-09915-072-1 01 1 1011- ●
287 03.417 CLIP; AIR DUCT
4JB1-NA ENG(RLF) 03.407 (B) ID=79 		9-09915-734-1 03 1 1011- ●
314 03.417 WASHER; PL,AIR INT DUCT
4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1206-1308 ●
314 03.417 WASHER; PL,AIR INT DUCT
4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1309- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1011- ●
351 03.407 DUCT; AIR
4JB1-TC ENG(RDT) 		8-98115-594-0 01 1 1206-1308 ●
351 03.407 DUCT; AIR
4JB1-TC ENG(RDT) 		8-98115-594-0 01 1 1309- ● ●
351 03.407 DUCT; AIR
4JB1-NA ENG(RLF) 03.417 		5-14231-115-1 01 1 1011- ●
379 03.675 HOSE; RUBBER
4JB1-TC ENG(RDT) (B) 		8-98178-711-0 01 1 1206-1308 ●
379 03.675 HOSE; RUBBER
4JB1-TC ENG(RDT) (B) 		8-98178-711-0 01 1 1309- ● ●
379 03.675 HOSE; RUBBER
4JB1-NA ENG(RLF) 03.265 (A) 		8-97253-667-0 01 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 (A) M6 FLANGE 		1-09984-018-0 02 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
4JB1-NA ENG(RLF) (B) M8 W/LK WASHER 		8-97581-234-0 01 1 1011- ●
381 03.417 NUT; BRKT,AIR DUCT
(B) M8 W/LK WASHER 		8-97581-234-0 03 1 1011- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) (C) 		8-98036-825-0 01 1 1206-1308 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) (C) 		8-98036-825-0 01 1 1309- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) 03.417 (D) 		8-98036-826-0 02 1 1206-1308 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-TC ENG(RDT) 03.417 (D) 		8-98036-826-0 02 1 1309- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-NA ENG(RLF) 03.417 (A) 		8-97080-149-0 01 1 1011- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JB1-NA ENG(RLF) 03.417 (B) 		8-97081-886-0 02 1 1011- ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 1011-1308 ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 1309- ● ●
409 03.417 WASHER; PL,BRKT
4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1206-1308 ●
409 03.417 WASHER; PL,BRKT
4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1309- ● ●
417 03.278 CLIP; WATER HOSE
4JB1-TC ENG(RDT) 08.846 ID=23 		8-94382-402-0 01 1 1510- ● ●
426 03.417 CLIP; DUCT
4JB1-TC ENG(RDT) 03.407 D=101.6 		9-09915-502-1 01 1 1206-1308 ●
426 03.417 CLIP; DUCT
4JB1-TC ENG(RDT) 03.407 D=101.6 		9-09915-502-1 01 1 1309- ● ●
426 03.417 CLIP; DUCT
4JB1-NA ENG(RLF) 03.407 ID=87 		8-97087-432-0 01 1 1011- ●
450 03.417 CLAMP; HOSE
4JB1-TC ENG(RDT) 03.407 ID=65-85 		8-98133-350-0 01 1 1510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
