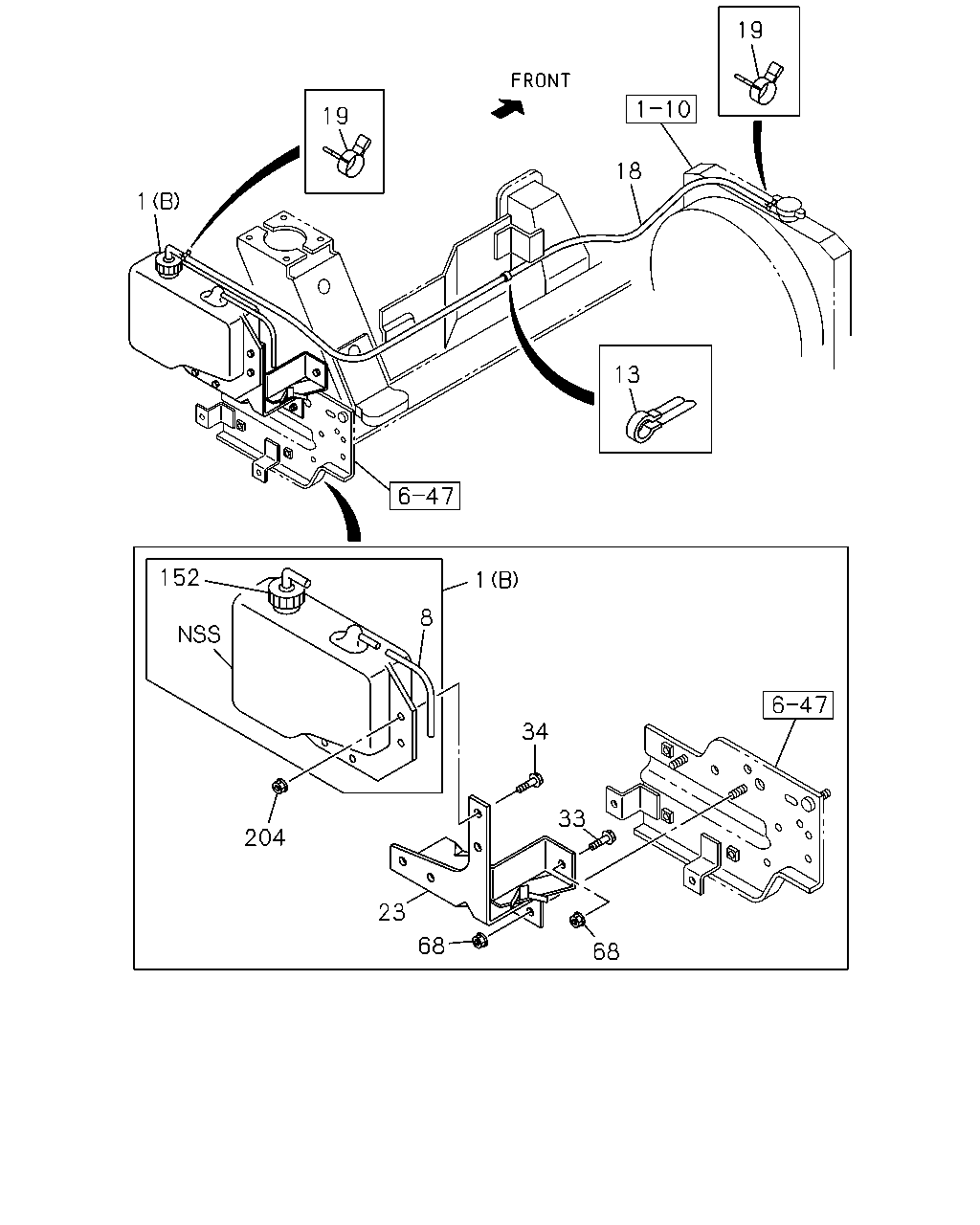

1-11 — RADIATOR HOSE AND SUB TANK (#79788) — 55 parça

1 18 19 19 13 34 34 1 29 204 204 29 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (B)	8-97205-136-1	01	1	1206-1308	●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (B)	8-97205-136-1	01	1	1309-	●	●
1	01.219 TANK; SURGE,RAD 4JB1-NA ENG(RLF) (A)	8-97138-509-0	01	1	1011-	●
2	01.203 CAP; SURGE TANK 4JB1-NA ENG(RLF)	8-94449-363-0	01	1	1011-	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) ID=14 L=47	5-09700-319-0	02	1	1206-1308	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) ID=14 L=47	5-09700-319-0	02	1	1309-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-NA ENG(RLF) ID=14 L=47	5-09700-319-0	01	1	1011-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1700	8-97225-445-2	01	1	1206-1308	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1700	8-97225-445-2	01	1	1309-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-NA ENG(RLF) L=860	8-97163-002-1	01	1	1011-	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1011-1308	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1309-	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1-NA ENG(RLF) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	1011-	●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1206-1308	●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1309-	●	●
34	01.203 BOLT; RESERVE TANK 4JB1-NA ENG(RLF) 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1011-	●
204	01.219 NUT; RESERVE TANK 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	04	1	1206-1308	●
204	01.219 NUT; RESERVE TANK 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	04	1	1309-	●	●
204	01.219 NUT; RESERVE TANK 4JB1-NA ENG(RLF) 01.062 M6 FLANGE	0-91180-106-0	03	1	1011-	●

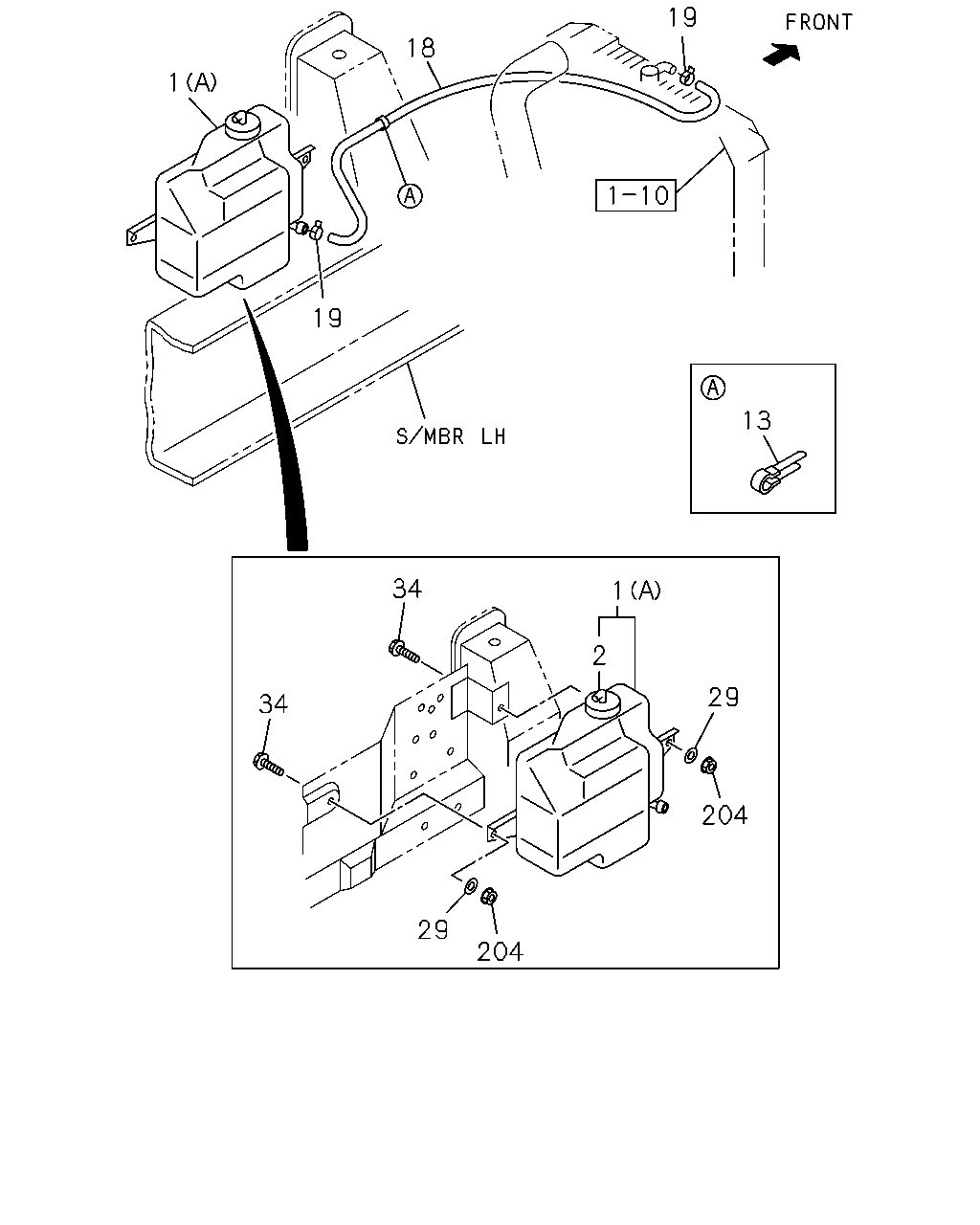

1 19 19 18 152 1 8 204 23 68 34 33 68 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (B)	8-97205-136-1	01	1	1206-1308	●
1	01.219 TANK; SURGE,RAD 4JB1-TC ENG(RDT) (B)	8-97205-136-1	01	1	1309-	●	●
1	01.219 TANK; SURGE,RAD 4JB1-NA ENG(RLF) (A)	8-97138-509-0	01	1	1011-	●
8	01.166 HOSE; VINYL 4JB1-TC ENG(RDT) 01.240 L=500	1-09366-179-0	01	1	1206-1308	●
8	01.166 HOSE; VINYL 4JB1-TC ENG(RDT) 01.240 L=500	1-09366-179-0	01	1	1309-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) ID=14 L=47	5-09700-319-0	02	1	1206-1308	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) ID=14 L=47	5-09700-319-0	02	1	1309-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-NA ENG(RLF) ID=14 L=47	5-09700-319-0	01	1	1011-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1700	8-97225-445-2	01	1	1206-1308	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) L=1700	8-97225-445-2	01	1	1309-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-NA ENG(RLF) L=860	8-97163-002-1	01	1	1011-	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1011-1308	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1309-	●	●
23	01.219 BRACKET; RESERVE TANK 4JB1-TC ENG(RDT)	8-97225-271-1	01	1	1206-1308	●
23	01.219 BRACKET; RESERVE TANK 4JB1-TC ENG(RDT)	8-97225-271-1	01	1	1309-	●	●
33	01.277 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1206-1308	●
33	01.277 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1206-1308	●
34	01.203 BOLT; RESERVE TANK 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1309-	●	●
34	01.203 BOLT; RESERVE TANK 4JB1-NA ENG(RLF) 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1011-	●
68	01.219 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	03	1	1206-1308	●
68	01.219 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	03	1	1309-	●	●
152	01.203 CAP ASM; SURGE TANK 4JB1-TC ENG(RDT)	8-97217-799-0	01	1	1206-1308	●
152	01.203 CAP ASM; SURGE TANK 4JB1-TC ENG(RDT)	8-97217-799-0	01	1	1309-	●	●
204	01.219 NUT; RESERVE TANK 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	04	1	1206-1308	●
204	01.219 NUT; RESERVE TANK 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	04	1	1309-	●	●
204	01.219 NUT; RESERVE TANK 4JB1-NA ENG(RLF) 01.062 M6 FLANGE	0-91180-106-0	03	1	1011-	●

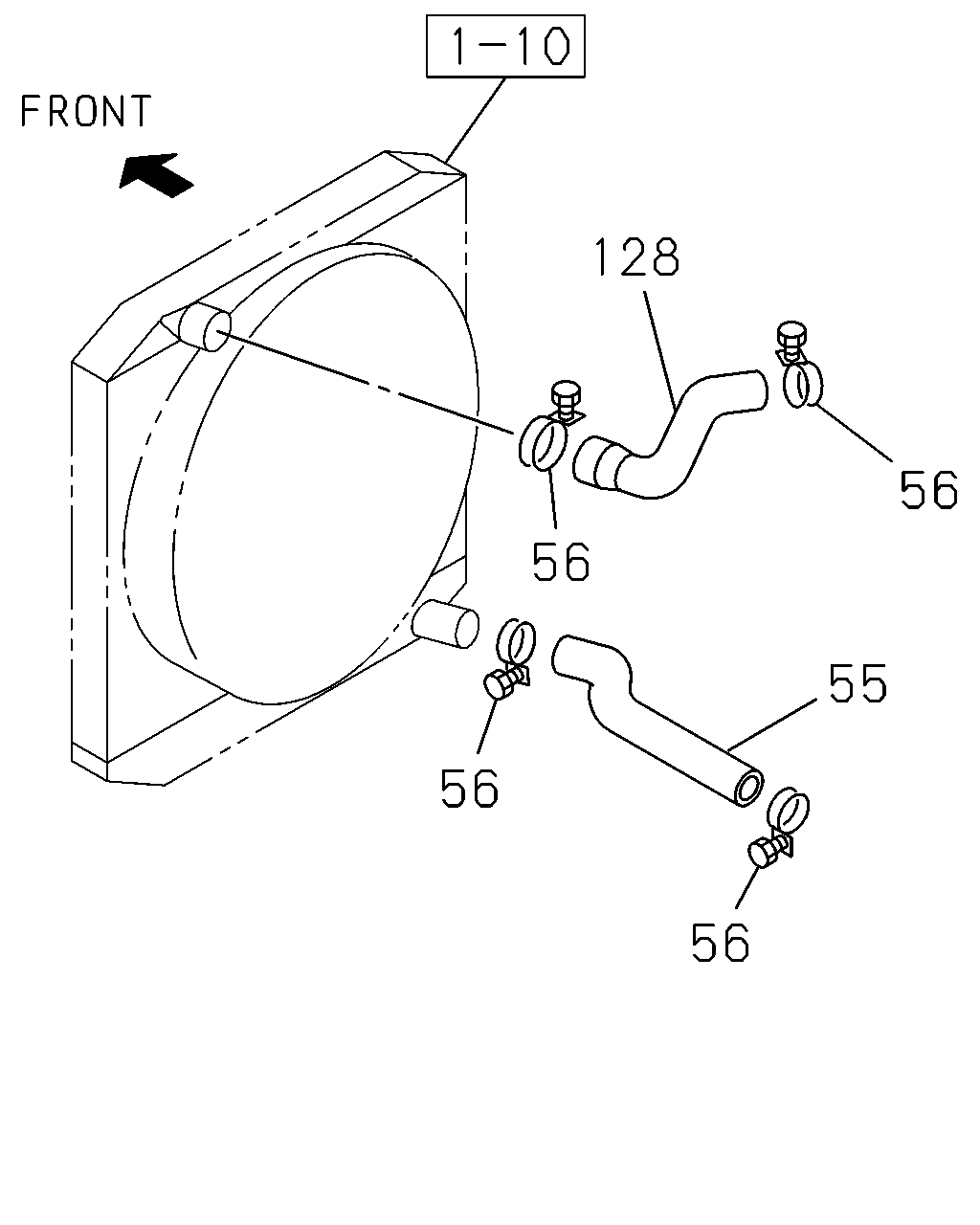

128 56 56 55 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	1011-	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	03	1	1011-	●
56	01.166 CLIP; WATER HOSE,RAD ID=42	8-98133-958-0	01	1	1011-	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	8-97693-152-0	01	1	1206-1308	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	8-97693-152-0	01	1	1309-	●	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97221-676-0	01	1	1206-1303	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98217-384-0	01	1	1304-1308	●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98217-384-0	01	1	1309-	●	●
128	01.159 HOSE; WATER,RAD INL 4JB1-NA ENG(RLF)	8-97147-473-0	01	1	1011-	●
