Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#79787) — 216 parça

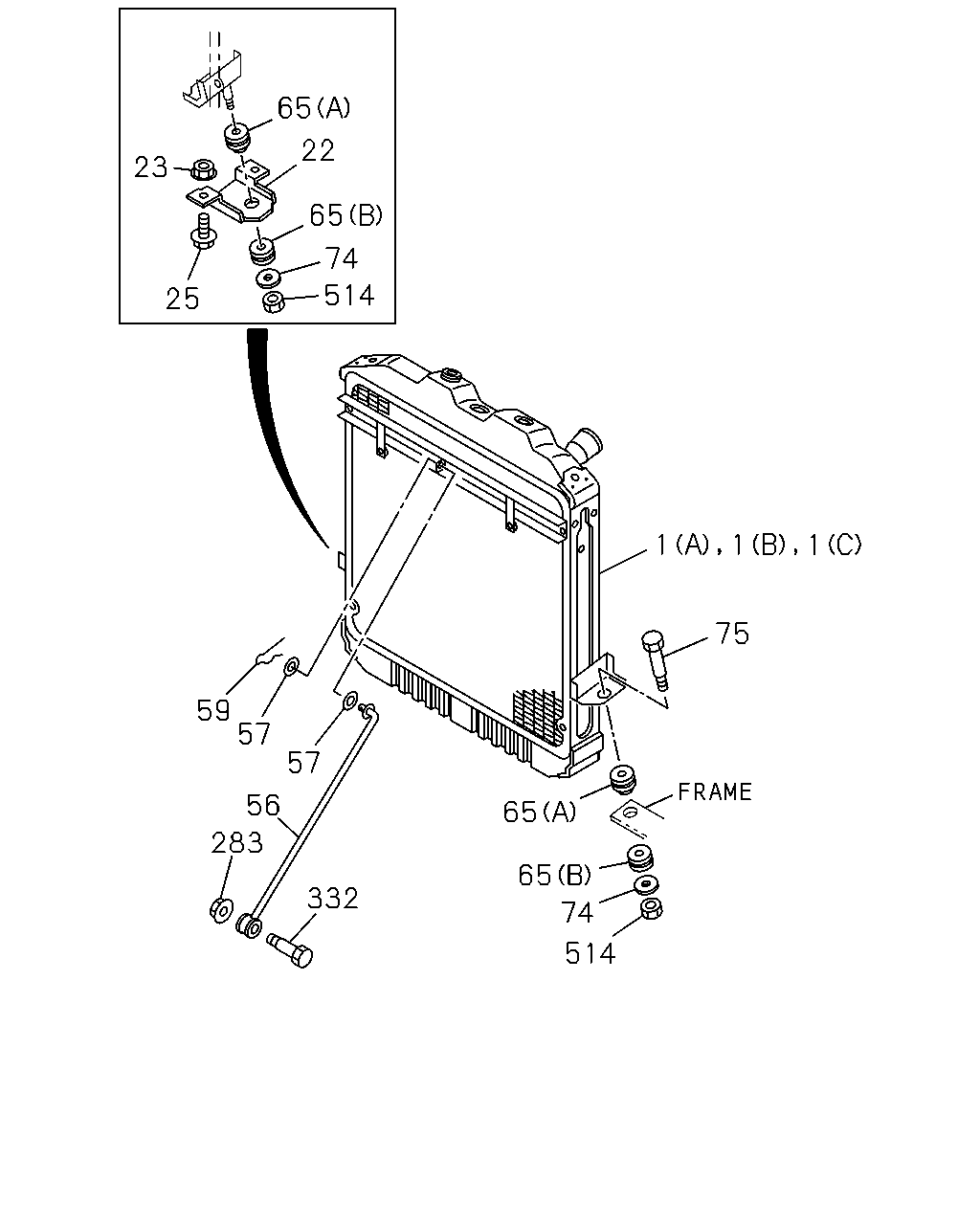

23 65 65 514 74 22 1 1 1 75 65 65 74 514 332 283 57 59 57 25 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97693-048-0	01	1	1206-1308	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97693-048-0	01	1	1309-	●	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98203-145-0	01	1	1206-1303	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98202-301-0	01	1	1304-1308	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98202-301-0	01	1	1309-	●	●
1	01.219 RADIATOR ASM (A)	8-97371-007-0	01	1	1011-1205	●
1	01.219 RADIATOR ASM 4JB1-NA ENG(RLF) (A)	8-97371-007-0	01	1	1206-	●
22	01.270 BRACKET; RAD MTG	8-94257-949-1	01	1	1011-1308	●
22	01.270 BRACKET; RAD MTG	8-94257-949-1	01	1	1309-	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	1011-1110	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-1308	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	02	1	1309-	●	●
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1011-1308	●
25	01.271 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1309-	●	●
56	01.270 STAY; RAD IDENTIFICATION LABEL FOR KD<6UT>	8-97693-053-0	01	1	1206-1308	●
56	01.270 STAY; RAD IDENTIFICATION LABEL FOR KD<6UT>	8-97693-053-0	01	1	1309-	●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	8-97693-053-0	01	1	1309-		●
56	01.270 STAY; RAD	8-97350-324-0	01	1	1011-1205	●
56	01.270 STAY; RAD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97350-324-0	01	1	1206-1308	●
56	01.270 STAY; RAD EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97350-324-0	01	1	1309-	●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97350-324-0	01	1	1309-		●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	1011-1308	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	1309-	●	●
57	01.271 WASHER; PL,STAY ID=12	8-97011-676-0	01	1	1011-1308	●
57	01.271 WASHER; PL,STAY ID=12	8-97011-676-0	01	1	1309-	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	1011-1308	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	1309-	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1011-1308	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1309-	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1011-1308	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1309-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=10.5	0-91610-710-0	01	1	1011-1308	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=10.5	0-91610-710-0	01	1	1309-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1011-1308	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1309-	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	1011-1308	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	1309-	●	●
283	01.277 NUT; BRKT 01.271 M8 FLANGE	8-94178-701-0	01	1	1011-1308	●
283	01.277 NUT; BRKT 01.271 M8 FLANGE	8-94178-701-0	01	1	1309-	●	●
332	01.276 BOLT; BRKT,RAD STAY 01.271 M8X45	8-94401-350-0	01	1	1011-1308	●
332	01.276 BOLT; BRKT,RAD STAY 01.271 M8X45	8-94401-350-0	01	1	1309-	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-1308	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●	●

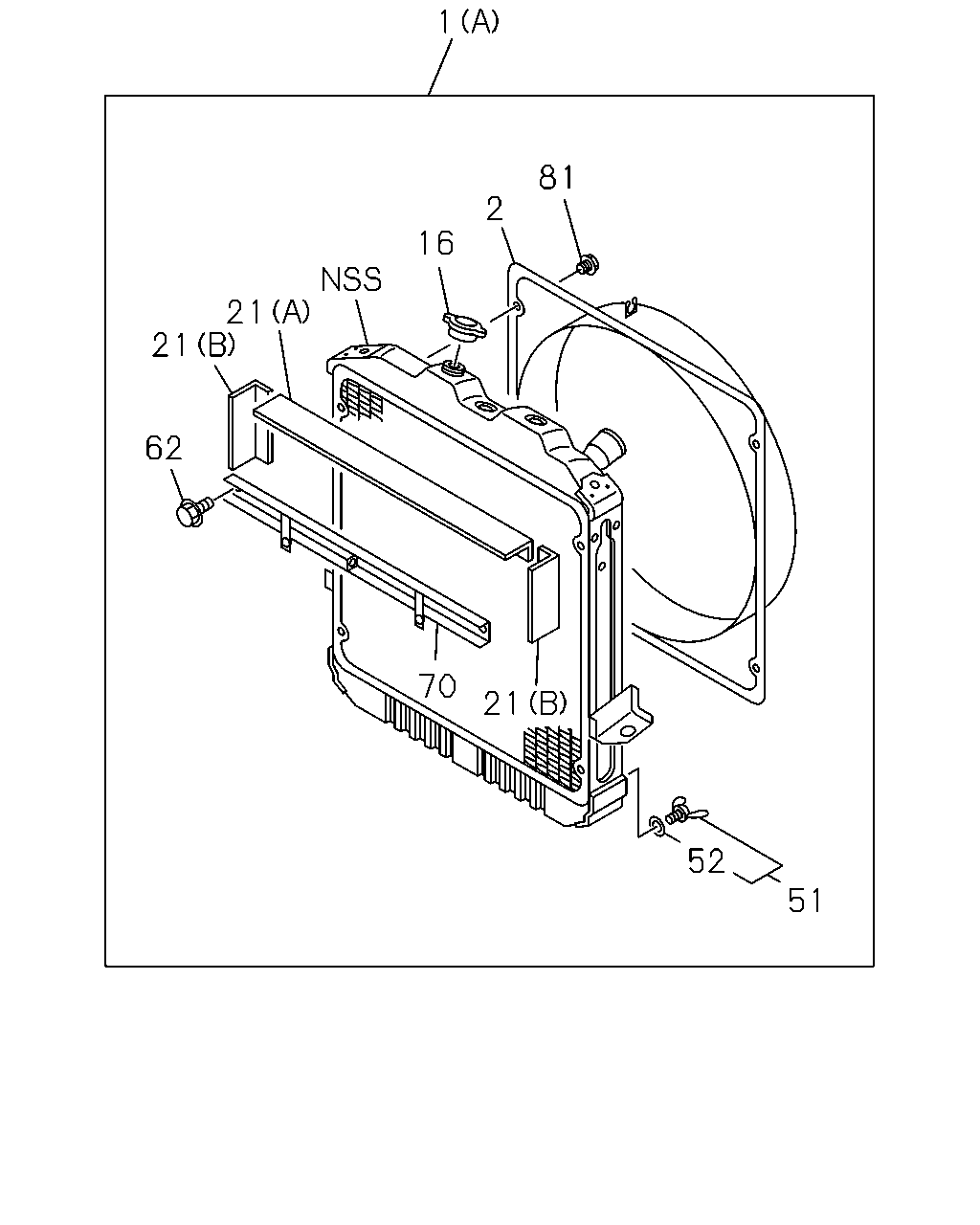

51 52 21 70 81 2 16 21 21 62 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97693-048-0	01	1	1206-1308	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97693-048-0	01	1	1309-	●	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98203-145-0	01	1	1206-1303	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98202-301-0	01	1	1304-1308	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98202-301-0	01	1	1309-	●	●
1	01.219 RADIATOR ASM (A)	8-97371-007-0	01	1	1011-1205	●
1	01.219 RADIATOR ASM 4JB1-NA ENG(RLF) (A)	8-97371-007-0	01	1	1206-	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-501-0	01	1	1206-1308	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-501-0	01	1	1309-	●	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97223-685-0	01	1	1206-1303	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-636-0	01	1	1304-1308	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-636-0	01	1	1309-	●	●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	1011-1205	●
2	01.277 GUIDE; FAN 4JB1-NA ENG(RLF)	8-97066-011-0	01	1	1206-	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98096-226-0	01	1	1304-1308	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98096-226-0	01	1	1309-	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-502-0	01	1	1206-1308	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-502-0	01	1	1309-	●	●
16	01.203 CAP; RAD	8-97371-017-0	01	1	1011-1205	●
16	01.203 CAP; RAD 4JB1-NA ENG(RLF)	8-97371-017-0	01	1	1206-1303	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97371-017-0	01	1	1206-1303	●
16	01.203 CAP; RAD 4JB1-NA ENG(RLF)	8-97371-017-0	01	1	1304-	●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97219-806-3	01	1	1206-1308	●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97219-806-3	01	1	1309-	●	●
21	01.276 SEAL; RAD (A)	8-97085-689-0	01	1	1011-1205	●
21	01.276 SEAL; RAD 4JB1-NA ENG(RLF) (A)	8-97085-689-0	01	1	1206-	●
21	01.276 SEAL; RAD (B)	8-97085-690-0	02	1	1011-1205	●
21	01.276 SEAL; RAD 4JB1-NA ENG(RLF) (B)	8-97085-690-0	02	1	1206-	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-503-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-503-0	01	1	1309-	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	1011-1205	●
51	08.951 PLUG; DRAIN 4JB1-NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.915 W/GASKET	8-94321-236-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.915 W/GASKET	8-94321-236-0	01	1	1309-	●	●
51	08.951 PLUG; DRAIN 4JB1-NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	1309-	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	1011-1205	●
52	08.951 GASKET; DRAIN PLUG 4JB1-NA ENG(RLF) 01.203 ID=10	9-09720-557-0	01	1	1206-	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1304-1308	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1309-	●	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-504-0	02	1	1206-1308	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-504-0	02	1	1309-	●	●
62	01.271 BOLT; STAY 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1011-1205	●
62	01.271 BOLT; STAY 4JB1-NA ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1206-1303	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1206-1303	●
62	01.271 BOLT; STAY 4JB1-NA ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1304-	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-835-0	01	1	1304-1308	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-835-0	01	1	1309-	●	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-505-0	01	1	1206-1308	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-505-0	01	1	1309-	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	1011-1205	●
70	01.271 STAY; RAD 4JB1-NA ENG(RLF)	8-97047-899-0	01	1	1206-1303	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97047-899-0	01	1	1206-1303	●
70	01.271 STAY; RAD 4JB1-NA ENG(RLF)	8-97047-899-0	01	1	1304-	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	1-09470-009-0	04	1	1304-1308	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	1-09470-009-0	04	1	1309-	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-506-0	06	1	1206-1308	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-506-0	06	1	1309-	●	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	1011-1205	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-NA ENG(RLF)	8-97088-810-0	04	1	1206-1303	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97088-810-0	04	1	1206-1303	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-NA ENG(RLF)	8-97088-810-0	04	1	1304-	●

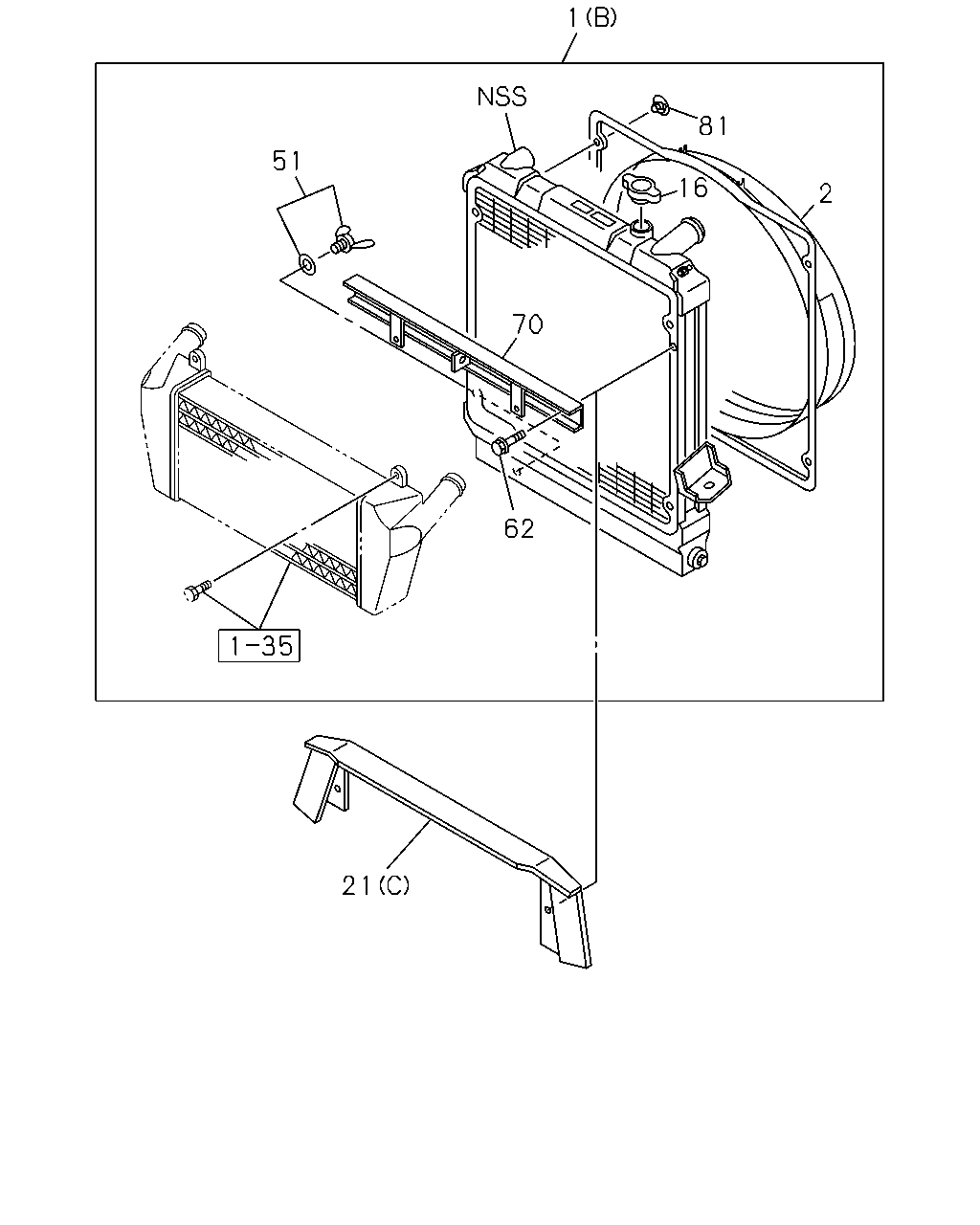

1 51 70 81 16 2 62 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97693-048-0	01	1	1206-1308	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97693-048-0	01	1	1309-	●	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98203-145-0	01	1	1206-1303	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98202-301-0	01	1	1304-1308	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98202-301-0	01	1	1309-	●	●
1	01.219 RADIATOR ASM (A)	8-97371-007-0	01	1	1011-1205	●
1	01.219 RADIATOR ASM 4JB1-NA ENG(RLF) (A)	8-97371-007-0	01	1	1206-	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-501-0	01	1	1206-1308	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-501-0	01	1	1309-	●	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97223-685-0	01	1	1206-1303	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-636-0	01	1	1304-1308	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-636-0	01	1	1309-	●	●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	1011-1205	●
2	01.277 GUIDE; FAN 4JB1-NA ENG(RLF)	8-97066-011-0	01	1	1206-	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98096-226-0	01	1	1304-1308	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98096-226-0	01	1	1309-	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-502-0	01	1	1206-1308	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-502-0	01	1	1309-	●	●
16	01.203 CAP; RAD	8-97371-017-0	01	1	1011-1205	●
16	01.203 CAP; RAD 4JB1-NA ENG(RLF)	8-97371-017-0	01	1	1206-1303	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97371-017-0	01	1	1206-1303	●
16	01.203 CAP; RAD 4JB1-NA ENG(RLF)	8-97371-017-0	01	1	1304-	●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97219-806-3	01	1	1206-1308	●
21	01.276 SEAL; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97219-806-3	01	1	1309-	●	●
21	01.276 SEAL; RAD (A)	8-97085-689-0	01	1	1011-1205	●
21	01.276 SEAL; RAD 4JB1-NA ENG(RLF) (A)	8-97085-689-0	01	1	1206-	●
21	01.276 SEAL; RAD (B)	8-97085-690-0	02	1	1011-1205	●
21	01.276 SEAL; RAD 4JB1-NA ENG(RLF) (B)	8-97085-690-0	02	1	1206-	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-503-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-503-0	01	1	1309-	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	1011-1205	●
51	08.951 PLUG; DRAIN 4JB1-NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.915 W/GASKET	8-94321-236-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.915 W/GASKET	8-94321-236-0	01	1	1309-	●	●
51	08.951 PLUG; DRAIN 4JB1-NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	1309-	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1304-1308	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1309-	●	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-504-0	02	1	1206-1308	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-504-0	02	1	1309-	●	●
62	01.271 BOLT; STAY 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1011-1205	●
62	01.271 BOLT; STAY 4JB1-NA ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1206-1303	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1206-1303	●
62	01.271 BOLT; STAY 4JB1-NA ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1304-	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-835-0	01	1	1304-1308	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-835-0	01	1	1309-	●	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-505-0	01	1	1206-1308	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-505-0	01	1	1309-	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	1011-1205	●
70	01.271 STAY; RAD 4JB1-NA ENG(RLF)	8-97047-899-0	01	1	1206-1303	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97047-899-0	01	1	1206-1303	●
70	01.271 STAY; RAD 4JB1-NA ENG(RLF)	8-97047-899-0	01	1	1304-	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	1-09470-009-0	04	1	1304-1308	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	1-09470-009-0	04	1	1309-	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-506-0	06	1	1206-1308	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-506-0	06	1	1309-	●	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	1011-1205	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-NA ENG(RLF)	8-97088-810-0	04	1	1206-1303	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97088-810-0	04	1	1206-1303	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-NA ENG(RLF)	8-97088-810-0	04	1	1304-	●

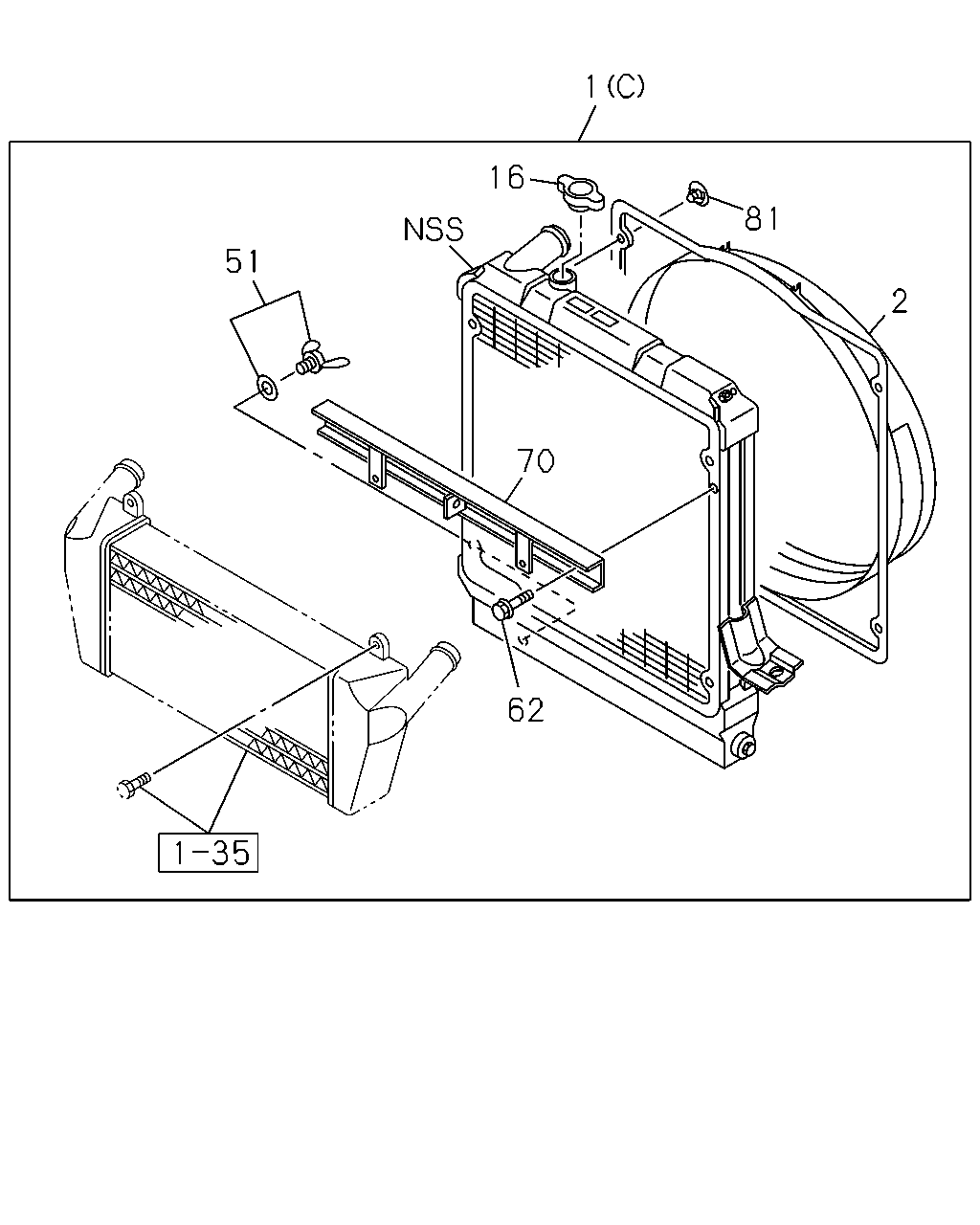

1 16 51 81 2 70 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97693-048-0	01	1	1206-1308	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97693-048-0	01	1	1309-	●	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98203-145-0	01	1	1206-1303	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98202-301-0	01	1	1304-1308	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98202-301-0	01	1	1309-	●	●
1	01.219 RADIATOR ASM (A)	8-97371-007-0	01	1	1011-1205	●
1	01.219 RADIATOR ASM 4JB1-NA ENG(RLF) (A)	8-97371-007-0	01	1	1206-	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-501-0	01	1	1206-1308	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-501-0	01	1	1309-	●	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97223-685-0	01	1	1206-1303	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-636-0	01	1	1304-1308	●
2	01.277 GUIDE; FAN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-636-0	01	1	1309-	●	●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	1011-1205	●
2	01.277 GUIDE; FAN 4JB1-NA ENG(RLF)	8-97066-011-0	01	1	1206-	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98096-226-0	01	1	1304-1308	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98096-226-0	01	1	1309-	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-502-0	01	1	1206-1308	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-502-0	01	1	1309-	●	●
16	01.203 CAP; RAD	8-97371-017-0	01	1	1011-1205	●
16	01.203 CAP; RAD 4JB1-NA ENG(RLF)	8-97371-017-0	01	1	1206-1303	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97371-017-0	01	1	1206-1303	●
16	01.203 CAP; RAD 4JB1-NA ENG(RLF)	8-97371-017-0	01	1	1304-	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-503-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-503-0	01	1	1309-	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	1011-1205	●
51	08.951 PLUG; DRAIN 4JB1-NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.915 W/GASKET	8-94321-236-0	01	1	1206-1308	●
51	08.951 PLUG; DRAIN 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.915 W/GASKET	8-94321-236-0	01	1	1309-	●	●
51	08.951 PLUG; DRAIN 4JB1-NA ENG(RLF) 08.915 W/GASKET	8-94321-236-0	01	1	1309-	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1304-1308	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1309-	●	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-504-0	02	1	1206-1308	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-504-0	02	1	1309-	●	●
62	01.271 BOLT; STAY 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1011-1205	●
62	01.271 BOLT; STAY 4JB1-NA ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1206-1303	●
62	01.271 BOLT; STAY 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1206-1303	●
62	01.271 BOLT; STAY 4JB1-NA ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	1304-	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-835-0	01	1	1304-1308	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98205-835-0	01	1	1309-	●	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-505-0	01	1	1206-1308	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-505-0	01	1	1309-	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	1011-1205	●
70	01.271 STAY; RAD 4JB1-NA ENG(RLF)	8-97047-899-0	01	1	1206-1303	●
70	01.271 STAY; RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97047-899-0	01	1	1206-1303	●
70	01.271 STAY; RAD 4JB1-NA ENG(RLF)	8-97047-899-0	01	1	1304-	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	1-09470-009-0	04	1	1304-1308	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	1-09470-009-0	04	1	1309-	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-506-0	06	1	1206-1308	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>	5-87220-506-0	06	1	1309-	●	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	1011-1205	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-NA ENG(RLF)	8-97088-810-0	04	1	1206-1303	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97088-810-0	04	1	1206-1303	●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-NA ENG(RLF)	8-97088-810-0	04	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
