Isuzu WW
▶
TRUCKS
▶
QKR
▶
51376 - QKR(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#79786) — 54 parça
Tümü
A - NKR6SN
B - NKR6SE
◀
[101A] ACCEL PEDAL (28 parça)
[101A] ACCEL CABLE FIXING (22 parça)
[101A] CABLE;IDLE CONT (4 parça)
▶

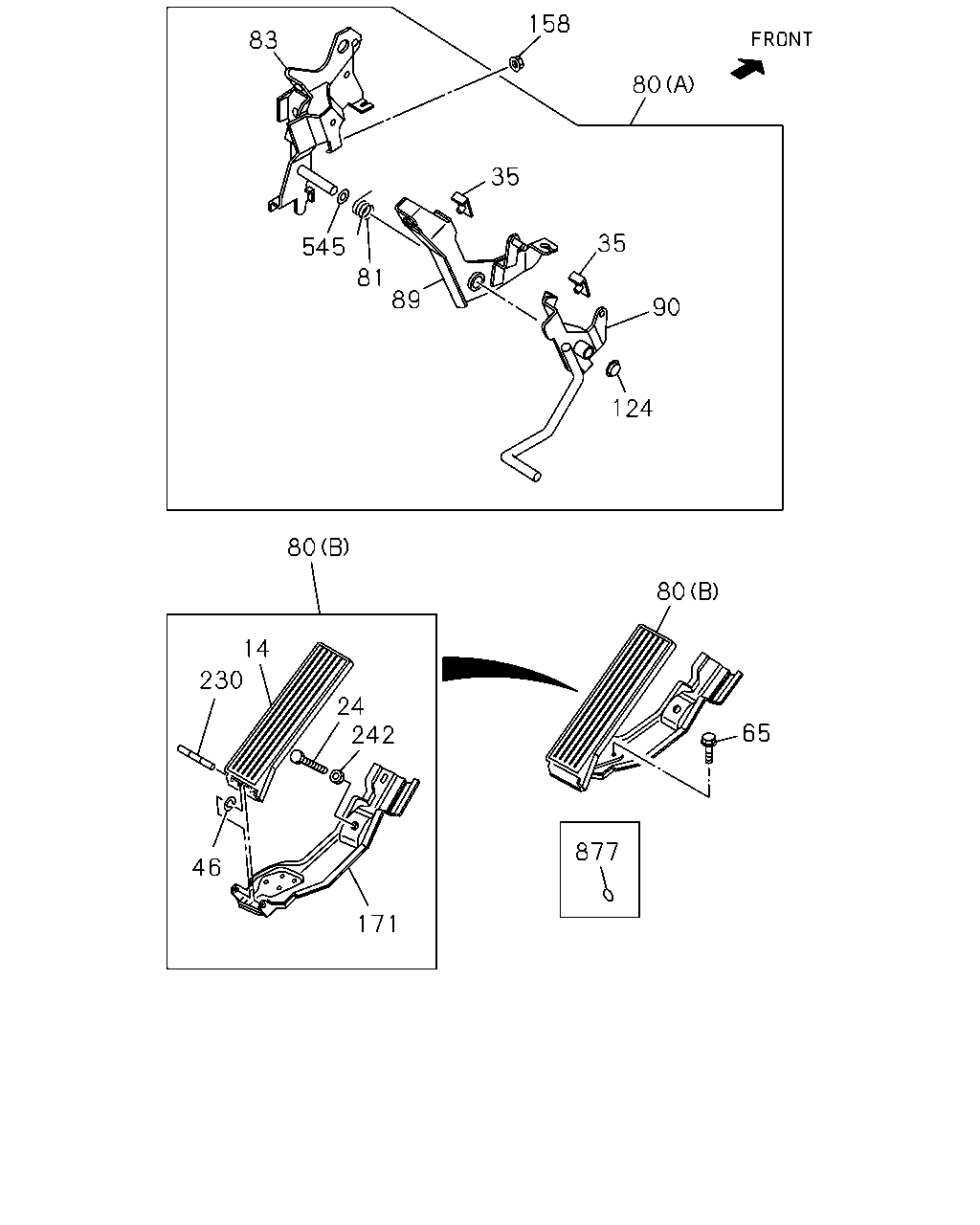

877
65
80
171
46
242
24
230
14
80
124
90
35
35
89
81
545
83
158
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
03.451 PAD; PEDAL,ACCEL
8-97859-101-0
01
1
1011-1308
●
14
03.451 PAD; PEDAL,ACCEL
8-97859-101-0
01
1
1309-
●
●
24
03.483 BOLT; BRKT
03.459
0-20800-840-0
01
1
1011-1308
●
24
03.483 BOLT; BRKT
03.459
0-20800-840-0
01
1
1309-
●
●
35
03.459 STOPPER; ACCEL PEDAL
8-97302-305-0
02
1
1011-
●
46
03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
1011-1308
●
46
03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
1309-
●
●
65
03.483 BOLT
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
03
1
1011-1308
●
65
03.483 BOLT
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
03
1
1309-
●
●
80
03.452 LINK ASM; ENG CONT
(B)
8-97859-100-0
01
1
1011-1308
●
80
03.452 LINK ASM; ENG CONT
(B)
8-97859-100-0
01
1
1309-
●
●
80
03.452 LINK ASM; ENG CONT
(A)
8-97859-518-3
01
1
1011-
●
81
03.459 SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
1011-
●
83
03.452 BRACKET; CONT LINK
8-97859-519-0
01
1
1011-
●
89
03.454 LEVER; RELAY
8-97857-617-4
01
1
1011-
●
90
03.454 LEVER; RELAY,ENG CONT
8-97857-613-6
01
1
1011-
●
124
03.463 NUT; LEVER
09.011 ID=9.9 PUSH NUT
8-97012-098-0
01
1
1011-
●
158
03.452 NUT; BRKT
08.857 M8 FLANGE
8-94279-060-0
02
1
1011-1308
●
158
03.452 NUT; BRKT
08.857 M8 FLANGE
8-94279-060-0
02
1
1309-
●
●
171
03.483 BRACKET ASM; ACCEL PEDAL
8-97857-482-1
01
1
1011-1308
●
171
03.483 BRACKET ASM; ACCEL PEDAL
8-97857-482-1
01
1
1309-
●
●
230
03.452 PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
1011-1308
●
230
03.452 PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
1309-
●
●
242
03.483 NUT; ACCEL PEDAL
02.334 M8
0-91110-508-0
01
1
1011-1308
●
242
03.483 NUT; ACCEL PEDAL
02.334 M8
0-91110-508-0
01
1
1309-
●
●
545
03.463 WASHER; NYLON
12.242 ID=10.5 OD=16
9-09855-178-0
01
1
1011-
●
877
03.454 SEAL; HOLE
16.165 OD=20 T=0.05 BLACK
5-76777-036-0
01
1
1011-1308
●
877
03.454 SEAL; HOLE
16.165 OD=20 T=0.05 BLACK
5-76777-036-0
01
1
1309-
●
●

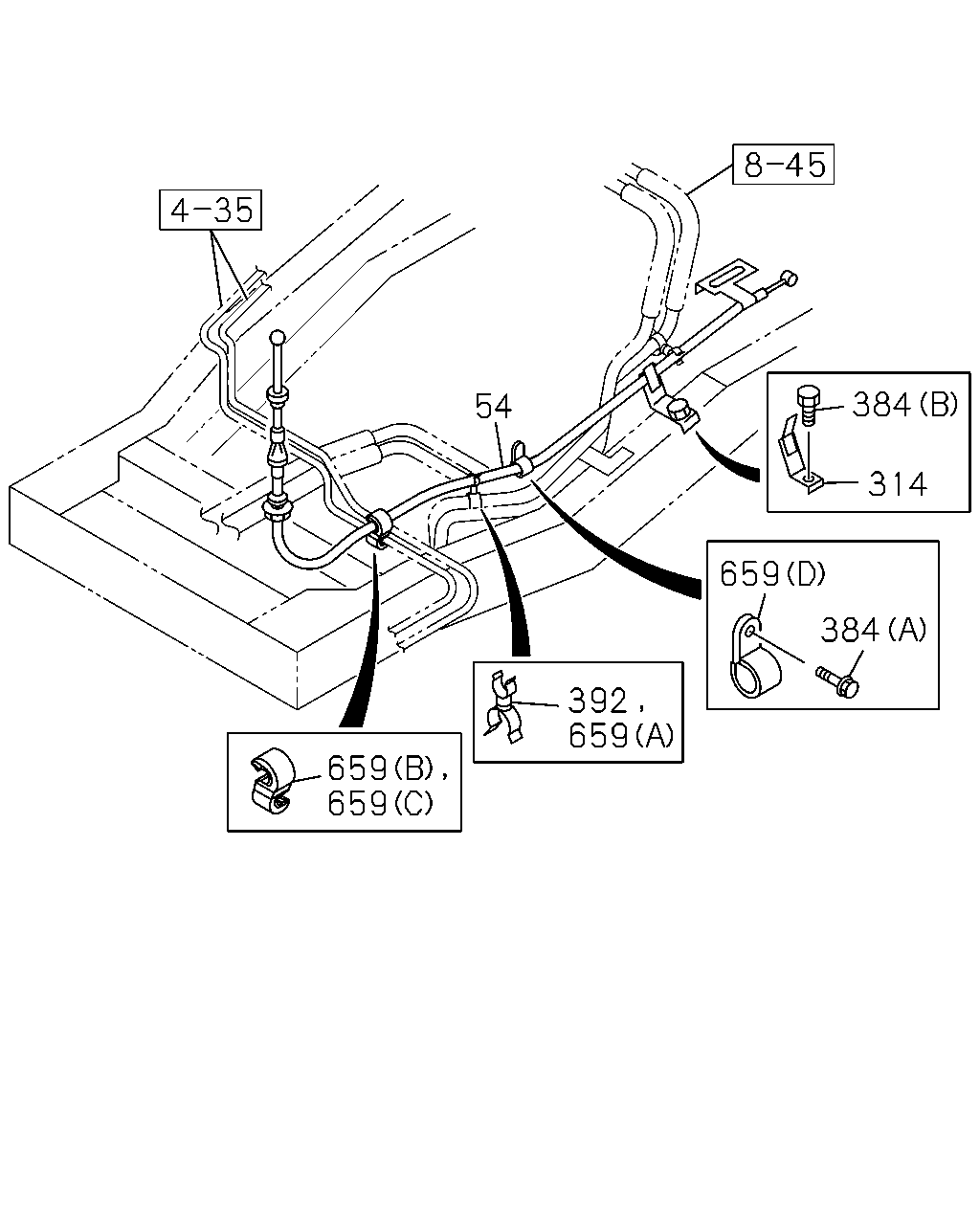

659
659
659
392
384
659
314
384
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
54
03.430 CABLE; ENG CONT
4JB1-TC ENG(RDT) L=1749
8-97228-819-2
01
1
1206-1302
●
54
03.430 CABLE; ENG CONT
4JB1-TC ENG(RDT) L=1718
8-98238-323-0
01
1
1303-1308
●
54
03.430 CABLE; ENG CONT
4JB1-TC ENG(RDT) L=1718
8-98238-323-0
01
1
1309-
●
●
54
03.430 CABLE; ENG CONT
4JB1-NA ENG(RLF) L=1701
8-97118-537-3
01
1
1011-
●
314
03.481 BRACKET; ACCEL CABLE
4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 03.483
8-94167-969-2
01
1
1011-1309
●
314
03.481 BRACKET; ACCEL CABLE
4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 03.483
8-94167-969-2
01
1
1310-
●
384
03.483 BOLT; CLIP,CONT CABLE
03.162 (A) M6X12 FLANGE
0-28050-612-0
01
1
1011-1205
●
384
03.483 BOLT; CLIP,CONT CABLE
4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE
0-28050-612-0
01
1
1206-1308
●
384
03.483 BOLT; CLIP,CONT CABLE
03.162 (A) M6X12 FLANGE
0-28050-612-0
01
1
1206-1308
●
384
03.483 BOLT; CLIP,CONT CABLE
4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE
0-28050-612-0
01
1
1309-
●
●
384
03.483 BOLT; CLIP,CONT CABLE
03.162 (A) M6X12 FLANGE
0-28050-612-0
01
1
1309-
●
384
03.483 BOLT; CLIP,CONT CABLE
4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE
0-28050-612-0
01
1
1309-
●
384
03.483 BOLT; CLIP,CONT CABLE
4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41) 01.531 (B) M8X20 FLANGE
0-28650-820-0
01
1
1011-1309
●
384
03.483 BOLT; CLIP,CONT CABLE
4JB1-NA ENG(RLF) EXC. HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 01.531 (B) M8X20 FLANGE
0-28650-820-0
01
1
1310-
●
392
03.483 CLIP; ACCEL CONT CABLE
4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) 04.930 ID=10 & 16.5
8-94360-745-0
01
1
1011-1309
●
392
03.483 CLIP; ACCEL CONT CABLE
4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) 04.930 ID=10 & 16.5
8-94360-745-0
01
1
1310-
●
659
03.483 CLIP; ACCEL CONT CABLE
4JB1-TC ENG(RDT) 04.785 (D) ID=16 L=28
0-95235-552-0
01
1
1206-1308
●
659
03.483 CLIP; ACCEL CONT CABLE
4JB1-TC ENG(RDT) 04.785 (D) ID=16 L=28
0-95235-552-0
01
1
1309-
●
●
659
03.483 CLIP; ACCEL CONT CABLE
4JB1-TC ENG(RDT) POWER STEERING<N40> 06.672 (C) ID=12 & 15
1-09709-281-1
01
1
1206-1302
●
659
03.483 CLIP; ACCEL CONT CABLE
4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. POWER STEERING<N40> 04.930 (A) ID=10 & 16.5
8-94360-745-0
01
1
1011-1309
●
659
03.483 CLIP; ACCEL CONT CABLE
4JB1-NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) EXC. POWER STEERING<N40> 04.930 (A) ID=10 & 16.5
8-94360-745-0
01
1
1310-
●
659
03.483 CLIP; ACCEL CONT CABLE
4JB1-NA ENG(RLF) POWER STEERING<N40> (B) ID=10 & 12
1-09709-278-1
01
1
1011-
●
67
537
537
70
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
67
03.480 CABLE ASM; IDLE CONT
L=945
8-97856-223-4
01
1
1011-
●
68
03.480 KNOB; IDLE CONT
8-97853-765-1
01
1
1011-
●
70
03.483 NUT; CONT CABLE
M18
8-97853-233-0
01
1
1011-
●
537
03.483 CLIP; IDLING CONT CABLE
04.342 ID=7
5-09707-053-0
02
1
1011-
●
