Isuzu WW
▶
BUSES
▶
LV
▶
10818 - LV123/150/423-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

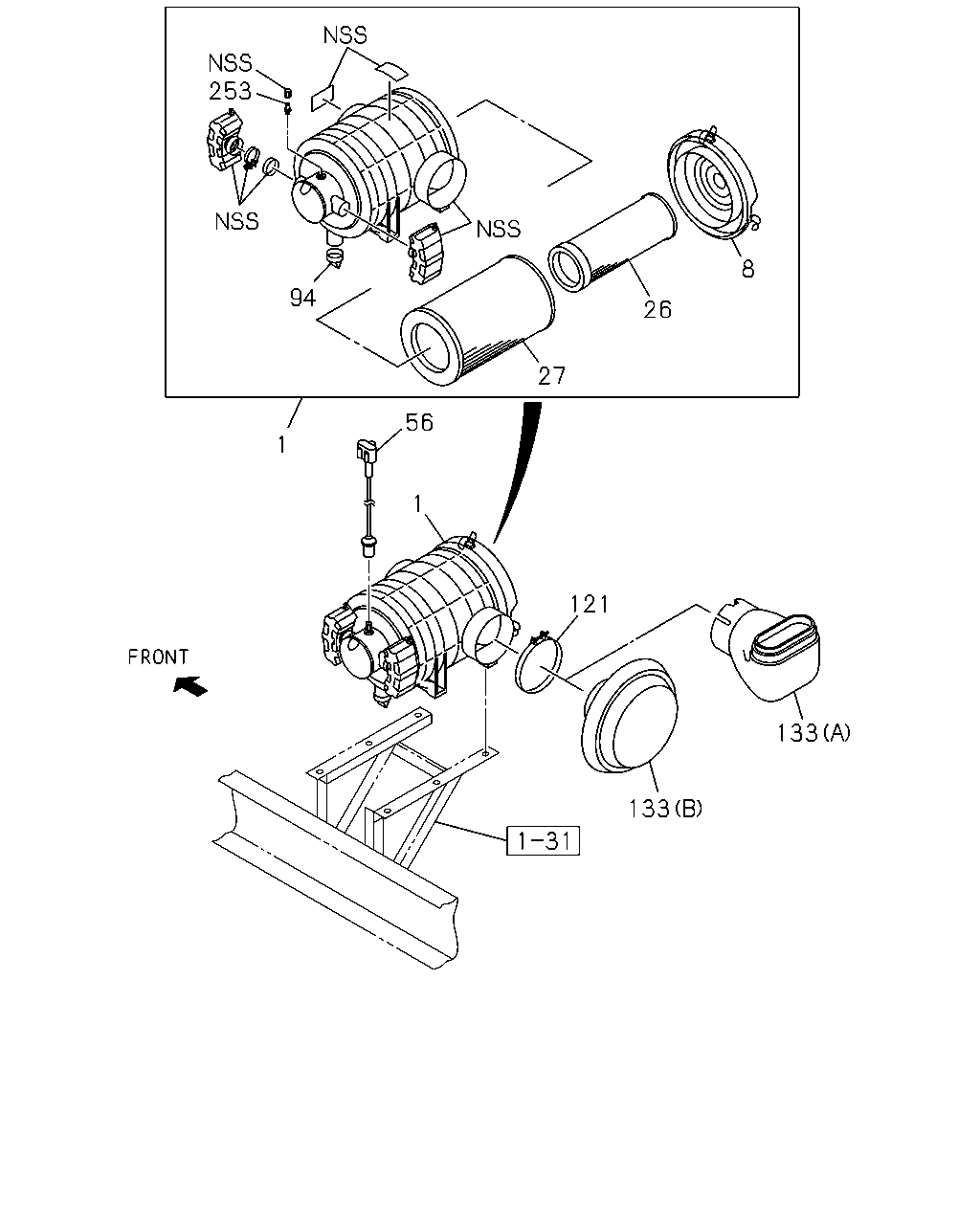

1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#7978) — 34 parça
Tümü
A - 6SD1 TC
B - 6WA1 TC-C
C - 6SD1 TC-S
253
8
94
26
27
56
1
1
121
133
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CLEANER ASM; AIR
1-14210-834-0
01
1
0012-0106
●
1
CLEANER ASM; AIR
EXC. EURO3 SPECIFICATION(NJX)
1-14210-834-0
01
1
0107-0203
●
1
CLEANER ASM; AIR
EXC. EURO3 SPECIFICATION(NJX)
1-14210-834-0
01
1
0204-
●
1
CLEANER ASM; AIR
1-14210-834-0
01
1
0204-
●
1
CLEANER ASM; AIR
EURO3 SPECIFICATION(NJX)
1-14210-858-0
01
1
0107-0203
●
1
CLEANER ASM; AIR
EURO3 SPECIFICATION(NJX)
1-14210-858-0
01
1
0204-
●
1
CLEANER ASM; AIR
1-14210-858-0
01
1
0204-
●
8
COVER ASM; ACL
1-14212-129-0
01
1
0012-0203
●
8
COVER ASM; ACL
1-14212-129-0
01
1
0204-
●
●
●
26
FILTER; ACL,INNER
1-14215-217-0
01
1
0012-0203
●
26
FILTER; ACL,INNER
1-14215-217-0
01
1
0204-
●
●
●
27
FILTER; ACL,OUTER
1-14215-203-0
01
1
0012-0203
●
27
FILTER; ACL,OUTER
1-14215-203-0
01
1
0204-
●
●
●
56
SWITCH; ACL
1-81530-016-0
01
1
0012-0203
●
56
SWITCH; ACL
1-81530-016-0
01
1
0204-
●
●
●
94
VALVE; VACUATOR
1-14219-251-0
01
1
0012-0203
●
94
VALVE; VACUATOR
1-14219-251-0
01
1
0204-
●
●
●
121
CLAMP; INL HOOD,ACL
ID=183.5
1-09707-098-2
01
1
0012-0106
●
121
CLAMP; INL HOOD,ACL
EXC. EURO3 SPECIFICATION(NJX) ID=183.5
1-09707-098-2
01
1
0107-
●
121
CLAMP; INL HOOD,ACL
EURO3 SPECIFICATION(NJX)
1-14219-288-0
01
1
0107-0203
●
121
CLAMP; INL HOOD,ACL
EURO3 SPECIFICATION(NJX)
1-14219-288-0
01
1
0204-0210
●
121
CLAMP; INL HOOD,ACL
1-14219-288-0
01
1
0204-0210
●
121
CLAMP; INL HOOD,ACL
EURO3 SPECIFICATION(NJX)
1-14219-288-0
01
1
0211-
●
121
CLAMP; INL HOOD,ACL
1-14219-288-0
01
1
0211-
●
●
133
HOOD ASM; INL,ACL
(A)
1-14232-059-0
01
1
0012-0106
●
133
HOOD ASM; INL,ACL
EXC. EURO3 SPECIFICATION(NJX) (A)
1-14232-059-0
01
1
0107-
●
133
HOOD ASM; INL,ACL
EURO3 SPECIFICATION(NJX) (B)
1-14219-278-0
01
1
0107-0203
●
133
HOOD ASM; INL,ACL
EURO3 SPECIFICATION(NJX) (B)
1-14219-278-0
01
1
0204-0210
●
133
HOOD ASM; INL,ACL
(B)
1-14219-278-0
01
1
0204-0210
●
133
HOOD ASM; INL,ACL
EURO3 SPECIFICATION(NJX) (B)
1-14219-278-0
01
1
0211-
●
133
HOOD ASM; INL,ACL
(B)
1-14219-278-0
01
1
0211-
●
●
253
NIPPLE
1-14219-252-0
01
1
0012-0203
●
253
NIPPLE
EXC. EURO3 SPECIFICATION(NJX)
1-14219-252-0
01
1
0204-
●
253
NIPPLE
1-14219-252-0
01
1
0204-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
