0-60 — ENGINE ELECTRICAL CONTROL PARTS (#79778) — 63 parça

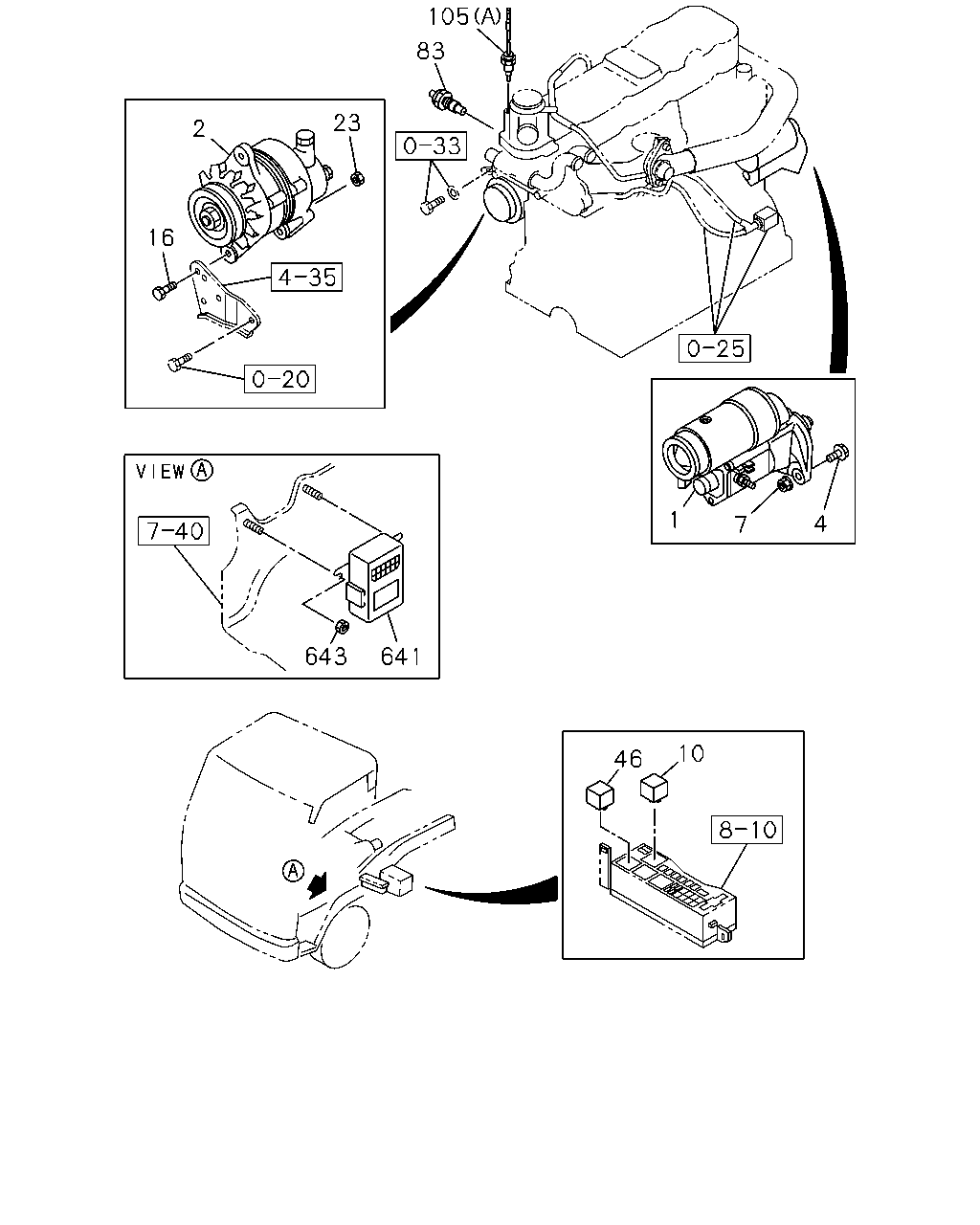

çizim 72601
105 83 23 2 16 643 641 46 10 1 7 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1011-1205 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1206- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 1011-1205 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 1206-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 1011-1205 ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 1206- ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1011-1205 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1206- ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 1011-1205 ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 1206- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1011-1205 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1206- ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1011-1205 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1206- ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 1011-1205 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 1206- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1011-1205 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1206- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1011-1205 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1206- ● ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94457-511-0 01 1 1206- ● ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94457-511-0 01 1 1011-1205 ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94336-668-0 01 1 1206- ●
641 02.510 TIMER; QOS 8-97361-317-0 01 1 1011-1205 ●
641 02.510 TIMER; QOS 8-97361-317-3 01 1 1206- ● ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 1011-1205 ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 1206- ● ●

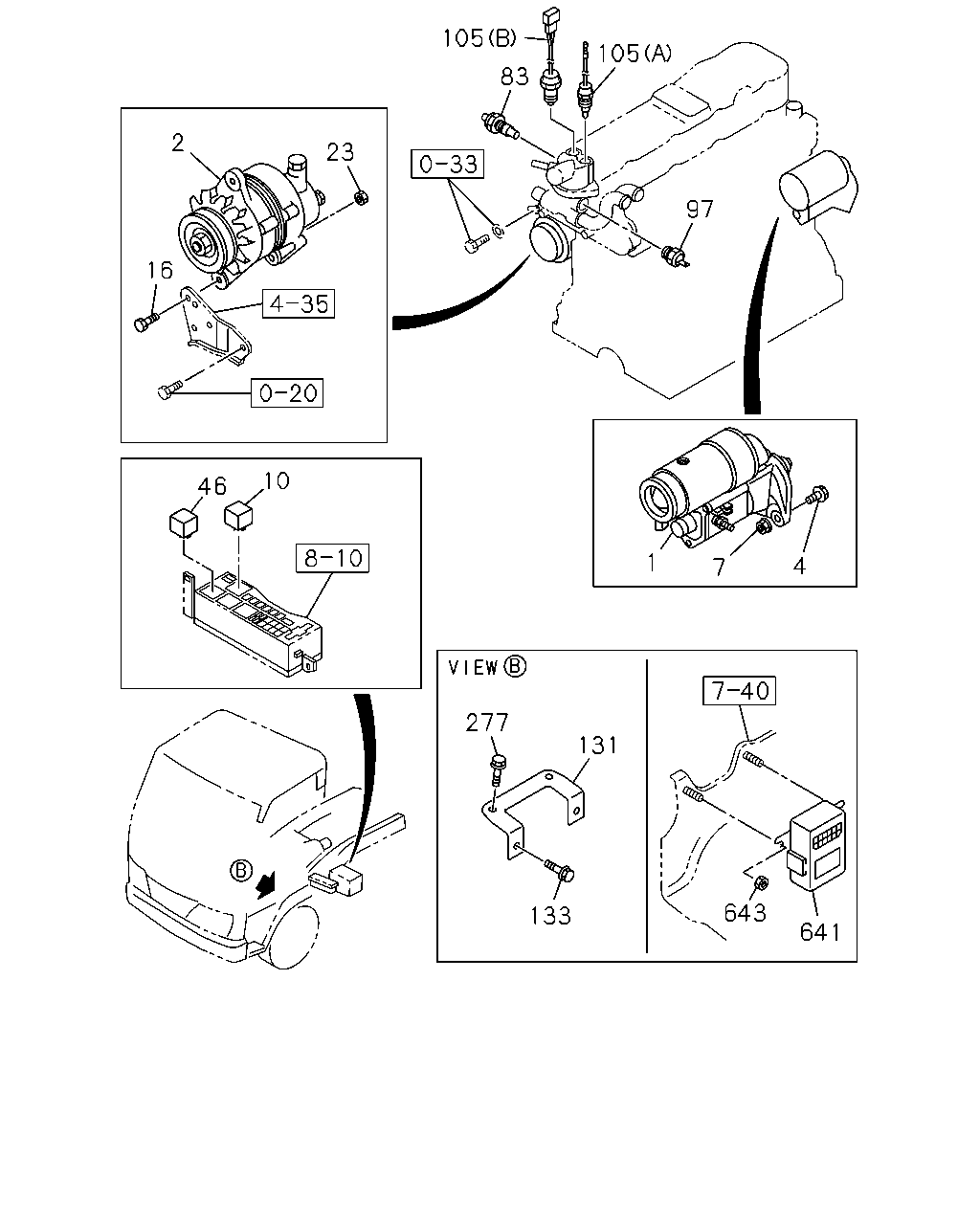

çizim 288164
16 2 23 105 105 97 46 10 277 131 133 643 641 1 7 4 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1011-1205 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1206- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 1011-1205 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 1206-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 1011-1205 ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 1206- ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1011-1205 ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1206- ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 1011-1205 ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 1206- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1011-1205 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1206- ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1011-1205 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1206- ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 1011-1205 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 1206- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1011-1205 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1206- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1011-1205 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1206- ● ●
97 01.150 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 1206- ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94457-511-0 01 1 1206- ● ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94457-511-0 01 1 1011-1205 ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94336-668-0 01 1 1206- ●
131 03.670 BRACKET; EGR 8-97217-813-1 01 1 1206-1309 ●
133 02.500 BOLT; EGR CONTROLLER
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1206-1309 ●
277 02.510 BOLT; BRKT
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1206-1309 ●
641 02.510 TIMER; QOS 8-97361-317-0 01 1 1011-1205 ●
641 02.510 TIMER; QOS 8-97361-317-3 01 1 1206- ● ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 1011-1205 ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 1206- ● ●

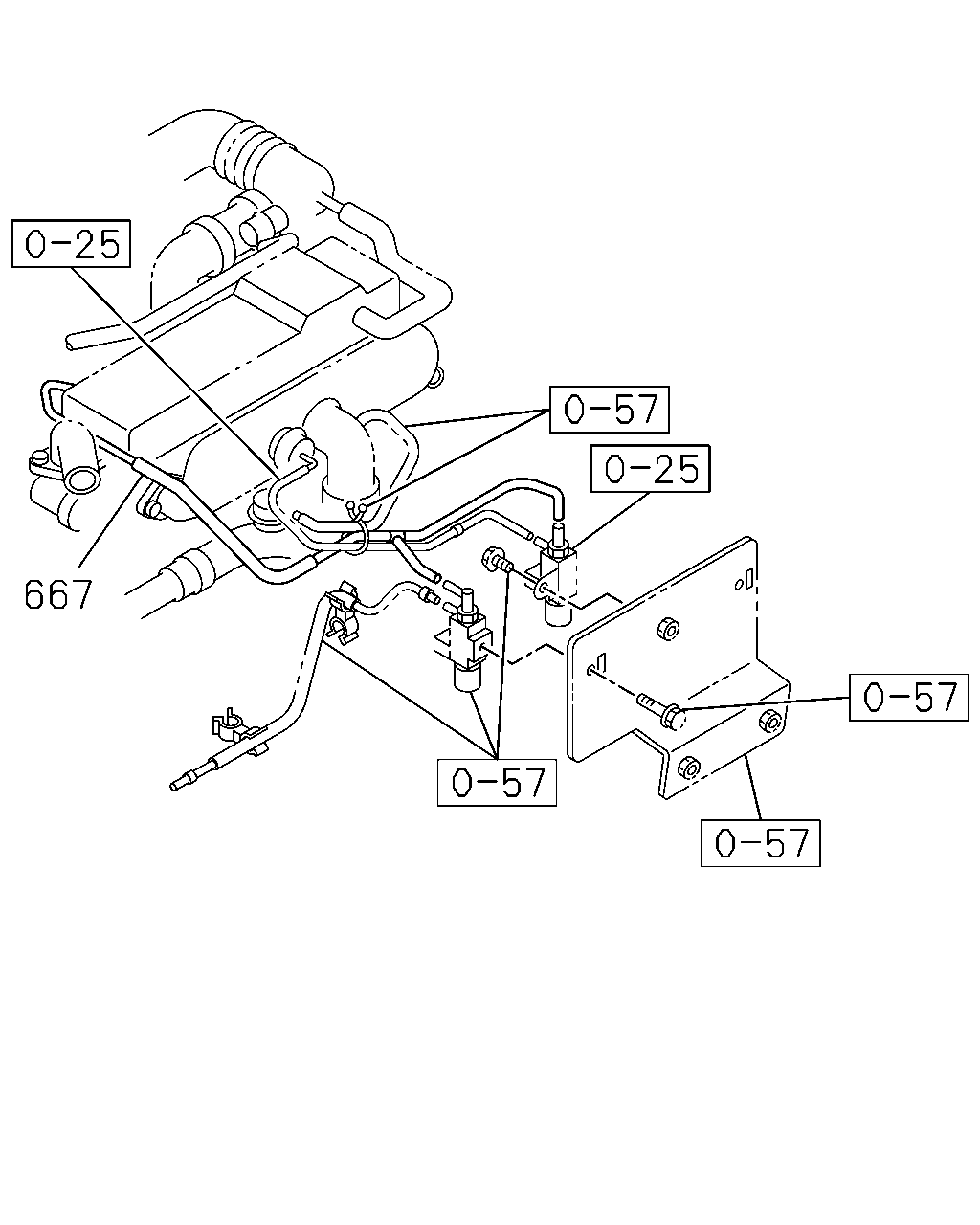

çizim 289435
667
BalonParca AdiParca NoAdetTipApplied Date A B
667 03.280 HOSE; VAC,PUMP TO VSV 8-98088-020-2 01 1 1206- ●
