Sayfa 0-56 - Isuzu EPC

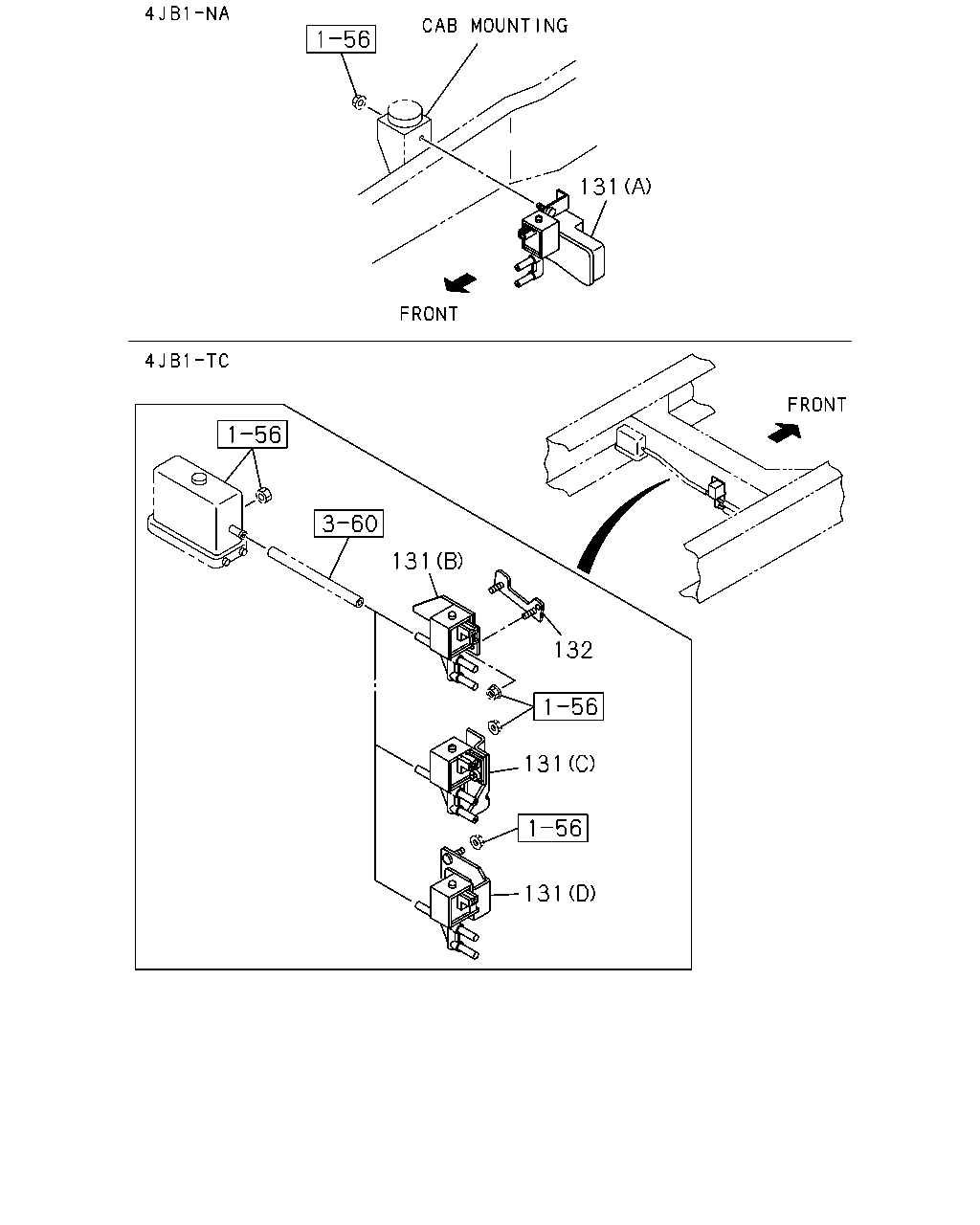

0-56 — EMISSION SYSTEM (#79776) — 5 parça

131 131 132 131 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
131	03.670 VALVE; VAC SWITCHING QKR SGL RR TIRE(NK***E) EXHAUST BRAKE<NF8> 03.636 (D)	8-97374-160-2	01	1	1309-	●
131	03.670 VALVE; VAC SWITCHING QKR DUAL RR TIRE(NK***N) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> 03.636 (B)	8-97374-166-0	01	1	1206-	●
131	03.670 VALVE; VAC SWITCHING QKR DUAL RR TIRE(NK***N) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.636 (C)	8-97161-801-3	01	1	1206-	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> 03.636 (A)	8-97069-300-2	01	1	1011-		●
132	03.680 BOLT; VSV BRKT QKR DUAL RR TIRE(NK***N) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> 03.640	8-97091-766-0	01	1	1206-	●
