0-52 — OIL AND VACUUM PIPING; ENGINE (#79775) — 71 parça

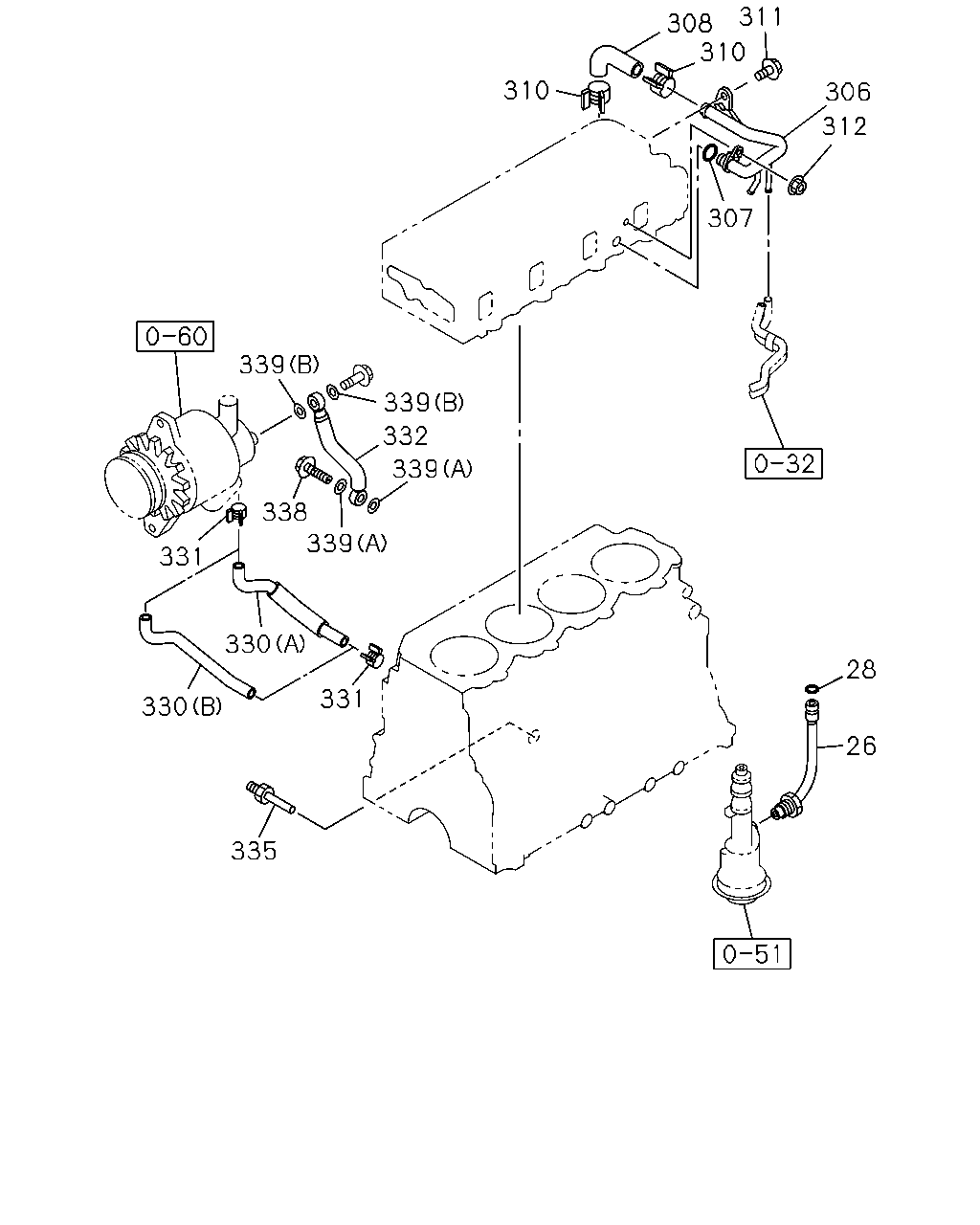

308 311 310 306 312 307 310 339 339 332 339 339 338 331 330 331 330 335 28 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1011-1205	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1206-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	1011-1205	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	1206-	●	●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	1206-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER OIL COOLER<KC4>	8-94450-627-1	01	1	1011-	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). OIL COOLER<KC4>	8-97264-168-0	01	1	1011-1205	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). OIL COOLER<KC4>.	8-97264-168-0	01	1	1206-	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	1206-		●
308	01.540 HOSE; OIL COOLER FEED OIL COOLER<KC4>	8-94174-464-1	01	1	1011-1205	●
308	01.540 HOSE; OIL COOLER FEED OIL COOLER<KC4>	8-94174-464-1	01	1	1206-	●
308	01.540 HOSE; OIL COOLER FEED	8-94174-464-1	01	1	1206-		●
310	01.540 CLIP; WATER HOSE FIX OIL COOLER<KC4> 01.166 ID=20.8	8-94125-862-1	04	1	1011-1205	●
310	01.540 CLIP; WATER HOSE FIX OIL COOLER<KC4> 01.166 ID=20.8	8-94125-862-1	04	1	1206-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	1206-		●
311	01.531 BOLT; PIPE FIX OIL COOLER<KC4> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	1011-1205	●
311	01.531 BOLT; PIPE FIX OIL COOLER<KC4> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	1206-	●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	1206-		●
312	01.531 NUT; PIPE FIX OIL COOLER<KC4> 04.634 M8 FLANGE	8-97581-233-0	01	1	1011-1205	●
312	01.531 NUT; PIPE FIX OIL COOLER<KC4> 04.634 M8 FLANGE	8-97581-233-0	01	1	1206-	●
312	01.531 NUT; PIPE FIX 04.634 M8 FLANGE	8-97581-233-0	01	1	1206-		●
330	03.278 HOSE; VAC PUMP,RETURN (B)	8-98204-694-0	01	1	1206-		●
330	03.278 HOSE; VAC PUMP,RETURN (A)	8-97073-920-2	01	1	1011-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	1011-1205	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	1206-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	1011-1205	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	1206-	●	●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	1011-1205	●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	1206-	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	1011-1205	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	1206-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1011-1205	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1206-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1011-1205	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1206-	●	●

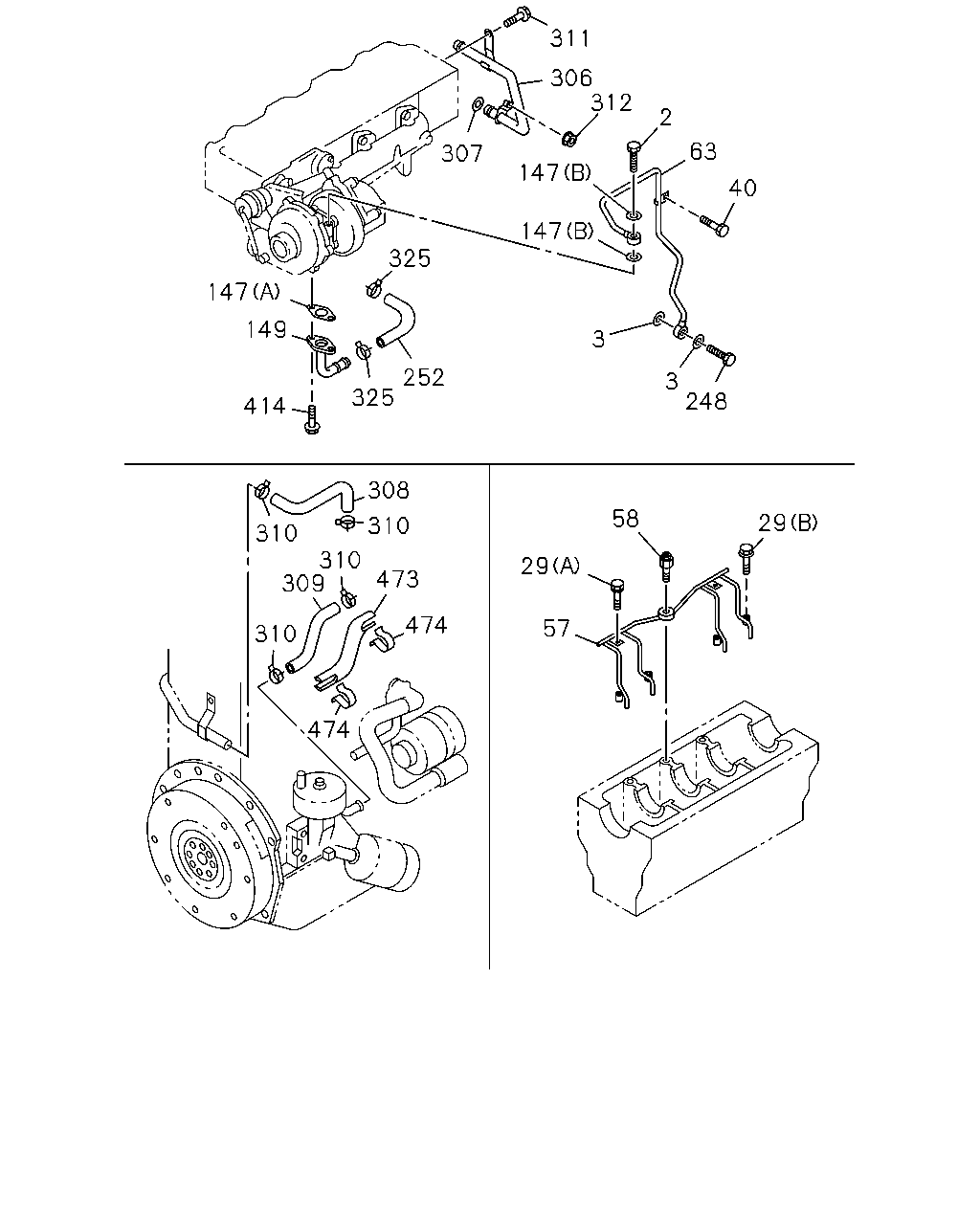

311 306 307 147 63 312 2 40 3 3 248 252 325 325 147 149 414 310 308 310 310 309 473 474 310 474 58 29 29 57 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.531 BOLT; EYE,OIL PIPE 03.358 M10X23 FLANGE	8-94332-831-1	01	1	1206-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1206-		●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1206-		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1206-		●
40	01.531 BOLT; OIL PIPE 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1206-		●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	1206-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-1	01	1	1206-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	1206-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	1206-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1206-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	1206-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	1206-		●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	1206-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	1206-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER OIL COOLER<KC4>	8-94450-627-1	01	1	1011-	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). OIL COOLER<KC4>	8-97264-168-0	01	1	1011-1205	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). OIL COOLER<KC4>.	8-97264-168-0	01	1	1206-	●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	1206-		●
308	01.540 HOSE; OIL COOLER FEED OIL COOLER<KC4>	8-94174-464-1	01	1	1011-1205	●
308	01.540 HOSE; OIL COOLER FEED OIL COOLER<KC4>	8-94174-464-1	01	1	1206-	●
308	01.540 HOSE; OIL COOLER FEED	8-94174-464-1	01	1	1206-		●
309	01.540 HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	1206-		●
309	01.540 HOSE; OIL COOLER RETURN OIL COOLER<KC4>	8-97022-314-1	01	1	1011-	●
310	01.540 CLIP; WATER HOSE FIX OIL COOLER<KC4> 01.166 ID=20.8	8-94125-862-1	04	1	1011-1205	●
310	01.540 CLIP; WATER HOSE FIX OIL COOLER<KC4> 01.166 ID=20.8	8-94125-862-1	04	1	1206-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	1206-		●
311	01.531 BOLT; PIPE FIX OIL COOLER<KC4> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	1011-1205	●
311	01.531 BOLT; PIPE FIX OIL COOLER<KC4> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	1206-	●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	1206-		●
312	01.531 NUT; PIPE FIX OIL COOLER<KC4> 04.634 M8 FLANGE	8-97581-233-0	01	1	1011-1205	●
312	01.531 NUT; PIPE FIX OIL COOLER<KC4> 04.634 M8 FLANGE	8-97581-233-0	01	1	1206-	●
312	01.531 NUT; PIPE FIX 04.634 M8 FLANGE	8-97581-233-0	01	1	1206-		●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	1206-		●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1206-		●
473	01.540 INSULATOR; HOSE	8-97101-331-0	02	1	1206-		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	1206-		●
