◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#79774) — 26 parça

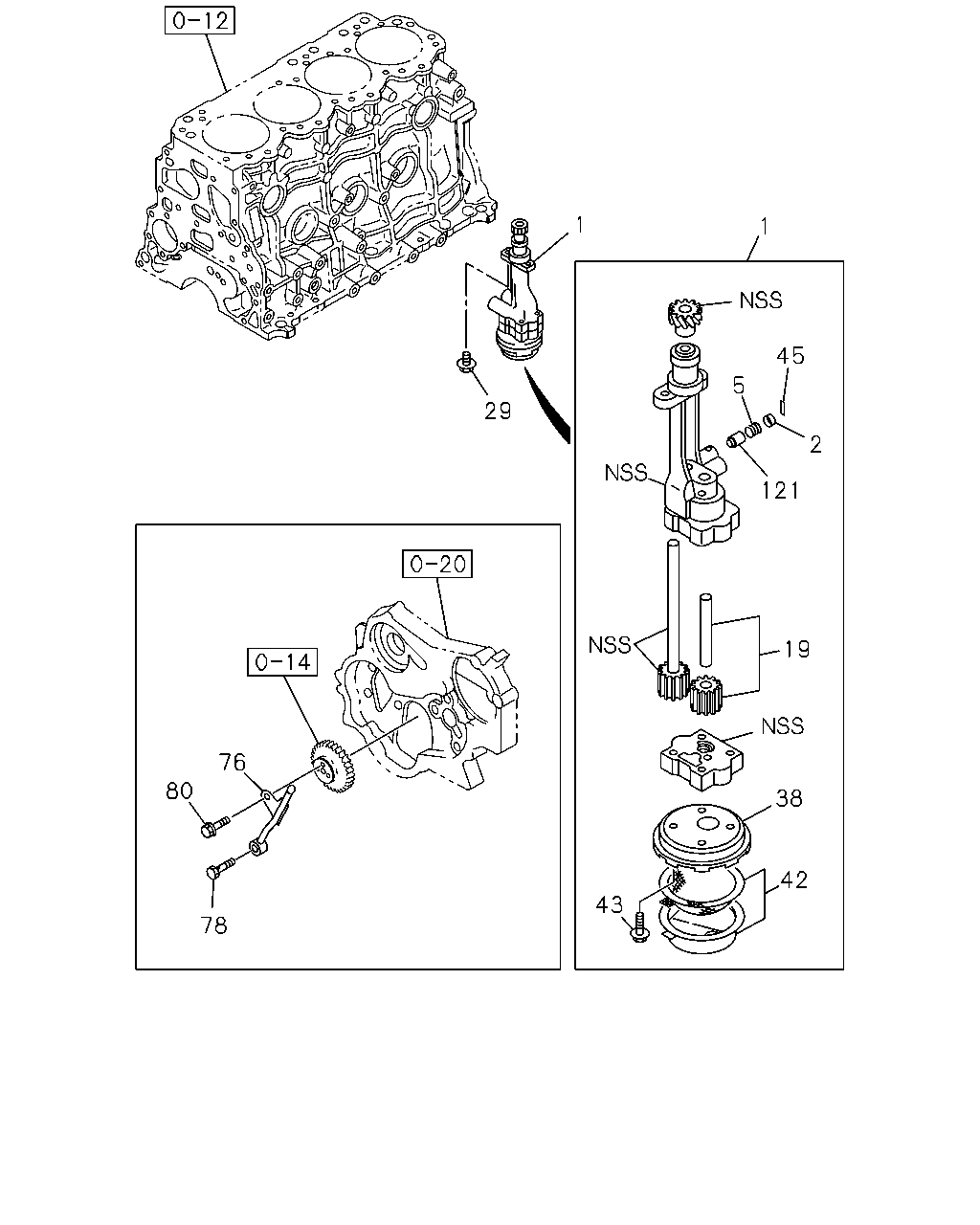

çizim 64502
29 1 1 45 2 121 5 19 38 42 43 76 80 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97385-984-0 01 1 1011-1205 ●
1 01.652 PUMP ASM; OIL 8-97385-984-0 01 1 1206- ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 1011-1205 ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 1206- ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 1011-1205 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 1206- ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 1011-1205 ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 1206- ● ●
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 1011-1205 ●
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 1206- ● ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 1011-1205 ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 1206- ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 1011-1205 ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 1206- ● ●
43 01.656 BOLT; CASE
04.866 M8X30 FLANGE 		0-28010-830-0 04 1 1011-1205 ●
43 01.656 BOLT; CASE
04.866 M8X30 FLANGE 		0-28010-830-0 04 1 1206- ● ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 1011-1205 ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 1206- ● ●
76 01.519 PIPE ASM; OIL 8-97160-706-0 01 1 1011-1205 ●
76 01.519 PIPE ASM; OIL 8-97160-706-0 01 1 1206- ● ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 1011-1205 ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 1206- ● ●
80 01.531 BOLT; OIL PIPE FIX
01.153 M8X22 W/LK WASHER 		0-50540-822-0 01 1 1011-1205 ●
80 01.531 BOLT; OIL PIPE FIX
01.153 M8X22 W/LK WASHER 		0-50540-822-0 01 1 1206- ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 1011-1205 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
