0-33 — FAN AND FAN BELT (#79769) — 24 parça

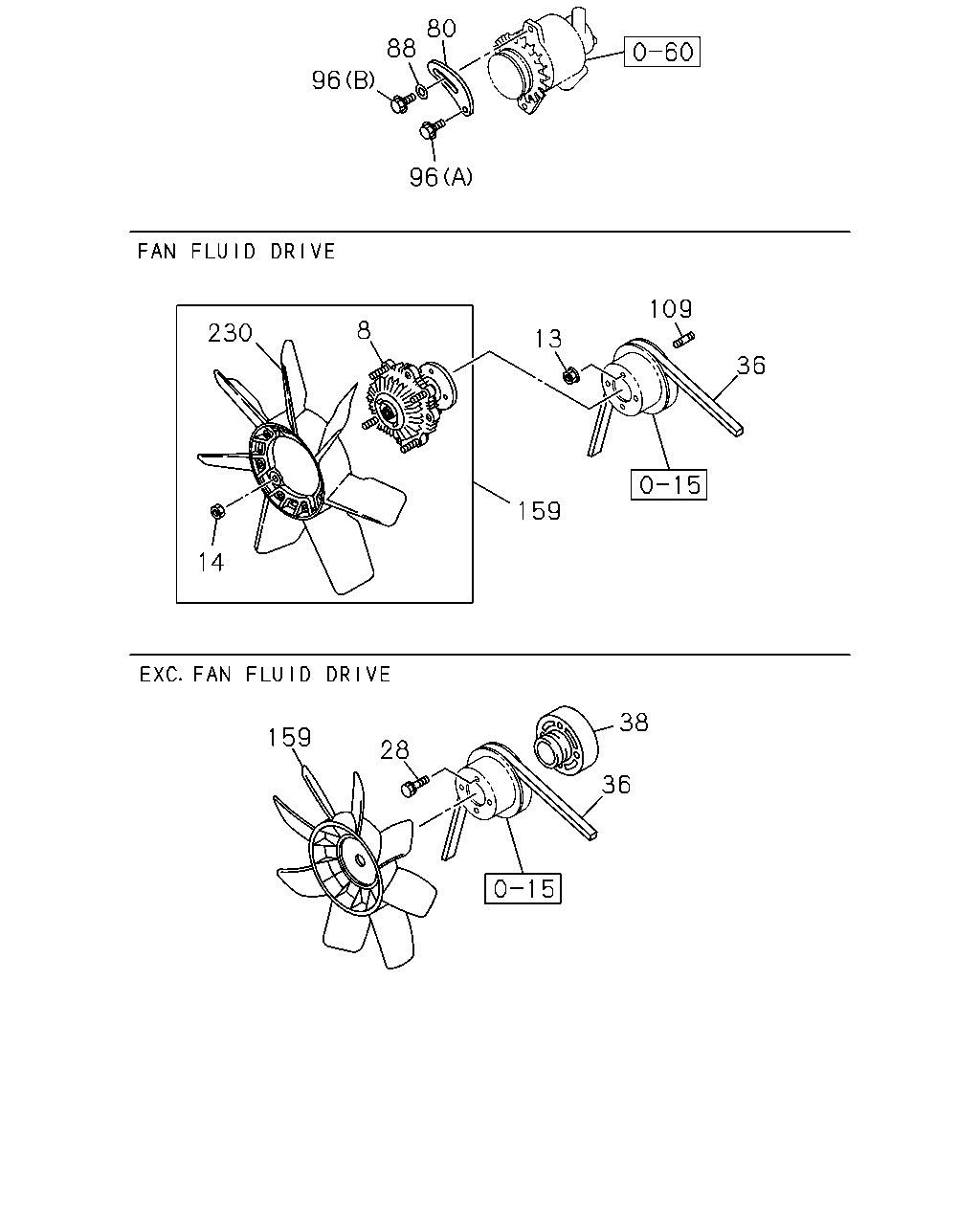

çizim 61073
80 88 96 96 230 8 13 109 36 159 14 159 28 38 36
BalonParca AdiParca NoAdetTipApplied Date A B
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 1011- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 1011-1205 ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 1206- ●
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 1206- ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> M6 FLANGE 		0-91180-106-0 04 1 1011- ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> M6X45 W/LK WASHER 		0-50540-645-0 04 1 1011- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 1011-1205 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 1206- ● ●
38 01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3> 01.064 		9-13642-078-0 01 1 1011- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 1011-1205 ●
80 02.317 PLATE; ADJ 8-97080-556-2 01 1 1206- ● ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 1011-1205 ●
88 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 1206- ● ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 1011-1205 ●
96 02.317 BOLT; ADJ PLATE
09.173 (A) M8X45 FLANGE 		0-28050-845-0 01 1 1206- ● ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1011-1205 ●
96 02.317 BOLT; ADJ PLATE
09.008 (B) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1206- ● ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> M6X18 L=27 		0-41010-618-0 04 1 1011-1205 ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> M6X18 L=27 		0-41010-618-0 04 1 1206- ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1206- ●
159 01.064 BLADE; COOLING FAN
OD=410 		8-97129-769-2 01 1 1206- ●
159 01.064 BLADE; COOLING FAN
FAN FLUID DRIVE<KA3> OD=390 		8-94239-651-0 01 1 1011- ●
159 01.064 BLADE; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> OD=390 		5-13660-285-0 01 1 1011- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 1011- ●
