0-32 — WATER PIPING; ENGINE (#79768) — 61 parça

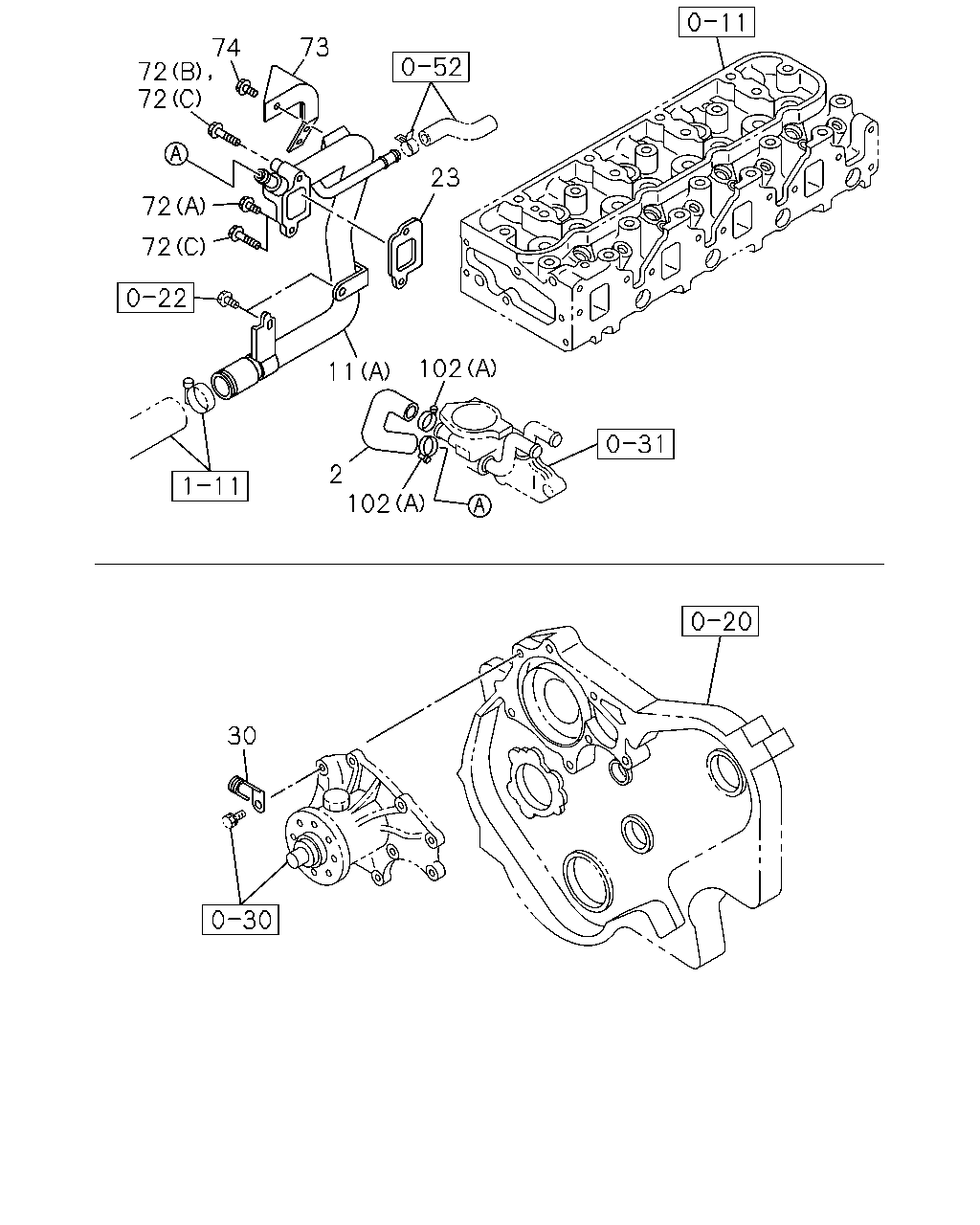

74 72 73 72 72 11 102 102 72 23 30 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	1011-1205	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	1206-	●	●
11	01.097 PIPE; INL,WATER PUMP (B)	8-97213-400-2	01	1	1206-		●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4> (A)	8-97070-871-3	01	1	1011-	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97063-639-3	01	1	1011-1011	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97264-243-0	01	1	1012-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	1011-1205	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	1206-	●	●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-1	01	1	1011-1205	●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-1	01	1	1206-	●	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1011-1011	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-1205	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1206-	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1206-		●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1011-1011	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1012-1205	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-	●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-		●
72	00.206 BOLT; WATER PIPE OIL COOLER<KC4> (C) M8X50 W/LK WASHER	0-50540-850-0	02	1	1012-	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	1011-1205	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	1206-1403	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97520-577-0	01	1	1404-	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	1011-1205	●
74	01.097 BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	1206-	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	1206-	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	1011-1205	●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1206-		●

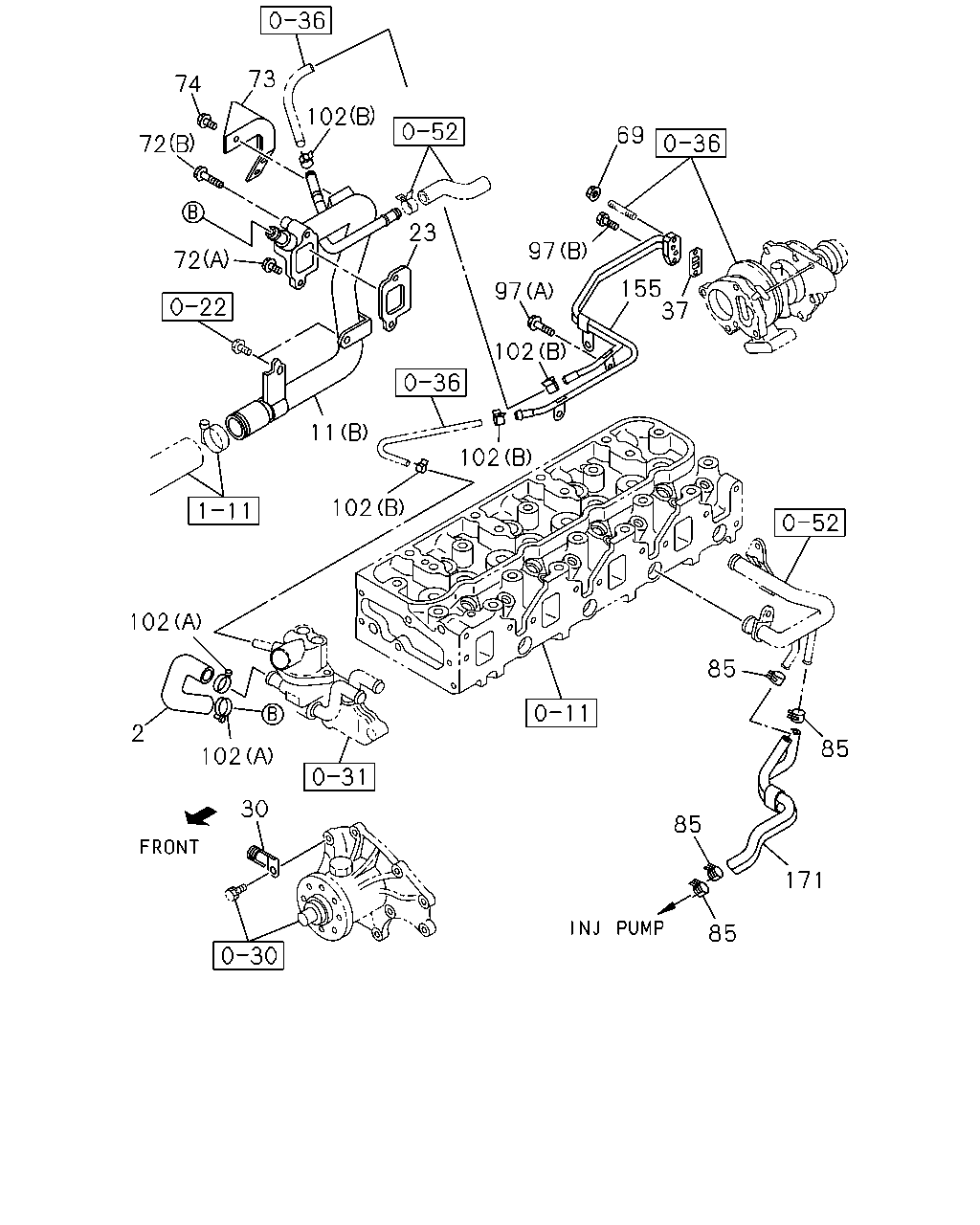

30 102 2 102 85 171 85 85 85 102 102 11 102 97 97 155 37 69 23 102 73 74 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	1011-1205	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	1206-	●	●
11	01.097 PIPE; INL,WATER PUMP (B)	8-97213-400-2	01	1	1206-		●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4> (A)	8-97070-871-3	01	1	1011-	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97063-639-3	01	1	1011-1011	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4> (A)	8-97264-243-0	01	1	1012-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	1011-1205	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	1206-	●	●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-1	01	1	1011-1205	●
30	01.150 CLIP; HARNESS ID=12	8-97367-983-1	01	1	1206-	●	●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.374	8-94321-135-1	01	1	1206-		●
69	01.153 NUT; WATER PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	1206-		●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1011-1011	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-1205	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1206-	●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1206-		●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1011-1011	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1012-1205	●
72	00.206 BOLT; WATER PIPE EXC. OIL COOLER<KC4> 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-	●
72	00.206 BOLT; WATER PIPE 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	1206-		●
72	00.206 BOLT; WATER PIPE OIL COOLER<KC4> (C) M8X50 W/LK WASHER	0-50540-850-0	02	1	1012-	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	1011-1205	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	1206-1403	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97520-577-0	01	1	1404-	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	1011-1205	●
74	01.097 BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	1206-	●	●
85	01.240 CLIP; RUBBER,WAX CSD 01.153 ID=12.8	8-94367-943-0	04	1	1206-		●
97	04.866 BOLT; WATER PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1206-		●
97	04.866 BOLT; WATER PIPE 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1206-		●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	1206-	●	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	1011-1205	●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	1206-		●
155	01.153 PIPE ASM; WATER	8-98169-766-0	01	1	1206-		●
171	01.240 HOSE; RUBBER,WAX CSD	8-97225-605-0	01	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
