◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#79767) — 23 parça

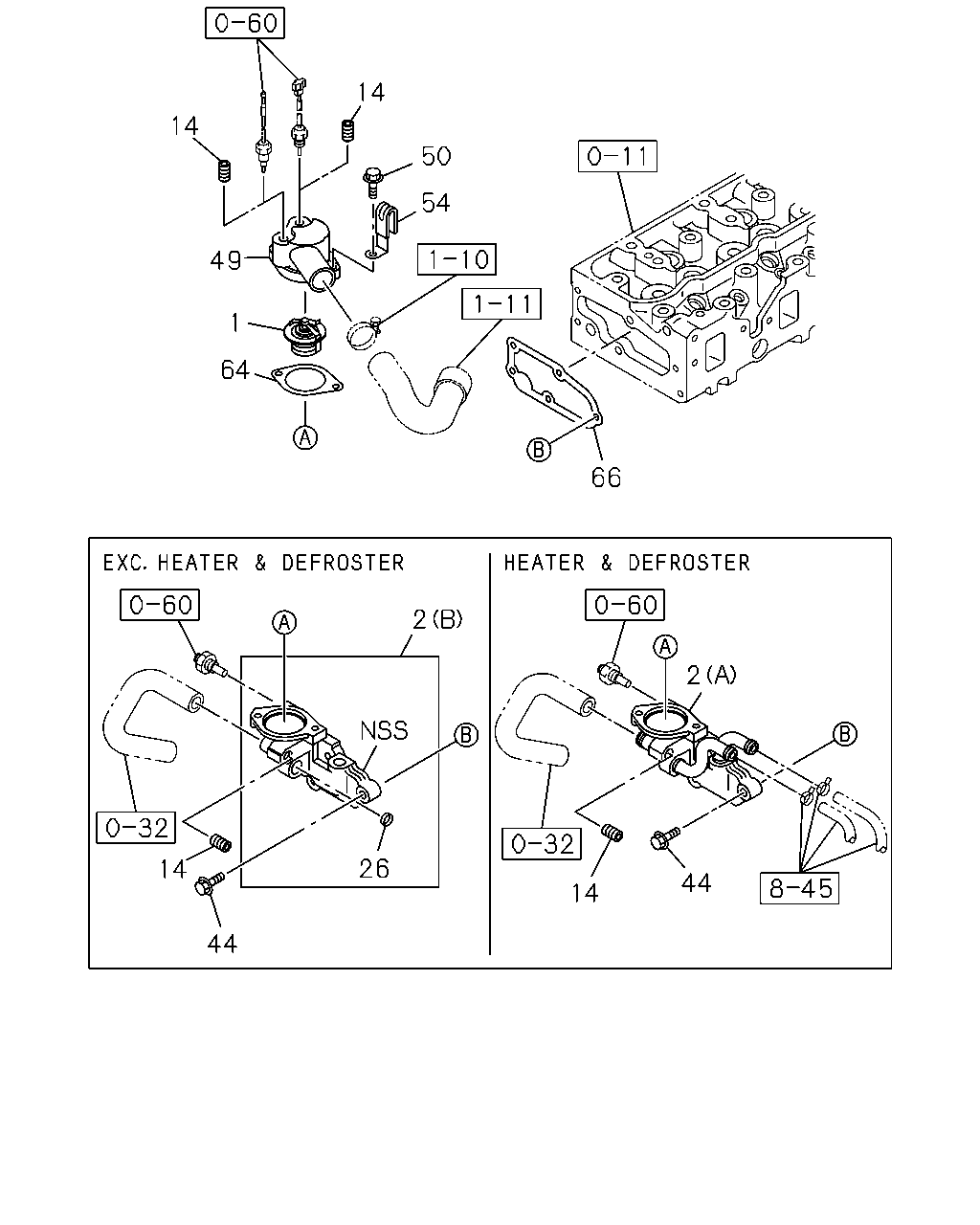

çizim 42948
14 14 50 49 54 1 2 64 44 14 14 44 26 2 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
82 CELSIUS 		8-97254-816-1 01 1 1206- ●
1 01.246 THERMOSTAT
QKR DUAL RR TIRE(NK***N) HEATER & DEFROSTER(C41) 82 CELSIUS 		8-97361-770-0 01 1 1011- ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) 82 CELSIUS 		8-94482-277-2 01 1 1011- ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 		8-97139-604-3 01 1 1206- ● ●
2 01.251 HOUSING; THERMOSTAT
QKR DUAL RR TIRE(NK***N) HEATER & DEFROSTER(C41) (A) 		8-97139-602-1 01 1 1011- ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 		8-97139-604-3 01 1 1011-1205 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-603-1 01 1 1206-1309 ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (A) 		8-97139-603-1 01 1 1310- ●
14 01.252 PLUG; SW
01.073 PT3/8 		5-09605-005-0 02 1 1011- ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) 00.253 OD=18 		5-11219-008-0 01 1 1011-1205 ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) 00.253 OD=18 		5-11219-008-0 01 1 1206- ● ●
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 1011-1205 ●
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 1206- ● ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 1206- ●
49 01.153 PIPE; WATER OUTLET 8-94254-601-1 01 1 1011- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1011-1205 ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1206- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 1011-1205 ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 1206- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 1011-1205 ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 1206- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 1011-1205 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
