◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#79761) — 56 parça

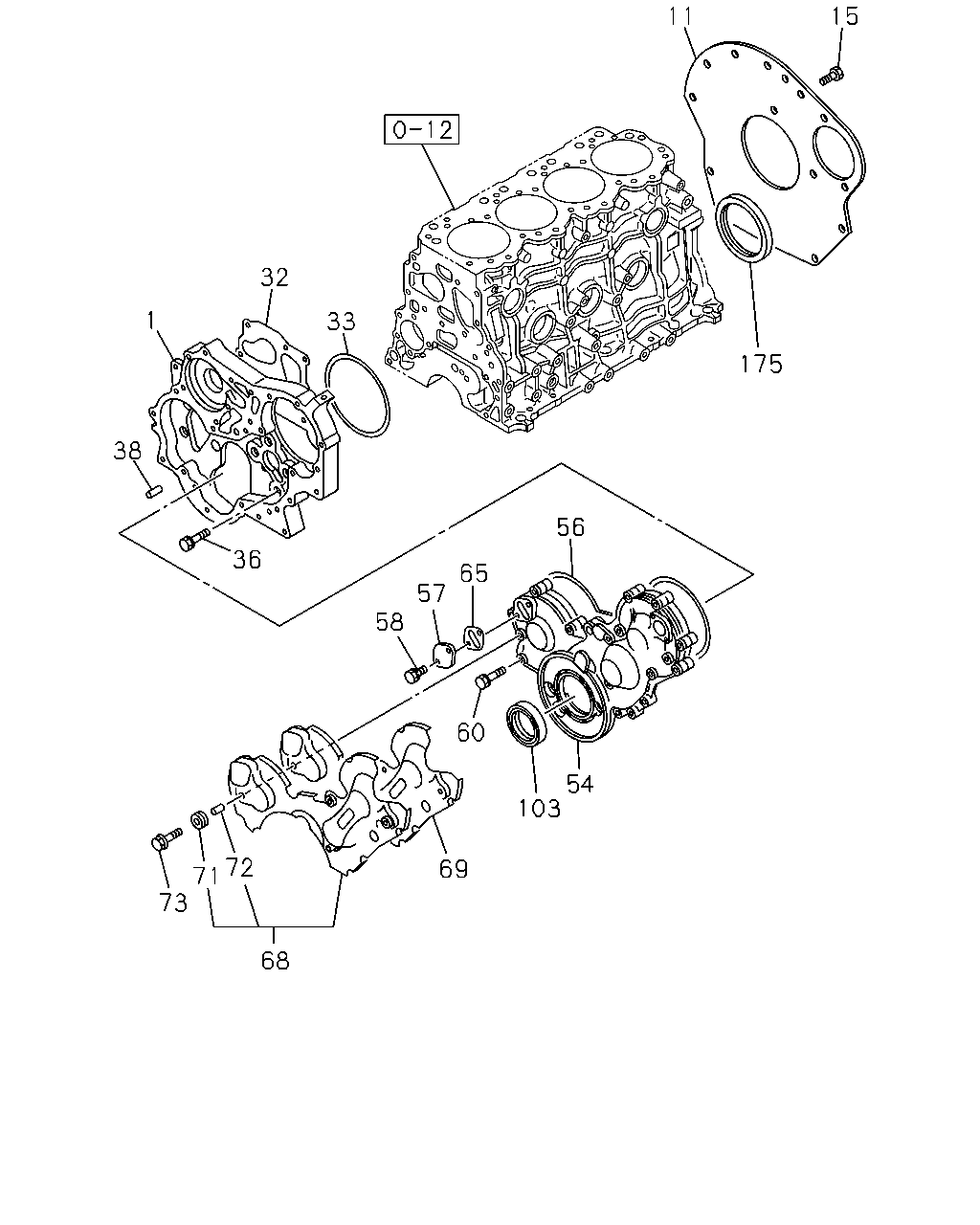

çizim 38315
68 73 1 32 38 33 36 71 69 72 11 15 175 103 58 60 65 57 56 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.206 CASE; TIMING GEAR 8-97219-001-4 01 1 1206- ●
1 00.206 CASE; TIMING GEAR 8-97129-982-3 01 1 1011- ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 1011-1205 ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 1206- ● ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 1011-1205 ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 1206- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 1011-1205 ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 1206- ● ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 1011-1205 ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 1206- ● ●
36 00.206 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50540-820-0 06 1 1011-1205 ●
36 00.206 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50540-820-0 06 1 1206- ● ●
36 00.206 BOLT; GEAR CASE
03.704 M8X45 W/LK WASHER 		0-50540-845-0 02 1 1011-1205 ●
36 00.206 BOLT; GEAR CASE
03.704 M8X45 W/LK WASHER 		0-50540-845-0 02 1 1206- ● ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1011-1205 ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1206- ● ●
54 00.206 COVER; GEAR CASE 8-97231-214-1 01 1 1011-1205 ●
54 00.206 COVER; GEAR CASE 8-97231-214-1 01 1 1206- ● ●
56 00.207 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97287-694-0 01 1 1011-1205 ●
56 00.207 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97287-694-0 01 1 1206- ● ●
57 00.206 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 1011-1205 ●
57 00.206 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 1206- ● ●
58 00.206 BOLT; CHECK HOLE COVER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1011-1205 ●
58 00.206 BOLT; CHECK HOLE COVER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1206- ● ●
60 00.206 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28050-830-0 08 1 1011-1205 ●
60 00.206 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28050-830-0 08 1 1206- ● ●
60 00.206 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50540-870-0 06 1 1011-1205 ●
60 00.206 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50540-870-0 06 1 1206- ● ●
60 00.206 BOLT; COVER TO CASE
M12X55 HEX SOCKET 		0-58331-255-0 01 1 1011-1205 ●
60 00.206 BOLT; COVER TO CASE
M12X55 HEX SOCKET 		0-58331-255-0 01 1 1206- ● ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X58 FLANGE 		8-94130-055-1 01 1 1011-1205 ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X58 FLANGE 		8-94130-055-1 01 1 1206- ● ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97118-698-1 02 1 1011-1205 ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97118-698-1 02 1 1206- ● ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 1011-1205 ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 1206- ● ●
69 00.206 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 1011-1205 ●
69 00.206 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 1206- ● ●
71 00.206 RUBBER; MTG,COVER 5-19389-002-0 04 1 1011-1205 ●
71 00.206 RUBBER; MTG,COVER 5-19389-002-0 04 1 1206- ● ●
72 00.206 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 1011-1205 ●
72 00.206 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 1206- ● ●
73 00.206 BOLT; COVER FIX
09.242 M6X16 FLANGE 		0-28050-616-0 04 1 1011-1205 ●
73 00.206 BOLT; COVER FIX
09.242 M6X16 FLANGE 		0-28050-616-0 04 1 1206- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97351-704-0 01 1 1011-1205 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97351-704-0 01 1 1206- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1011-1205 ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1206- ● ●

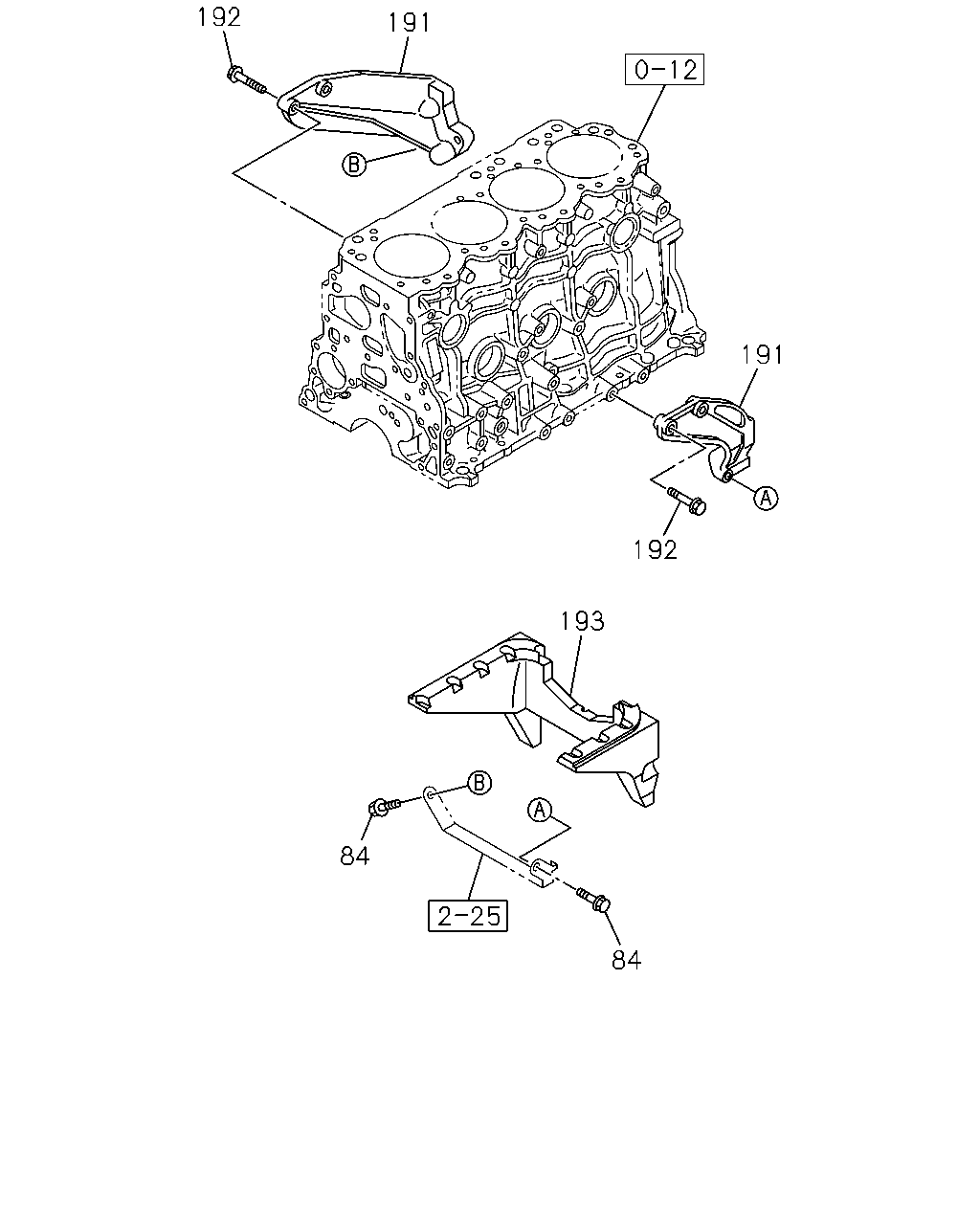

çizim 191746
192 191 191 192 193 84 84
BalonParca AdiParca NoAdetTipApplied Date A B
84 00.206 BOLT; SPACER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1206-1504 ●
191 00.669 STAY; FLYWHEEL HSG
04.083 		8-97074-108-3 01 1 1011-1205 ●
191 00.669 STAY; FLYWHEEL HSG
04.083 		8-97074-108-3 01 1 1206- ● ●
191 00.669 STAY; FLYWHEEL HSG
04.083 		8-97084-390-2 01 1 1011-1205 ●
191 00.669 STAY; FLYWHEEL HSG
04.083 		8-97084-390-2 01 1 1206- ● ●
192 00.206 BOLT; STAY TO HSG
02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1011-1205 ●
192 00.206 BOLT; STAY TO HSG
02.277 M10X35 FLANGE 		0-28651-035-0 04 1 1206- ● ●
193 01.428 SPACER; STAY TO OIL,PAN
00.137 		8-97286-992-0 01 1 1206-1504 ●
