◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#79758) — 18 parça

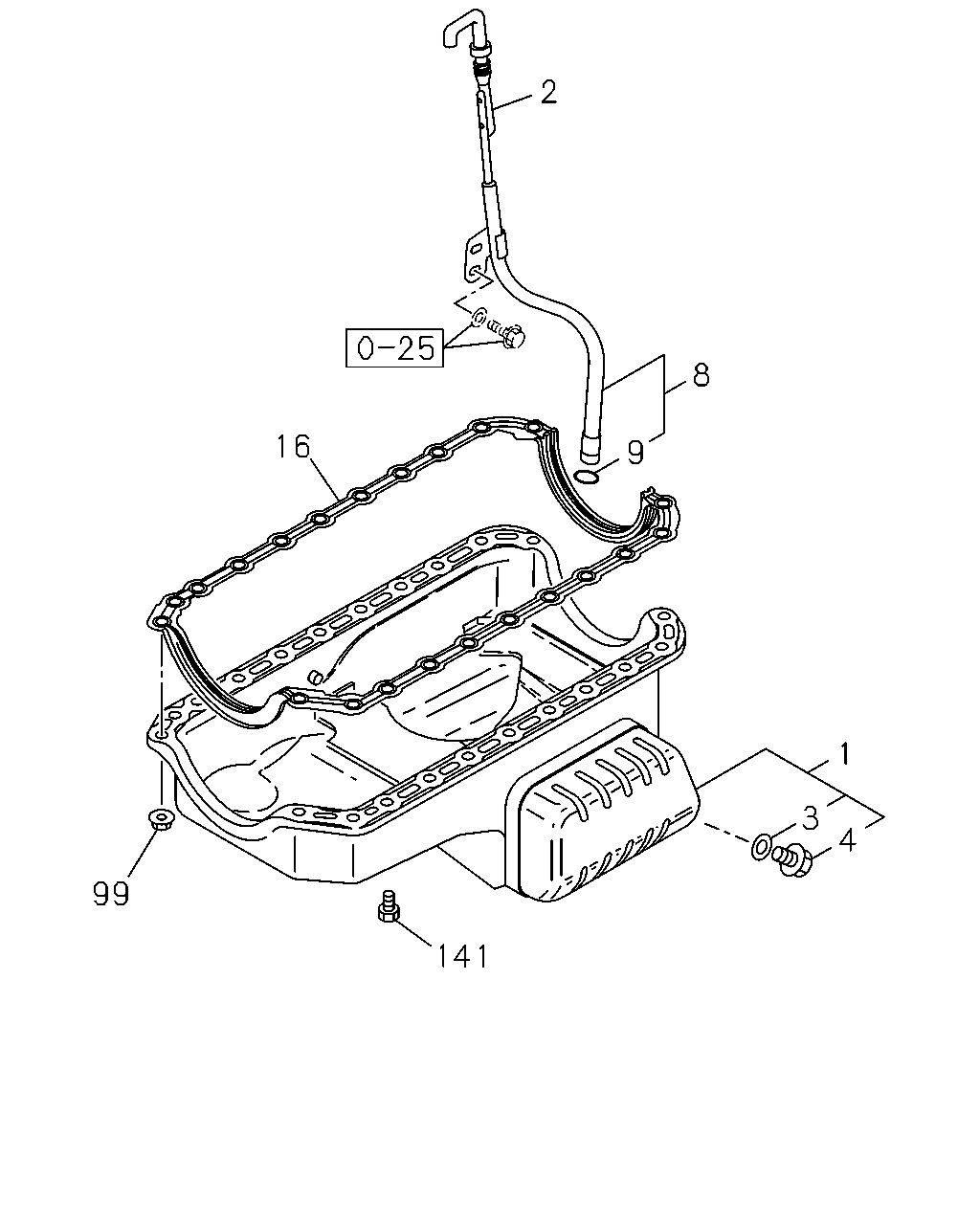

çizim 33504
99 141 4 3 1 9 8 16 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 1011-1205 ●
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 1206- ● ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 1206- ●
2 01.516 GAUGE; OIL LEVEL 8-97092-924-0 01 1 1011- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1011-1205 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1206- ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 1011-1205 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 1206- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 1206- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 1011- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 1206- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 1011- ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 1011-1205 ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 1206- ● ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 1011-1205 ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 1206- ● ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 1011-1205 ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 1206- ● ●
