◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#79755) — 12 parça

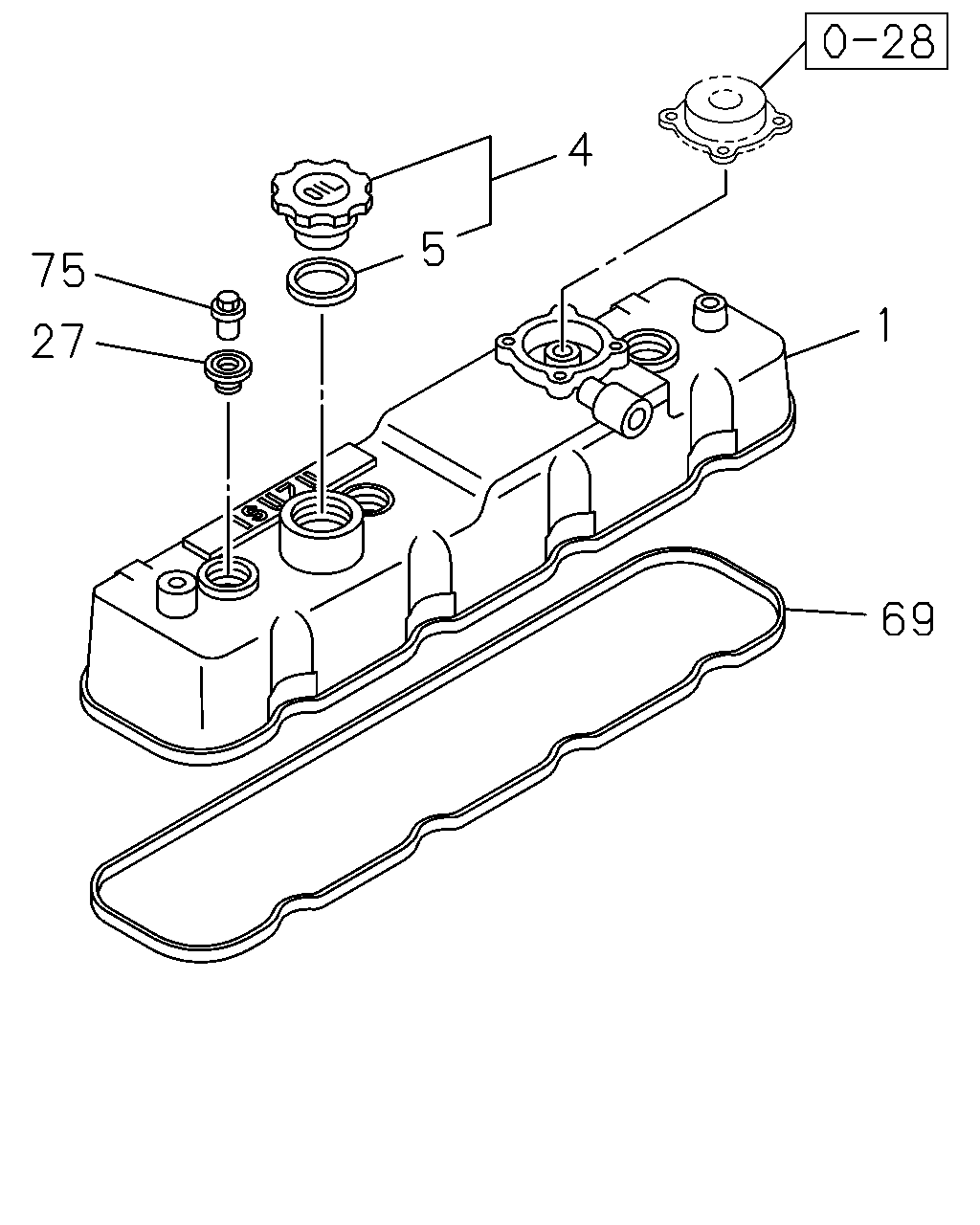

çizim 14738
1 69 4 5 75 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD 8-94476-696-1 01 1 1011-1205 ●
1 00.386 COVER; CYL HD 8-94476-696-1 01 1 1206- ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1011-1205 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1206- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1011-1205 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1206- ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 1011-1205 ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 1206- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 1011-1205 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 1206- ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 1011-1205 ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
