◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 9 - Tools ▶ 9-32 - REAR BODY; GUARD FRAME ▶
9-32 — REAR BODY; GUARD FRAME (#79751) — 96 parça

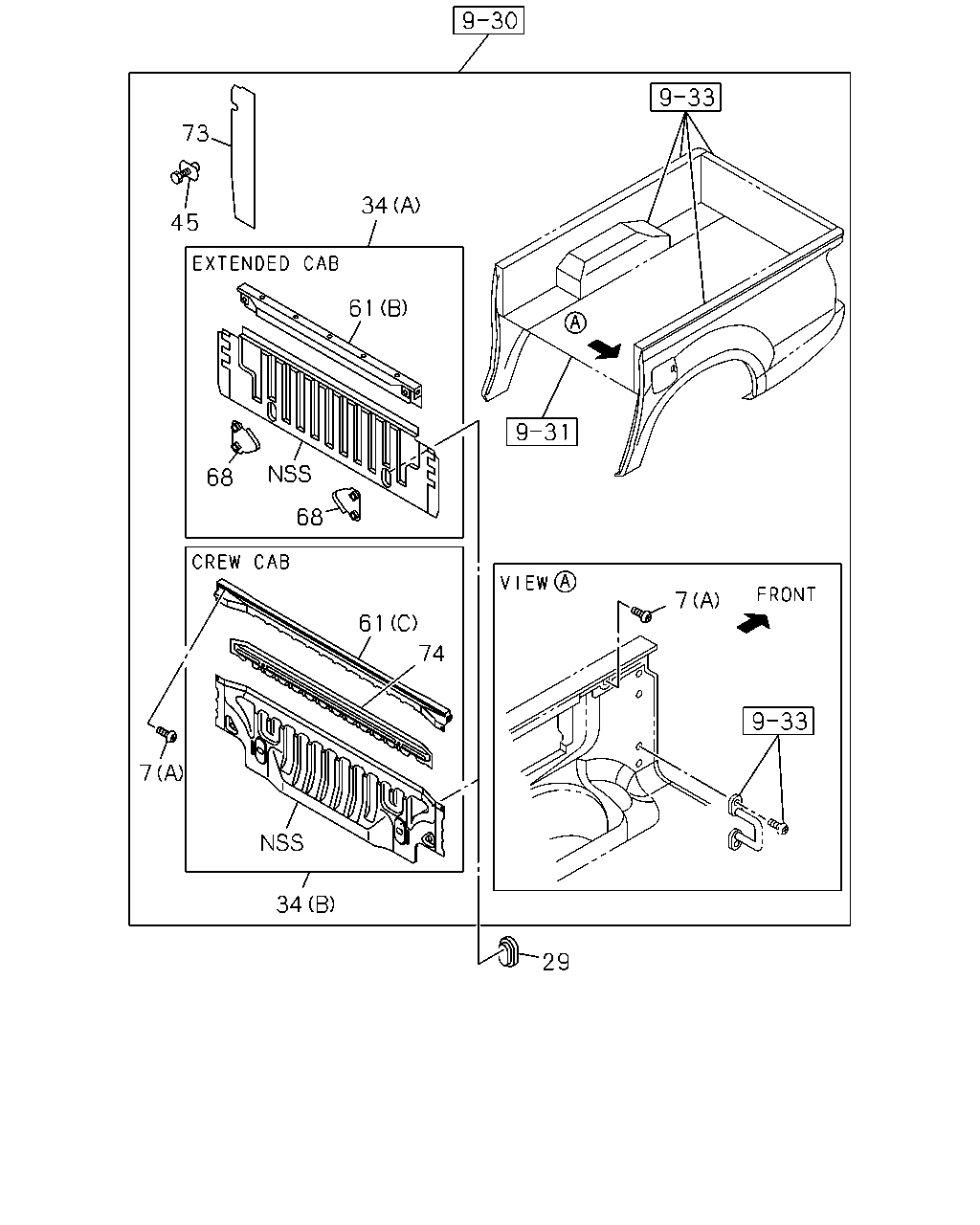

çizim 144361
73 34 45 61 68 68 7 61 74 7 34 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1505 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1505 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) SCREW M6X45 		8-98056-129-0 02 1 1203- ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1203-1505 ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1506- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1506- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1506- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1506- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1203-1505 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1203-1505 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20 		8-98294-857-0 02 1 1506- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20 		8-98294-857-0 02 1 1506- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1203-1408 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1203-1408 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1203-1505 ● ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1203-1505 ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1203-1505 ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1506- ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (C) 		8-98103-280-7 01 1 1203- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (B) 		8-98103-279-8 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98190-130-2 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98190-130-2 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (B) 		8-98190-131-1 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98190-131-1 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98103-281-7 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98103-277-6 01 1 1203- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 13 1 1203- ● ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98104-382-6 01 1 1203- ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98133-143-6 01 1 1203- ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98133-143-6 01 1 1203- ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (C) 		8-98104-396-5 01 1 1203- ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-98104-396-5 01 1 1203- ● ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> 		8-98180-183-0 02 1 1203- ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98180-183-0 02 1 1203- ●
73 17.455 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98187-269-0 01 1 1203-1408 ● ● ●
73 17.455 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-706-0 01 1 1203-1408 ● ● ●
73 17.455 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-226-0 01 1 1203- ● ●
73 17.455 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-227-0 01 1 1203- ● ●
74 17.455 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98187-068-2 01 1 1203- ●
74 17.455 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98187-068-2 01 1 1203- ●
74 17.455 REINFORCEMENT
REAR BODY DBL WALL CTR PULL(E63) 		8-98187-068-2 01 1 1203- ●
çizim 144407
7 3 1 5 10 37 7 7 3 1 5 10 37 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98103-983-3 01 1 1203- ● ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98119-578-2 01 1 1203- ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98103-992-4 01 1 1203- ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98103-992-4 01 1 1203- ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 1203- ● ● ● ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 1203- ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1505 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1409-1505 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) SCREW M6X45 		8-98056-129-0 02 1 1203- ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1203-1505 ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1506- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1506- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1506- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1506- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1203-1505 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1203-1505 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20 		8-98294-857-0 02 1 1506- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20 		8-98294-857-0 02 1 1506- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1203-1408 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 04 1 1203-1408 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 1203- ● ● ● ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 03.162 M6X12 FLANGE 		0-28050-612-0 05 1 1203-1505 ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 05 1 1203-1505 ● ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 03.162 M6X12 FLANGE 		0-28050-612-0 05 1 1506- ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> 03.162 M6X12 FLANGE 		0-28050-612-0 05 1 1506- ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 03.162 M6X12 FLANGE 		0-28050-612-0 05 1 1506- ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 05 1 1506- ● ●
çizim 182960
34 61 73 45 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1203-1505 ● ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97918-416-0 02 1 1203-1505 ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1203-1505 ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 1506- ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (C) 		8-98103-280-7 01 1 1203- ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (B) 		8-98103-279-8 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98190-130-2 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98190-130-2 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (B) 		8-98190-131-1 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98190-131-1 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98103-281-7 01 1 1203- ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98103-277-6 01 1 1203- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 13 1 1203- ● ● ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (A) 		8-98104-382-6 01 1 1203- ● ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98133-143-6 01 1 1203- ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98133-143-6 01 1 1203- ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> (C) 		8-98104-396-5 01 1 1203- ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-98104-396-5 01 1 1203- ● ●
73 17.455 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98187-269-0 01 1 1203-1408 ● ● ●
73 17.455 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-706-0 01 1 1203-1408 ● ● ●
73 17.455 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-226-0 01 1 1203- ● ●
73 17.455 PROTECTOR; TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98188-227-0 01 1 1203- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
