Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#7975) — 527 parça

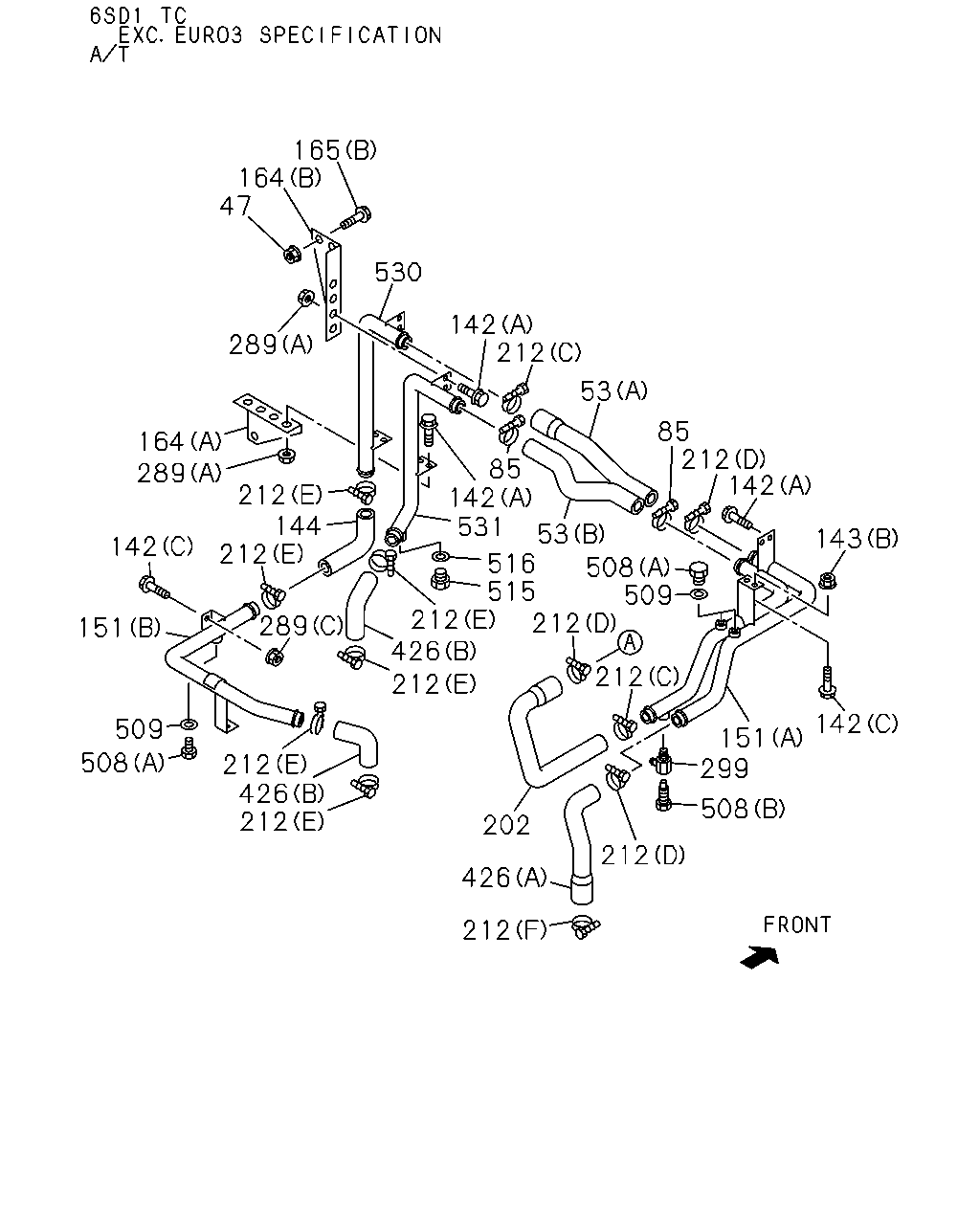

165 164 47 530 142 212 289 53 85 212 142 164 289 85 142 531 212 144 212 53 516 508 515 509 212 212 426 212 143 142 289 151 212 142 509 151 299 508 212 426 212 508 202 212 426 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	NUT; BRKT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) M10 FLANGE	0-91150-110-0	04	1	0204-0602	●
47	NUT; BRKT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) M10 FLANGE	0-91180-110-0	04	1	0603-	●
53	HOSE; WATER,AIR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A)	1-21437-901-1	01	1	0204-	●
53	HOSE; WATER,AIR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B)	1-21437-902-1	01	1	0204-	●
85	CLIP A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) ID=63	1-09704-106-0	02	1	0204-	●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	0012-0203	●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	0204-0512	●	●	●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8X25 FLANGE	0-28680-825-0	10	1	0204-0512	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8X25 FLANGE	0-28650-825-0	10	1	0601-	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10X25 FLANGE	0-28681-025-0	05	1	0204-0512	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10X25 FLANGE	0-28651-025-0	05	1	0601-	●
143	NUT; PIPE (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
143	NUT; PIPE (A) M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
143	NUT; PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
143	NUT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10 FLANGE	0-91150-110-0	02	1	0204-0602	●
143	NUT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
144	HOSE; RUBBER,PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E)	1-21437-893-1	01	1	0204-	●
151	PIPE; ENG TO COOLER A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A)	1-21431-552-2	01	1	0204-	●
151	PIPE; ENG TO COOLER A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B)	1-21431-554-2	01	1	0204-	●
164	BRACKET; RAD PIPE TO C/MBR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A)	1-21439-130-0	01	1	0204-	●
164	BRACKET; RAD PIPE TO C/MBR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B)	1-21439-131-0	01	1	0204-	●
165	BOLT; BRKT TO C/MBR (A) M8X25 FLANGE	0-28680-825-0	02	1	0012-0203	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
165	BOLT; BRKT TO C/MBR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10X25 FLANGE	0-28681-025-0	04	1	0204-0512	●
165	BOLT; BRKT TO C/MBR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
202	HOSE; UPR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E)	1-21437-896-1	01	1	0204-	●
212	CLIP; HOSE (A) ID=14	1-09704-102-0	02	1	0012-0203	●
212	CLIP; HOSE (A) ID=14	1-09704-102-0	02	1	0204-	●	●	●
212	CLIP; HOSE (B) L=250	1-09707-126-0	01	1	0012-0203	●
212	CLIP; HOSE (B) L=250	1-09707-126-0	01	1	0204-	●	●	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (D) ID=76	1-09704-069-0	03	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (F) ID=81	1-09704-070-0	01	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) ID=66	1-09704-079-0	02	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (E) ID=63	1-09704-106-0	06	1	0204-	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
289	NUT (B) M4	9-99110-404-0	06	1	0012-0203	●
289	NUT (B) M4	9-99110-404-0	06	1	0204-	●	●	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91150-108-0	08	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91180-108-0	08	1	0603-	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91150-110-0	03	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91180-110-0	03	1	0603-	●
299	NIPPLE; RAD A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E)	5-09656-010-0	01	1	0204-	●
426	HOSE; WATER A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A)	1-21437-891-1	01	1	0204-	●
426	HOSE; WATER A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B)	1-21437-894-1	02	1	0204-	●
508	PLUG A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M14	8-94399-225-0	03	1	0204-	●
508	PLUG A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B)	9-09809-098-0	01	1	0204-	●
509	GASKET; JOINT BOLT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) ID=14.2 OD=20.0	9-09571-414-0	03	1	0204-	●
515	PLUG A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) M14	8-94399-225-0	01	1	0204-	●
516	GASKET; PLUG A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) ID=14.2 OD=20.0	9-09571-414-0	01	1	0204-	●
530	PIPE; WATER,OIL COOLER A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E)	1-21431-556-1	01	1	0204-	●
531	PIPE; COOLER TO RAD A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E)	1-21431-557-0	01	1	0204-	●

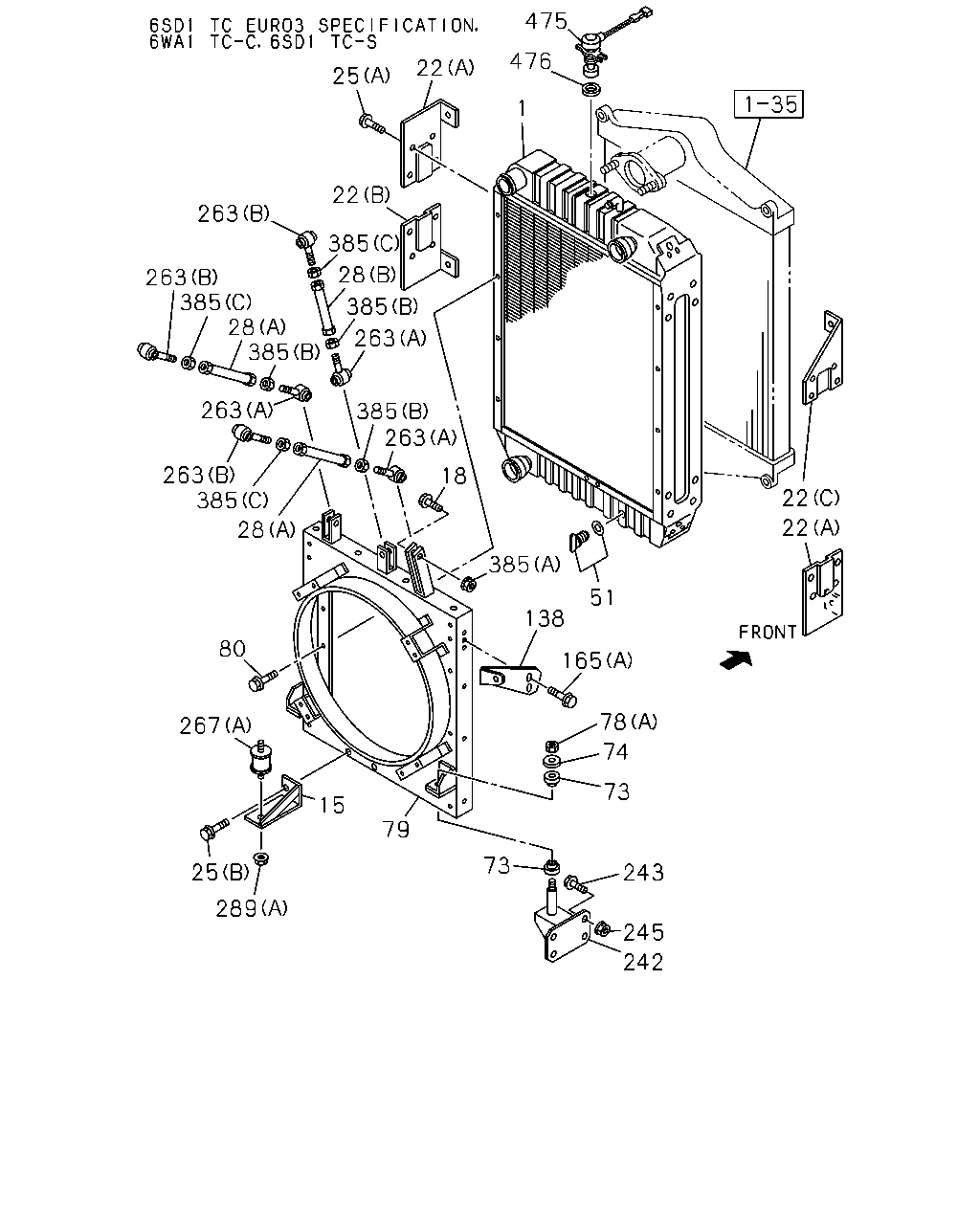

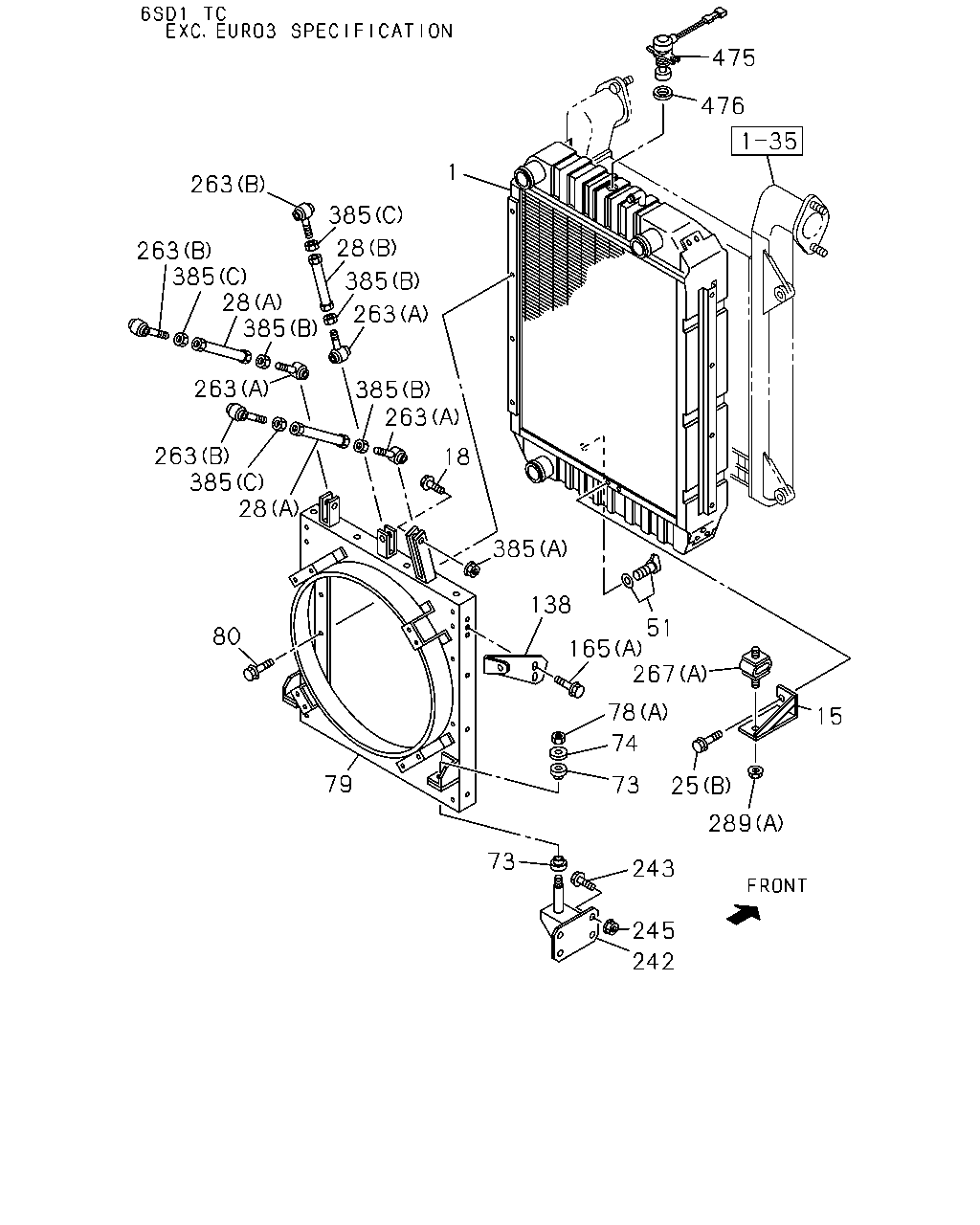

475 476 22 25 1 22 263 385 28 263 385 28 385 385 263 263 385 263 263 385 18 22 22 28 385 51 138 80 165 78 267 74 73 15 79 25 73 243 289 245 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM EXC. EURO3 SPECIFICATION(NJX)	1-21410-792-1	01	1	0107-	●
1	RADIATOR ASM	1-21410-798-0	01	1	0012-0106	●
1	RADIATOR ASM EURO3 SPECIFICATION(NJX)	1-21410-818-0	01	1	0107-0203	●
1	RADIATOR ASM EURO3 SPECIFICATION(NJX)	1-21410-818-0	01	1	0204-0210	●
1	RADIATOR ASM	1-21410-818-0	01	1	0204-0210		●
1	RADIATOR ASM EURO3 SPECIFICATION(NJX)	1-21410-818-0	01	1	0211-	●
1	RADIATOR ASM	1-21410-818-0	01	1	0211-		●	●
15	BRACKET; PIPE,RAD	1-21439-112-0	01	1	0012-0203	●
15	BRACKET; PIPE,RAD	1-21439-112-0	01	1	0204-	●	●	●
18	BOLT; RAD M12X50 FLANGE	0-28081-250-0	06	1	0012-0203	●
18	BOLT; RAD M12X50 FLANGE	0-28081-250-0	06	1	0204-0512	●	●	●
18	BOLT; RAD M12X50 FLANGE	0-28051-250-0	06	1	0601-	●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (A)	1-21464-725-0	02	1	0107-0203	●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (A)	1-21464-725-0	02	1	0204-0210	●
22	BRACKET; RAD MTG (A)	1-21464-725-0	02	1	0204-0210		●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (A)	1-21464-725-0	02	1	0211-0304	●
22	BRACKET; RAD MTG (A)	1-21464-725-0	02	1	0211-0304		●	●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (B)	1-21464-726-0	01	1	0107-0203	●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (B)	1-21464-726-0	01	1	0204-0205	●
22	BRACKET; RAD MTG (B)	1-21464-726-0	01	1	0204-0205		●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (B)	1-21464-726-0	02	1	0206-0210	●
22	BRACKET; RAD MTG (B)	1-21464-726-0	02	1	0206-0210		●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (B)	1-21464-726-0	02	1	0211-0304	●
22	BRACKET; RAD MTG (B)	1-21464-726-0	02	1	0211-0304		●	●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (C)	1-21464-734-0	01	1	0107-0203	●
22	BRACKET; RAD MTG EURO3 SPECIFICATION(NJX) (C)	1-21464-734-0	01	1	0204-0205	●
22	BRACKET; RAD MTG (C)	1-21464-734-0	01	1	0204-0205		●
25	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0012-0203	●
25	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●	●
25	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
25	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X12 FLANGE	0-28080-812-0	16	1	0107-0203	●
25	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X12 FLANGE	0-28080-812-0	16	1	0204-0210	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	16	1	0204-0210		●
25	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X12 FLANGE	0-28080-812-0	16	1	0211-0304	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	16	1	0211-0304		●	●
28	ROD; RAD (A)	1-21469-120-1	02	1	0012-0210	●
28	ROD; RAD (A)	1-21469-120-1	02	1	0211-	●		●
28	ROD; RAD (B)	1-21469-121-1	01	1	0012-0203	●
28	ROD; RAD (B)	1-21469-121-1	01	1	0204-	●	●	●
28	ROD; RAD (A) L=254	1-21469-120-1	01	1	0204-		●
28	ROD; RAD (A) L=296	1-21469-128-1	01	1	0204-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0012-0203	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0204-0210	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0211-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=24	1-21467-011-1	04	1	0012-0203	●
73	RUBBER; CUSHION,RAD MTG T=24	1-21467-011-1	04	1	0204-	●	●	●
74	WASHER; PL,CUSHION RUBBER	8-97205-139-0	02	1	0012-0203	●
74	WASHER; PL,CUSHION RUBBER	8-97205-139-0	02	1	0204-	●	●	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0012-0210	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0211-0602	●		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	08	1	0603-	●		●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0012-0203	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0204-0602	●	●	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	06	1	0204-0602		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	06	1	0603-		●
79	GUIDE; FAN,RAD	1-21570-089-0	01	1	0012-0203	●
79	GUIDE; FAN,RAD	1-21570-089-1	01	1	0204-0210	●	●
79	GUIDE; FAN,RAD	1-21570-089-1	01	1	0211-	●	●	●
80	BOLT; FAN GUIDE M10X50 FLANGE	0-28081-050-0	08	1	0012-0203	●
80	BOLT; FAN GUIDE M10X50 FLANGE	0-28081-050-0	08	1	0204-0210	●	●
80	BOLT; FAN GUIDE M10X50 FLANGE	0-28081-050-0	08	1	0211-	●	●	●
138	BRACKET; CLIP	1-21439-111-0	01	1	0012-0203	●
138	BRACKET; CLIP ISUZU M/T<X9A>	1-21439-111-0	01	1	0204-	●	●	●
165	BOLT; BRKT TO C/MBR (A) M8X25 FLANGE	0-28680-825-0	02	1	0012-0203	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
165	BOLT; BRKT TO C/MBR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10X25 FLANGE	0-28681-025-0	04	1	0204-0512	●
165	BOLT; BRKT TO C/MBR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
242	BRACKET; RAD	1-21469-138-0	02	1	0012-0203	●
242	BRACKET; RAD	1-21469-138-0	02	1	0204-	●	●	●
243	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	08	1	0012-0203	●
243	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	08	1	0204-0512	●	●	●
243	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	08	1	0601-	●
245	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0012-0203	●
245	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0204-0602	●	●	●
245	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0603-	●	●	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	01	1	0012-0203	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	01	1	0204-	●	●	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	02	1	0012-0203	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	02	1	0204-0210	●	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	02	1	0211-	●	●	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	01	1	0012-0203	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	01	1	0204-	●	●	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	02	1	0012-0203	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	02	1	0204-0210	●	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	02	1	0211-	●	●	●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0012-0203	●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0204-	●	●	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0012-0210	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0211-	●		●
267	RUBBER; CUSHION (C)	1-22226-002-0	03	1	0204-		●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
289	NUT (B) M4	9-99110-404-0	06	1	0012-0203	●
289	NUT (B) M4	9-99110-404-0	06	1	0204-	●	●	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91150-108-0	08	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91180-108-0	08	1	0603-	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91150-110-0	03	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91180-110-0	03	1	0603-	●
385	NUT; ROD (A) M12 FLANGE	0-91150-212-0	06	1	0012-0108	●
385	NUT; ROD (A) M12 FLANGE	0-91150-212-0	05	1	0109-0203	●
385	NUT; ROD (A) M12 FLANGE	0-91150-212-0	05	1	0204-0602	●	●	●
385	NUT; ROD (A) M12 FLANGE	0-91180-212-0	05	1	0603-	●	●	●
385	NUT; ROD (B) M10	9-09111-510-0	02	1	0012-0111	●
385	NUT; ROD (B) M10	9-09111-510-0	01	1	0112-0203	●
385	NUT; ROD (B) M10	9-09111-510-0	01	1	0204-0512	●	●	●
385	NUT; ROD (B) M10	0-91111-510-0	01	1	0601-	●
385	NUT; ROD (B) M10	9-09111-510-0	04	1	0012-0112	●
385	NUT; ROD (B) M10	9-09111-510-0	02	1	0201-0203	●
385	NUT; ROD (B) M10	9-09111-510-0	02	1	0204-0210	●	●
385	NUT; ROD (B) M10	9-09111-510-0	02	1	0211-0512	●	●	●
385	NUT; ROD (B) M10	0-91111-510-0	02	1	0601-	●	●	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	01	1	0012-0203	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	01	1	0204-	●	●	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	02	1	0012-0203	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	02	1	0204-0210	●	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	02	1	0211-	●	●	●
475	SWITCH; WATER LEVEL	1-82480-091-0	01	1	0012-0203	●
475	SWITCH; WATER LEVEL	1-82480-091-1	01	1	0204-0210	●	●
475	SWITCH; WATER LEVEL	1-82480-091-1	01	1	0211-	●	●	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	0012-0203	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	0204-0210	●	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	0211-	●	●	●

475 476 1 263 385 28 263 385 28 385 385 263 263 385 263 263 385 28 18 385 138 51 267 80 165 78 15 74 79 73 25 289 73 243 245 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM EXC. EURO3 SPECIFICATION(NJX)	1-21410-792-1	01	1	0107-	●
1	RADIATOR ASM	1-21410-798-0	01	1	0012-0106	●
1	RADIATOR ASM EURO3 SPECIFICATION(NJX)	1-21410-818-0	01	1	0107-0203	●
1	RADIATOR ASM EURO3 SPECIFICATION(NJX)	1-21410-818-0	01	1	0204-0210	●
1	RADIATOR ASM	1-21410-818-0	01	1	0204-0210		●
1	RADIATOR ASM EURO3 SPECIFICATION(NJX)	1-21410-818-0	01	1	0211-	●
1	RADIATOR ASM	1-21410-818-0	01	1	0211-		●	●
15	BRACKET; PIPE,RAD	1-21439-112-0	01	1	0012-0203	●
15	BRACKET; PIPE,RAD	1-21439-112-0	01	1	0204-	●	●	●
18	BOLT; RAD M12X50 FLANGE	0-28081-250-0	06	1	0012-0203	●
18	BOLT; RAD M12X50 FLANGE	0-28081-250-0	06	1	0204-0512	●	●	●
18	BOLT; RAD M12X50 FLANGE	0-28051-250-0	06	1	0601-	●
25	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0012-0203	●
25	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●	●
25	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
25	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X12 FLANGE	0-28080-812-0	16	1	0107-0203	●
25	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X12 FLANGE	0-28080-812-0	16	1	0204-0210	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	16	1	0204-0210		●
25	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X12 FLANGE	0-28080-812-0	16	1	0211-0304	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	16	1	0211-0304		●	●
28	ROD; RAD (A)	1-21469-120-1	02	1	0012-0210	●
28	ROD; RAD (A)	1-21469-120-1	02	1	0211-	●		●
28	ROD; RAD (B)	1-21469-121-1	01	1	0012-0203	●
28	ROD; RAD (B)	1-21469-121-1	01	1	0204-	●	●	●
28	ROD; RAD (A) L=254	1-21469-120-1	01	1	0204-		●
28	ROD; RAD (A) L=296	1-21469-128-1	01	1	0204-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0012-0203	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0204-0210	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0211-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=24	1-21467-011-1	04	1	0012-0203	●
73	RUBBER; CUSHION,RAD MTG T=24	1-21467-011-1	04	1	0204-	●	●	●
74	WASHER; PL,CUSHION RUBBER	8-97205-139-0	02	1	0012-0203	●
74	WASHER; PL,CUSHION RUBBER	8-97205-139-0	02	1	0204-	●	●	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0012-0210	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0211-0602	●		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	08	1	0603-	●		●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0012-0203	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0204-0602	●	●	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	06	1	0204-0602		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	06	1	0603-		●
79	GUIDE; FAN,RAD	1-21570-089-0	01	1	0012-0203	●
79	GUIDE; FAN,RAD	1-21570-089-1	01	1	0204-0210	●	●
79	GUIDE; FAN,RAD	1-21570-089-1	01	1	0211-	●	●	●
80	BOLT; FAN GUIDE M10X50 FLANGE	0-28081-050-0	08	1	0012-0203	●
80	BOLT; FAN GUIDE M10X50 FLANGE	0-28081-050-0	08	1	0204-0210	●	●
80	BOLT; FAN GUIDE M10X50 FLANGE	0-28081-050-0	08	1	0211-	●	●	●
138	BRACKET; CLIP	1-21439-111-0	01	1	0012-0203	●
138	BRACKET; CLIP ISUZU M/T<X9A>	1-21439-111-0	01	1	0204-	●	●	●
165	BOLT; BRKT TO C/MBR (A) M8X25 FLANGE	0-28680-825-0	02	1	0012-0203	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●	●
165	BOLT; BRKT TO C/MBR ISUZU M/T<X9A> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
165	BOLT; BRKT TO C/MBR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10X25 FLANGE	0-28681-025-0	04	1	0204-0512	●
165	BOLT; BRKT TO C/MBR A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
242	BRACKET; RAD	1-21469-138-0	02	1	0012-0203	●
242	BRACKET; RAD	1-21469-138-0	02	1	0204-	●	●	●
243	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	08	1	0012-0203	●
243	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	08	1	0204-0512	●	●	●
243	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	08	1	0601-	●
245	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0012-0203	●
245	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0204-0602	●	●	●
245	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0603-	●	●	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	01	1	0012-0203	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	01	1	0204-	●	●	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	02	1	0012-0203	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	02	1	0204-0210	●	●
263	END ASM; RAD TIE ROD (A) RH THREAD	9-21460-134-1	02	1	0211-	●	●	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	01	1	0012-0203	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	01	1	0204-	●	●	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	02	1	0012-0203	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	02	1	0204-0210	●	●
263	END ASM; RAD TIE ROD (B) LH THREAD	9-21460-135-1	02	1	0211-	●	●	●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0012-0203	●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0204-	●	●	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0012-0210	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0211-	●		●
267	RUBBER; CUSHION (C)	1-22226-002-0	03	1	0204-		●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
289	NUT (B) M4	9-99110-404-0	06	1	0012-0203	●
289	NUT (B) M4	9-99110-404-0	06	1	0204-	●	●	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91150-108-0	08	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91180-108-0	08	1	0603-	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91150-110-0	03	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91180-110-0	03	1	0603-	●
385	NUT; ROD (A) M12 FLANGE	0-91150-212-0	06	1	0012-0108	●
385	NUT; ROD (A) M12 FLANGE	0-91150-212-0	05	1	0109-0203	●
385	NUT; ROD (A) M12 FLANGE	0-91150-212-0	05	1	0204-0602	●	●	●
385	NUT; ROD (A) M12 FLANGE	0-91180-212-0	05	1	0603-	●	●	●
385	NUT; ROD (B) M10	9-09111-510-0	02	1	0012-0111	●
385	NUT; ROD (B) M10	9-09111-510-0	01	1	0112-0203	●
385	NUT; ROD (B) M10	9-09111-510-0	01	1	0204-0512	●	●	●
385	NUT; ROD (B) M10	0-91111-510-0	01	1	0601-	●
385	NUT; ROD (B) M10	9-09111-510-0	04	1	0012-0112	●
385	NUT; ROD (B) M10	9-09111-510-0	02	1	0201-0203	●
385	NUT; ROD (B) M10	9-09111-510-0	02	1	0204-0210	●	●
385	NUT; ROD (B) M10	9-09111-510-0	02	1	0211-0512	●	●	●
385	NUT; ROD (B) M10	0-91111-510-0	02	1	0601-	●	●	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	01	1	0012-0203	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	01	1	0204-	●	●	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	02	1	0012-0203	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	02	1	0204-0210	●	●
385	NUT; ROD (C) M10 LH THREAD	9-09840-167-0	02	1	0211-	●	●	●
475	SWITCH; WATER LEVEL	1-82480-091-0	01	1	0012-0203	●
475	SWITCH; WATER LEVEL	1-82480-091-1	01	1	0204-0210	●	●
475	SWITCH; WATER LEVEL	1-82480-091-1	01	1	0211-	●	●	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	0012-0203	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	0204-0210	●	●
476	GASKET; SWITCH,WATER LEVEL ID=28 T=2.5	1-09630-126-0	01	1	0211-	●	●	●

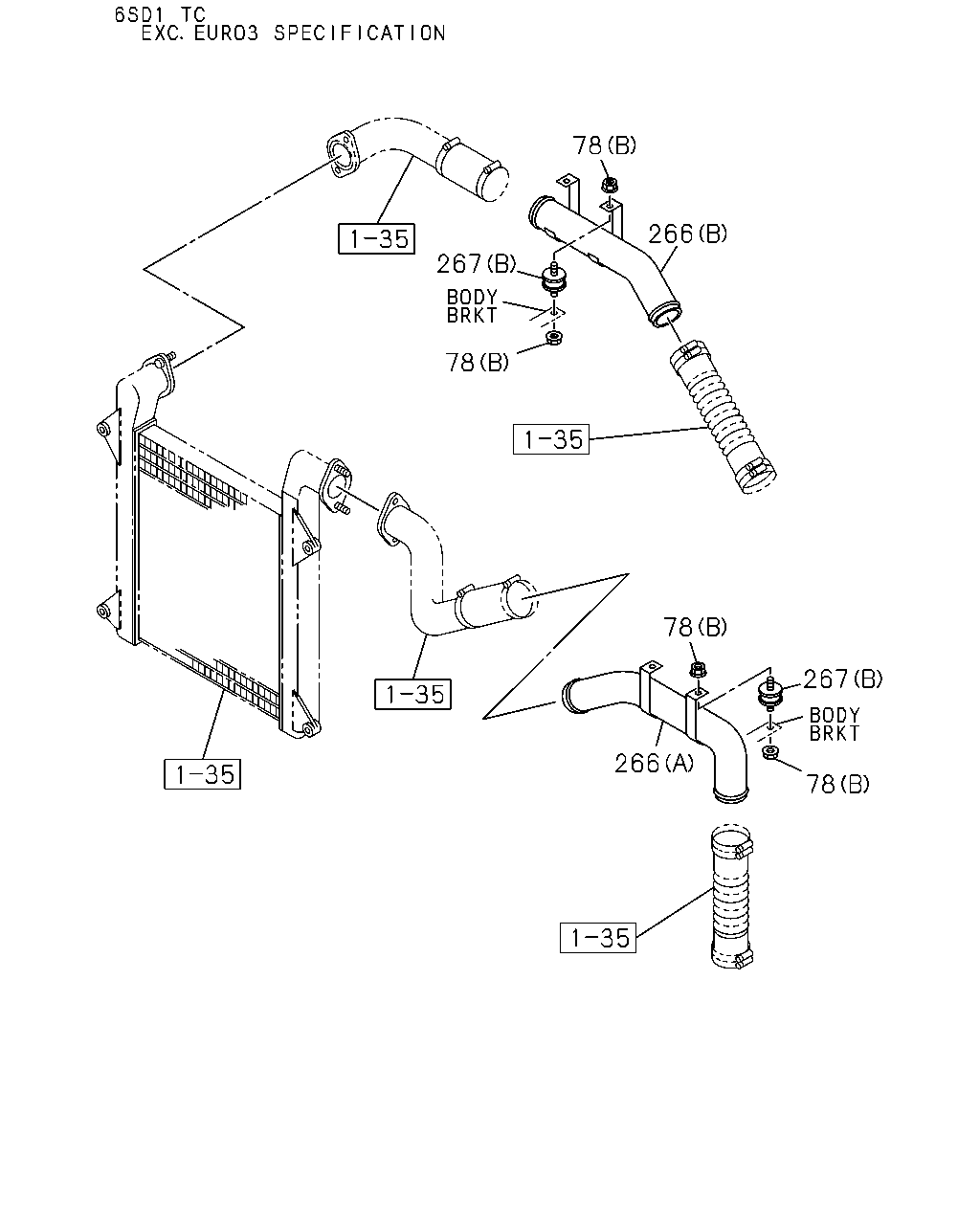

78 266 267 78 78 267 266 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0012-0210	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0211-0602	●		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	08	1	0603-	●		●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0012-0203	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0204-0602	●	●	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	06	1	0204-0602		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	06	1	0603-		●
266	DUCT; ENG TO RAD (A)	1-14121-145-0	01	1	0012-0106	●
266	DUCT; ENG TO RAD EXC. EURO3 SPECIFICATION(NJX) (A)	1-14121-145-0	01	1	0107-	●
266	DUCT; ENG TO RAD (B)	1-14121-146-0	01	1	0012-0106	●
266	DUCT; ENG TO RAD EXC. EURO3 SPECIFICATION(NJX) (B)	1-14121-146-0	01	1	0107-	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (F)	1-14121-155-1	01	1	0107-0210	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (F)	1-14121-155-1	01	1	0211-	●
266	DUCT; ENG TO RAD (F)	1-14121-155-1	01	1	0211-			●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (G)	1-14121-156-1	01	1	0107-0210	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (G)	1-14121-156-1	01	1	0211-	●
266	DUCT; ENG TO RAD (G)	1-14121-156-1	01	1	0211-			●
266	DUCT; ENG TO RAD (D)	1-14112-491-1	01	1	0204-		●
266	DUCT; ENG TO RAD (E)	1-14121-151-0	01	1	0204-		●
266	DUCT; ENG TO RAD (C)	1-14121-153-0	01	1	0204-		●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0012-0203	●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0204-	●	●	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0012-0210	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0211-	●		●
267	RUBBER; CUSHION (C)	1-22226-002-0	03	1	0204-		●

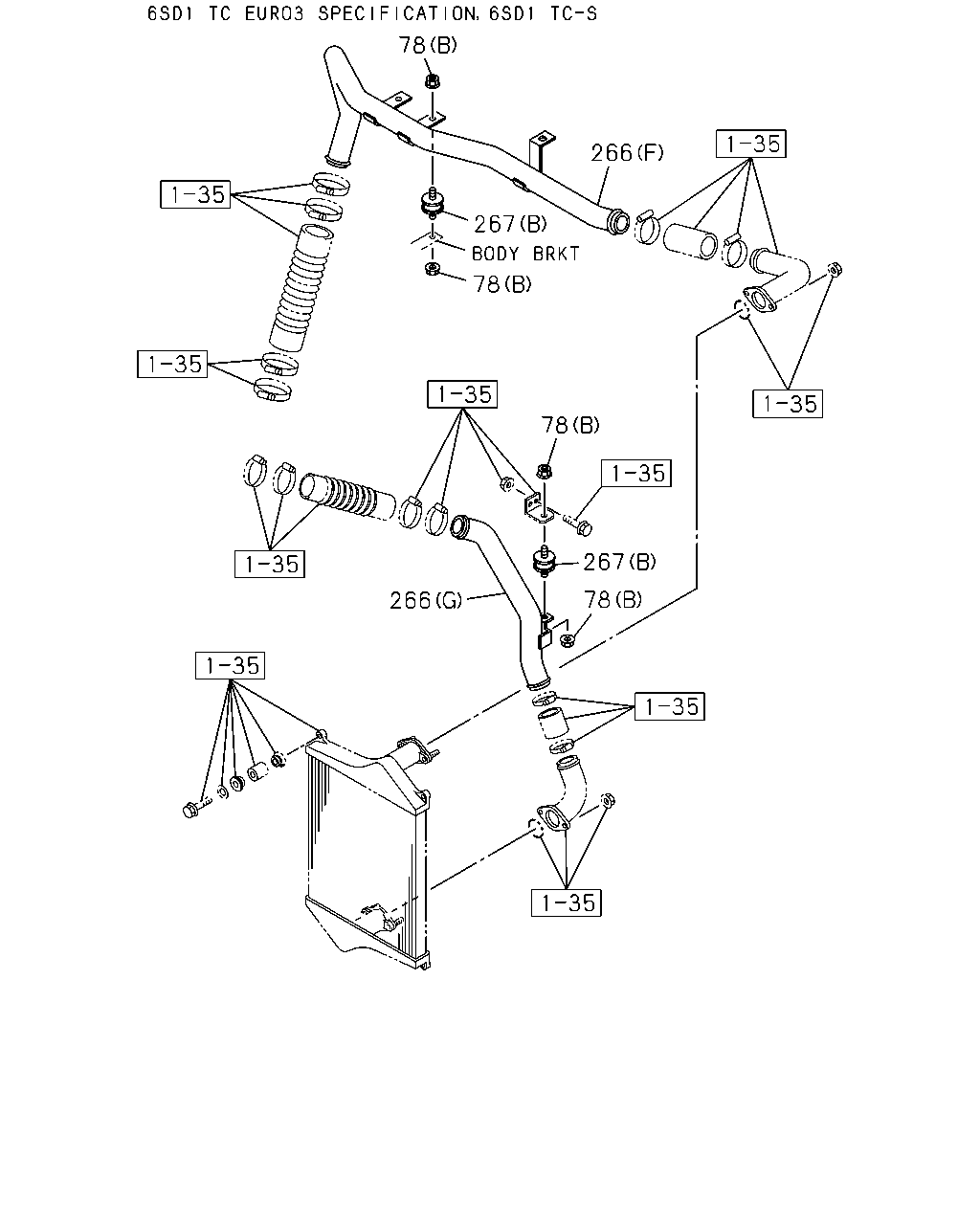

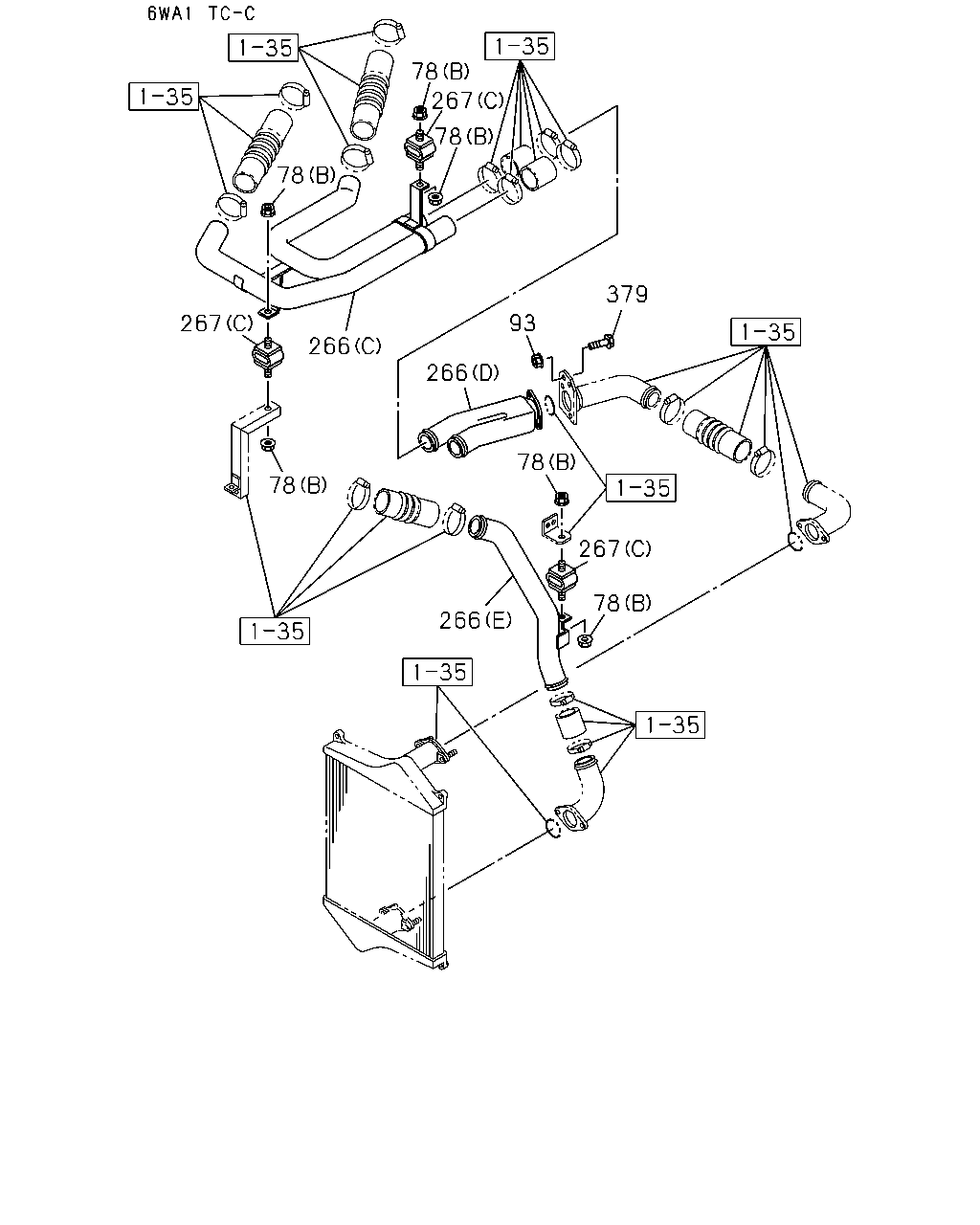

78 266 267 78 78 267 78 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0012-0210	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0211-0602	●		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	08	1	0603-	●		●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0012-0203	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0204-0602	●	●	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	06	1	0204-0602		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	06	1	0603-		●
266	DUCT; ENG TO RAD (A)	1-14121-145-0	01	1	0012-0106	●
266	DUCT; ENG TO RAD EXC. EURO3 SPECIFICATION(NJX) (A)	1-14121-145-0	01	1	0107-	●
266	DUCT; ENG TO RAD (B)	1-14121-146-0	01	1	0012-0106	●
266	DUCT; ENG TO RAD EXC. EURO3 SPECIFICATION(NJX) (B)	1-14121-146-0	01	1	0107-	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (F)	1-14121-155-1	01	1	0107-0210	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (F)	1-14121-155-1	01	1	0211-	●
266	DUCT; ENG TO RAD (F)	1-14121-155-1	01	1	0211-			●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (G)	1-14121-156-1	01	1	0107-0210	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (G)	1-14121-156-1	01	1	0211-	●
266	DUCT; ENG TO RAD (G)	1-14121-156-1	01	1	0211-			●
266	DUCT; ENG TO RAD (D)	1-14112-491-1	01	1	0204-		●
266	DUCT; ENG TO RAD (E)	1-14121-151-0	01	1	0204-		●
266	DUCT; ENG TO RAD (C)	1-14121-153-0	01	1	0204-		●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0012-0203	●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0204-	●	●	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0012-0210	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0211-	●		●
267	RUBBER; CUSHION (C)	1-22226-002-0	03	1	0204-		●

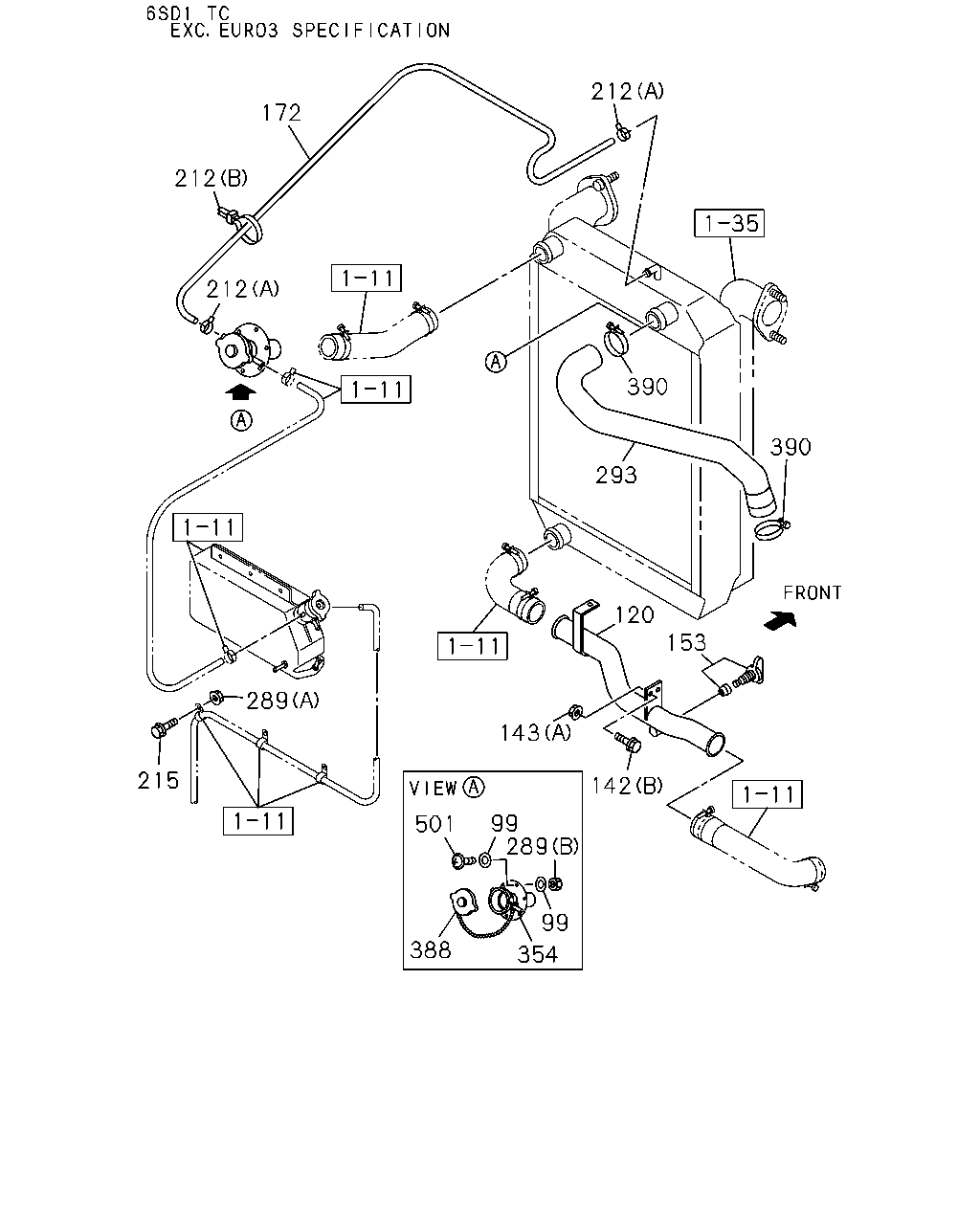

212 172 212 212 390 390 293 120 153 289 143 215 142 99 289 501 99 388 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
99	WASHER; PL ID=4 OD=10	8-94100-265-1	12	1	0012-0203	●
99	WASHER; PL ID=4 OD=10	8-94100-265-1	12	1	0204-	●	●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET	1-21431-530-0	01	1	0012-0106	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EXC. EURO3 SPECIFICATION(NJX)	1-21431-530-0	01	1	0107-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EURO3 SPECIFICATION(NJX)	1-21431-550-0	01	1	0107-0210	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EURO3 SPECIFICATION(NJX)	1-21431-550-0	01	1	0211-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET	1-21431-550-0	01	1	0211-			●
120	PIPE; HOSE TO HOSE,RAD OUTLET	1-21431-537-1	01	1	0204-		●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	0012-0203	●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	0204-0512	●	●	●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8X25 FLANGE	0-28680-825-0	10	1	0204-0512	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8X25 FLANGE	0-28650-825-0	10	1	0601-	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10X25 FLANGE	0-28681-025-0	05	1	0204-0512	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10X25 FLANGE	0-28651-025-0	05	1	0601-	●
143	NUT; PIPE (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
143	NUT; PIPE (A) M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
143	NUT; PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
143	NUT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10 FLANGE	0-91150-110-0	02	1	0204-0602	●
143	NUT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
153	COCK; WATER DRAIN,RAD W/GASKET	1-09609-009-0	01	1	0012-0203	●
153	COCK; WATER DRAIN,RAD W/GASKET	1-09609-009-0	01	1	0204-	●	●	●
172	HOSE; RUBBER,BREATHER,SUB TANK L=760 SERVICED BY L=3000	0-03259-300-0	01	1	0012-0103	●
172	HOSE; RUBBER,BREATHER,SUB TANK L=760 SERVICED BY L=3000	0-03559-300-0	01	1	0104-0203	●
172	HOSE; RUBBER,BREATHER,SUB TANK L=760 SERVICED BY L=3000	0-03559-300-0	01	1	0204-	●	●	●
212	CLIP; HOSE (A) ID=14	1-09704-102-0	02	1	0012-0203	●
212	CLIP; HOSE (A) ID=14	1-09704-102-0	02	1	0204-	●	●	●
212	CLIP; HOSE (B) L=250	1-09707-126-0	01	1	0012-0203	●
212	CLIP; HOSE (B) L=250	1-09707-126-0	01	1	0204-	●	●	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (D) ID=76	1-09704-069-0	03	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (F) ID=81	1-09704-070-0	01	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) ID=66	1-09704-079-0	02	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (E) ID=63	1-09704-106-0	06	1	0204-	●
215	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0012-0210	●
215	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●		●
215	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
289	NUT (B) M4	9-99110-404-0	06	1	0012-0203	●
289	NUT (B) M4	9-99110-404-0	06	1	0204-	●	●	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91150-108-0	08	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91180-108-0	08	1	0603-	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91150-110-0	03	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91180-110-0	03	1	0603-	●
293	HOSE; RUBBER ENG TO RAD	1-21437-798-1	01	1	0012-0203	●
293	HOSE; RUBBER ENG TO RAD ISUZU M/T<X9A>	1-21437-798-1	01	1	0204-0210	●
293	HOSE; RUBBER ENG TO RAD ISUZU M/T<X9A>	1-21437-798-1	01	1	0211-	●
293	HOSE; RUBBER ENG TO RAD	1-21437-798-1	01	1	0211-			●
293	HOSE; RUBBER ENG TO RAD	1-21437-817-1	01	1	0204-		●
354	FILLER; WATER	1-21450-125-1	01	1	0012-0203	●
354	FILLER; WATER	1-21450-125-1	01	1	0204-	●	●	●
388	CAP; FILLER,RAD WATER	1-21450-123-0	01	1	0012-0203	●
388	CAP; FILLER,RAD WATER	1-21450-123-0	01	1	0204-	●	●	●
390	CLIP; RUBBER HOSE ID=76	1-09704-069-0	02	1	0012-0203	●
390	CLIP; RUBBER HOSE ISUZU M/T<X9A> ID=76	1-09704-069-0	02	1	0204-	●	●	●
501	SCREW M4X10	9-03800-410-0	06	1	0012-0203	●
501	SCREW M4X10	9-03800-410-0	06	1	0204-0604	●	●	●
501	SCREW M4X10	0-35050-410-0	06	1	0605-	●

78 267 78 78 379 93 267 266 266 78 78 267 78 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0012-0210	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	08	1	0211-0602	●		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	08	1	0603-	●		●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0012-0203	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91150-212-0	02	1	0204-0602	●	●	●
78	NUT; CUSHION RUBBER (A) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91150-108-0	06	1	0204-0602		●
78	NUT; CUSHION RUBBER (B) M8 FLANGE	0-91180-108-0	06	1	0603-		●
93	BOLT; BRKT FIX M10X30 FLANGE	0-28681-030-0	02	1	0204-0512		●
93	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
266	DUCT; ENG TO RAD (A)	1-14121-145-0	01	1	0012-0106	●
266	DUCT; ENG TO RAD EXC. EURO3 SPECIFICATION(NJX) (A)	1-14121-145-0	01	1	0107-	●
266	DUCT; ENG TO RAD (B)	1-14121-146-0	01	1	0012-0106	●
266	DUCT; ENG TO RAD EXC. EURO3 SPECIFICATION(NJX) (B)	1-14121-146-0	01	1	0107-	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (F)	1-14121-155-1	01	1	0107-0210	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (F)	1-14121-155-1	01	1	0211-	●
266	DUCT; ENG TO RAD (F)	1-14121-155-1	01	1	0211-			●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (G)	1-14121-156-1	01	1	0107-0210	●
266	DUCT; ENG TO RAD EURO3 SPECIFICATION(NJX) (G)	1-14121-156-1	01	1	0211-	●
266	DUCT; ENG TO RAD (G)	1-14121-156-1	01	1	0211-			●
266	DUCT; ENG TO RAD (D)	1-14112-491-1	01	1	0204-		●
266	DUCT; ENG TO RAD (E)	1-14121-151-0	01	1	0204-		●
266	DUCT; ENG TO RAD (C)	1-14121-153-0	01	1	0204-		●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0012-0203	●
267	RUBBER; CUSHION (A)	8-94394-268-1	01	1	0204-	●	●	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0012-0210	●
267	RUBBER; CUSHION (B)	8-94394-268-1	04	1	0211-	●		●
267	RUBBER; CUSHION (C)	1-22226-002-0	03	1	0204-		●
379	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	02	1	0204-0602		●
379	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	02	1	0603-		●

212 172 212 212 390 390 293 120 153 289 143 215 142 99 289 501 99 388 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
99	WASHER; PL ID=4 OD=10	8-94100-265-1	12	1	0012-0203	●
99	WASHER; PL ID=4 OD=10	8-94100-265-1	12	1	0204-	●	●	●
120	PIPE; HOSE TO HOSE,RAD OUTLET	1-21431-530-0	01	1	0012-0106	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EXC. EURO3 SPECIFICATION(NJX)	1-21431-530-0	01	1	0107-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EURO3 SPECIFICATION(NJX)	1-21431-550-0	01	1	0107-0210	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EURO3 SPECIFICATION(NJX)	1-21431-550-0	01	1	0211-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET	1-21431-550-0	01	1	0211-			●
120	PIPE; HOSE TO HOSE,RAD OUTLET	1-21431-537-1	01	1	0204-		●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	0012-0203	●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	0204-0512	●	●	●
142	BOLT; PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8X25 FLANGE	0-28680-825-0	10	1	0204-0512	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8X25 FLANGE	0-28650-825-0	10	1	0601-	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10X25 FLANGE	0-28681-025-0	05	1	0204-0512	●
142	BOLT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10X25 FLANGE	0-28651-025-0	05	1	0601-	●
143	NUT; PIPE (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
143	NUT; PIPE (A) M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
143	NUT; PIPE (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
143	NUT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10 FLANGE	0-91150-110-0	02	1	0204-0602	●
143	NUT; PIPE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
153	COCK; WATER DRAIN,RAD W/GASKET	1-09609-009-0	01	1	0012-0203	●
153	COCK; WATER DRAIN,RAD W/GASKET	1-09609-009-0	01	1	0204-	●	●	●
172	HOSE; RUBBER,BREATHER,SUB TANK L=760 SERVICED BY L=3000	0-03259-300-0	01	1	0012-0103	●
172	HOSE; RUBBER,BREATHER,SUB TANK L=760 SERVICED BY L=3000	0-03559-300-0	01	1	0104-0203	●
172	HOSE; RUBBER,BREATHER,SUB TANK L=760 SERVICED BY L=3000	0-03559-300-0	01	1	0204-	●	●	●
212	CLIP; HOSE (A) ID=14	1-09704-102-0	02	1	0012-0203	●
212	CLIP; HOSE (A) ID=14	1-09704-102-0	02	1	0204-	●	●	●
212	CLIP; HOSE (B) L=250	1-09707-126-0	01	1	0012-0203	●
212	CLIP; HOSE (B) L=250	1-09707-126-0	01	1	0204-	●	●	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (D) ID=76	1-09704-069-0	03	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (F) ID=81	1-09704-070-0	01	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) ID=66	1-09704-079-0	02	1	0204-	●
212	CLIP; HOSE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (E) ID=63	1-09704-106-0	06	1	0204-	●
215	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0012-0210	●
215	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●		●
215	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0204-0210	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
289	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
289	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
289	NUT (B) M4	9-99110-404-0	06	1	0012-0203	●
289	NUT (B) M4	9-99110-404-0	06	1	0204-	●	●	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91150-108-0	08	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (A) M8 FLANGE	0-91180-108-0	08	1	0603-	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91150-110-0	03	1	0204-0602	●
289	NUT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (C) M10 FLANGE	0-91180-110-0	03	1	0603-	●
293	HOSE; RUBBER ENG TO RAD	1-21437-798-1	01	1	0012-0203	●
293	HOSE; RUBBER ENG TO RAD ISUZU M/T<X9A>	1-21437-798-1	01	1	0204-0210	●
293	HOSE; RUBBER ENG TO RAD ISUZU M/T<X9A>	1-21437-798-1	01	1	0211-	●
293	HOSE; RUBBER ENG TO RAD	1-21437-798-1	01	1	0211-			●
293	HOSE; RUBBER ENG TO RAD	1-21437-817-1	01	1	0204-		●
354	FILLER; WATER	1-21450-125-1	01	1	0012-0203	●
354	FILLER; WATER	1-21450-125-1	01	1	0204-	●	●	●
388	CAP; FILLER,RAD WATER	1-21450-123-0	01	1	0012-0203	●
388	CAP; FILLER,RAD WATER	1-21450-123-0	01	1	0204-	●	●	●
390	CLIP; RUBBER HOSE ID=76	1-09704-069-0	02	1	0012-0203	●
390	CLIP; RUBBER HOSE ISUZU M/T<X9A> ID=76	1-09704-069-0	02	1	0204-	●	●	●
501	SCREW M4X10	9-03800-410-0	06	1	0012-0203	●
501	SCREW M4X10	9-03800-410-0	06	1	0204-0604	●	●	●
501	SCREW M4X10	0-35050-410-0	06	1	0605-	●

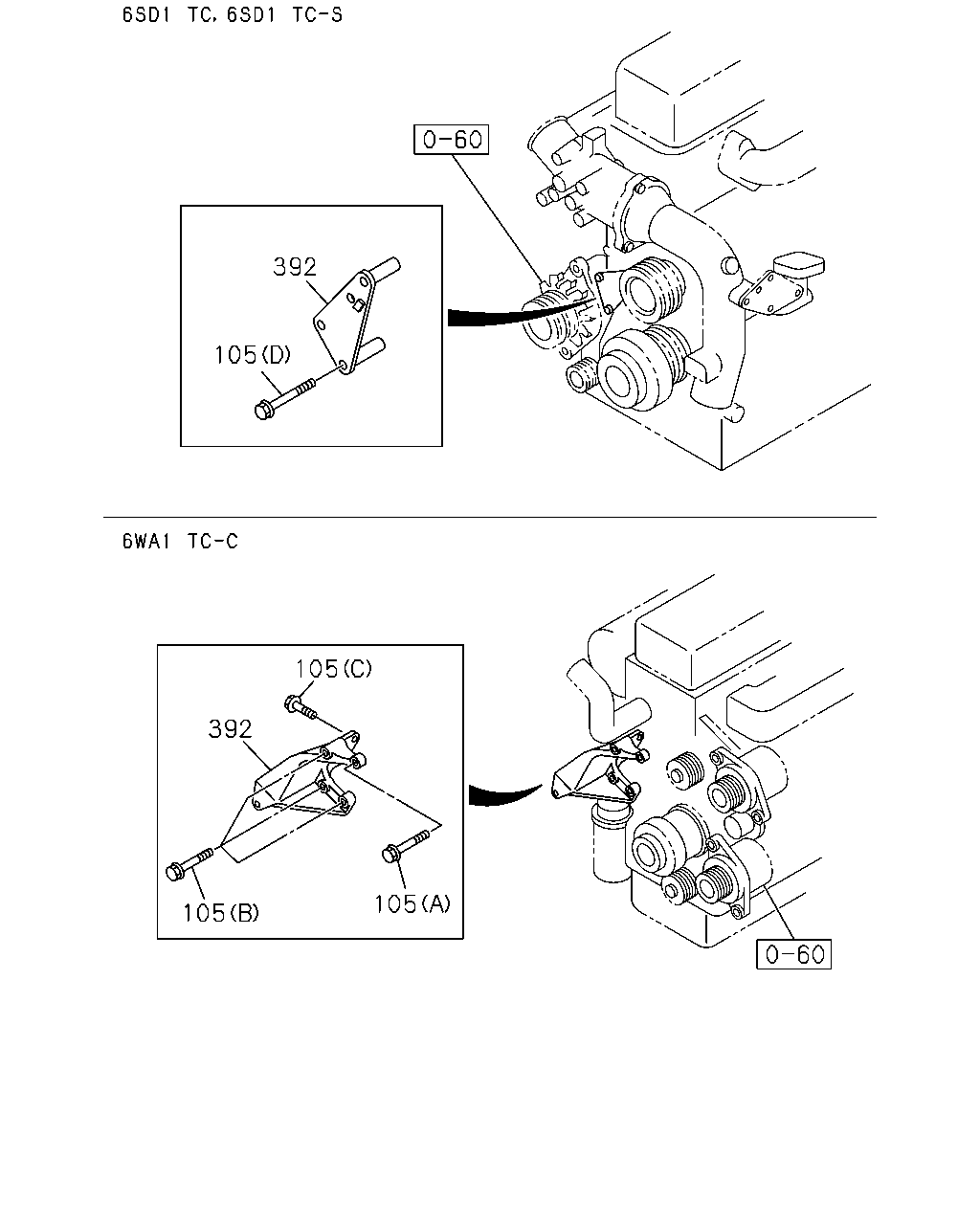

392 105 105 392 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
105	BOLT; BRKT (D) M12X110	0-28186-211-0	03	1	0012-0210	●
105	BOLT; BRKT (D) M12X110	0-28186-211-0	03	1	0211-0512	●		●
105	BOLT; BRKT (D) M12X110 FLANGE	0-28156-211-0	03	1	0601-	●		●
105	BOLT; BRKT (A) M10X110 FLANGE	0-28186-011-0	01	1	0204-0512		●
105	BOLT; BRKT (A) M10X110 FLANGE	0-28156-011-0	01	1	0601-		●
105	BOLT; BRKT (B) M10X140 FLANGE	0-28186-014-0	03	1	0204-0512		●
105	BOLT; BRKT (B) M10X140 FLANGE	0-28156-014-0	03	1	0601-		●
105	BOLT; BRKT (C) M10X30 FLANGE	0-28781-030-0	03	1	0204-0512		●
105	BOLT; BRKT (C) M10X30 FLANGE	0-28751-030-0	03	1	0601-		●
392	BRACKET; FAN ADJ LINK	1-13676-086-1	01	1	0012-0210	●
392	BRACKET; FAN ADJ LINK	1-13676-086-1	01	1	0211-	●		●
392	BRACKET; FAN ADJ LINK	1-13676-091-0	01	1	0204-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
