◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#79749) — 50 parça

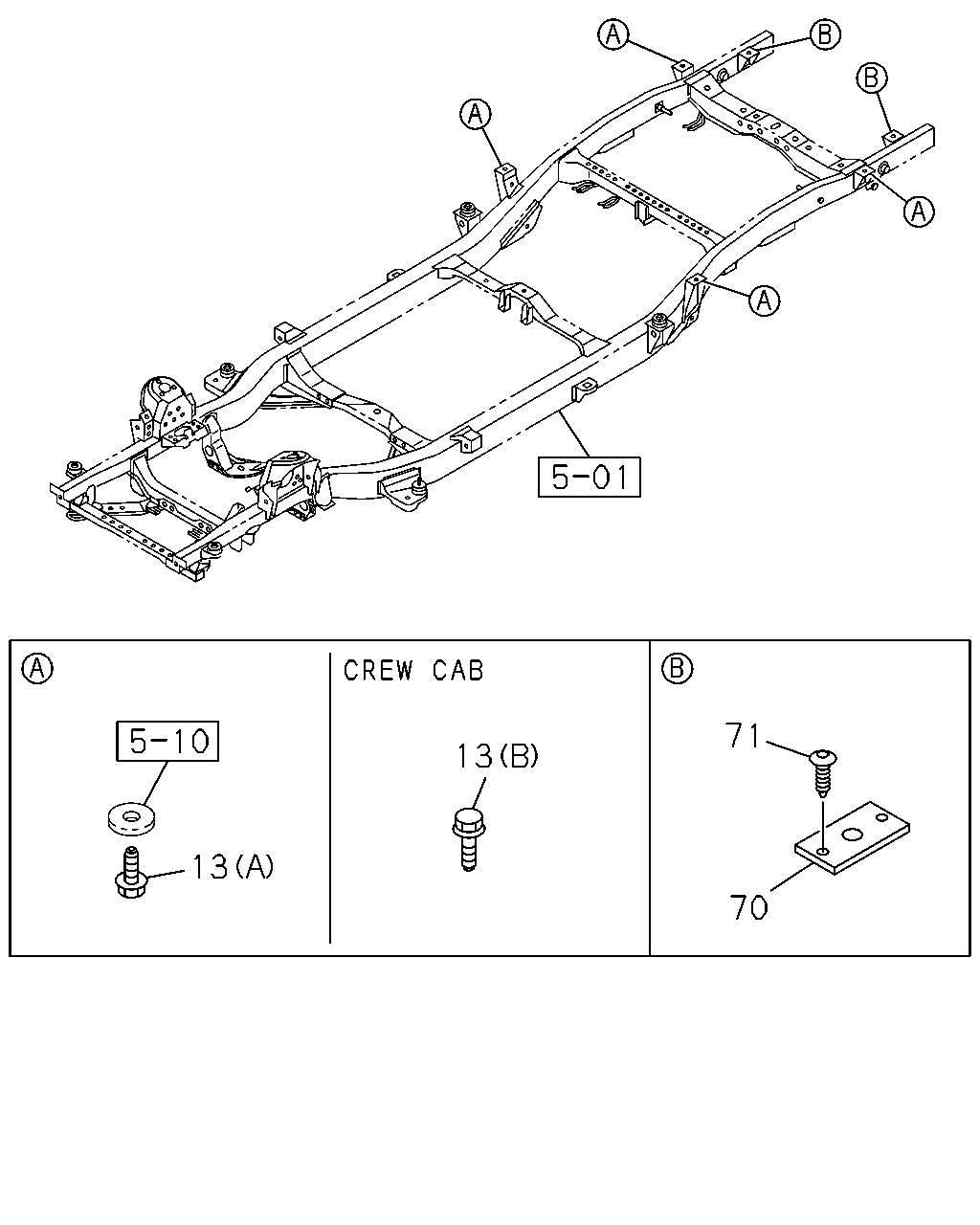

çizim 4734
71 13 13 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 08 1 1203- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 04 1 1203- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98176-522-0 02 1 1203- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 06 1 1203- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 04 1 1203- ● ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 02 1 1203- ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 08 1 1203- ● ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 1203- ● ●

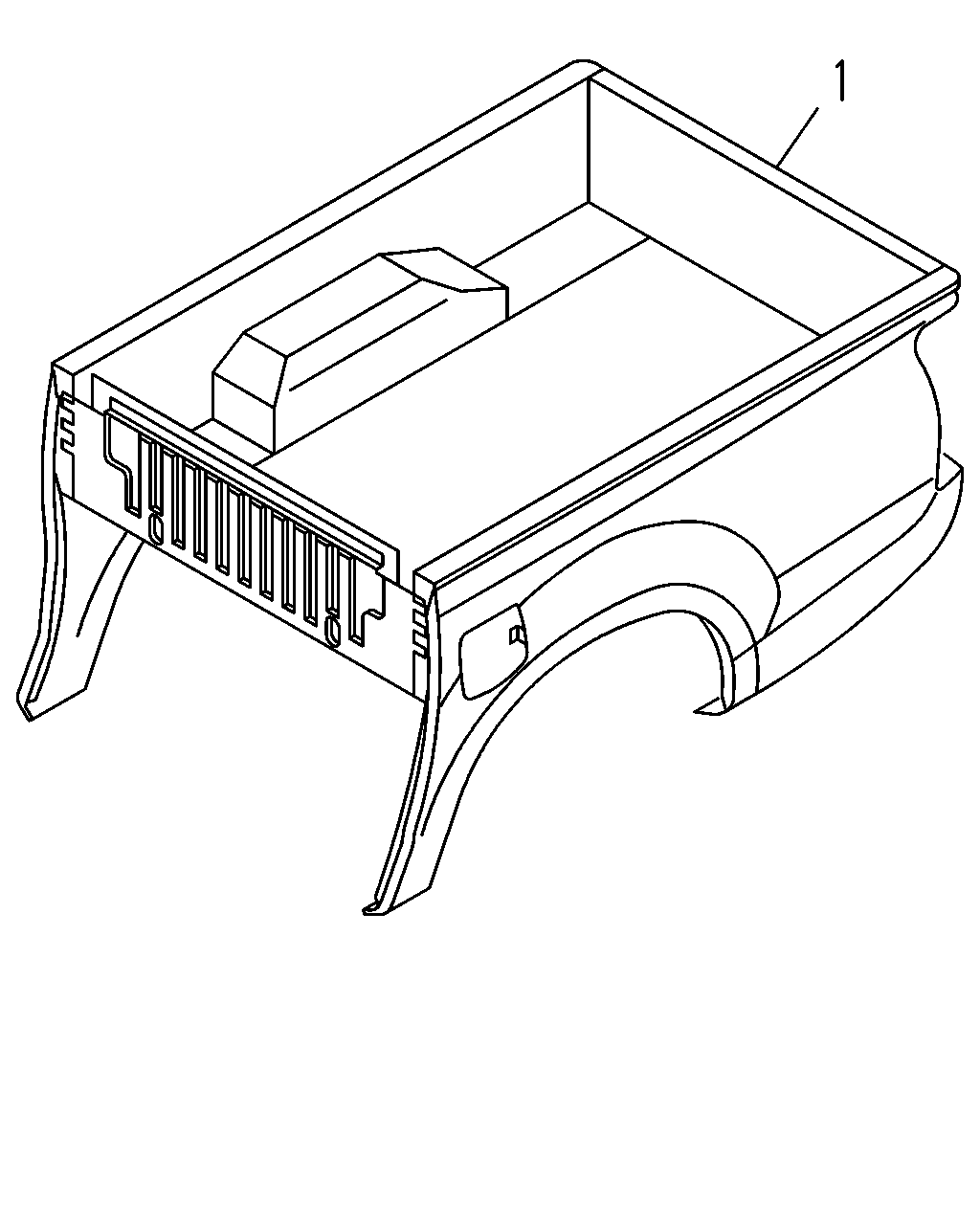

çizim 5354
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6) OUTER ROPE HOOKS<7MZ> 		8-98193-783-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN ESIZE AUDIO(7QL) REAR STEP BUMPER(VF6) OUTER ROPE HOOKS<7MZ> 		8-98193-783-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6) 		8-98193-772-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN ESIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6) 		8-98193-772-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-790-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-790-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98193-794-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-794-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98193-794-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-794-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-792-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-792-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) HIGH RIDE SUSPENSION(7YC) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) HIGH RIDE SUSPENSION(7YC) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUS PENSION(7YC) 		8-98193-791-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUS PENSION(7YC) 		8-98193-791-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION (7YC) 		8-98193-778-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION (7YC) 		8-98193-778-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-780-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-780-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARG O TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-781-0 01 1 1203-1206 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARG O TIE DOWN<V89> 		8-98193-781-0 01 1 1203-1206 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARG O TIE DOWN<V89> 		8-98193-781-0 01 1 1207-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARG O TIE DOWN<V89> 		8-98193-781-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARG O TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>, HIGH RIDE SUSPENSION(7YC) 		8-98193-779-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARG O TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>, HIGH RIDE SUSPENSION(7YC) 		8-98193-779-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-788-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-788-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-787-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-787-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98193-777-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98193-777-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARG O TIE DOWN<V89> 		8-98193-776-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),GUARD FRAME BAR CARG O TIE DOWN<V89> 		8-98193-776-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN ESIZE AUDIO(7QL) REAR STEP BUMPER(VF6) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6) 		8-98193-773-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN ESIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6) 		8-98193-773-0 01 1 1212- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ),INST PANEL FOR DIN E SIZE AUDIO (7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98193-782-0 01 1 1203-1211 ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98193-782-0 01 1 1212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
