Isuzu WW
▶
PICKUP
▶
TFR
▶
51375 - TFR/TFS(EUROPE)-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#79747) — 41 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5CF
D - TFS5SF
E - TFS5WF
◀

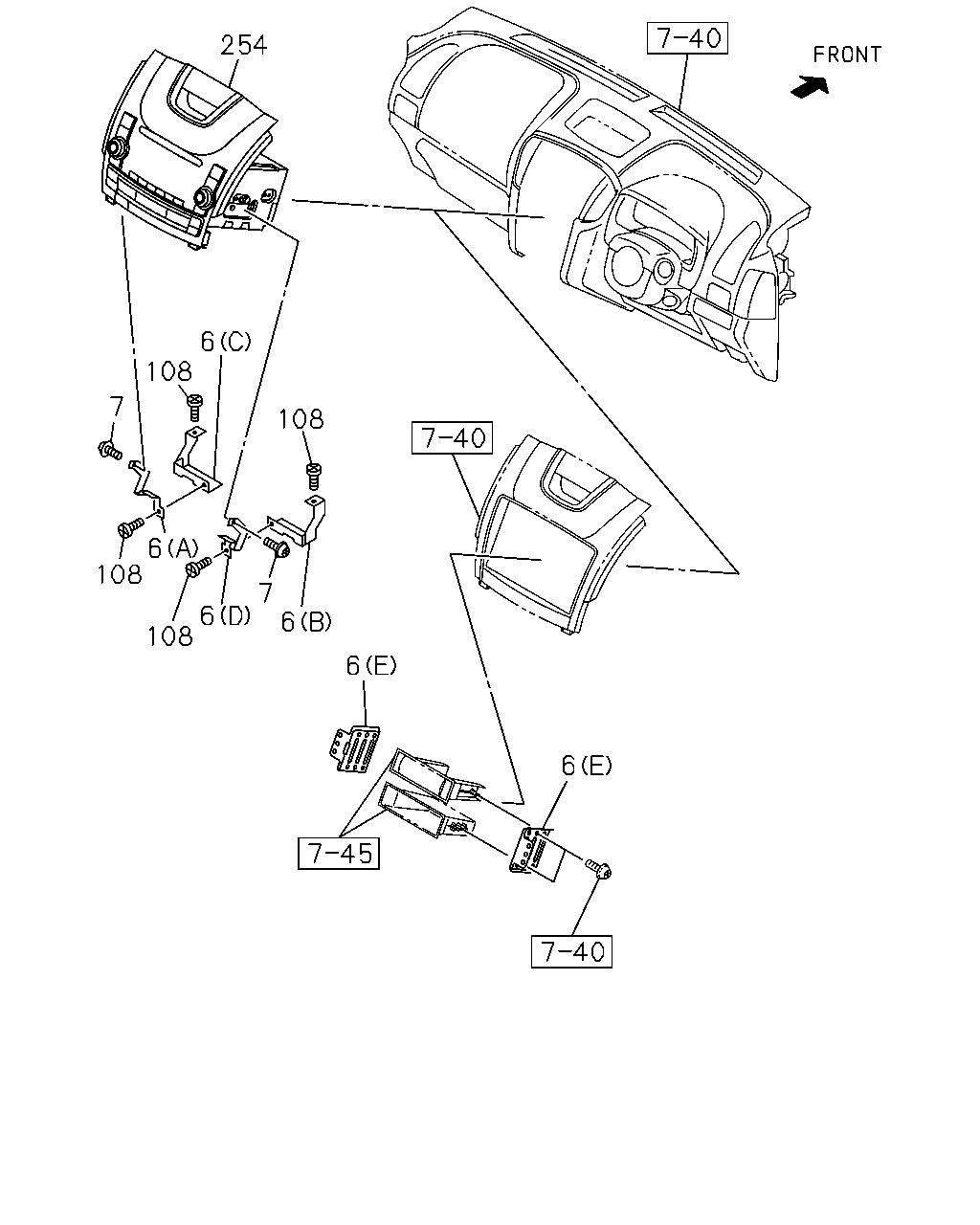

[890A] RADIO (8 parça)
[890A04] (8 parça)

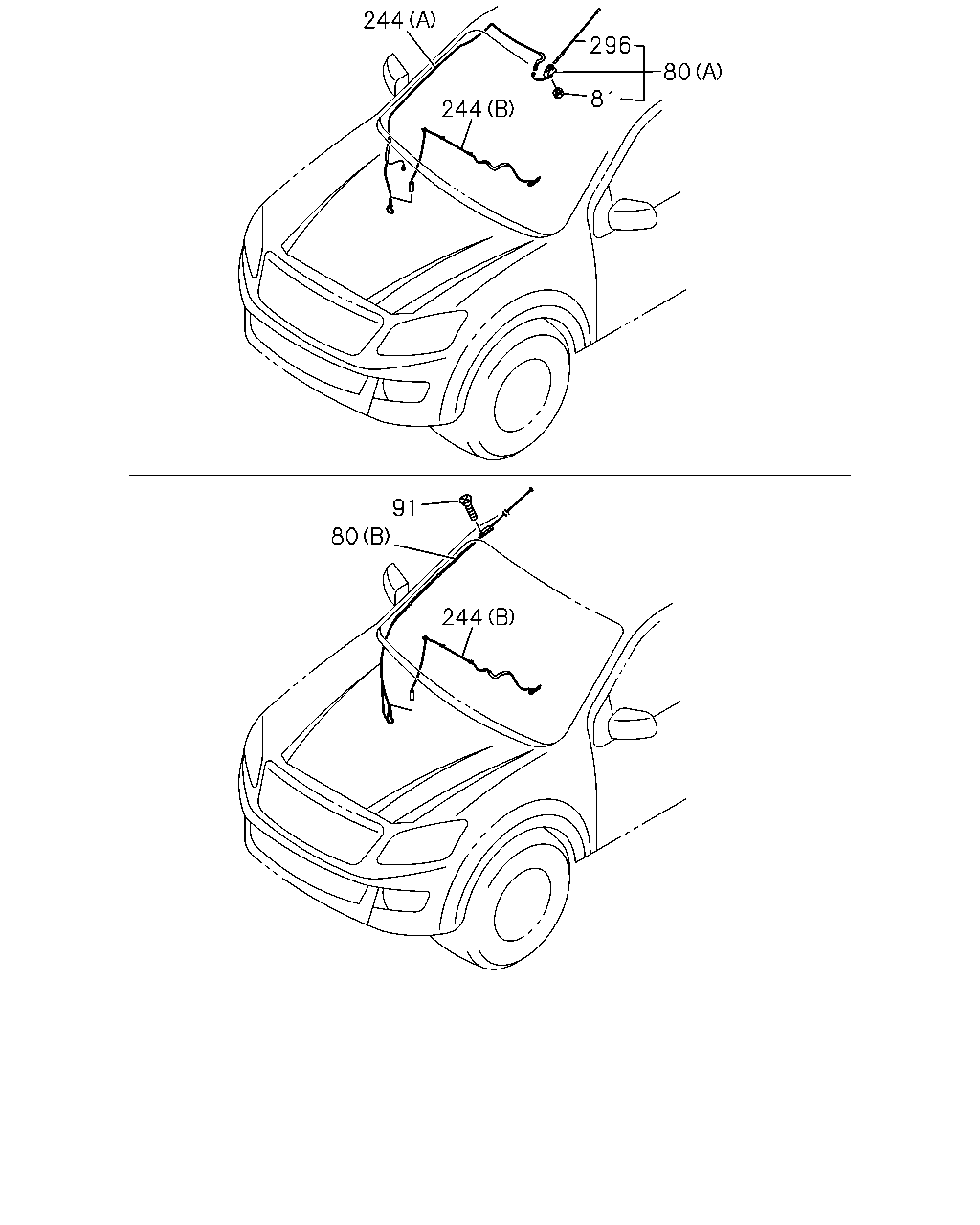

[890A] ANTENNA (9 parça)

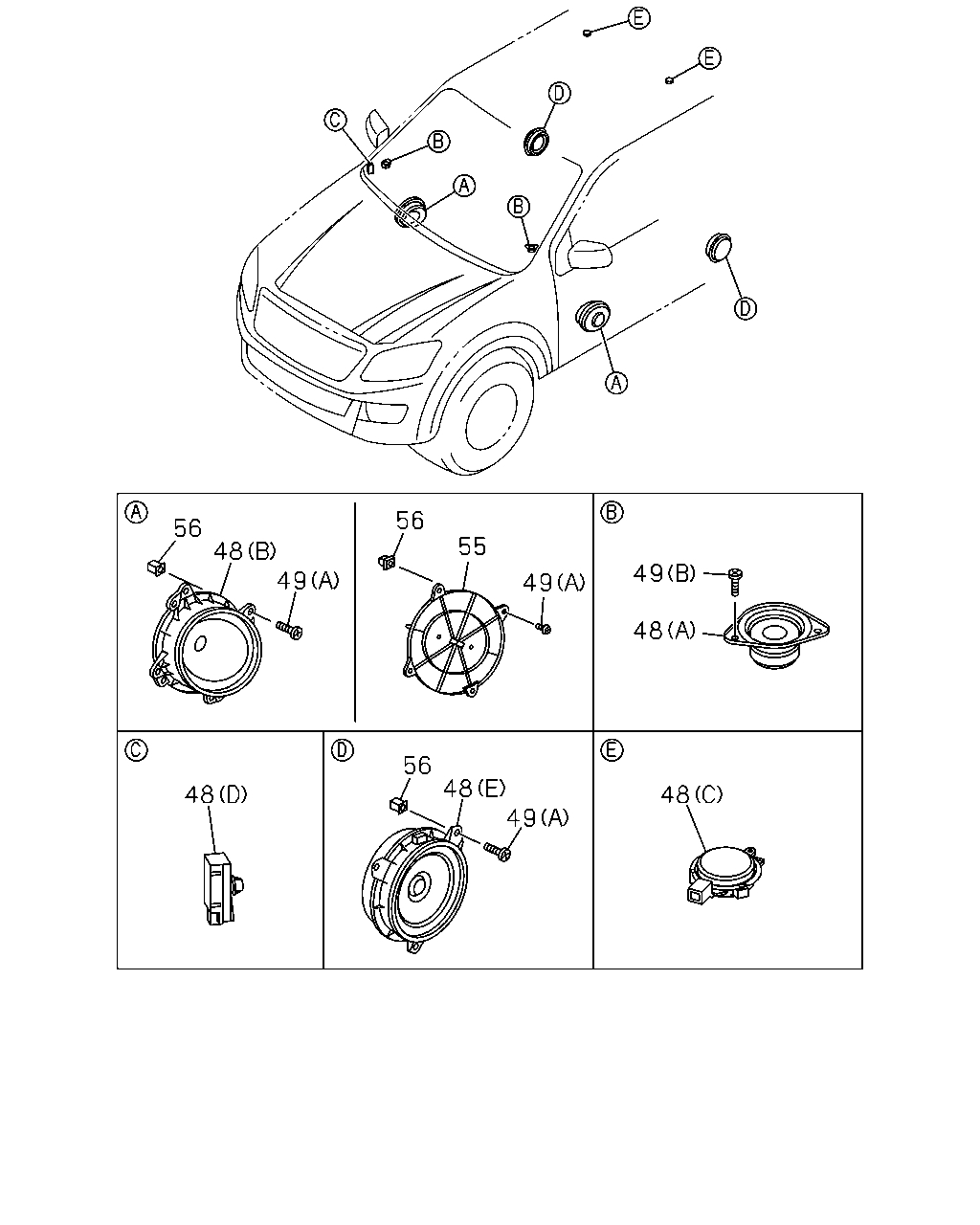

[890A] SPEAKER (16 parça)
▶
254
6
108
7
108
108
6
108
6
7
6
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
6
09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5) (E)
8-98102-188-2
02
1
1212-
●
●
●
●
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (A)
8-98102-186-2
01
1
1203-
●
●
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (B)
8-98102-187-3
01
1
1203-
●
●
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (C)
8-98106-390-3
01
1
1203-
●
●
●
6
09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (D)
8-98109-822-2
01
1
1203-
●
●
●
7
09.650 SCREW; RADIO
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) 03.680 M5X10 W/LK+PL WASHER
0-36230-510-0
02
1
1203-
●
●
●
108
09.645 SCREW; BRKT
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) 08.083 M5X16 TAPPING
8-98167-449-0
04
1
1203-
●
●
●
254
09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ)
8-98126-081-3
01
1
1203-
●
●
●

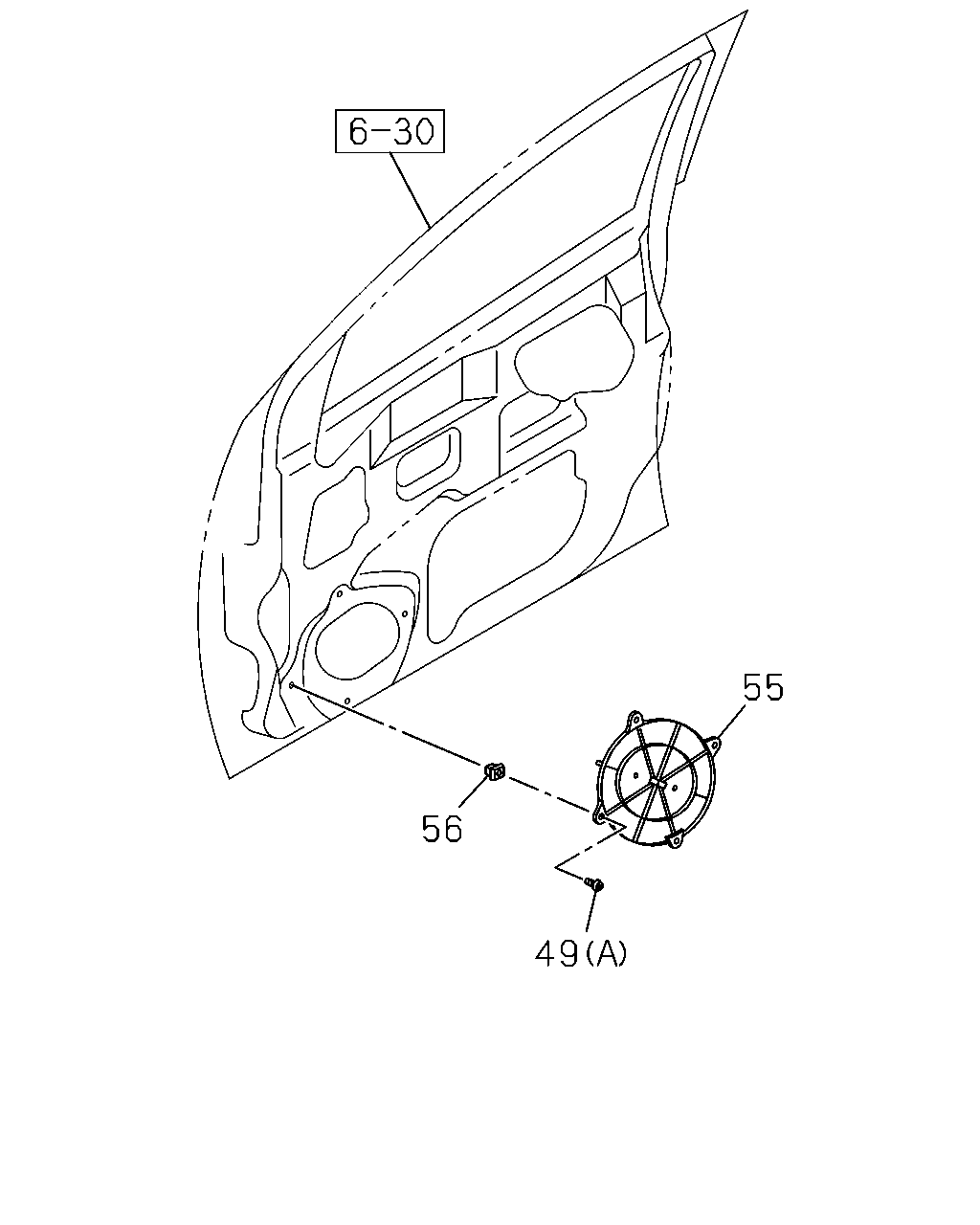

55
56
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
49
09.655 SCREW; SPEAKER
16.345 (B) M5X14 TAPPING
8-98184-363-0
08
1
1203-
●
●
●
●
●
49
09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING
8-98167-449-0
04
1
1203-
●
●
49
09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING
8-98167-449-0
04
1
1203-
●
49
09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 16.345 (B) M5X14 TAPPING
8-98184-363-0
06
1
1203-
●
●
55
09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1203-
●
●
55
09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1203-
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
8-98163-895-0
08
1
1203-
●
●
●
●
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>
8-98163-895-0
06
1
1203-
●
●
244
296
80
81
244
91
80
244
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
80
09.645 ANTENNA
(B)
8-98053-047-2
01
1
1203-
●
●
80
09.645 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B)
8-98053-047-2
01
1
1203-
●
●
●
80
09.645 ANTENNA
ROOF RADIO ANTENNA<U71> (A)
8-98053-048-0
01
1
1203-
●
●
●
81
09.647 NUT; ANTENNA POLE
ROOF RADIO ANTENNA<U71>
8-98165-971-0
01
1
1203-
●
●
●
91
09.663 BOLT; ANTENNA
M5X16
8-97375-569-0
02
1
1203-
●
●
91
09.663 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16
8-97375-569-0
02
1
1203-
●
●
●
244
09.647 CABLE; FEEDER
(B)
8-98053-051-1
01
1
1203-
●
●
●
●
●
244
09.647 CABLE; FEEDER
ROOF RADIO ANTENNA<U71> (A)
8-98063-228-0
01
1
1203-
●
●
●
296
09.665 ROD; ANTENNA
ROOF RADIO ANTENNA<U71>
8-98165-969-0
01
1
1203-
●
●
●
56
48
49
48
56
55
49
49
48
56
48
48
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
48
09.650 SPEAKER; AUDIO
(B)
8-98052-937-0
02
1
1203-
●
●
48
09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B)
8-98052-937-0
02
1
1203-
●
●
48
09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B)
8-98052-937-0
02
1
1203-
●
48
09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)
8-98052-940-0
02
1
1203-
●
●
48
09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)
8-98052-940-0
02
1
1203-
●
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (E)
8-98052-941-0
02
1
1203-
●
●
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (C)
8-98052-942-0
02
1
1203-
●
●
●
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (D)
8-98064-704-0
01
1
1203-
●
●
●
49
09.655 SCREW; SPEAKER
16.345 (B) M5X14 TAPPING
8-98184-363-0
08
1
1203-
●
●
●
●
●
49
09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING
8-98167-449-0
04
1
1203-
●
●
49
09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (A) M5X16 TAPPING
8-98167-449-0
04
1
1203-
●
49
09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 16.345 (B) M5X14 TAPPING
8-98184-363-0
06
1
1203-
●
●
55
09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1203-
●
●
55
09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1203-
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
8-98163-895-0
08
1
1203-
●
●
●
●
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>
8-98163-895-0
06
1
1203-
●
●
