8-75 — CONDENSER (#79745) — 28 parça

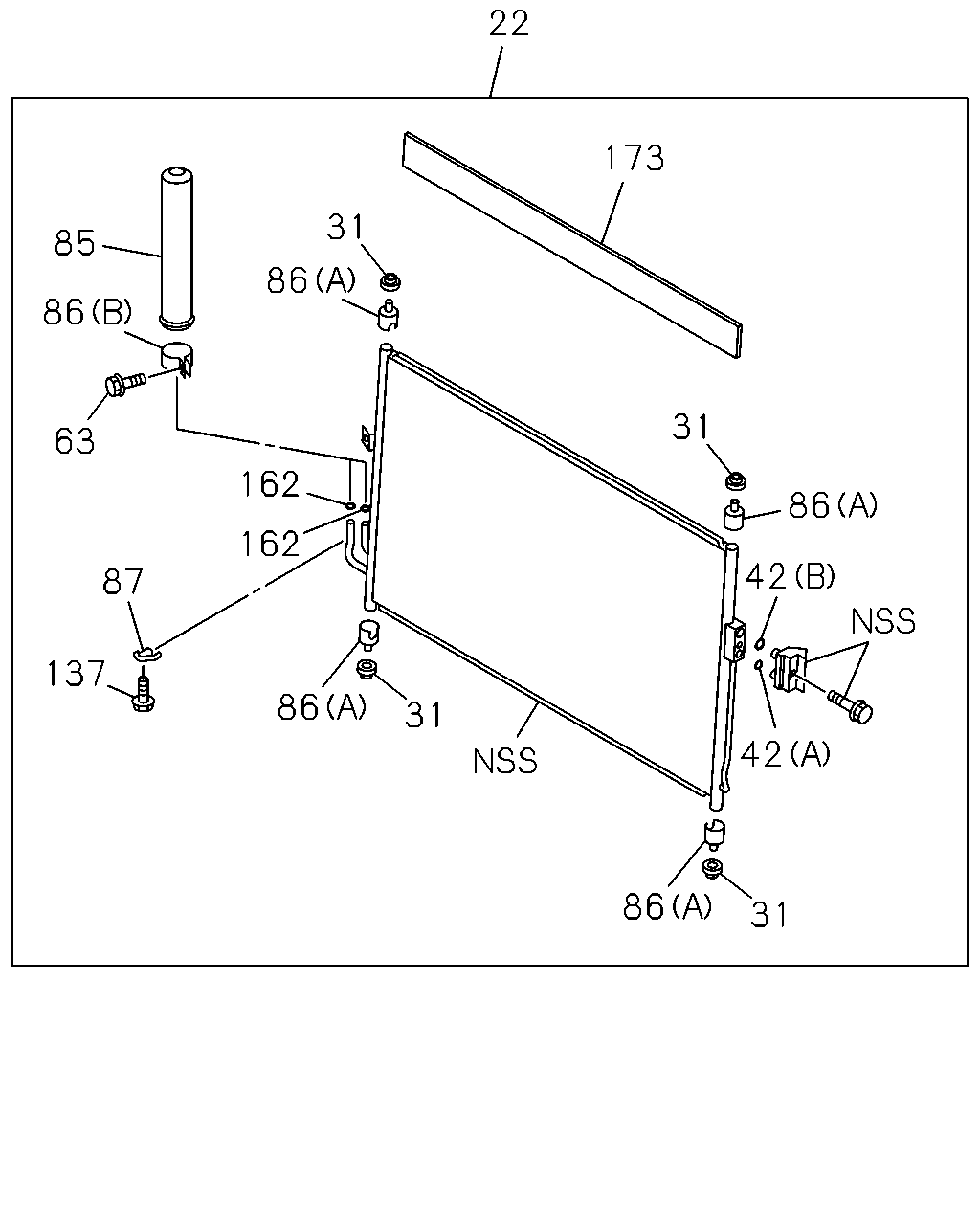

çizim 158438
86 31 42 42 86 31 173 22 31 86 162 162 87 137 63 86 85 86 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 09.190 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-634-3 01 1 1203- ● ●
22 09.190 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98052-634-3 01 1 1203- ● ● ●
31 09.190 RUBBER; MTG,CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-616-0 04 1 1203- ● ●
31 09.190 RUBBER; MTG,CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-616-0 04 1 1203- ● ● ●
42 09.190 GASKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (A) ID=8 		8-98193-614-0 01 1 1203- ● ●
42 09.190 GASKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) ID=8 		8-98193-614-0 01 1 1203- ● ● ●
42 09.190 GASKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 		8-98193-615-0 01 1 1203- ● ●
42 09.190 GASKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=12 		8-98193-615-0 01 1 1203- ● ● ●
63 09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98193-604-0 01 1 1203- ● ●
63 09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M5X16 		8-98193-604-0 01 1 1203- ● ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-597-0 01 1 1203-1212 ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-597-0 01 1 1203-1212 ● ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-381-0 01 1 1301- ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-381-0 01 1 1301- ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98193-599-0 01 1 1203- ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98193-599-0 01 1 1203- ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98193-618-0 04 1 1203- ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98193-618-0 04 1 1203- ● ● ●
87 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-602-0 01 1 1203- ● ●
87 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-602-0 01 1 1203- ● ● ●
137 09.196 BOLT; BRKT,DRYER
AIR CONDITIONER MANUAL CONT(C60) M6X12 		8-98193-603-0 01 1 1203- ● ●
137 09.196 BOLT; BRKT,DRYER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X12 		8-98193-603-0 01 1 1203- ● ● ●
162 09.195 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60) 09.190 ID=8 		8-98193-614-0 02 1 1203- ● ●
162 09.195 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 09.190 ID=8 		8-98193-614-0 02 1 1203- ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-620-0 01 1 1203-1212 ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-620-0 01 1 1203-1212 ● ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-382-0 01 1 1301- ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-382-0 01 1 1301- ● ● ●
