8-65 — CONTROL LEVER; HEATER AND AIR CON (#79742) — 38 parça
çizim 140903
23 103 69 69 105 103 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (A) 		8-98052-639-3 01 1 1203- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98052-640-4 01 1 1203- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (A) 		8-98103-519-4 01 1 1203- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98103-520-4 01 1 1203- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98052-643-4 01 1 1203- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98052-644-4 01 1 1203- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98103-522-5 01 1 1203- ● ● ●
69 08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING 		8-98164-986-0 04 1 1203- ● ●
69 08.852 SCREW; BEZEL BRKT
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING 		8-98164-986-0 04 1 1203- ● ● ●
69 08.852 SCREW; BEZEL BRKT
EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING 		8-98164-986-0 04 1 1203- ● ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98164-668-0 01 1 1203- ● ● ● ● ●
94 08.849 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98141-789-0 01 1 1203- ● ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.165 		8-98164-677-0 04 1 1203- ● ●
103 08.854 CLIP
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.165 		8-98164-677-0 04 1 1203- ● ● ●
103 08.854 CLIP
EXC. INTERIOR SILVER BEZEL<BY9> 16.165 		8-98164-677-0 04 1 1203- ● ● ●
105 08.852 SWITCH ASM; A/C
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98164-678-0 01 1 1203- ● ● ●

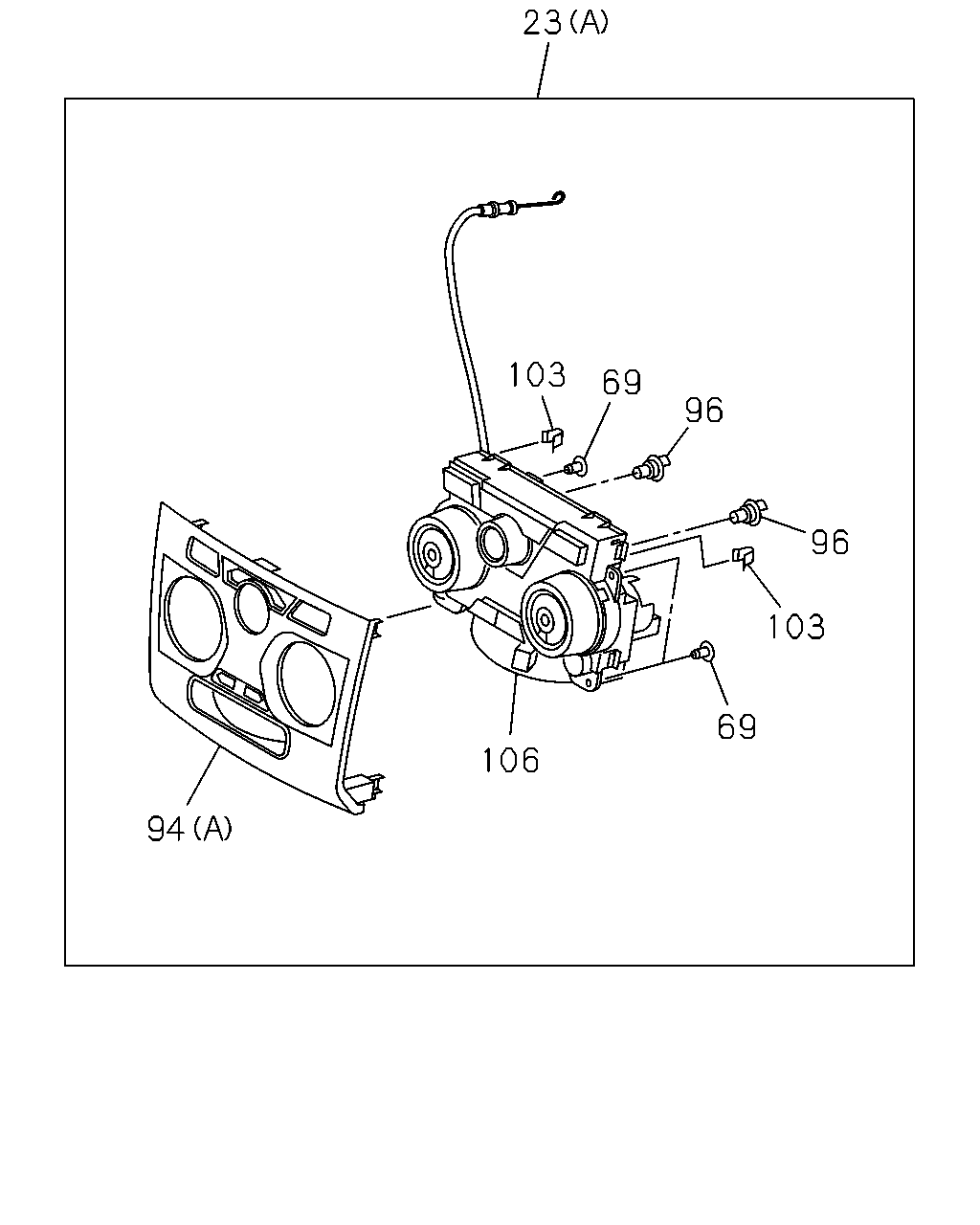

çizim 141257
23 103 69 96 96 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (A) 		8-98052-639-3 01 1 1203- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98052-640-4 01 1 1203- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) (A) 		8-98103-519-4 01 1 1203- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98103-520-4 01 1 1203- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98052-643-4 01 1 1203- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98052-644-4 01 1 1203- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98103-522-5 01 1 1203- ● ● ●
69 08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING 		8-98164-986-0 04 1 1203- ● ●
69 08.852 SCREW; BEZEL BRKT
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING 		8-98164-986-0 04 1 1203- ● ● ●
69 08.852 SCREW; BEZEL BRKT
EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING 		8-98164-986-0 04 1 1203- ● ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98164-668-0 01 1 1203- ● ● ● ● ●
94 08.849 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98141-789-0 01 1 1203- ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98156-188-0 02 1 1203- ● ● ● ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.165 		8-98164-677-0 04 1 1203- ● ●
103 08.854 CLIP
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.165 		8-98164-677-0 04 1 1203- ● ● ●
103 08.854 CLIP
EXC. INTERIOR SILVER BEZEL<BY9> 16.165 		8-98164-677-0 04 1 1203- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) 		8-98142-037-0 01 1 1203- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98142-038-0 01 1 1203- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) 		8-98142-034-0 01 1 1203- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) 		8-98142-035-0 01 1 1203- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98142-040-0 01 1 1203- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98142-041-0 01 1 1203- ● ● ●
