8-60 — HEATER UNIT; FRONT (#79741) — 326 parça

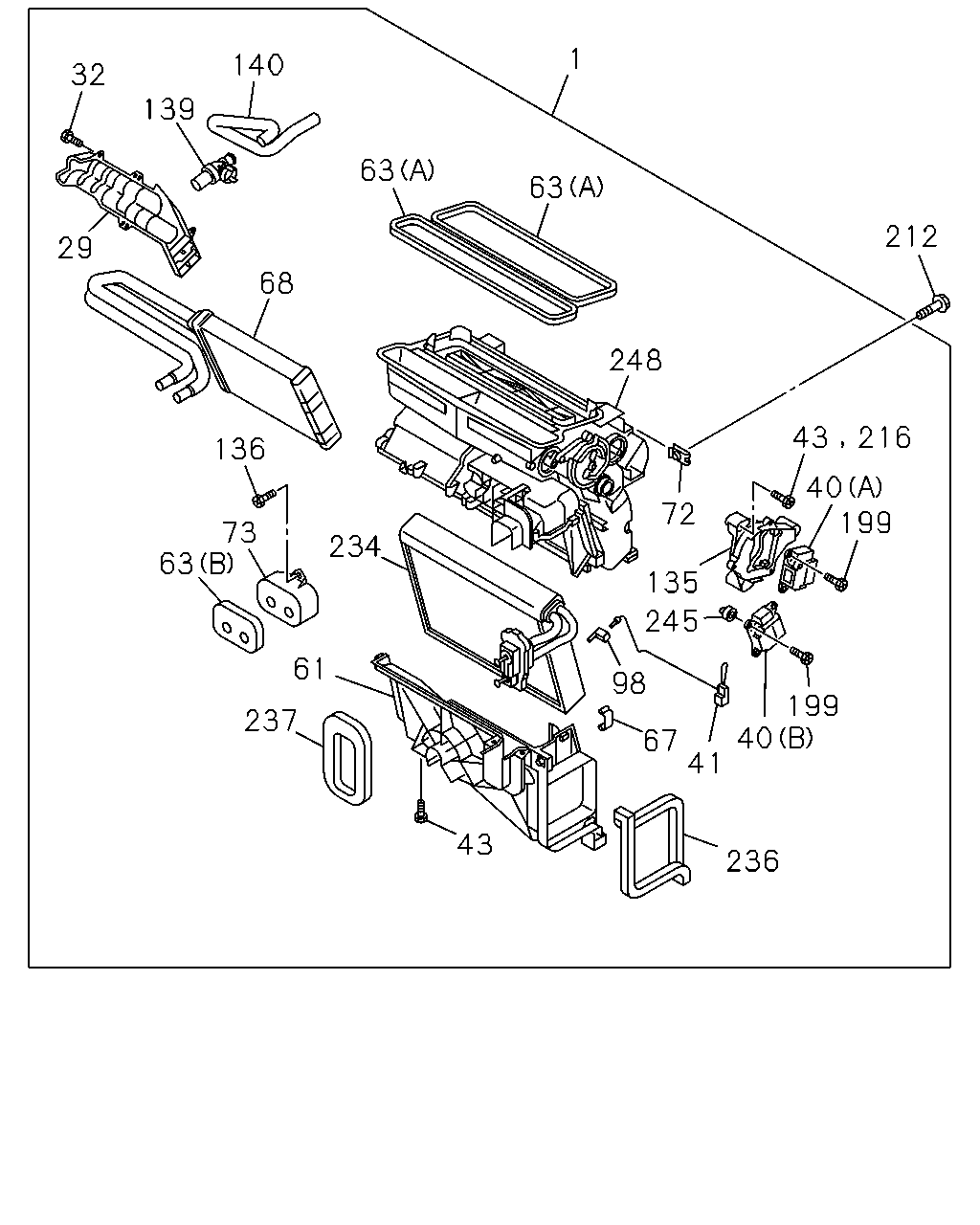

çizim 140892
1 140 32 29 68 63 248 63 136 73 63 234 61 237 43 98 67 245 135 72 43 216 40 199 40 41 236 212 139 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) 		8-98233-010-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) 		8-98233-011-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-017-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-018-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-020-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) 		8-98233-012-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98052-623-6 01 1 1203-1209 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98052-623-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98230-198-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98230-198-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-026-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-026-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-624-6 01 1 1203-1209 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98052-624-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98230-199-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98230-199-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-027-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-027-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98103-549-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98230-205-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-033-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98103-550-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98230-206-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-034-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98103-552-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98230-208-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-036-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98052-625-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98052-625-6 01 1 1203-1209 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98230-200-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98230-200-0 01 1 1210-1212 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-028-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-028-1 01 1 1301- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-353-0 01 1 1203-1212 ● ●
29 08.857 COVER; HTR UNIT 8-98139-353-0 01 1 1203-1212 ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-590-0 01 1 1301- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1301- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-395-0 04 1 1203-1212 ● ●
32 08.852 SCREW; HTR UNIT 8-98139-395-0 04 1 1203-1212 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 04 1 1301- ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1301- ● ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-385-0 01 1 1203- ● ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-386-0 01 1 1203- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1203- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1203- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 20 1 1203-1212 ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 15 1 1301- ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1301- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 18 1 1203-1212 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98139-345-0 01 1 1203-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-573-0 01 1 1301- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-344-0 01 1 1203-1212 ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-344-0 01 1 1203-1212 ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-572-0 01 1 1301- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-572-0 01 1 1301- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98139-358-0 02 1 1203- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-0 02 1 1203- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1203- ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1203- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-123-0 01 1 1203- ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1203- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-374-0 01 1 1203- ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1203- ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-394-1 03 1 1203- ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1203- ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-355-0 01 1 1203-1212 ● ●
73 08.845 PLATE; HTR UNIT 8-98139-355-0 01 1 1203-1212 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-591-0 01 1 1301- ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-122-0 01 1 1203- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-122-0 01 1 1203- ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-377-0 01 1 1203- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1203- ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 02 1 1203-1212 ● ●
136 08.850 SCREW; PLATE
08.852 		8-98139-395-0 02 1 1203-1212 ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 02 1 1301- ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-392-1 01 1 1203- ● ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-393-1 01 1 1203- ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 03 1 1203-1212 ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 04 1 1203-1212 ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1301- ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1203- ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 03 1 1301- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-376-1 01 1 1203- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-376-1 01 1 1203- ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-357-0 01 1 1203- ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1203- ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-360-1 01 1 1203- ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1203- ● ● ●
245 08.854 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-390-0 01 1 1203- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98193-542-0 01 1 1203-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-542-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-565-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-543-0 01 1 1203-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-543-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-566-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-545-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-546-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98193-548-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98193-544-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-544-0 01 1 1203-1212 ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-567-0 01 1 1301- ●

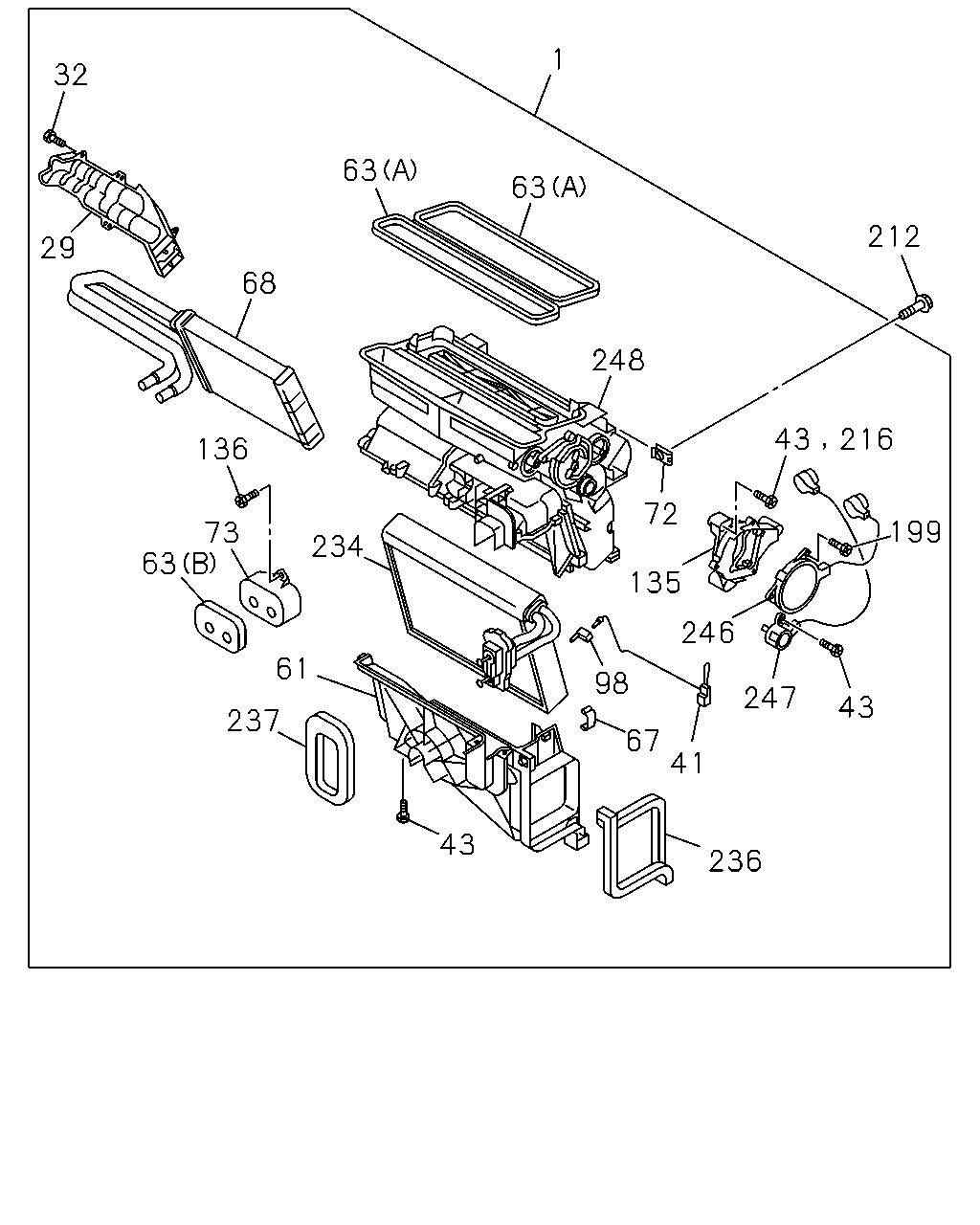

çizim 140893
1 212 216 43 199 246 72 247 43 135 248 63 63 68 136 29 32 73 234 61 63 237 43 67 41 98 236
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) 		8-98233-010-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) 		8-98233-011-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-017-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-018-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-020-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) 		8-98233-012-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98052-623-6 01 1 1203-1209 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98052-623-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98230-198-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98230-198-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-026-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-026-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-624-6 01 1 1203-1209 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98052-624-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98230-199-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98230-199-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-027-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-027-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98103-549-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98230-205-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-033-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98103-550-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98230-206-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-034-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98103-552-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98230-208-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-036-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98052-625-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98052-625-6 01 1 1203-1209 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98230-200-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98230-200-0 01 1 1210-1212 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-028-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-028-1 01 1 1301- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-353-0 01 1 1203-1212 ● ●
29 08.857 COVER; HTR UNIT 8-98139-353-0 01 1 1203-1212 ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-590-0 01 1 1301- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1301- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-395-0 04 1 1203-1212 ● ●
32 08.852 SCREW; HTR UNIT 8-98139-395-0 04 1 1203-1212 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 04 1 1301- ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1301- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1203- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1203- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 20 1 1203-1212 ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 15 1 1301- ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1301- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 18 1 1203-1212 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98139-345-0 01 1 1203-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-573-0 01 1 1301- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-344-0 01 1 1203-1212 ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-344-0 01 1 1203-1212 ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-572-0 01 1 1301- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-572-0 01 1 1301- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98139-358-0 02 1 1203- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-0 02 1 1203- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1203- ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1203- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-123-0 01 1 1203- ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1203- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-374-0 01 1 1203- ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1203- ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-394-1 03 1 1203- ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1203- ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-355-0 01 1 1203-1212 ● ●
73 08.845 PLATE; HTR UNIT 8-98139-355-0 01 1 1203-1212 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-591-0 01 1 1301- ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-122-0 01 1 1203- ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-122-0 01 1 1203- ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-377-0 01 1 1203- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1203- ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 02 1 1203-1212 ● ●
136 08.850 SCREW; PLATE
08.852 		8-98139-395-0 02 1 1203-1212 ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 02 1 1301- ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 03 1 1203-1212 ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 04 1 1203-1212 ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1301- ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1203- ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 03 1 1301- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-376-1 01 1 1203- ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-376-1 01 1 1203- ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-357-0 01 1 1203- ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1203- ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-360-1 01 1 1203- ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1203- ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1203- ● ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1203- ● ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98193-542-0 01 1 1203-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-542-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-565-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-543-0 01 1 1203-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-543-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-566-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-545-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-546-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98193-548-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98193-544-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-544-0 01 1 1203-1212 ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-567-0 01 1 1301- ●

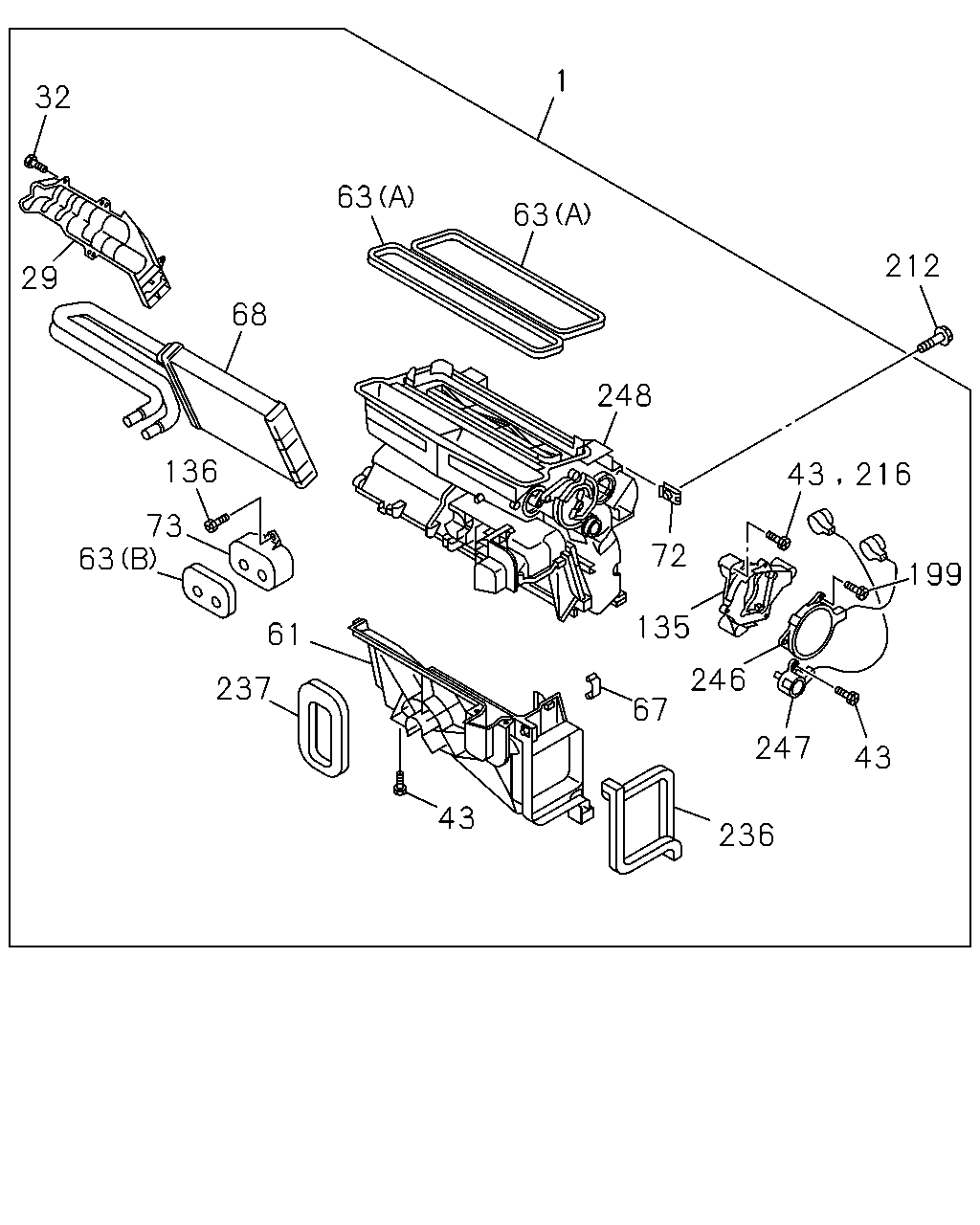

çizim 141319
32 1 63 63 68 136 73 63 61 237 43 67 246 135 72 248 43 16 212 199 247 36 43 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) 		8-98233-010-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) 		8-98233-011-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-017-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-018-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) 		8-98233-020-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-012-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) 		8-98233-012-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98052-623-6 01 1 1203-1209 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98052-623-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98230-198-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98230-198-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-026-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-026-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-624-6 01 1 1203-1209 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98052-624-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98230-199-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98230-199-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-027-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-027-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98103-549-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98230-205-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-033-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98103-550-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98230-206-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-034-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98103-552-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98230-208-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> 		8-98233-036-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98052-625-6 01 1 1203-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98052-625-6 01 1 1203-1209 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98230-200-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98230-200-0 01 1 1210-1212 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C> 		8-98233-028-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) 		8-98233-028-1 01 1 1301- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-353-0 01 1 1203-1212 ● ●
29 08.857 COVER; HTR UNIT 8-98139-353-0 01 1 1203-1212 ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-590-0 01 1 1301- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1301- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-395-0 04 1 1203-1212 ● ●
32 08.852 SCREW; HTR UNIT 8-98139-395-0 04 1 1203-1212 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 04 1 1301- ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1301- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 20 1 1203-1212 ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 15 1 1301- ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1301- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 18 1 1203-1212 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98139-345-0 01 1 1203-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-573-0 01 1 1301- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-344-0 01 1 1203-1212 ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-344-0 01 1 1203-1212 ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-572-0 01 1 1301- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-572-0 01 1 1301- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98139-358-0 02 1 1203- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-0 02 1 1203- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1203- ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1203- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-123-0 01 1 1203- ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1203- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-374-0 01 1 1203- ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1203- ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-394-1 03 1 1203- ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1203- ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-355-0 01 1 1203-1212 ● ●
73 08.845 PLATE; HTR UNIT 8-98139-355-0 01 1 1203-1212 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-591-0 01 1 1301- ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-377-0 01 1 1203- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1203- ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 02 1 1203-1212 ● ●
136 08.850 SCREW; PLATE
08.852 		8-98139-395-0 02 1 1203-1212 ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 02 1 1301- ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 03 1 1203-1212 ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 04 1 1203-1212 ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1301- ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1203- ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-360-1 01 1 1203- ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1203- ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1203- ● ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1203- ● ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98193-542-0 01 1 1203-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-542-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-565-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-543-0 01 1 1203-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-543-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-566-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-545-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-546-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98193-548-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98233-571-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98193-544-0 01 1 1203-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-544-0 01 1 1203-1212 ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98233-567-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-567-0 01 1 1301- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
