8-52 — PIPING; AIR CONDITIONING (#79740) — 34 parça
çizim 140962
123 53 146 123 146 122 202 147 67 66 67 147 67 66 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 09.220 PIPE; RECEIVER TANK TO EVAP
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98129-150-4 01 1 1203- ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) HIGH PRESSURE 		8-98129-150-4 01 1 1203- ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE 		8-98212-092-0 01 1 1203- ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98212-092-0 01 1 1203- ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1203- ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1203- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98164-687-0 01 1 1203- ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98164-687-0 01 1 1203- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98164-688-0 01 1 1203- ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C) 		8-98164-688-0 01 1 1203- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98193-624-0 02 1 1203- ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98193-624-0 02 1 1203- ● ● ●
122 09.225 GASKET
AIR CONDITIONER MANUAL CONT(C60) 		8-98164-690-0 01 1 1203- ● ●
122 09.225 GASKET
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98164-690-0 01 1 1203- ● ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-98164-689-0 02 1 1203- ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98164-689-0 02 1 1203- ● ● ●
146 09.196 CLIP; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-622-0 02 1 1203- ● ●
146 09.196 CLIP; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98193-622-0 02 1 1203- ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98193-623-0 01 1 1203- ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98193-623-0 01 1 1203- ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98193-625-0 01 1 1203- ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98193-625-0 01 1 1203- ● ● ●
202 09.275 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60) 		8-98164-691-0 01 1 1203- ● ●
202 09.275 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98164-691-0 01 1 1203- ● ● ●

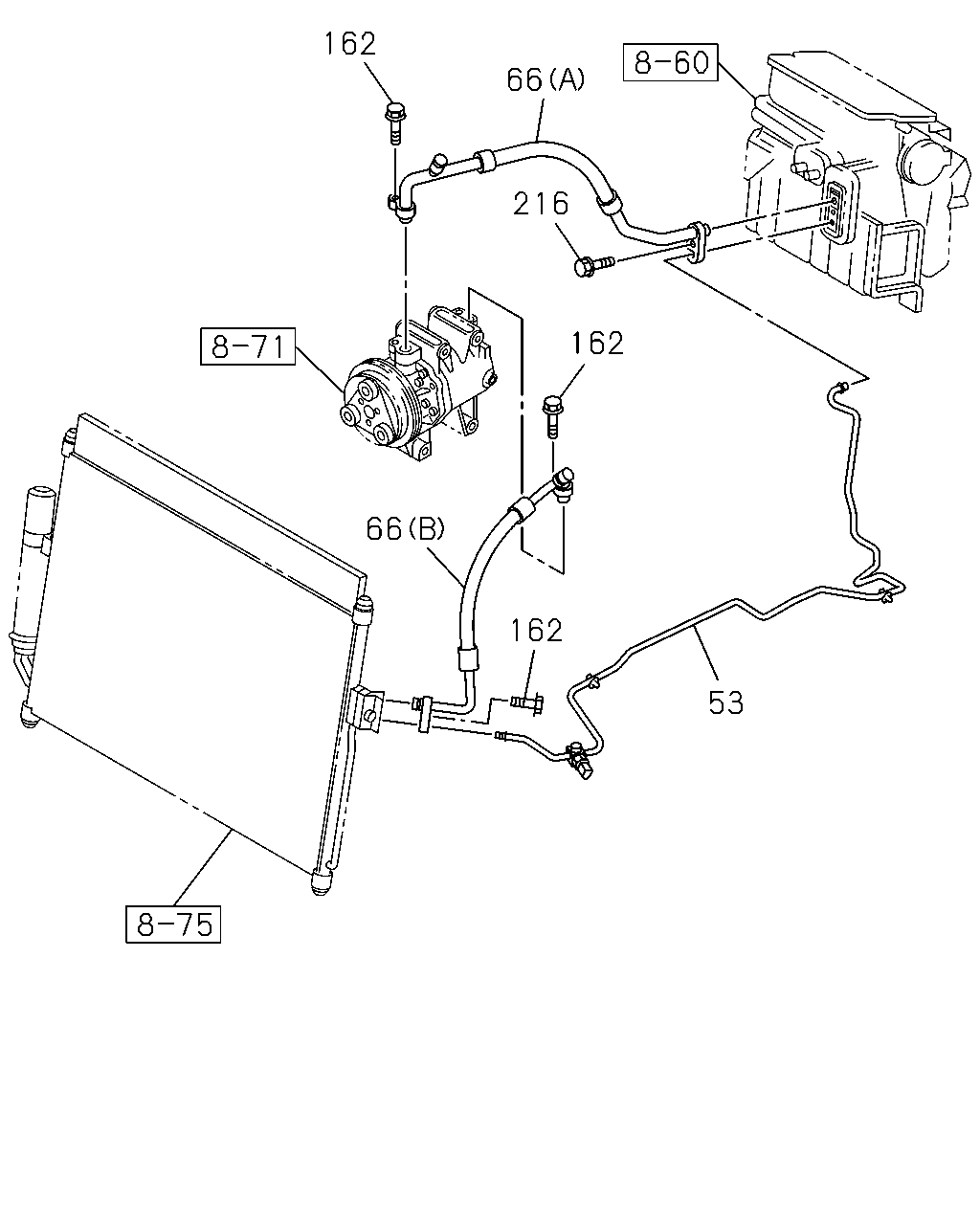

çizim 182956
162 66 216 162 66 162 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 09.220 PIPE; RECEIVER TANK TO EVAP
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98129-150-4 01 1 1203- ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) HIGH PRESSURE 		8-98129-150-4 01 1 1203- ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE 		8-98212-092-0 01 1 1203- ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98212-092-0 01 1 1203- ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1203- ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1203- ● ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1203- ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1203- ● ● ●
216 09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1203- ● ●
216 09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1203- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
