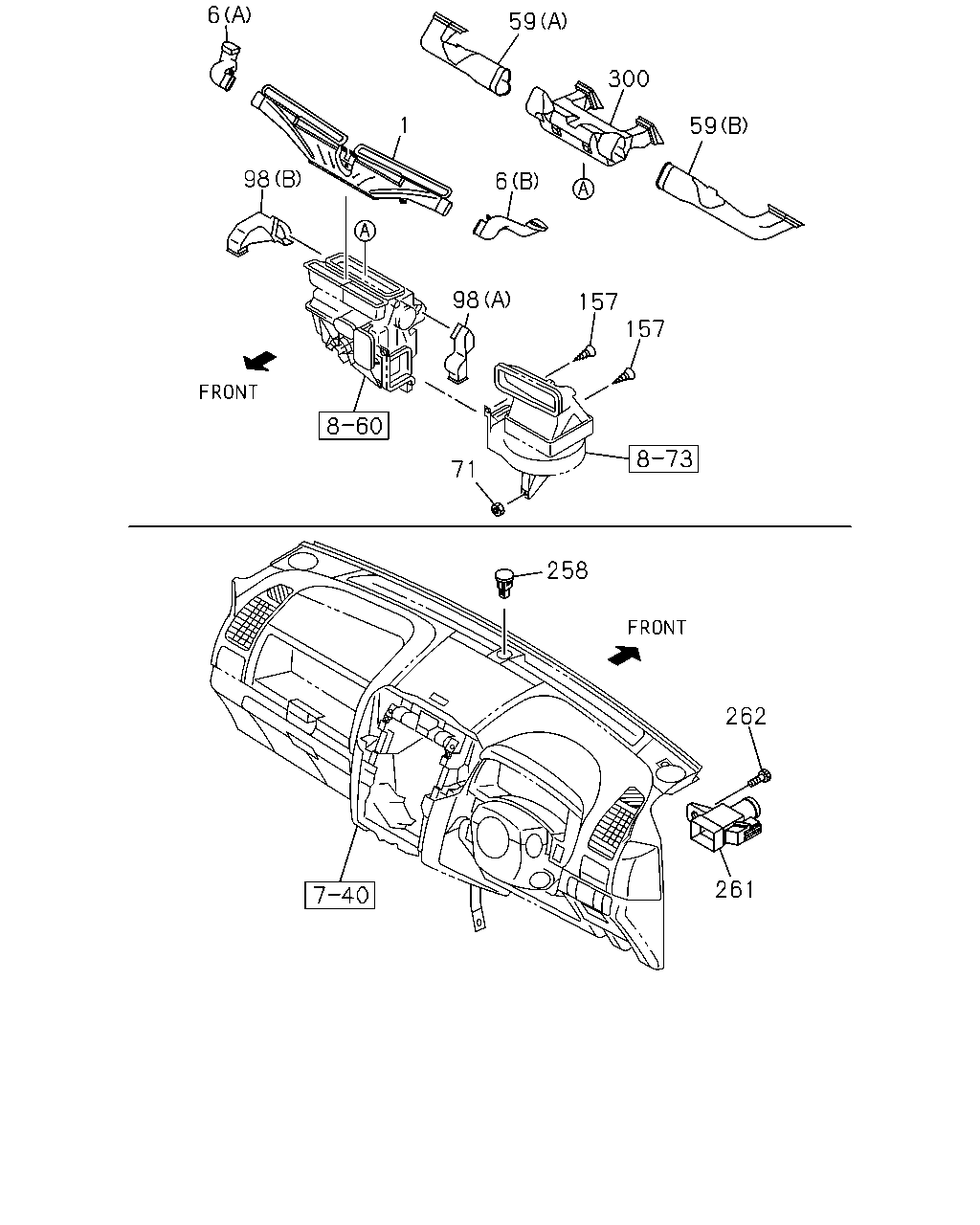

8-40 — HEATER SYSTEM (#79736) — 18 parça

6 59 300 1 59 98 6 98 157 157 71 258 262 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.779 NOZZLE; DEFROSTER,INST PNL	8-98187-101-2	01	1	1203-	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER (A)	8-98187-102-0	01	1	1203-	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER (B)	8-98187-103-0	01	1	1203-	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (A)	8-98187-099-0	01	1	1203-	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (B)	8-98187-100-0	01	1	1203-	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 03.417 M6 FLANGE	8-94279-514-0	01	1	1203-	●			●
71	08.845 NUT; BLOWER UNIT TO DASH 03.417 M6 FLANGE	8-94279-514-0	01	1	1203-		●	●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (A)	8-98103-641-3	01	1	1203-1212	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (A)	8-98233-054-0	01	1	1301-	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (B)	8-98103-642-3	01	1	1203-1212	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (B)	8-98233-055-0	01	1	1301-	●	●	●	●	●
157	09.264 SCREW HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 16.650 M5X16	8-98167-220-0	02	1	1203-	●			●
157	09.264 SCREW 16.650 M5X16	8-98167-220-0	02	1	1203-		●	●		●
258	08.845 SENSOR; SUN AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9>	8-98103-691-0	01	1	1203-		●	●		●
261	08.845 SENSOR; IN CAR AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9>	8-98103-694-0	01	1	1203-		●	●		●
262	08.845 SCREW; IN CAR SENSOR AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> 08.083 M5X16 TAPPING	8-98167-449-0	01	1	1203-		●	●		●
300	09.264 DUCT; VENT,CENTER	8-98187-098-0	01	1	1203-	●	●	●	●	●

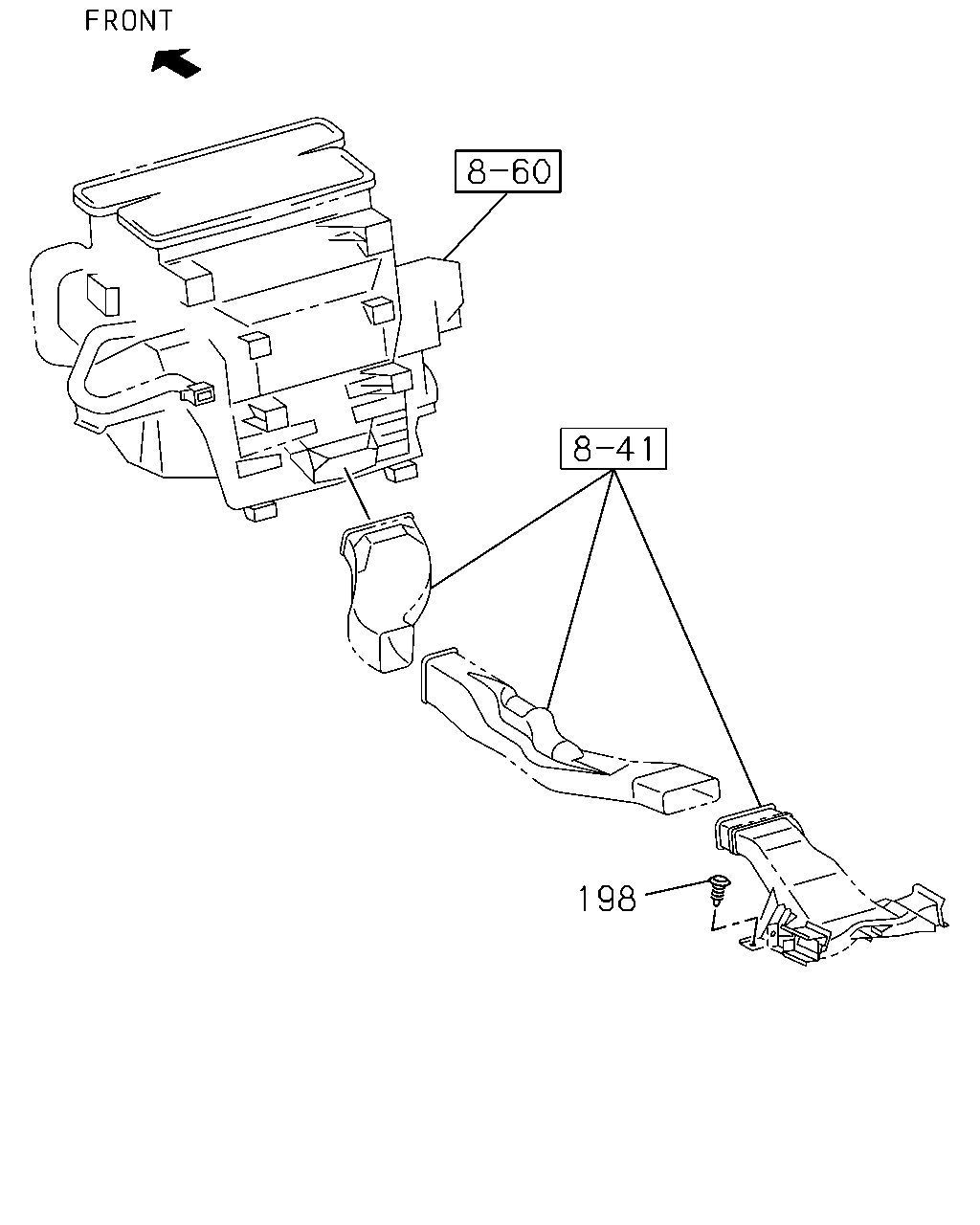

198

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	198	09.787 CLIP; DUCT REAR HEATER DUCT<S8C>	8-98147-301-0	02	1	1203-		●			●
