◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#79733) — 52 parça

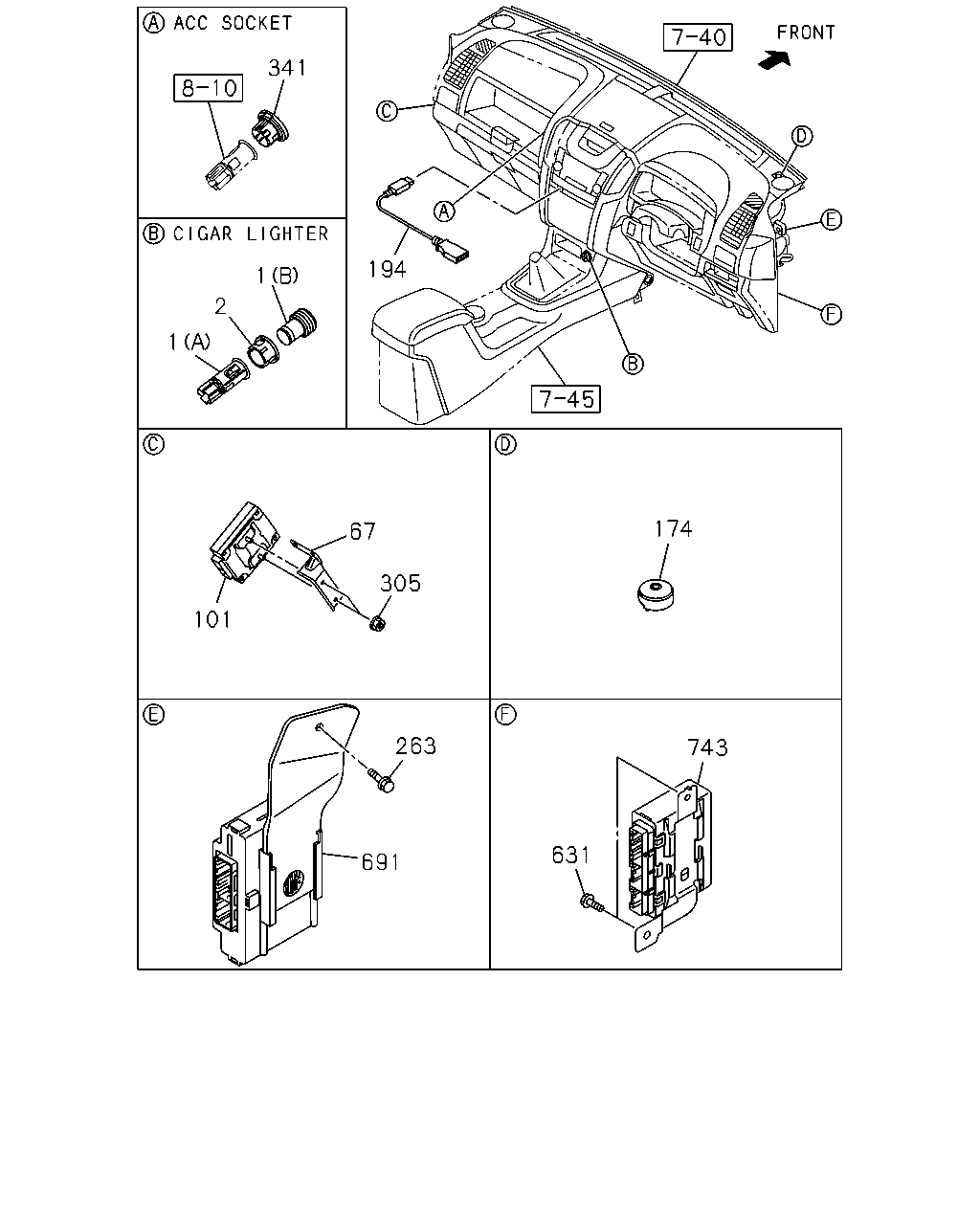

çizim 138169
101 67 305 263 691 174 743 631 1 2 1 341 194
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.709 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1203- ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1203- ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1203- ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98113-342-0 01 1 1203- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 5 SPEED-AISIN(MA1) 		8-98154-388-0 01 1 1203- ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98153-855-0 01 1 1203- ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) 09.665 		8-98193-631-0 01 1 1203- ● ● ●
263 04.115 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1203- ● ●
263 04.115 BOLT; CONT UNIT
M/T AISIN 6 SPEED(RNU) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1203- ●
305 08.915 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1203- ● ●
341 04.115 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1203- ● ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1203- ● ● ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1203- ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1203- ● ● ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1203- ● ● ●
691 04.115 CONTROLLER; TRANSFER 8-98186-110-0 01 1 1203- ● ●
691 04.115 CONTROLLER; TRANSFER
M/T AISIN 6 SPEED(RNU) 		8-98186-110-0 01 1 1203- ●
743 02.510 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK<AP5> 		8-98068-192-3 01 1 1203-1204 ● ● ●
743 02.510 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK<AP5> 		8-98215-286-0 01 1 1205- ● ● ●

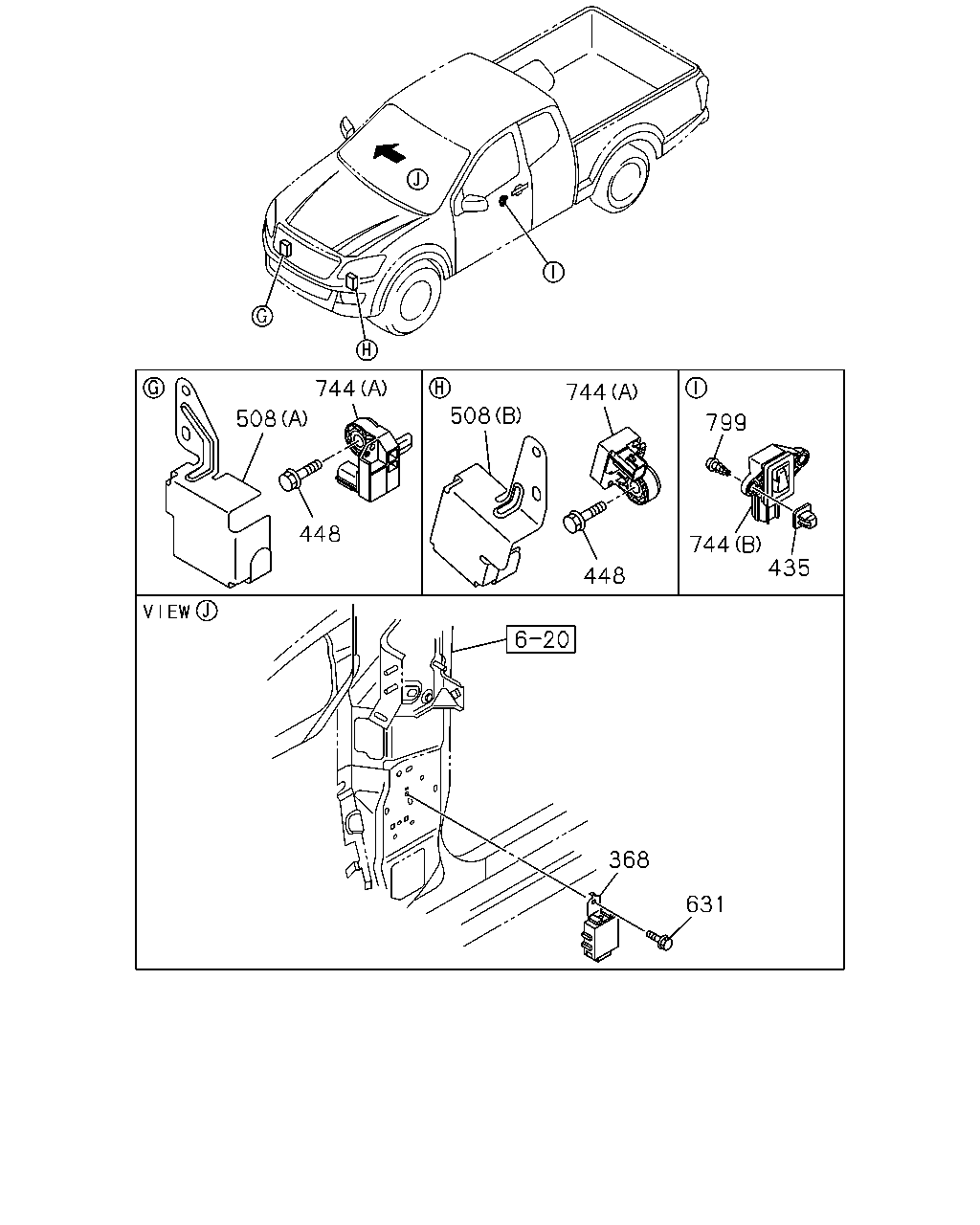

çizim 138177
744 508 744 508 448 448 744 435 631 368 799
BalonParca AdiParca NoAdetTipApplied Date A B C D E
368 16.341 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97385-923-0 01 1 1203- ● ●
368 16.341 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97385-923-0 01 1 1203- ● ● ●
435 04.342 GROMMET
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1203-1307 ● ●
435 04.342 GROMMET
12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1203-1307 ● ● ●
435 04.342 GROMMET
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1308- ● ● ●
435 04.342 GROMMET
12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1308- ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1203-1307 ● ● ● ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1203-1307 ● ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1308- ● ● ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1308- ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1308- ● ●
508 03.682 PROTECTOR
(A) 		8-98165-179-0 01 1 1203- ● ● ● ● ●
508 03.682 PROTECTOR
(B) 		8-98165-180-0 01 1 1203- ● ● ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1203- ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1203- ● ● ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1203- ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98059-533-2 02 1 1203-1307 ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98059-533-2 02 1 1308- ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (A) 		8-98156-002-0 02 1 1203-1307 ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1203-1307 ● ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1203-1307 ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (A) 		8-98156-002-0 02 1 1308- ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (A) 		8-98156-002-0 02 1 1308- ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1308- ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1308- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98146-939-1 02 1 1203-1307 ● ●
744 03.682 SENSOR; AIR BAG
(B) 		8-98146-939-1 02 1 1203-1307 ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98146-939-1 02 1 1308- ● ● ●
744 03.682 SENSOR; AIR BAG
(B) 		8-98146-939-1 02 1 1308- ● ●
799 03.682 SCREW; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1203-1307 ● ●
799 03.682 SCREW; SENSOR
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1203-1307 ● ● ●
799 03.682 SCREW; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1308- ● ● ●
799 03.682 SCREW; SENSOR
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
