0-87 — COUPLING; INJECTION PUMP (#7973) — 176 parça

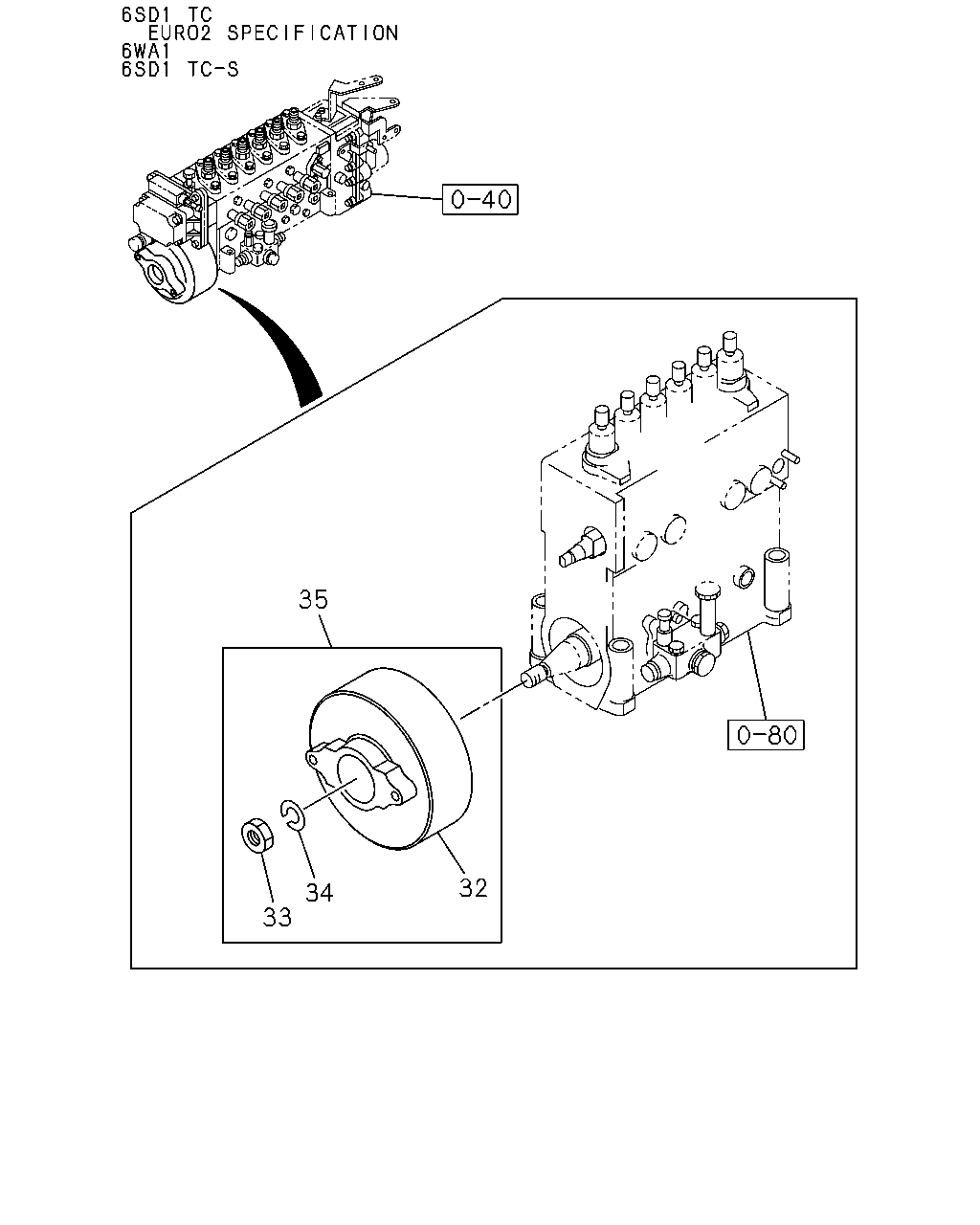

çizim 8156
35 32 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-024-0 01 1 0107-0203 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-024-0 01 1 0107-0203 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15744-024-0 01 1 0204-0210 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-024-0 01 1 0204-0210 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15744-024-0 01 1 0211-0410 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-024-0 01 1 0211-0410 ●
32 DAMPER; INJ PUMP 1-15744-024-0 01 1 0211-0410 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) 		1-15744-024-0 01 1 0411- ●
32 DAMPER; INJ PUMP 1-15744-024-0 01 1 0411- ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-15744-008-1 01 1 0107-0203 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-15744-008-1 01 1 0204-0410 ●
32 DAMPER; INJ PUMP
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-15744-008-1 01 1 0204-0410 ●
32 DAMPER; INJ PUMP 1-15744-005-1 01 1 0204-0410 ●
32 DAMPER; INJ PUMP 1-15744-015-0 01 1 0411- ●
33 NUT; DAMPER
EURO2 SPECIFICATION(THN) 		1-19179-020-0 01 1 0012-0203 ●
33 NUT; DAMPER
EURO2 SPECIFICATION(THN) 		1-19179-020-0 01 1 0204-0210 ●
33 NUT; DAMPER 1-19179-020-0 01 1 0204-0210 ●
33 NUT; DAMPER
EURO2 SPECIFICATION(THN) 		1-19179-020-0 01 1 0211- ●
33 NUT; DAMPER 1-19179-020-0 01 1 0211- ● ●
34 WASHER; DAMPER
EURO2 SPECIFICATION(THN) 		1-19179-002-0 01 1 0012-0203 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION(THN) 		1-19179-002-0 01 1 0204-0210 ●
34 WASHER; DAMPER 1-19179-002-0 01 1 0204-0210 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION(THN) 		1-19179-002-0 01 1 0211- ●
34 WASHER; DAMPER 1-19179-002-0 01 1 0211- ● ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-15744-014-1 01 1 0012-0203 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-15744-014-1 01 1 0204-0410 ●
35 DAMPER ASM; INJ PUMP
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-15744-014-1 01 1 0204-0410 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-026-0 01 1 0012-0203 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-026-0 01 1 0012-0203 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15744-026-0 01 1 0204-0210 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-026-0 01 1 0204-0210 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15744-026-0 01 1 0211-0410 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-026-0 01 1 0211-0410 ●
35 DAMPER ASM; INJ PUMP 1-15744-026-0 01 1 0211-0410 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) 		1-15744-026-0 01 1 0411- ●
35 DAMPER ASM; INJ PUMP 1-15744-026-0 01 1 0411- ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 0204-0410 ●
35 DAMPER ASM; INJ PUMP 1-15744-017-0 01 1 0411- ●

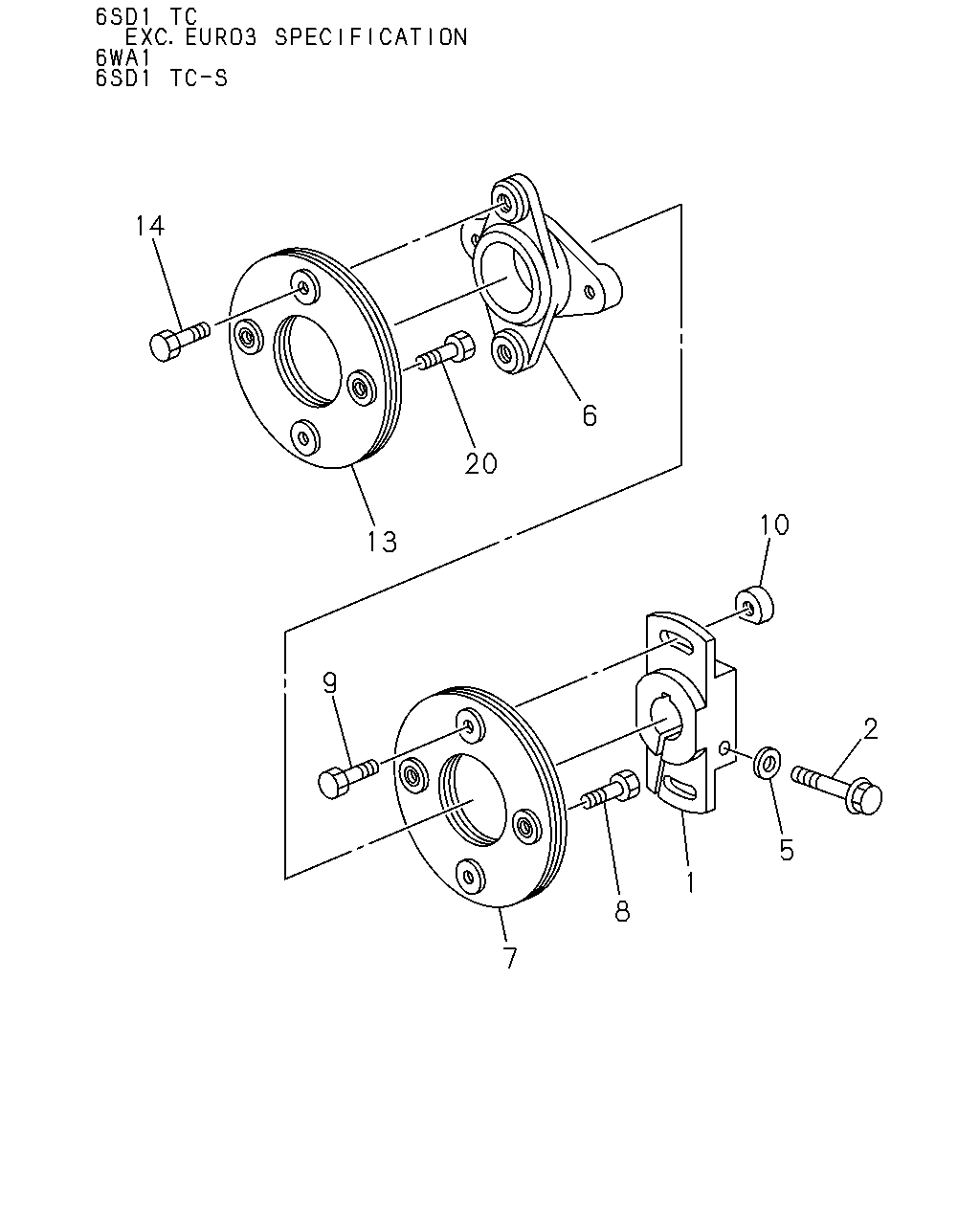

çizim 10233
14 6 20 10 13 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 0012-0106 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO3 SPECIFICATION(NJX) 		1-15781-039-0 01 1 0107-0210 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO3 SPECIFICATION(NJX) 		1-15781-039-0 01 1 0211-0612 ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 0211-0612 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,TAMPER PROOF INJ PUMP SET<W44> 		1-15781-039-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN),INJ PUMP QSET SPECIAL +5%Q(T1A) 		1-15781-039-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-15781-039-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
EURO3 SPECIFICATION(NJX) 		1-15789-207-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 0204- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0012-0106 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-162-0 01 1 0107-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-162-0 01 1 0211- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0211- ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO3 SPECIFICATION(NJX) 		1-15789-212-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 0204- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 0012-0106 ●
5 WASHER; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-021-0 01 1 0107-0210 ●
5 WASHER; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-021-0 01 1 0211- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>,TAMPER PROOF INJ PUMP SET<W44> 		1-15789-161-0 01 1 0012-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN),INJ PUMP QSET SPECIAL +5%Q(T1A) 		1-15789-161-0 01 1 0012-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,TAMPER PROOF INJ PUMP SET<W44> 		1-15789-161-0 01 1 0204- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN),INJ PUMP QSET SPECIAL +5%Q(T1A) 		1-15789-161-0 01 1 0204- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-15789-161-0 01 1 0204- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0012-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0012-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15789-221-0 01 1 0204-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0204-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15789-221-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-221-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO3 SPECIFICATION(NJX) 		1-15789-208-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 0204- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0012-0106 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-181-0 01 1 0107-0210 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-181-0 01 1 0211- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0211- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO3 SPECIFICATION(NJX) 		1-15789-209-0 02 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 0204- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0012-0106 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0107-0210 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0211- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0211- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 0204- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0012-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-159-0 02 1 0107-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-159-0 02 1 0211- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0211- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO3 SPECIFICATION(NJX) 		1-15789-210-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 0204- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0012-0106 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-165-0 02 1 0107-0210 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-165-0 02 1 0211- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0211- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO3 SPECIFICATION(NJX) 		1-15789-213-0 02 1 0107- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 0204- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0012-0106 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-181-0 01 1 0107-0210 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-181-0 01 1 0211- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0211- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 0204- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0012-0106 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0107-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0211- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0211- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO3 SPECIFICATION(NJX) 		1-15789-211-0 04 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 0204- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0012-0106 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0107-0210 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0211- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0211- ●
20 BOLT; COUPLING TO INJ PUMP
EURO3 SPECIFICATION(NJX) 		1-15789-214-0 02 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 0204- ●
çizim 42758
7 9 14 7 1 2 20 6 14 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 0012-0106 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO3 SPECIFICATION(NJX) 		1-15781-039-0 01 1 0107-0210 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO3 SPECIFICATION(NJX) 		1-15781-039-0 01 1 0211-0612 ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 0211-0612 ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,TAMPER PROOF INJ PUMP SET<W44> 		1-15781-039-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN),INJ PUMP QSET SPECIAL +5%Q(T1A) 		1-15781-039-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-15781-039-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
EURO3 SPECIFICATION(NJX) 		1-15789-207-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 0204- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0012-0106 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-162-0 01 1 0107-0210 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-162-0 01 1 0211- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0211- ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO3 SPECIFICATION(NJX) 		1-15789-212-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 0204- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>,TAMPER PROOF INJ PUMP SET<W44> 		1-15789-161-0 01 1 0012-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN),INJ PUMP QSET SPECIAL +5%Q(T1A) 		1-15789-161-0 01 1 0012-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,TAMPER PROOF INJ PUMP SET<W44> 		1-15789-161-0 01 1 0204- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN),INJ PUMP QSET SPECIAL +5%Q(T1A) 		1-15789-161-0 01 1 0204- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) 		1-15789-161-0 01 1 0204- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0012-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0012-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15789-221-0 01 1 0204-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0204-0210 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) OIL FILTER SETTING DOWNWARD<E7V> INJ PUMP Q SET SPECIAL +5%Q(T1A) ISUZU M/T<X9A> 		1-15789-221-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> EXC. OIL FILTER SETTING DOWNWARD<E7V>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-221-0 01 1 0211- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO3 SPECIFICATION(NJX) 		1-15789-208-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 0204- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0012-0106 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-181-0 01 1 0107-0210 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-181-0 01 1 0211- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0211- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO3 SPECIFICATION(NJX) 		1-15789-209-0 02 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 0204- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0012-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-159-0 02 1 0107-0210 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-159-0 02 1 0211- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0211- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO3 SPECIFICATION(NJX) 		1-15789-210-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 0204- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0012-0106 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-165-0 02 1 0107-0210 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15789-165-0 02 1 0211- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0211- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO3 SPECIFICATION(NJX) 		1-15789-213-0 02 1 0107- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 0204- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0012-0106 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0107-0210 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0211- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0211- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO3 SPECIFICATION(NJX) 		1-15789-211-0 04 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 0204- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0012-0106 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0107-0210 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO3 SPECIFICATION(NJX) 		1-15619-183-0 02 1 0211- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0211- ●
20 BOLT; COUPLING TO INJ PUMP
EURO3 SPECIFICATION(NJX) 		1-15789-214-0 02 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 0204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
