8-10 — WIRING HARNESS AND FUSE (#79729) — 259 parça

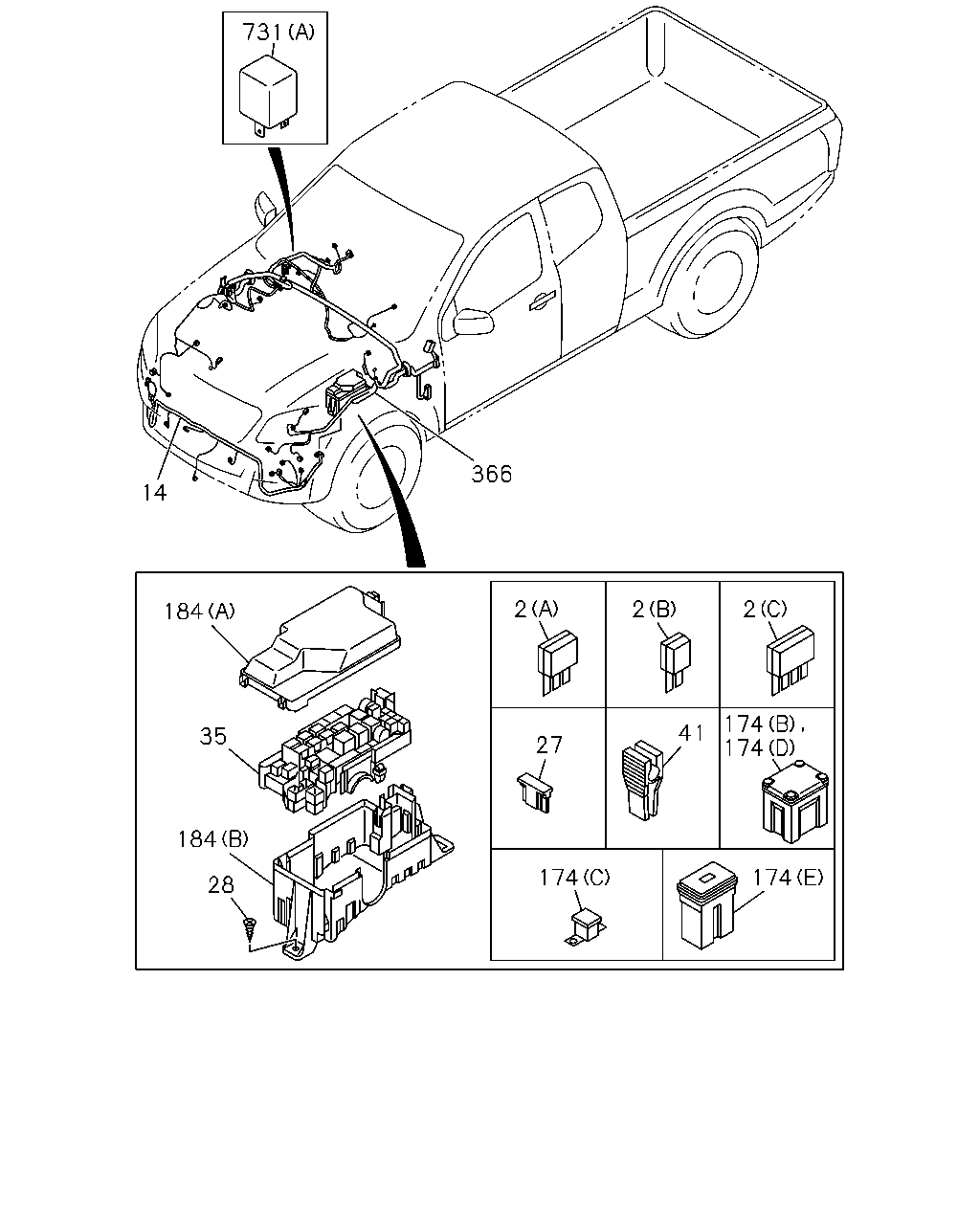

çizim 136168
731 366 14 2 2 2 184 174 174 41 35 27 184 174 174 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 4P-1.5A 		8-94381-730-0 AR 1 1203- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1203- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1203- ● ● ● ● ●
14 02.727 HARNESS; HEADLAMP 8-98159-342-1 01 1 1203- ● ●
14 02.727 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-342-1 01 1 1203- ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-353-1 01 1 1203- ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-352-1 01 1 1203- ● ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98159-351-1 01 1 1203- ● ● ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-350-1 01 1 1203- ● ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1203- ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1203- ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1203- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 1203- ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1203- ● ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 40A GREEN 		8-98079-192-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 50A RED 		8-98079-193-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-97219-407-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(E) 60A YELLOW 		8-98197-288-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1203- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1203- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1203- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-587-8 01 1 1203-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-587-8 01 1 1308- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98160-519-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98160-519-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-218-2 01 1 1204-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98218-218-2 01 1 1204-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-218-2 01 1 1308- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98160-517-9 01 1 1203-1203 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98160-517-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98218-216-2 01 1 1204- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-216-2 01 1 1204- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-585-8 01 1 1203- ●
731 02.483 RELAY; DRL
02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1203- ● ● ● ● ●
731 02.483 RELAY; DRL
09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●

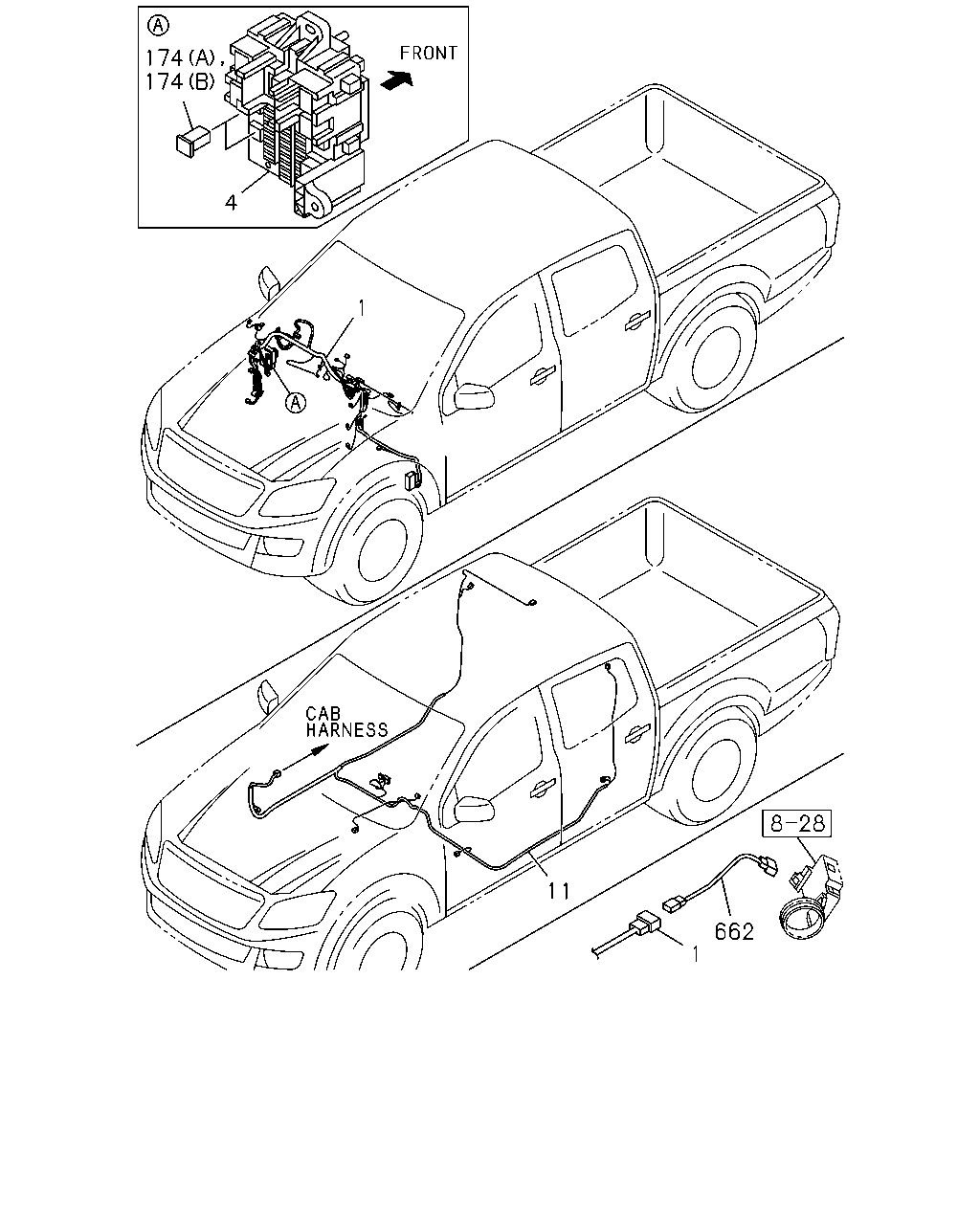

çizim 136420
174 174 4 1 11 662 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.480 HARNESS; CAB
AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98160-468-7 01 1 1203- ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-468-7 01 1 1203- ● ● ●
1 02.480 HARNESS; CAB
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. AUTO DOOR LOCK<AU4> 		8-98160-470-5 01 1 1203- ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> 		8-98160-470-5 01 1 1203- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98185-261-6 01 1 1203- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-456-7 01 1 1203- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98160-460-7 01 1 1203- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-454-7 01 1 1203- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98160-455-7 01 1 1203- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-465-7 01 1 1203- ● ● ●
1 02.480 HARNESS; CAB
INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-462-7 01 1 1203- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1203- ● ● ● ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98160-643-7 01 1 1308- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-627-7 01 1 1308- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-597-7 01 1 1308- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-614-7 01 1 1308- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-558-5 01 1 1203- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98160-559-6 01 1 1203- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-639-8 01 1 1203-1307 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HEATER FRT SEAT<KA1> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-639-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-639-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98160-642-8 01 1 1203-1307 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HEATER FRT SEAT<KA1> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98160-642-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98160-642-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1> 		8-98160-625-8 01 1 1203-1307 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1> 		8-98160-625-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1> 		8-98160-625-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-626-8 01 1 1203-1307 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HEATER FRT SEAT<KA1>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-626-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-626-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1> 		8-98160-588-8 01 1 1203-1307 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1> 		8-98160-588-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1> 		8-98160-588-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-596-8 01 1 1203-1307 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HEATER FRT SEAT<KA1>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-596-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. HEATER FRT SEAT<KA1>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-596-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-613-8 01 1 1203-1307 ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-613-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-613-8 01 1 1308- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> 		8-98160-563-7 01 1 1203- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> 		8-98160-564-7 01 1 1203- ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> 		8-98160-567-7 01 1 1203- ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 40A GREEN 		8-98079-192-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 50A RED 		8-98079-193-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-97219-407-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(E) 60A YELLOW 		8-98197-288-0 AR 1 1203- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1203- ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER 8-98163-074-0 01 1 1203- ● ● ● ● ●

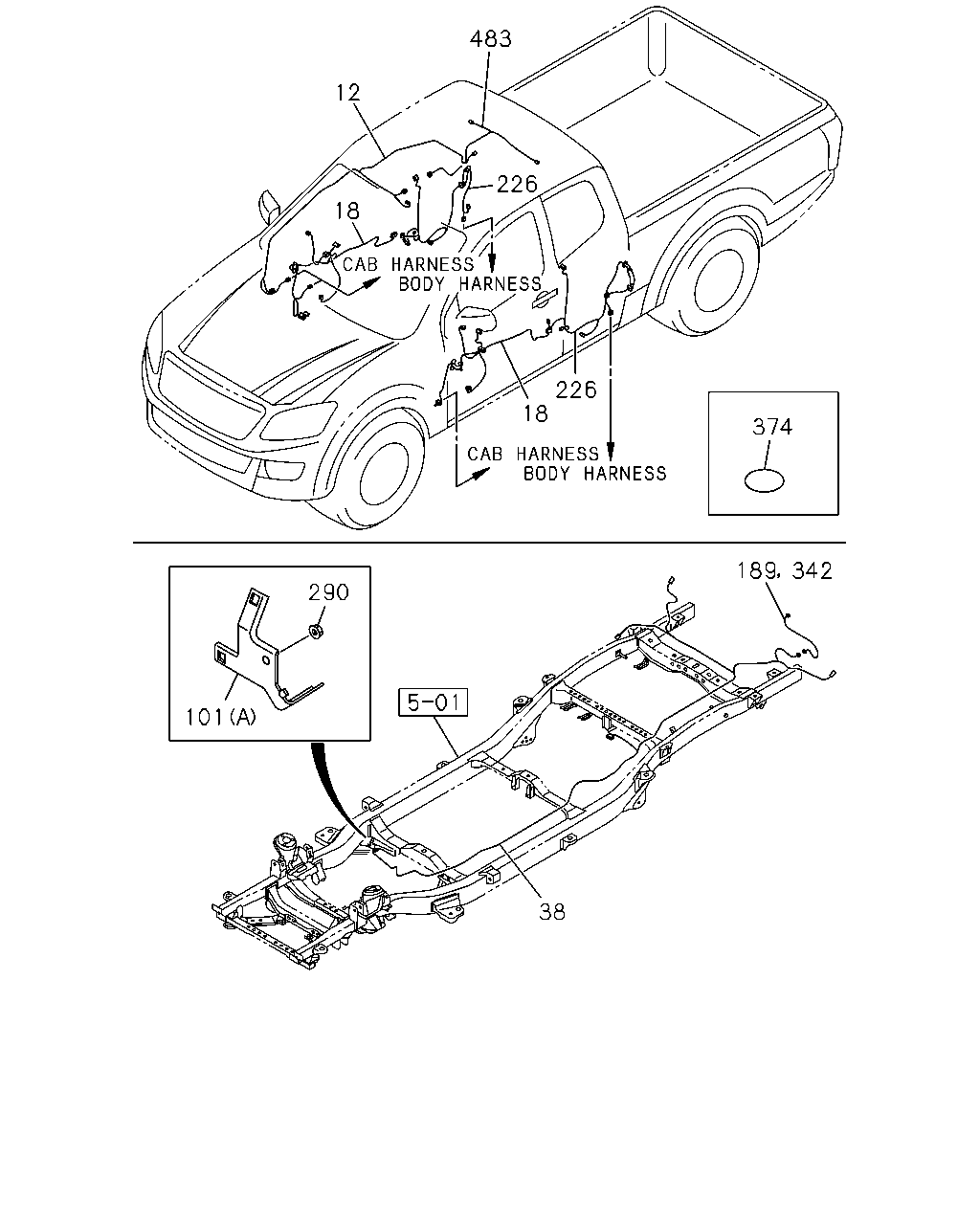

çizim 136430
483 12 226 18 226 18 374 189 342 290 101 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-477-3 01 1 1308-1403 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98275-273-0 01 1 1404- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-476-2 01 1 1308-1403 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1404- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-479-3 01 1 1308-1403 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98275-275-0 01 1 1404- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-478-2 01 1 1308-1403 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1404- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-475-2 01 1 1308-1403 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1404- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-332-0 01 1 1203- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98159-333-4 01 1 1203- ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1203-1307 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1308- ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1308- ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1203-1307 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1308- ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1308- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1203-1307 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1308- ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1308- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-483-4 01 1 1203-1307 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-483-4 01 1 1308- ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-483-4 01 1 1308- ● ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1203-1307 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1308- ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-488-4 01 1 1308- ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98159-490-3 01 1 1203-1307 ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98159-490-3 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-490-3 01 1 1308- ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98159-504-5 01 1 1203-1307 ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98159-504-5 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-504-5 01 1 1308- ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98159-492-3 01 1 1203-1307 ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98159-492-3 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-492-3 01 1 1308- ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98159-510-4 01 1 1203-1307 ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98159-510-4 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-510-4 01 1 1308- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98159-489-3 01 1 1203-1307 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-489-3 01 1 1203-1307 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98159-489-3 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-489-3 01 1 1308- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-489-3 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98159-521-2 01 1 1203-1307 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-521-2 01 1 1203-1307 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98159-521-2 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-521-2 01 1 1308- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-521-2 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. AUTO DOOR LOCK<AU4> 		8-98159-491-4 01 1 1203-1307 ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-491-4 01 1 1203-1307 ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. AUTO DOOR LOCK<AU4> 		8-98159-491-4 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-491-4 01 1 1308- ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-491-4 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. AUTO DOOR LOCK<AU4> 		8-98159-509-3 01 1 1203-1307 ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-509-3 01 1 1203-1307 ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. AUTO DOOR LOCK<AU4> 		8-98159-509-3 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-509-3 01 1 1308- ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-509-3 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-485-4 01 1 1203-1307 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-485-4 01 1 1308- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-485-4 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-501-3 01 1 1203-1307 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-501-3 01 1 1308- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-501-3 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-487-4 01 1 1203-1307 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-487-4 01 1 1308- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-487-4 01 1 1308- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98164-851-3 01 1 1203-1307 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98164-851-3 01 1 1308- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98164-851-3 01 1 1308- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6) 		8-98159-327-3 01 1 1203- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-327-3 01 1 1203- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98159-327-3 01 1 1203- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) 		8-98159-327-3 01 1 1203- ● ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6) 		8-98159-329-3 01 1 1203- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION (7YC) 		8-98159-329-3 01 1 1203- ●
38 02.480 HARNESS; CHAS
REAR BODY DELETE(8HH) 		8-98159-326-3 01 1 1203- ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98102-999-0 01 1 1203- ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
A/T 5 SPEED-AISIN(MA1) (B) 		8-98182-490-1 01 1 1203- ● ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6) 		8-98140-863-0 01 1 1203- ●
189 02.480 HARNESS; EXT
HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1203- ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION (7YC) 		8-98140-863-0 01 1 1203- ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1203- ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6) 		8-98140-863-0 01 1 1203- ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-531-3 01 1 1203- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-532-3 01 1 1203- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-527-3 01 1 1203- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-528-3 01 1 1203- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-529-3 01 1 1203- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-530-3 01 1 1203- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-525-3 01 1 1203- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-526-3 01 1 1203- ● ●
226 02.480 HARNESS; RR DOOR 8-98159-355-6 01 1 1203- ●
226 02.480 HARNESS; RR DOOR 8-98167-613-6 01 1 1203- ●
290 02.483 NUT; BRKT
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1203- ● ● ● ● ●
342 02.480 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6) 		8-98137-579-2 01 1 1203- ● ●
342 02.480 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) 		8-98137-579-2 01 1 1203- ● ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 1203- ● ●
483 02.480 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98165-202-2 01 1 1203- ● ● ●
483 02.480 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98129-592-2 01 1 1203- ● ● ●
çizim 136774
4 734 750 749 751
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1203- ● ● ● ● ●
734 02.694 RELAY; ACC SOCKET
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
749 02.694 RELAY; POWER WINDOW
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
750 02.694 RELAY; RR DEFOGGER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
751 02.694 RELAY; DEAD LOCK
02.485 12V YAZAKI 		8-97309-292-0 01 1 1203- ● ● ● ● ●

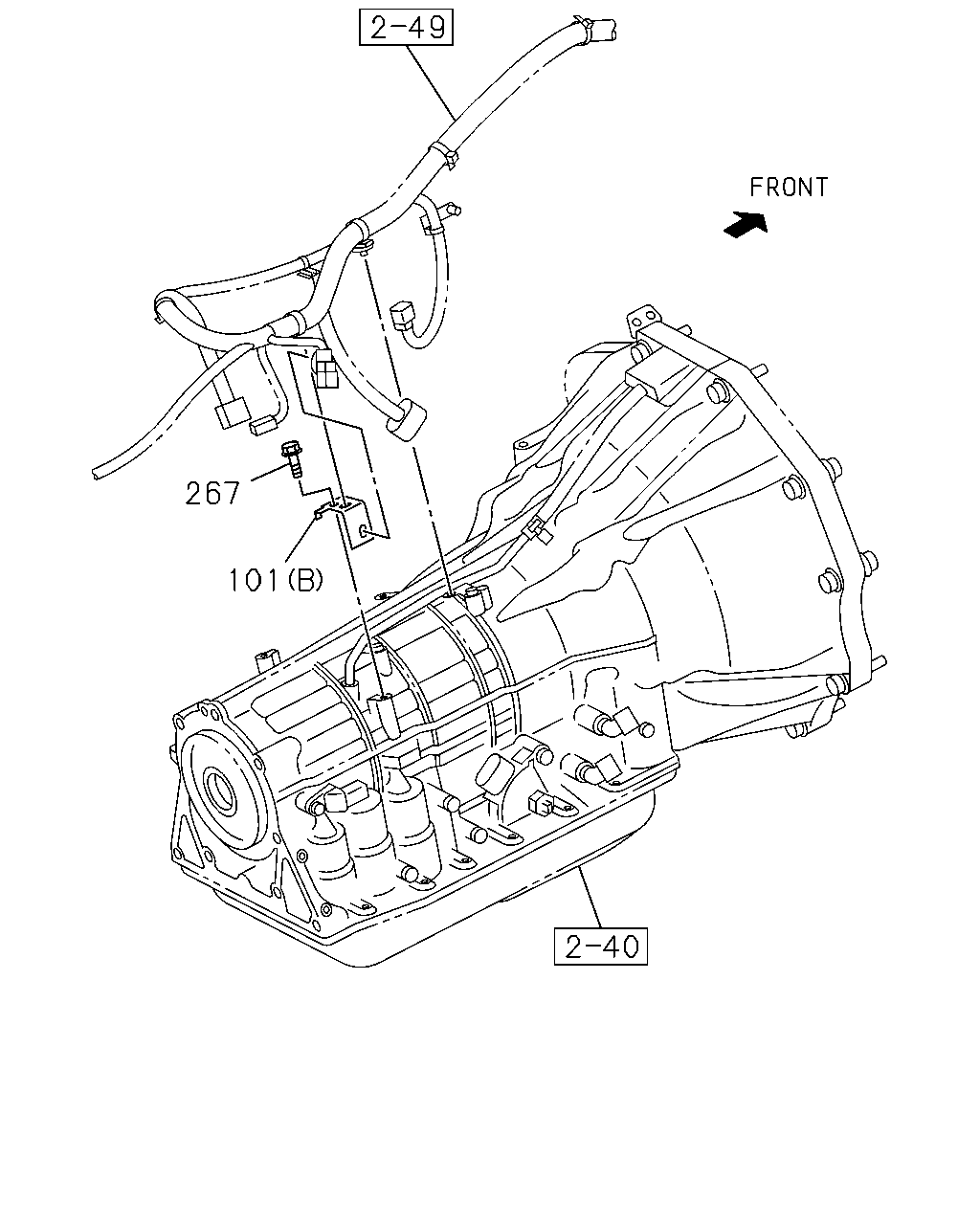

çizim 136906
267 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98102-999-0 01 1 1203- ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
A/T 5 SPEED-AISIN(MA1) (B) 		8-98182-490-1 01 1 1203- ● ●
267 02.483 BOLT; BRKT
A/T 5 SPEED-AISIN(MA1) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1203- ● ●
çizim 137262
366 731 736 738 739 741 743 742 744 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B C D E
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-587-8 01 1 1203-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-587-8 01 1 1308- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98160-519-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98160-519-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-218-2 01 1 1204-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98218-218-2 01 1 1204-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-218-2 01 1 1308- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98160-517-9 01 1 1203-1203 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98160-517-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98218-216-2 01 1 1204- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-216-2 01 1 1204- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-585-8 01 1 1203- ●
731 02.483 RELAY; DRL
02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1203- ● ● ● ● ●
731 02.483 RELAY; DRL
09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
736 02.694 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1203- ● ● ● ● ●
737 02.694 RELAY; DIMMER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1203- ● ● ● ● ●
738 02.694 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
739 02.694 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
741 02.694 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
742 02.694 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
743 02.694 RELAY; A/C COMPRESSOR
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
744 02.694 RELAY; RR FOG LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1203- ● ● ● ● ●
745 02.694 RELAY; HEATER
03.670 12V YAZAKI 		8-98146-834-0 01 1 1203- ● ● ● ● ●
746 02.694 RELAY; ECM,MAIN
03.670 12V YAZAKI 		8-98146-834-0 01 1 1203- ● ● ● ● ●
747 02.694 RELAY; GLOW
02.100 12V YAZAKI 		8-98146-837-0 01 1 1203- ● ● ● ● ●
748 02.694 RELAY; STARTER
02.100 12V YAZAKI 		8-98146-837-0 01 1 1203- ● ● ● ● ●
çizim 182941
655
BalonParca AdiParca NoAdetTipApplied Date A B C D E
655 02.480 RETAINER
08.077 		8-97182-405-0 01 1 1203- ● ● ● ● ●

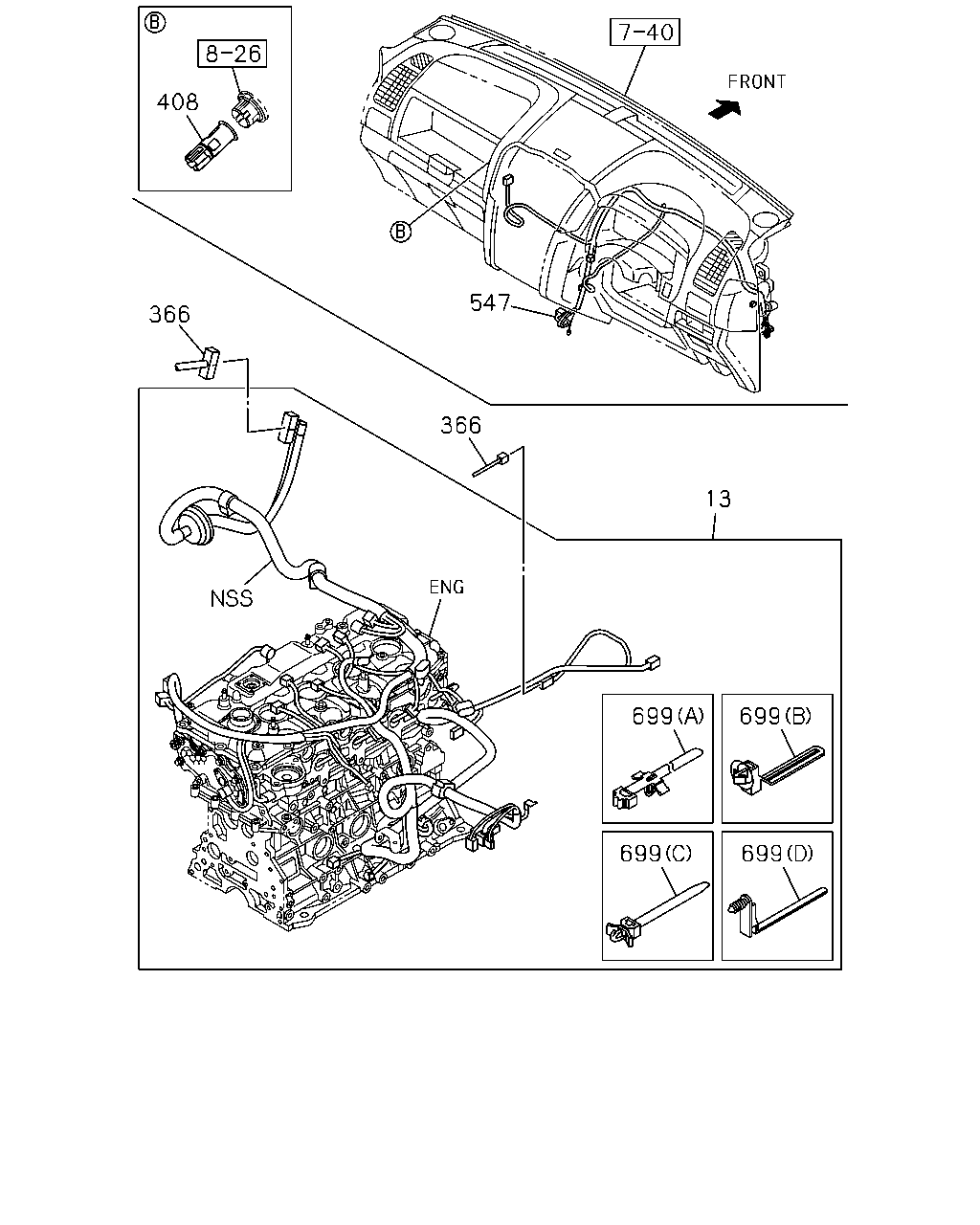

çizim 182951
408 547 366 366 13 699 699 699 699
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 02.525 HARNESS; ENG
M/T AISIN 6 SPEED(RNU) 		8-98188-428-7 01 1 1203- ● ●
13 02.525 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98188-431-7 01 1 1203-1401 ● ●
13 02.525 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98260-548-0 01 1 1402- ● ●
13 02.525 HARNESS; ENG
M/T AISIN 6 SPEED(RNU) 		8-98188-429-7 01 1 1203-1401 ● ● ●
13 02.525 HARNESS; ENG
M/T AISIN 6 SPEED(RNU) 		8-98260-549-0 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-587-8 01 1 1203-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-587-8 01 1 1308- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98160-519-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98160-519-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-218-2 01 1 1204-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) 		8-98218-218-2 01 1 1204-1307 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-218-2 01 1 1308- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98160-517-9 01 1 1203-1203 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98160-517-9 01 1 1203-1203 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98218-216-2 01 1 1204- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98218-216-2 01 1 1204- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) 		8-98191-585-8 01 1 1203- ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 01 1 1203- ● ● ● ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-334-4 01 1 1203-1307 ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-334-4 01 1 1308- ● ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98159-335-4 01 1 1203- ● ●
547 02.480 HARNESS; CABLE,SRS 8-98159-336-4 01 1 1203-1307 ● ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98159-336-4 01 1 1308- ●
547 02.480 HARNESS; CABLE,SRS 8-98159-336-4 01 1 1308- ● ●
699 02.559 CLIP; ENG HARNESS
(A) L=170.3 		1-09987-182-0 01 1 1203-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (A) L=170.3 		1-09987-182-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
(B) L=155 		8-97173-307-0 01 1 1203-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (B) L=155 		8-97173-307-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
(B) L=140 		8-97378-707-0 01 1 1203-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (B) L=140 		8-97378-707-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
(C) L=146.2 		8-98052-677-0 01 1 1203-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (C) L=146.2 		8-98052-677-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
(D) 		8-98182-511-0 03 1 1203-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
M/T AISIN 6 SPEED(RNU) (D) 		8-98182-511-0 03 1 1402- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
