Sayfa 7-55 - Isuzu EPC

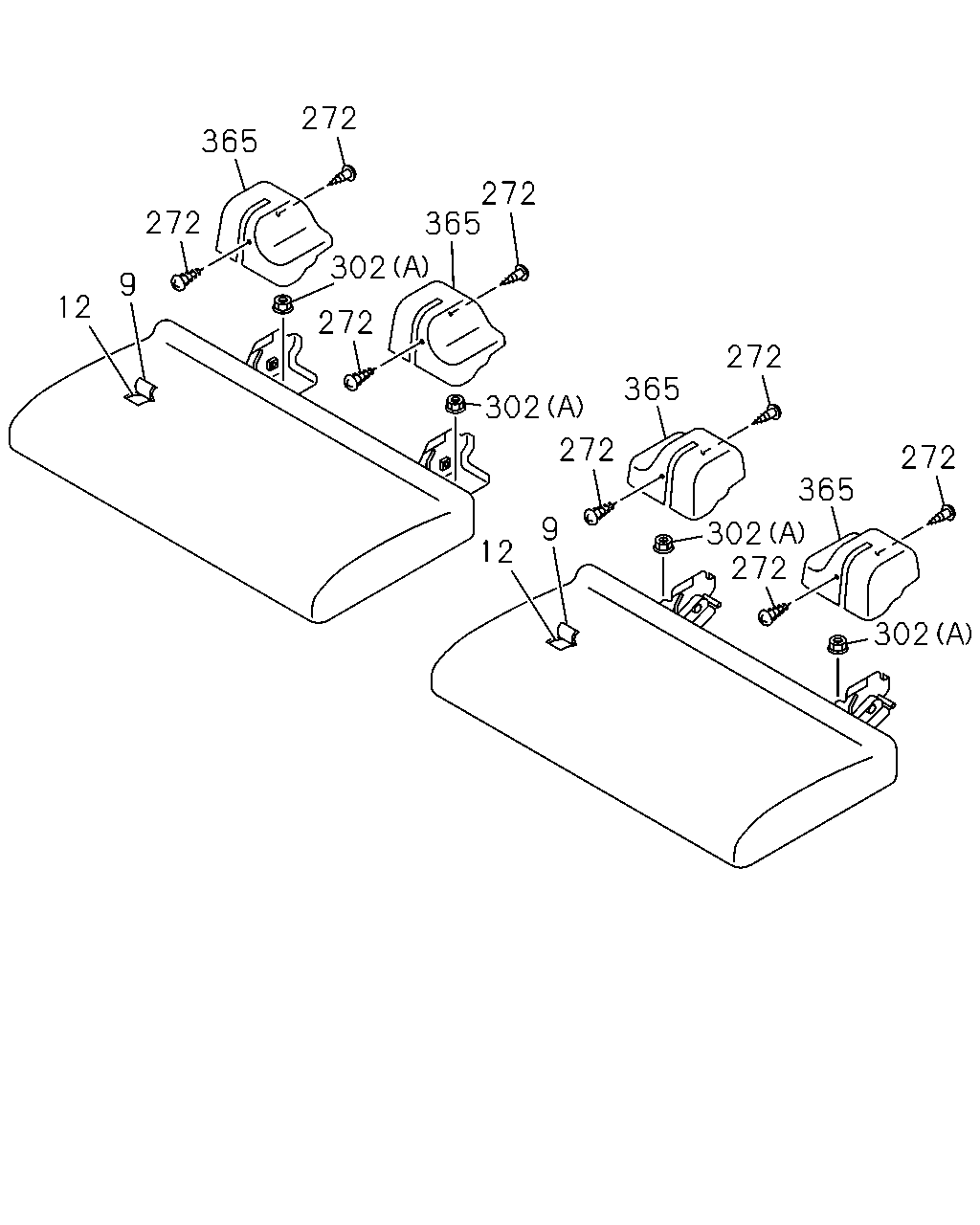

7-55 — REAR SEAT (#79724) — 150 parça

302 272 365 302 272 272 365 272 9 12 302 272 302 365 272 272 365 272 9 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97423-400-0	01	1	1203-1501	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97465-115-0	01	1	1502-1507	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97460-344-0	01	1	1508-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97423-401-0	01	1	1203-1501	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97465-125-0	01	1	1502-1507	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97460-346-0	01	1	1508-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-407-0	01	1	1203-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-408-0	01	1	1203-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97423-394-0	01	1	1203-1507	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97460-304-0	01	1	1508-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97423-395-0	01	1	1203-1507	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97460-306-0	01	1	1508-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> LIGHT GRAY	8-97423-325-0	01	1	1203-			●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> LIGHT GRAY	8-97423-326-0	01	1	1203-			●
12	16.717 PAD & FRAME ASM; RR CUSHION JUMP SEAT<AJ2>	8-98194-128-1	01	1	1203-			●
12	16.717 PAD & FRAME ASM; RR CUSHION JUMP SEAT<AJ2>	8-98194-129-1	01	1	1203-			●
272	16.720 SCREW; COVER JUMP SEAT<AJ2>	8-98194-130-0	08	1	1203-			●
302	16.715 NUT; RR SEAT SEAT TRIM LEATHER<6TB> (B) M6 FLANGE	8-98225-096-0	02	1	1203-1207	●	●
302	16.715 NUT; RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B) M6 FLANGE	8-98225-096-0	02	1	1208-	●	●
302	16.715 NUT; RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M6 FLANGE	8-98225-096-0	02	1	1208-	●	●
302	16.715 NUT; RR SEAT 05.816 (A) M12 FLANGE	0-91180-212-0	03	1	1203-	●	●
302	16.715 NUT; RR SEAT JUMP SEAT<AJ2> 05.816 (A) M12 FLANGE	0-91180-212-0	04	1	1203-			●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> INNER BLACK	8-97423-321-3	01	1	1203-			●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> INNER BLACK	8-97423-322-3	01	1	1203-			●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> OUTER BLACK	8-97423-323-3	01	1	1203-			●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> OUTER BLACK	8-97423-324-3	01	1	1203-			●

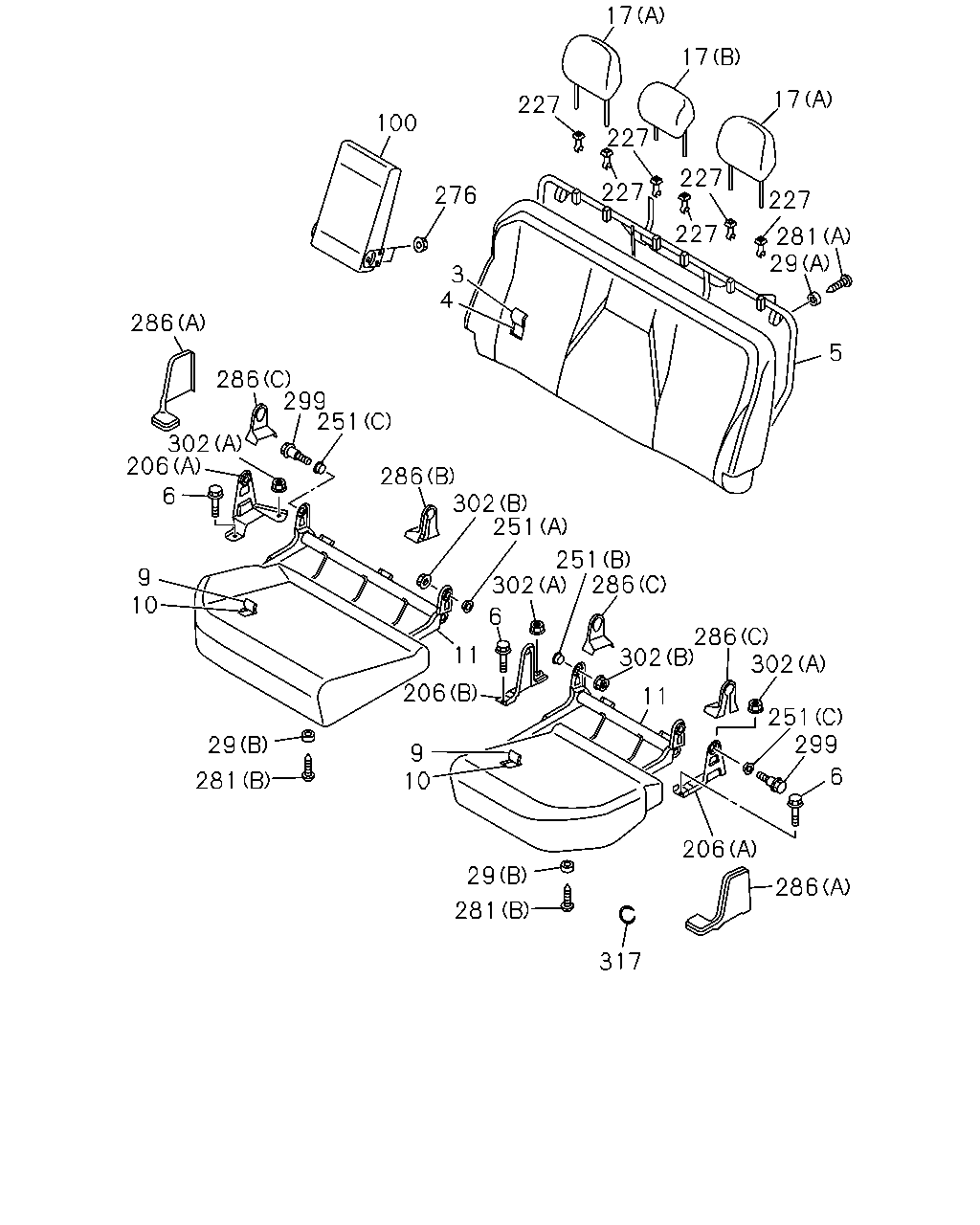

100 227 17 227 227 276 3 4 286 286 251 286 206 9 10 29 281 10 29 9 17 227 227 227 5 29 281 17 299 302 251 251 286 302 302 286 251 299 6 286 281 302 6 302 6 11 206 206 317 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> DARK BROWN	8-97423-399-0	01	1	1203-1501	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> DARK BROWN	8-97465-096-0	01	1	1502-1507	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> DARK BROWN	8-97460-341-0	01	1	1508-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-410-0	01	1	1203-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97423-393-0	01	1	1203-1507	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97460-302-0	01	1	1508-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB>	8-98200-491-0	01	1	1203-1507	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB>	8-98300-434-0	01	1	1508-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM BASE CLOTH<8LK>	8-98196-181-0	01	1	1203-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98196-183-0	01	1	1203-1507	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98300-432-0	01	1	1508-	●	●
5	16.720 FRAME ASM; RR SEAT BACK SEAT TRIM BASE CLOTH<8LK> BLACK	8-97427-752-0	01	1	1309-	●	●
5	16.720 FRAME ASM; RR SEAT BACK SEAT TRIM LEATHER<6TB> BLACK	8-97427-756-0	01	1	1203-1308	●	●
5	16.720 FRAME ASM; RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97427-756-0	01	1	1309-	●	●
5	16.720 FRAME ASM; RR SEAT BACK INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK	8-97427-756-0	01	1	1309-	●	●
6	16.679 BOLT; RR SEAT 16.682 M12X27.5 W/PL WASHER	8-98050-319-0	03	1	1203-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97423-400-0	01	1	1203-1501	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97465-115-0	01	1	1502-1507	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97460-344-0	01	1	1508-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97423-401-0	01	1	1203-1501	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97465-125-0	01	1	1502-1507	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> DARK BROWN	8-97460-346-0	01	1	1508-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-407-0	01	1	1203-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97423-408-0	01	1	1203-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97423-394-0	01	1	1203-1507	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97460-304-0	01	1	1508-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97423-395-0	01	1	1203-1507	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97460-306-0	01	1	1508-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> LIGHT GRAY	8-97423-325-0	01	1	1203-			●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> LIGHT GRAY	8-97423-326-0	01	1	1203-			●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>	8-98200-496-0	01	1	1203-1507	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>	8-98300-438-0	01	1	1508-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>	8-98200-500-0	01	1	1203-1507	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>	8-98300-442-0	01	1	1508-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM BASE CLOTH<8LK>	8-98200-494-1	01	1	1203-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM BASE CLOTH<8LK>	8-98200-498-1	01	1	1203-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98196-199-0	01	1	1203-1507	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98300-436-0	01	1	1508-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98196-213-0	01	1	1203-1507	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98300-440-0	01	1	1508-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97427-778-0	01	1	1203-1308	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK	8-97427-778-1	01	1	1309-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97427-778-1	01	1	1309-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97427-781-0	01	1	1203-1308	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> BLACK	8-97427-781-1	01	1	1309-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97427-781-1	01	1	1309-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY	8-97424-713-0	01	1	1208-1209	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY	8-97424-714-0	01	1	1208-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM BASE CLOTH<8LK> (A) LIGHT GRAY	8-97424-713-0	02	1	1208-1209	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY	8-97424-713-0	02	1	1210-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> (B) DARK BROWN	8-97424-703-0	01	1	1203-1501	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> (B) DARK BROWN	8-97465-079-0	01	1	1502-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> (A) DARK BROWN	8-97425-363-0	02	1	1203-1501	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> (A) DARK BROWN	8-97465-075-0	02	1	1502-	●	●
29	16.686 RUBBER; RR SEAT SEAT TRIM LEATHER<6TB> (A)	8-98224-609-0	02	1	1203-1207	●	●
29	16.686 RUBBER; RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (A)	8-98224-609-0	02	1	1208-	●	●
29	16.686 RUBBER; RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-609-0	02	1	1208-	●	●
29	16.686 RUBBER; RR SEAT SEAT TRIM LEATHER<6TB> (B)	8-98224-621-0	05	1	1203-1207	●	●
29	16.686 RUBBER; RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B)	8-98224-621-0	05	1	1208-	●	●
29	16.686 RUBBER; RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B)	8-98224-621-0	05	1	1208-	●	●
100	15.039 REST; ARM,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-694-0	01	1	1208-	●	●
100	15.039 REST; ARM,RR SEAT SEAT TRIM LEATHER<6TB> DARK BROWN	8-97424-706-0	01	1	1203-1501	●	●
100	15.039 REST; ARM,RR SEAT SEAT TRIM LEATHER<6TB> DARK BROWN	8-97465-105-0	01	1	1502-	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT SEAT TRIM LEATHER<6TB> (A)	8-98224-625-0	01	1	1203-1207	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (A)	8-98224-625-0	01	1	1208-	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-625-0	01	1	1208-	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT SEAT TRIM LEATHER<6TB> (B)	8-98224-695-0	01	1	1203-1207	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B)	8-98224-695-0	01	1	1208-	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B)	8-98224-695-0	01	1	1208-	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT SEAT TRIM LEATHER<6TB> (A)	8-98224-697-0	01	1	1203-1207	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (A)	8-98224-697-0	01	1	1208-	●	●
206	16.682 BRACKET ASM; LEG,RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-697-0	01	1	1208-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.165 LOCK BLACK	8-97424-696-0	03	1	1208-1211	●	●
227	16.718 HOLDER; GUIDE,RR HD REST SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.165 FREE BLACK	8-97424-697-0	03	1	1208-1211	●	●
227	16.718 HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB> 16.716 LOCK BLACK	8-97424-499-0	03	1	1203-1211	●	●
227	16.718 HOLDER; GUIDE,RR HD REST INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 16.716 LOCK BLACK	8-97424-499-0	03	1	1212-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.716 LOCK BLACK	8-97424-499-0	03	1	1212-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST SEAT TRIM LEATHER<6TB> 16.716 FREE BLACK	8-97424-500-0	03	1	1203-1211	●	●
227	16.718 HOLDER; GUIDE,RR HD REST INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> 16.716 FREE BLACK	8-97424-500-0	03	1	1212-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> 16.716 FREE BLACK	8-97424-500-0	03	1	1212-	●	●
251	16.682 BUSHING; HINGE PIN SEAT TRIM LEATHER<6TB> (A)	8-98224-622-0	01	1	1203-1207	●	●
251	16.682 BUSHING; HINGE PIN INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (A)	8-98224-622-0	01	1	1208-	●	●
251	16.682 BUSHING; HINGE PIN SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-622-0	01	1	1208-	●	●
251	16.682 BUSHING; HINGE PIN SEAT TRIM LEATHER<6TB> (B)	8-98224-623-0	01	1	1203-1207	●	●
251	16.682 BUSHING; HINGE PIN INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B)	8-98224-623-0	01	1	1208-	●	●
251	16.682 BUSHING; HINGE PIN SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B)	8-98224-623-0	01	1	1208-	●	●
251	16.682 BUSHING; HINGE PIN SEAT TRIM LEATHER<6TB> (C)	8-98224-624-0	02	1	1203-1207	●	●
251	16.682 BUSHING; HINGE PIN INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (C)	8-98224-624-0	02	1	1208-	●	●
251	16.682 BUSHING; HINGE PIN SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C)	8-98224-624-0	02	1	1208-	●	●
276	16.720 NUT; ARM REST SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98225-097-0	04	1	1208-1303	●	●
276	16.720 NUT; ARM REST SEAT TRIM LEATHER<6TB> M6 FLANGE	8-98224-604-0	04	1	1203-1303	●	●
276	16.720 NUT; ARM REST SEAT TRIM HIGH GRADE CLOTH<8LM> M6 FLANGE	8-98224-604-0	04	1	1304-	●	●
276	16.720 NUT; ARM REST INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> M6 FLANGE	8-98224-604-0	04	1	1304-	●	●
281	16.715 SCREW SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X14	8-98224-611-0	07	1	1208-1211	●	●
281	16.715 SCREW SEAT TRIM LEATHER<6TB> (A) M4X14	8-98224-611-0	02	1	1203-1211	●	●
281	16.715 SCREW INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (A) M4X14	8-98224-611-0	02	1	1212-	●	●
281	16.715 SCREW SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X14	8-98224-611-0	02	1	1212-	●	●
281	16.715 SCREW SEAT TRIM LEATHER<6TB> (B) M5X18	8-98233-169-0	05	1	1203-1211	●	●
281	16.715 SCREW INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B) M5X18	8-98233-169-0	05	1	1212-	●	●
281	16.715 SCREW SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M5X18	8-98233-169-0	05	1	1212-	●	●
286	16.716 COVER; HINGE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) BLACK	8-97424-699-0	02	1	1208-1209	●	●
286	16.716 COVER; HINGE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-700-0	06	1	1208-1209	●	●
286	16.716 COVER; HINGE SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-699-0	01	1	1203-1209	●	●
286	16.716 COVER; HINGE INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-699-1	01	1	1210-	●	●
286	16.716 COVER; HINGE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) BLACK	8-97424-699-1	01	1	1210-	●	●
286	16.716 COVER; HINGE SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-700-0	03	1	1203-1209	●	●
286	16.716 COVER; HINGE INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-700-0	03	1	1210-	●	●
286	16.716 COVER; HINGE SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK	8-97424-700-0	03	1	1210-	●	●
286	16.716 COVER; HINGE (A) BLACK	8-97416-997-2	01	1	1203-	●	●
286	16.716 COVER; HINGE (A) BLACK	8-97416-999-2	01	1	1203-	●	●
299	16.716 BOLT; LEG SEAT TRIM LEATHER<6TB> M8X26	8-98224-698-0	02	1	1203-1207	●	●
299	16.716 BOLT; LEG INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> M8X26	8-98224-698-0	02	1	1208-	●	●
299	16.716 BOLT; LEG SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8X26	8-98224-698-0	02	1	1208-	●	●
302	16.715 NUT; RR SEAT SEAT TRIM LEATHER<6TB> (B) M6 FLANGE	8-98225-096-0	02	1	1203-1207	●	●
302	16.715 NUT; RR SEAT INTERIOR CUSTOM(RBD) SEAT TRIM LEATHER<6TB> (B) M6 FLANGE	8-98225-096-0	02	1	1208-	●	●
302	16.715 NUT; RR SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M6 FLANGE	8-98225-096-0	02	1	1208-	●	●
302	16.715 NUT; RR SEAT 05.816 (A) M12 FLANGE	0-91180-212-0	03	1	1203-	●	●
302	16.715 NUT; RR SEAT JUMP SEAT<AJ2> 05.816 (A) M12 FLANGE	0-91180-212-0	04	1	1203-			●
317	16.717 RING; BACK,RR SEAT SEAT TRIM BASE CLOTH<8LK> 16.724	8-98220-068-0	35	1	1208-1507	●	●
317	16.717 RING; BACK,RR SEAT SEAT TRIM BASE CLOTH<8LK> 16.724	8-98220-068-0	27	1	1508-	●	●
317	16.717 RING; BACK,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	38	1	1208-1507	●	●
317	16.717 RING; BACK,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	48	1	1508-	●	●
317	16.717 RING; BACK,RR SEAT SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	43	1	1203-1507	●	●
317	16.717 RING; BACK,RR SEAT SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	51	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
