◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#79722) — 118 parça

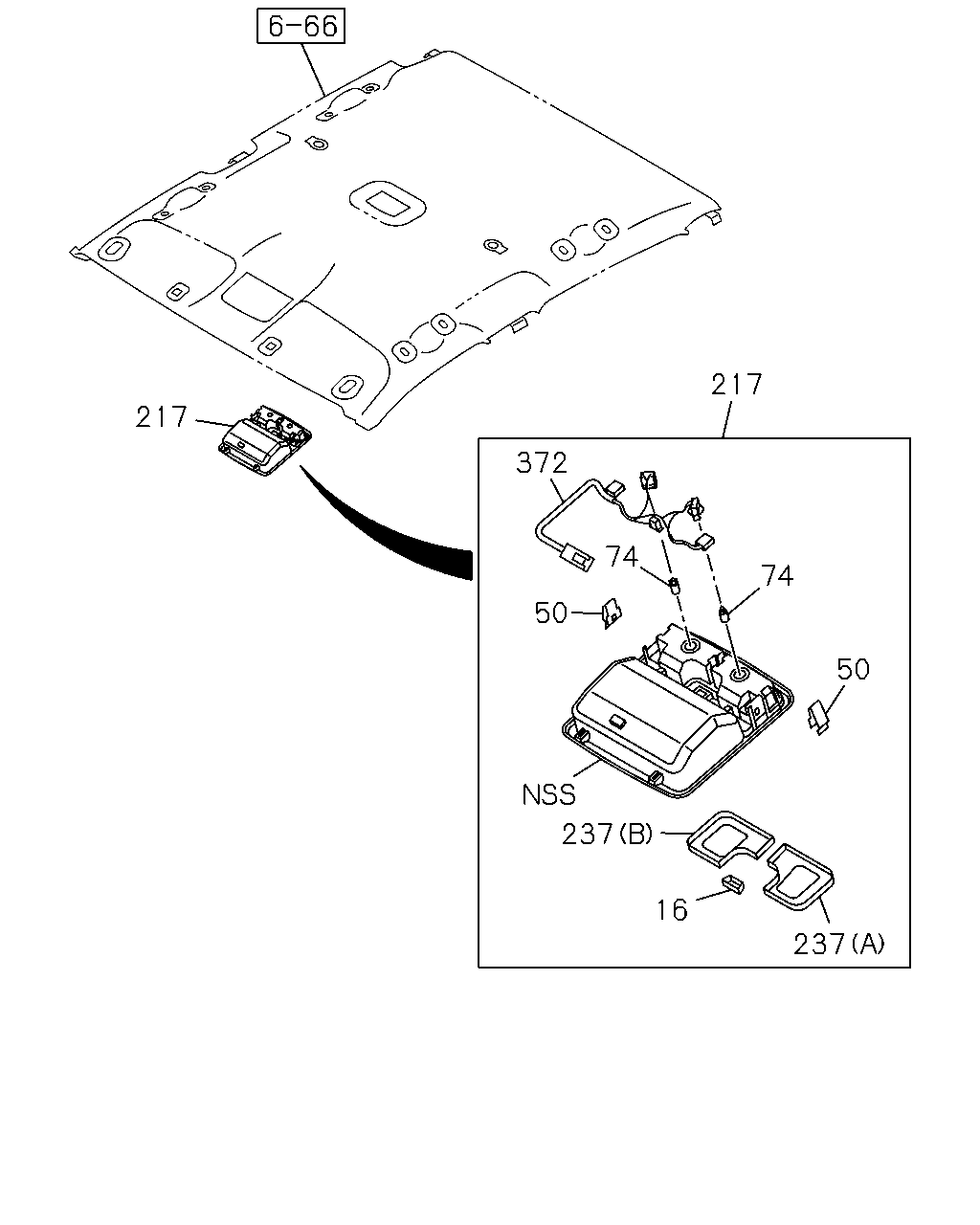

çizim 134207
217 217 372 74 74 50 50 237 16 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1203- ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> 		8-98192-891-0 02 1 1203- ● ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W 		8-94124-595-0 02 1 1203- ● ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1203- ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1203- ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1203- ● ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1203- ● ● ●

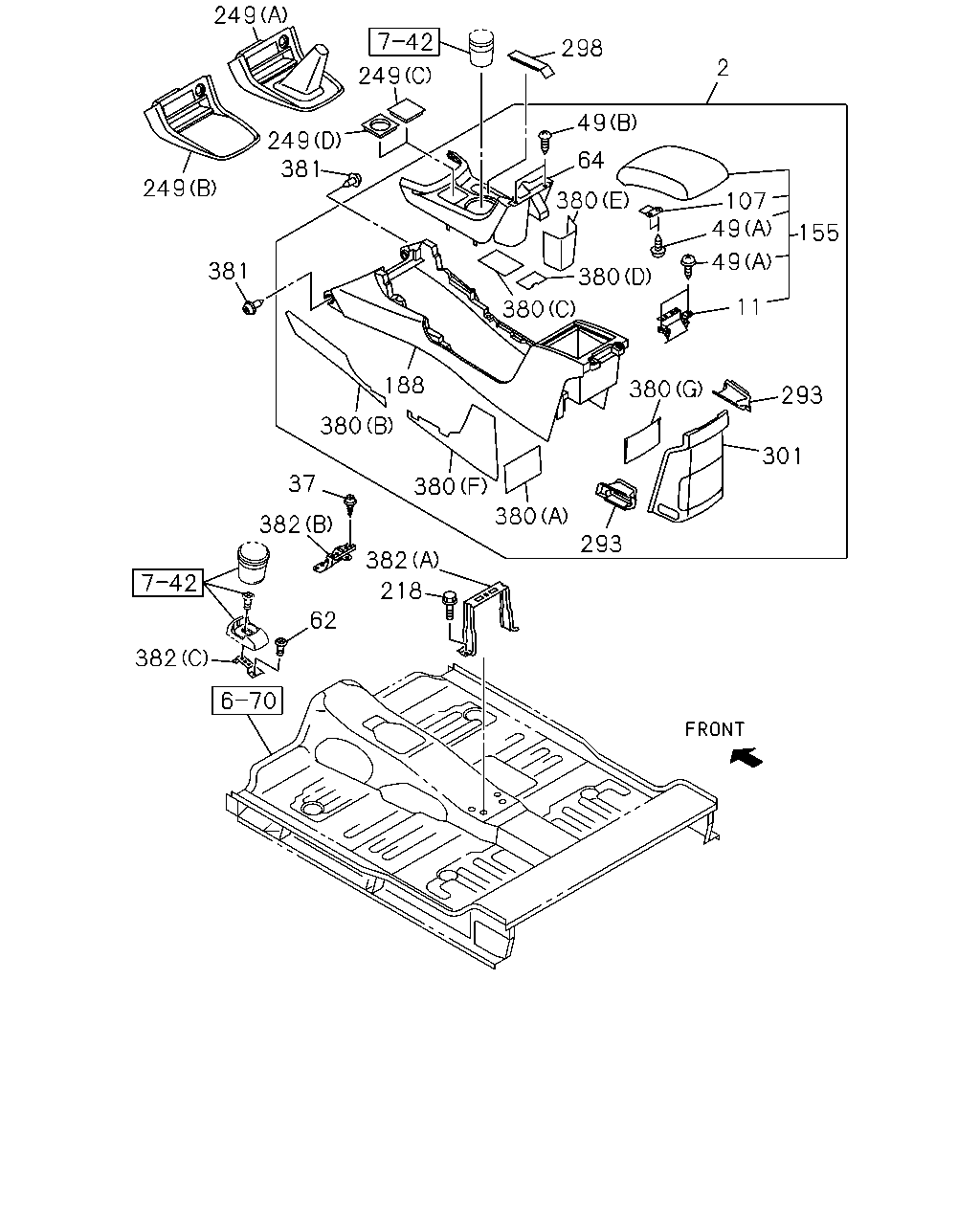

çizim 134311
249 249 249 249 381 298 49 380 64 380 380 107 49 49 380 380 380 37 380 301 293 11 155 2 382 382 382 62 293 218 381 188
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.081 CONSOLE; CENTER
BLACK 		8-97416-654-9 01 1 1203- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97416-654-9 01 1 1203- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> BLACK 		8-97416-654-9 01 1 1203- ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> BLACK 		8-97423-329-1 01 1 1203- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97416-652-9 01 1 1203- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> BLACK 		8-97423-330-1 01 1 1203- ● ●
11 16.650 HINGE; CONSOLE LID
BLACK 		8-97423-090-0 01 1 1203- ● ●
11 16.650 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1203- ● ●
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1203- ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1203- ● ●
37 16.650 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1203- ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> 01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1203- ●
49 04.017 SCREW; CONSOLE
16.081 (A) M5X16 		8-98197-847-0 06 1 1212- ● ●
49 04.017 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1212- ● ●
49 04.017 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1212- ●
49 04.017 SCREW; CONSOLE
(B) M4X14 		8-98234-823-0 02 1 1212- ● ●
49 04.017 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1212- ● ●
49 04.017 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1212- ●
62 16.650 SCREW; BRKT
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1302- ● ●
62 16.650 SCREW; BRKT
EXC. FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1302- ●
64 16.650 BEZEL; CENTER CONSOLE
BLACK 		8-97423-087-3 01 1 1203- ● ●
64 16.650 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1203- ● ●
64 16.650 BEZEL; CENTER CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1203- ●
107 16.650 LOCK; LID,RR CONSOLE
BLACK 		8-97423-089-0 01 1 1203- ● ●
107 16.650 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1203- ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1203- ●
155 16.650 LID; PARCEL BOX
BLACK 		8-97423-088-1 01 1 1203- ● ●
155 16.650 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1203- ● ●
155 16.650 LID; PARCEL BOX
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1203- ●
188 16.650 CONSOLE; RR
BLACK 		8-97423-086-3 01 1 1203- ● ●
188 16.650 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1203- ● ●
188 16.650 CONSOLE; RR
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1203- ●
218 16.650 BOLT; BRKT
M6X12.5 FLANGE 		8-98014-141-0 02 1 1203- ● ●
218 16.650 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1203- ● ●
218 16.650 BOLT; BRKT
FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1203- ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1203- ● ● ● ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) (A) BLACK 		8-97417-151-2 01 1 1203- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1203- ● ● ●
249 16.674 COVER
(C) BLACK 		8-97416-660-1 01 1 1203- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1203- ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1203- ● ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1203- ● ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1203- ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1203- ●
249 16.674 COVER
(D) BLACK 		8-97416-659-2 01 1 1203- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1203- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) (B) BLACK 		8-97417-153-1 01 1 1203- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1203- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1203- ● ●
293 16.650 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-786-0 01 1 1203- ● ●
293 16.650 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-787-0 01 1 1203- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
BLACK 		8-97416-651-2 01 1 1203- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1203- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1203- ●
301 16.650 BEZEL; CONSOLE
BLACK 		8-97423-092-2 01 1 1203- ● ●
301 16.650 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1203- ● ● ●
301 16.650 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK 		8-97423-091-2 01 1 1203- ● ●
380 16.650 INSULATOR; CONSOLE
(F) 		8-98234-826-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (F) 		8-98234-826-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (F) 		8-98234-826-0 01 1 1212- ●
380 16.650 INSULATOR; CONSOLE
(A) 		8-98234-827-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1212- ●
380 16.650 INSULATOR; CONSOLE
(B) 		8-98234-828-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1212- ●
380 16.650 INSULATOR; CONSOLE
(D) 		8-98234-829-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) 		8-98234-829-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (D) 		8-98234-829-0 01 1 1212- ●
380 16.650 INSULATOR; CONSOLE
(C) 		8-98234-830-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1212- ●
380 16.650 INSULATOR; CONSOLE
(E) 		8-98234-831-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (E) 		8-98234-831-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (E) 		8-98234-831-0 01 1 1212- ●
380 16.650 INSULATOR; CONSOLE
(G) 		8-98234-825-0 01 1 1212- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1212- ● ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (G) 		8-98234-824-0 01 1 1212- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
BLACK 		8-97360-070-0 02 1 1203- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1203- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1203- ●
382 16.100 BRACKET; FLOOR CONSOLE
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1302- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
EXC. FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1302- ●
382 16.100 BRACKET; FLOOR CONSOLE
(A) 		8-98102-973-3 01 1 1203- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1203- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1203- ●
382 16.100 BRACKET; FLOOR CONSOLE
(B) 		8-98112-864-4 01 1 1203- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1203- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1203- ●

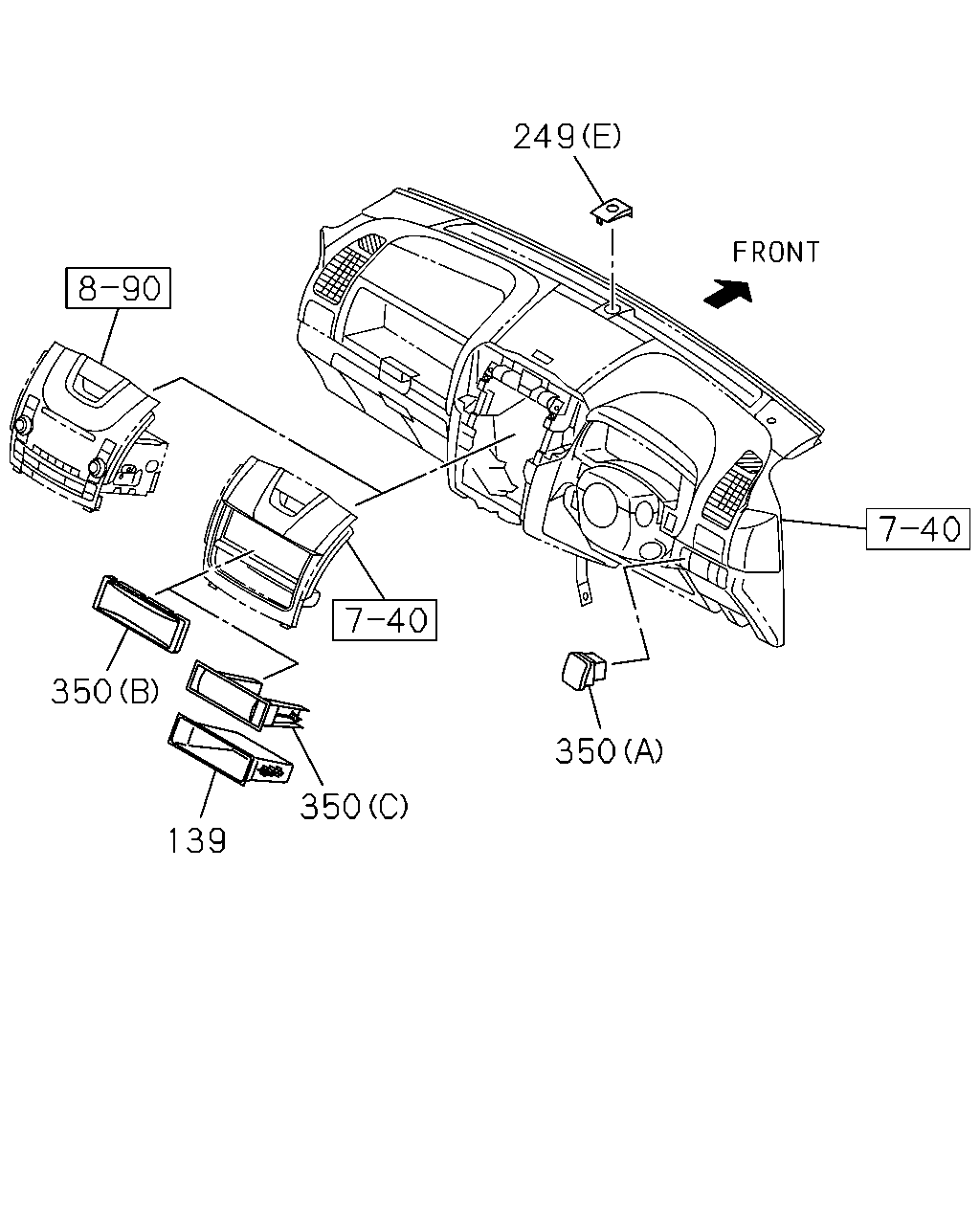

çizim 182943
249 350 350 139 350
BalonParca AdiParca NoAdetTipApplied Date A B C D E
139 16.650 BOX; CONSOLE,UPR
RADIO DELETE(UL5) BLACK 		8-97416-619-0 01 1 1212- ● ● ● ● ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1203- ● ● ● ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) (A) BLACK 		8-97417-151-2 01 1 1203- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1203- ● ● ●
249 16.674 COVER
(C) BLACK 		8-97416-660-1 01 1 1203- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1203- ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1203- ● ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1203- ● ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1203- ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1203- ●
249 16.674 COVER
(D) BLACK 		8-97416-659-2 01 1 1203- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1203- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) (B) BLACK 		8-97417-153-1 01 1 1203- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1203- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1203- ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1203- ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1203- ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1203- ● ● ● ● ●
350 16.650 COVER; CONSOLE
(B) BLACK 		8-97416-807-0 01 1 1203-1211 ● ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97416-807-0 01 1 1203-1211 ● ● ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97416-807-0 01 1 1212- ● ● ● ● ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (C) BLACK 		8-97416-806-0 01 1 1212- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
