◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#79721) — 49 parça

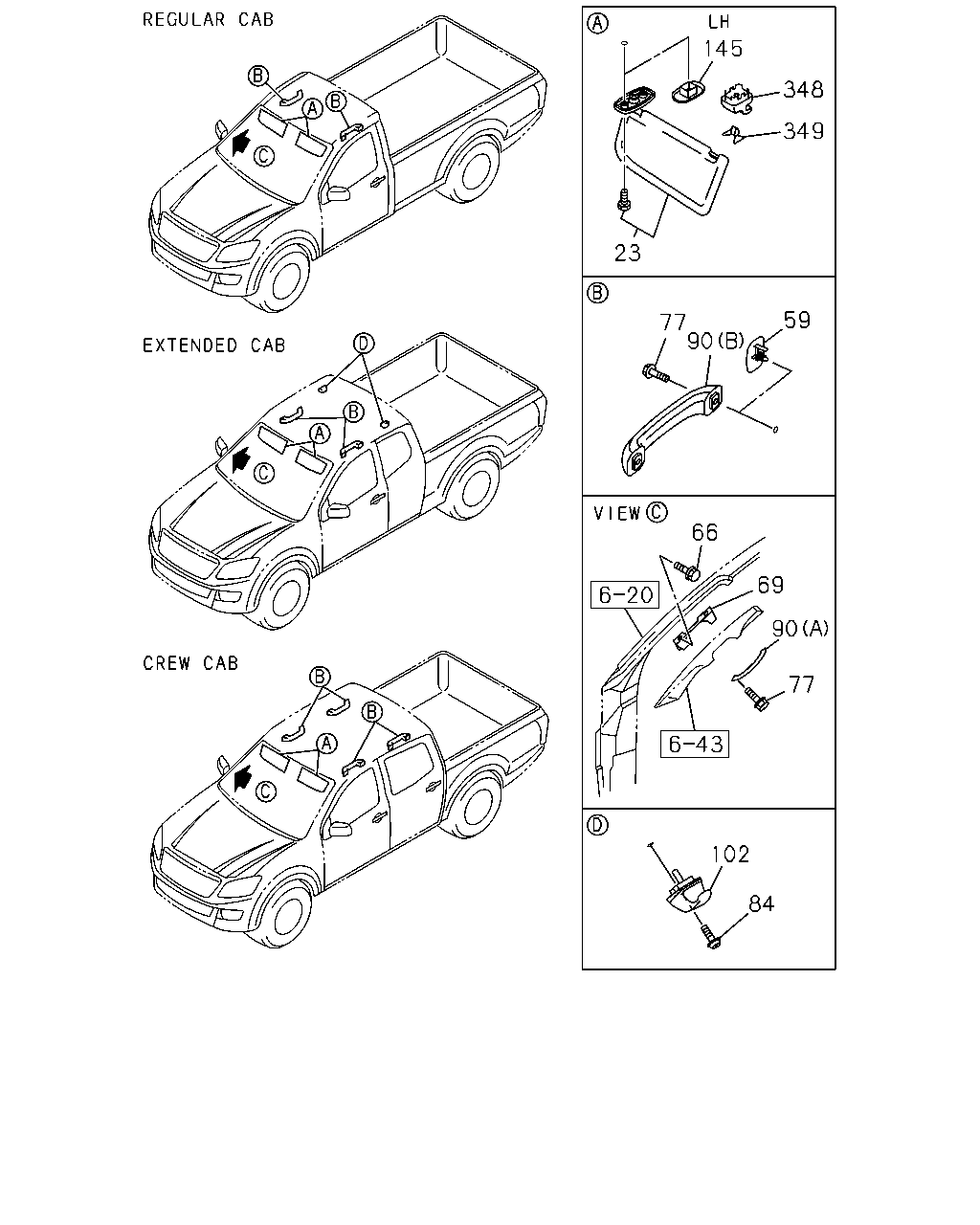

çizim 134181
145 348 349 23 59 77 90 66 69 90 77 102 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 16.070 SUN VISOR
GRAY 		8-97416-683-2 01 1 1203- ● ●
23 16.070 SUN VISOR
GRAY 		8-97417-459-2 01 1 1203- ● ● ●
23 16.070 SUN VISOR
CAUTION LABEL MULTI LANGUAGE TYPE 1<8NP> GRAY 		8-97422-859-3 01 1 1203- ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAUTION LABEL MULTI LANGUAGE TYPE 1<8NP> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97422-859-3 01 1 1203- ● ● ●
23 16.070 SUN VISOR
CAUTION LABEL MULTI LANGUAGE TYPE 2<8NQ> GRAY 		8-97419-342-4 01 1 1203- ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> CAUTION LABEL MULTI LANGUAGE TYPE 2<8NQ> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97419-342-4 01 1 1203- ● ● ●
23 16.070 SUN VISOR
EXC. CAUTION LABEL MULTI LANGUAGE TYPE 1<8NP>,CAUTION LABEL MULTI LANGUAGE T YPE 2<8NQ> GRAY 		8-97419-363-3 01 1 1203- ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34>,CAUTION LABEL MULTI LANGUAGE TYPE 1<8NP>,CAUTION LABEL MULTI LAN GUAGE TYPE 2<8NQ> GRAY 		8-97419-363-3 01 1 1203- ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> CAUTION LABEL MULTI LANGUAGE TYPE 1<8NP> GRAY 		8-97422-858-4 01 1 1203- ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> CAUTION LABEL MULTI LANGUAGE TYPE 2<8NQ> GRAY 		8-97419-337-5 01 1 1203- ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> EXC. CAUTION LABEL MULTI LANGUAGE TYPE 1<8NP>,CAUTION LABEL MULTI LANGUAGE T YPE 2<8NQ> GRAY 		8-97417-458-4 01 1 1203- ● ● ●
59 16.450 COVER; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97416-700-0 02 1 1203-1307 ● ●
59 16.450 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1203-1307 ● ●
59 16.450 COVER; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97416-700-0 02 1 1308- ● ● ●
59 16.450 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1308- ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE 		8-98050-320-0 04 1 1203- ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1203- ● ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-347-3 01 1 1203- ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-347-3 01 1 1203- ● ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-348-3 01 1 1203- ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-348-3 01 1 1203- ● ● ●
77 16.450 SCREW; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5) ASSIST HANDLE<E28> M6X25 		0-36230-625-0 02 1 1203-1307 ● ●
77 16.450 SCREW; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5) ASSIST HANDLE<E28> M6X25 		0-36230-625-0 02 1 1308- ● ● ●
77 16.450 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) M6X25 		0-36230-625-0 04 1 1203-1307 ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1203-1307 ● ● ●
77 16.450 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) M6X25 		0-36230-625-0 04 1 1308- ●
77 16.450 SCREW; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5) M6X25 		0-36230-625-0 04 1 1308- ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1308- ● ● ●
84 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 02 1 1203- ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER(AK5) (B) REAR GRAY 		8-97418-299-1 01 1 1308- ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER(AK5) (B) REAR GRAY 		8-97418-300-1 01 1 1308- ●
90 16.450 GRIP; ASSIST,ROOF
HIGH RIDE SUSPENSION(7YC) (A) GRAY 		8-97416-698-4 02 1 1203- ●
90 16.450 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1203- ● ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ASSIST HANDLE<E28> (B) GRAY 		8-97423-866-2 02 1 1203- ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER(AK5) ASSIST HANDLE<E28> (B) GRAY 		8-97416-698-4 01 1 1203-1307 ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER(AK5) ASSIST HANDLE<E28> (B) GRAY 		8-97416-698-4 01 1 1308- ● ● ●
90 16.450 GRIP; ASSIST,ROOF
(B) FRONT GRAY 		8-97419-356-5 02 1 1203-1307 ● ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97419-356-5 02 1 1308- ●
90 16.450 GRIP; ASSIST,ROOF
(B) FRONT GRAY 		8-97419-356-5 02 1 1308- ● ●
90 16.450 GRIP; ASSIST,ROOF
(B) REAR GRAY 		8-97419-357-6 01 1 1203-1307 ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) REAR GRAY 		8-97419-357-6 01 1 1308- ●
90 16.450 GRIP; ASSIST,ROOF
(B) REAR GRAY 		8-97419-357-6 01 1 1308- ●
90 16.450 GRIP; ASSIST,ROOF
(B) REAR GRAY 		8-97423-347-4 01 1 1203-1307 ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) REAR GRAY 		8-97423-347-4 01 1 1308- ●
90 16.450 GRIP; ASSIST,ROOF
(B) REAR GRAY 		8-97423-347-4 01 1 1308- ●
102 16.450 HOOK; COAT HANGER
GRAY 		8-97416-958-1 02 1 1203- ●
145 16.070 PLUG; HOLE
EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97416-689-1 01 1 1203- ● ● ●
348 16.070 RETAINER; SUNSHADE
GRAY 		8-97403-990-0 02 1 1203- ● ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE 8-98039-903-0 02 1 1203- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
