Isuzu WW
▶
PICKUP
▶
TFR
▶
51375 - TFR/TFS(EUROPE)-RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

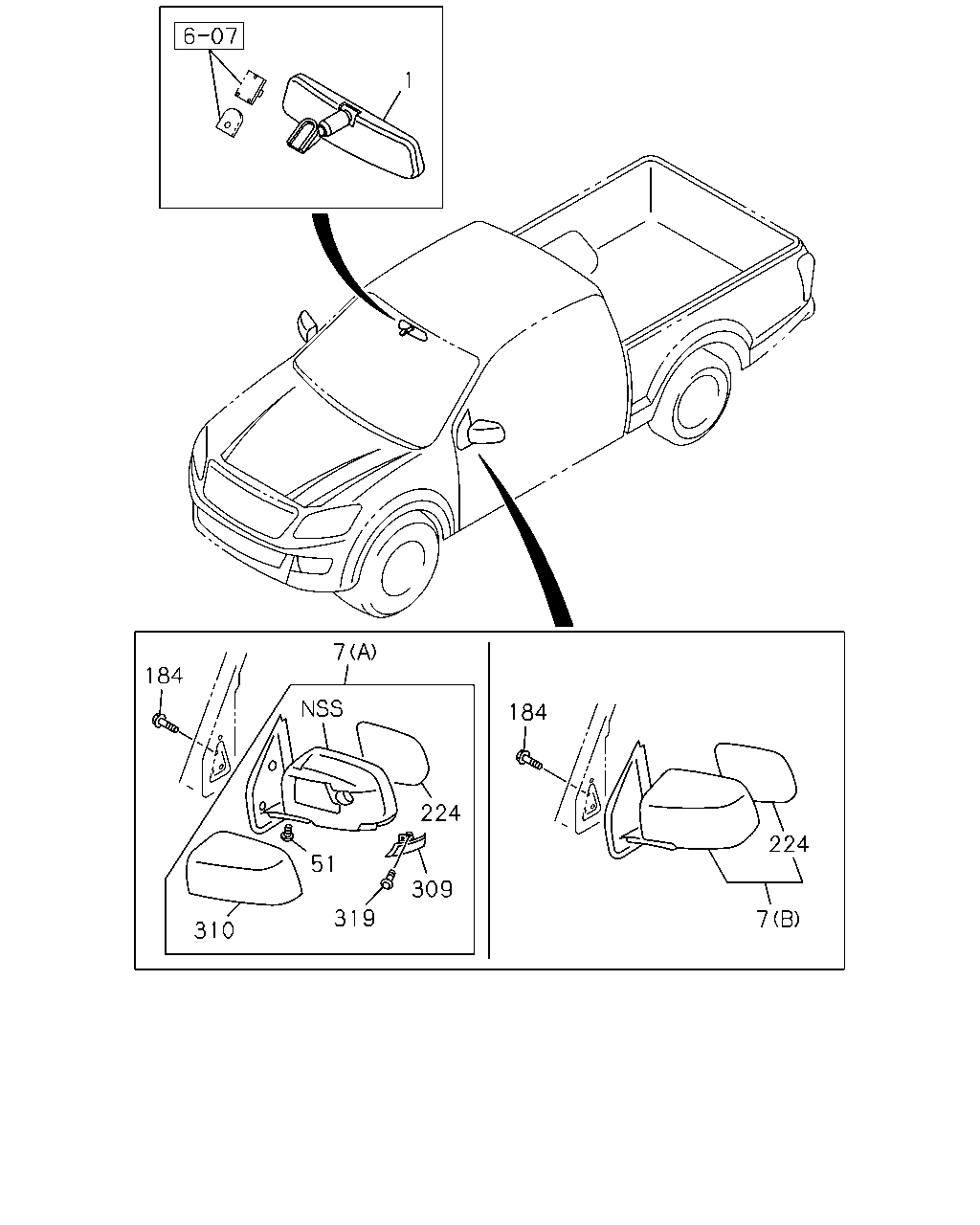

7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#79717) — 24 parça
Tümü
A - TFB5SF
B - TFS5SF
C - TFB5WF
D - TFS5CF
E - TFS5WF
1
224
7
184
7
224
309
319
51
310
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
16.068 MIRROR; ROOM
8-97237-560-0
01
1
1203-
●
●
1
16.068 MIRROR; ROOM
RR VIEW MIRROR DAY & NIGHT<D31>
8-97237-560-0
01
1
1203-
●
●
●
1
16.068 MIRROR; ROOM
EXC. RR VIEW MIRROR DAY & NIGHT<D31>
8-98053-645-0
01
1
1203-
●
●
●
7
16.068 MIRROR ASM; DOOR
(B)
8-98065-317-3
01
1
1203-
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (B)
8-98065-317-3
01
1
1203-
●
●
●
7
16.068 MIRROR ASM; DOOR
(B)
8-98065-318-3
01
1
1203-
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (B)
8-98065-318-3
01
1
1203-
●
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (A)
8-98065-341-4
01
1
1203-
●
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (A)
8-98065-342-4
01
1
1203-
●
●
●
51
16.069 SCREW; MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-685-0
01
1
1203-
●
●
●
51
16.069 SCREW; MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-685-0
01
1
1203-
●
●
●
184
16.069 BOLT; MIRROR
17.455 M6X14 FLANGE
8-97247-698-0
06
1
1203-
●
●
●
●
●
224
16.068 MIRROR; DOOR
8-98193-669-0
01
1
1203-
●
●
224
16.068 MIRROR; DOOR
DOOR MIRROR<RT9>
8-98193-669-0
01
1
1203-
●
●
●
224
16.068 MIRROR; DOOR
8-98193-670-0
01
1
1203-
●
●
224
16.068 MIRROR; DOOR
DOOR MIRROR<RT9>
8-98193-670-0
01
1
1203-
●
●
●
224
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-676-0
01
1
1203-
●
●
●
224
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-677-0
01
1
1203-
●
●
●
309
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-683-0
01
1
1203-
●
●
●
309
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-684-0
01
1
1203-
●
●
●
310
16.069 COVER; DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-686-0
01
1
1203-
●
●
●
310
16.069 COVER; DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-687-0
01
1
1203-
●
●
●
319
16.069 SCREW; SIDE TURN LAMP
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-685-0
01
1
1203-
●
●
●
319
16.069 SCREW; SIDE TURN LAMP
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>
8-98193-685-0
01
1
1203-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
