◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#79715) — 12 parça

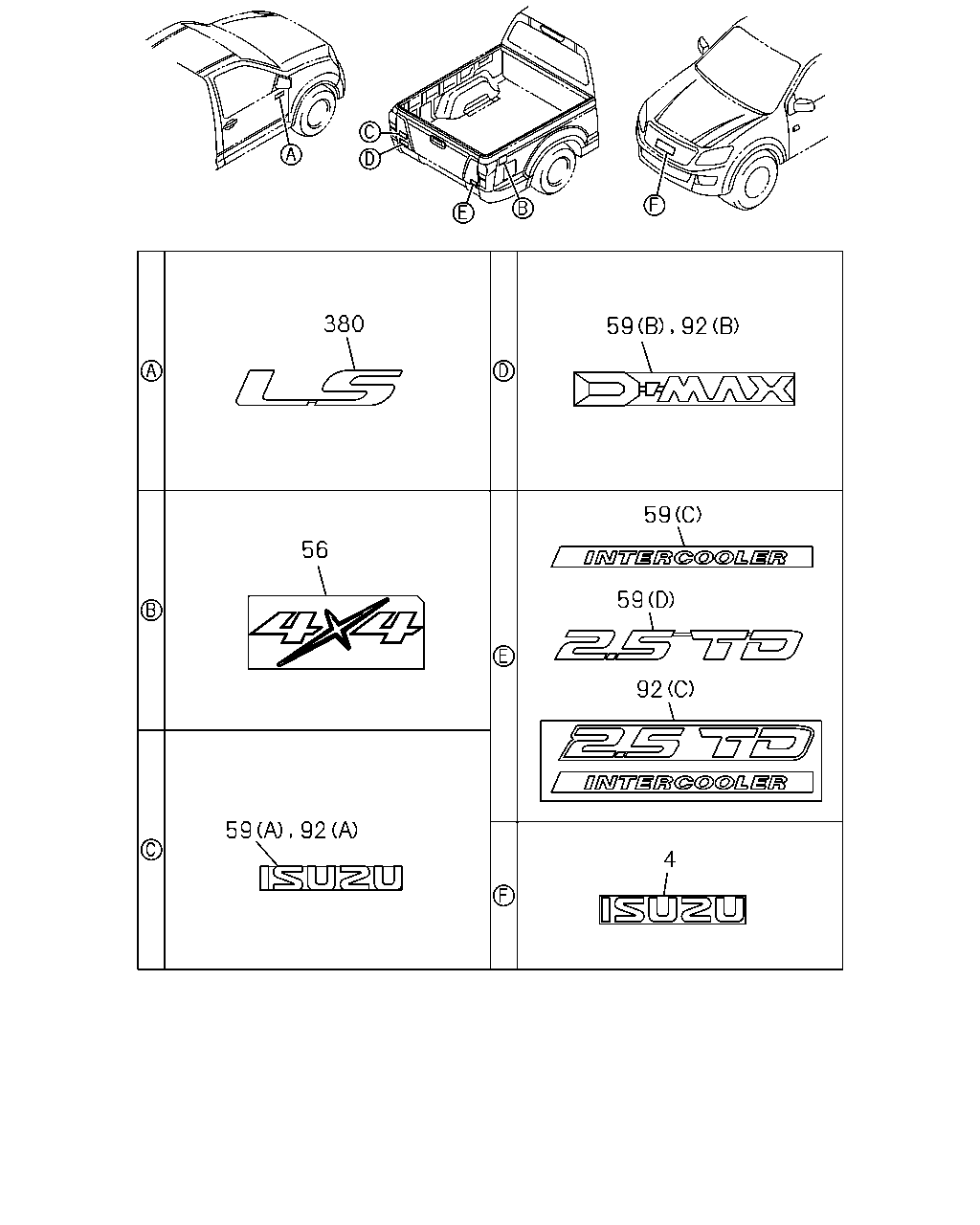

çizim 182937
380 59 56 59 92 59 92 4 59 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 01.303 EMBLEM; RAD GRILLE 8-98164-912-0 01 1 1203- ● ● ● ● ●
56 08.147 DECAL; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR GARNET RED MICA(528),BODY COLOR MI NERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED 		8-97421-195-1 02 1 1203- ● ● ●
56 08.147 DECAL; BODY SIDE
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR SOLEIL ORANGE MICA(532),BODY COLOR ASHBEIGE MET(541) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED 		8-97421-196-1 02 1 1203- ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-896-0 01 1 1203- ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98134-860-0 01 1 1203- ● ● ●
59 01.303 DECAL; TAIL GATE
INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1203- ● ● ●
59 01.303 DECAL; TAIL GATE
INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98134-871-0 01 1 1203- ● ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-870-0 01 1 1203- ● ●
92 08.147 DECAL; RR END
INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-870-0 01 1 1203- ● ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-861-0 01 1 1203- ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98129-863-0 01 1 1203- ● ●
380 17.215 PLATE; SIDE
INTERIOR CUSTOM(RBD) 		8-98129-894-0 02 1 1203- ● ● ●
