6-86 — TRUNK OPENER AND FUEL LID (#79713) — 12 parça

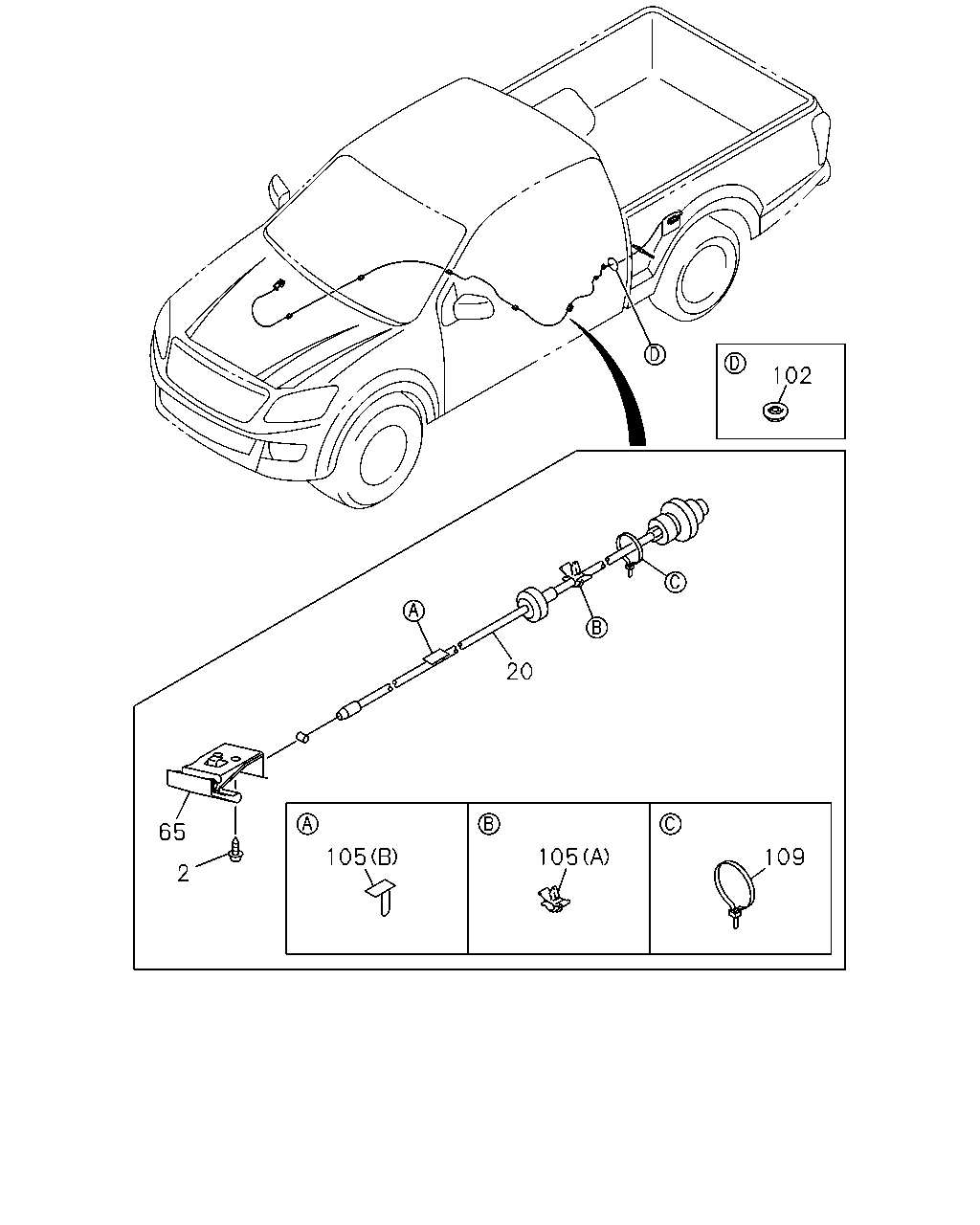

çizim 131823
102 20 65 105 105 109 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 17.225 SCREW; LEVER TO BODY
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1203-1305 ● ● ● ● ●
2 17.225 SCREW; LEVER TO BODY
REAR BODY DBL WALL CTR PULL(E63) 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1306- ● ● ● ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98073-727-2 01 1 1203- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98073-725-2 01 1 1203- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98072-706-2 01 1 1203- ●
65 17.505 KNOB; FUEL FILLER DOOR
REAR BODY DBL WALL CTR PULL(E63) BLACK 		8-98103-120-0 01 1 1203- ● ● ● ● ●
102 17.505 GROMMET
REAR BODY DELETE(8HH) 		8-97321-645-1 01 1 1203- ● ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) 02.559 (A) D=5.8 		5-09709-081-0 02 1 1203- ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) (B) ID=7 		8-98158-303-0 04 1 1203- ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) (B) ID=7 		8-98158-303-0 05 1 1203- ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98147-853-0 01 1 1203- ●
109 17.505 CLIP; CABLE
REAR BODY DBL WALL CTR PULL(E63) 03.008 L=330 		5-09709-118-0 01 1 1203- ● ● ● ● ●
