◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84 - FEED PUMP; INJECTION PUMP ▶
0-84 — FEED PUMP; INJECTION PUMP (#7971) — 124 parça

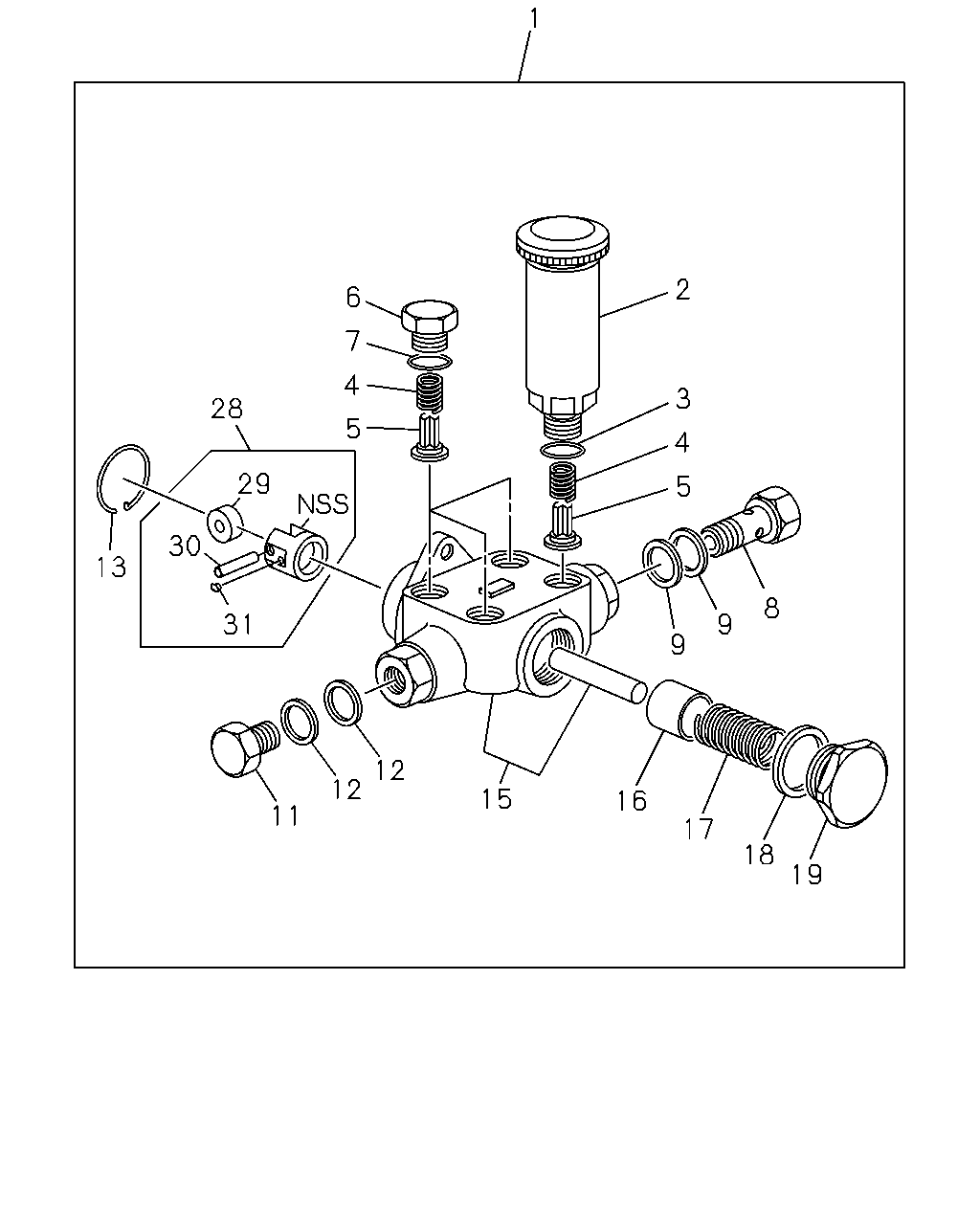

çizim 43315
1 2 6 7 4 3 28 5 4 29 5 30 13 8 31 9 9 12 12 15 16 11 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15740-549-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		1-15750-152-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15750-158-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5 		1-15750-190-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15761-006-1 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, F = 1-15603-377-2, G = 1-15603-408-0, I = 8-97609-726-0, J = 8-97610-929-0 		1-15755-002-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		9-81351-602-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, F = 1-15603-377-2, G = 1-15603-408-0, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-009-0 03 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-009-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-031-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-011-0 02 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
M14X30 ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-09630-085-0 04 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, G = 1-15603-408-0, H = 1-15603-409-2 		1-09630-085-0 02 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15751-022-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15603-265-5 		1-15759-029-0 01 1 -0511
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-029-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		8-97203-957-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: A = 1-15603-265-5 		8-97203-957-0 01 1 0512-
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-09630-085-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15751-010-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: E = 1-15603-360-2, F = 1-15603-377-2, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15751-031-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5 		1-15751-046-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0 		8-94171-185-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: J = 8-97610-929-0 		9-84171-185-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15754-005-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, F = 1-15603-377-2, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15754-006-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-055-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		9-81355-059-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-056-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		9-81355-060-0 01 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-057-0 02 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15759-078-0 02 1 -

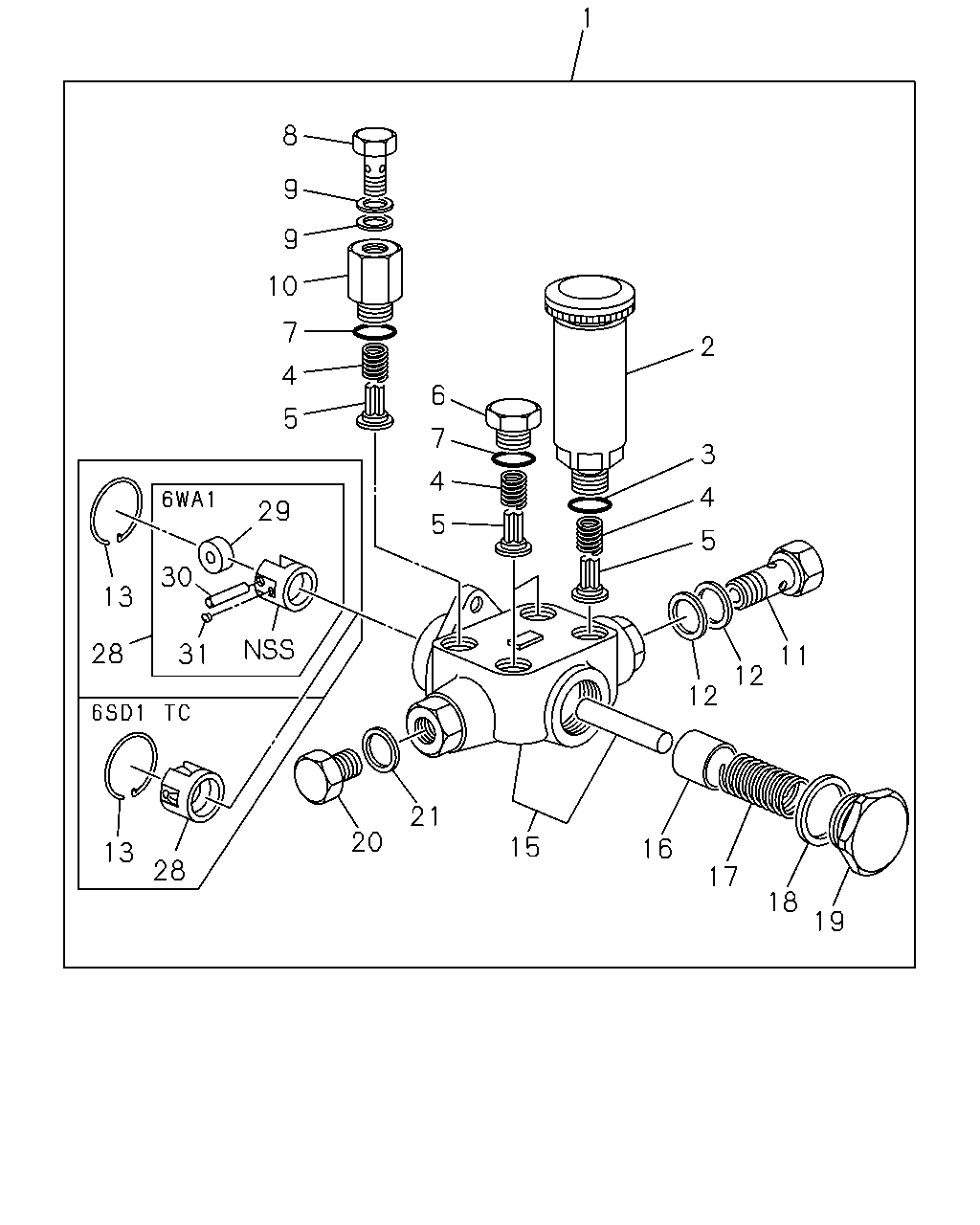

çizim 44094
1 8 9 9 10 7 2 4 6 5 7 3 4 4 29 5 5 30 13 28 31 11 12 12 21 20 15 16 13 28 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15740-549-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		1-15750-152-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15750-158-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5 		1-15750-190-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15761-006-1 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, F = 1-15603-377-2, G = 1-15603-408-0, I = 8-97609-726-0, J = 8-97610-929-0 		1-15755-002-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		9-81351-602-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, F = 1-15603-377-2, G = 1-15603-408-0, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-009-0 03 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-009-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-031-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-011-0 02 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
M14X30 ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-09630-085-0 04 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, G = 1-15603-408-0, H = 1-15603-409-2 		1-09630-085-0 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-052-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15751-022-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15603-265-5 		1-15759-029-0 01 1 -0511
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-029-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		8-97203-957-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: A = 1-15603-265-5 		8-97203-957-0 01 1 0512-
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-09630-085-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15751-010-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: E = 1-15603-360-2, F = 1-15603-377-2, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15751-031-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5 		1-15751-046-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0 		8-94171-185-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: J = 8-97610-929-0 		9-84171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-004-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		1-09630-085-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15754-005-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, F = 1-15603-377-2, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15754-006-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-055-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		9-81355-059-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-056-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		9-81355-060-0 01 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-057-0 02 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15759-078-0 02 1 -

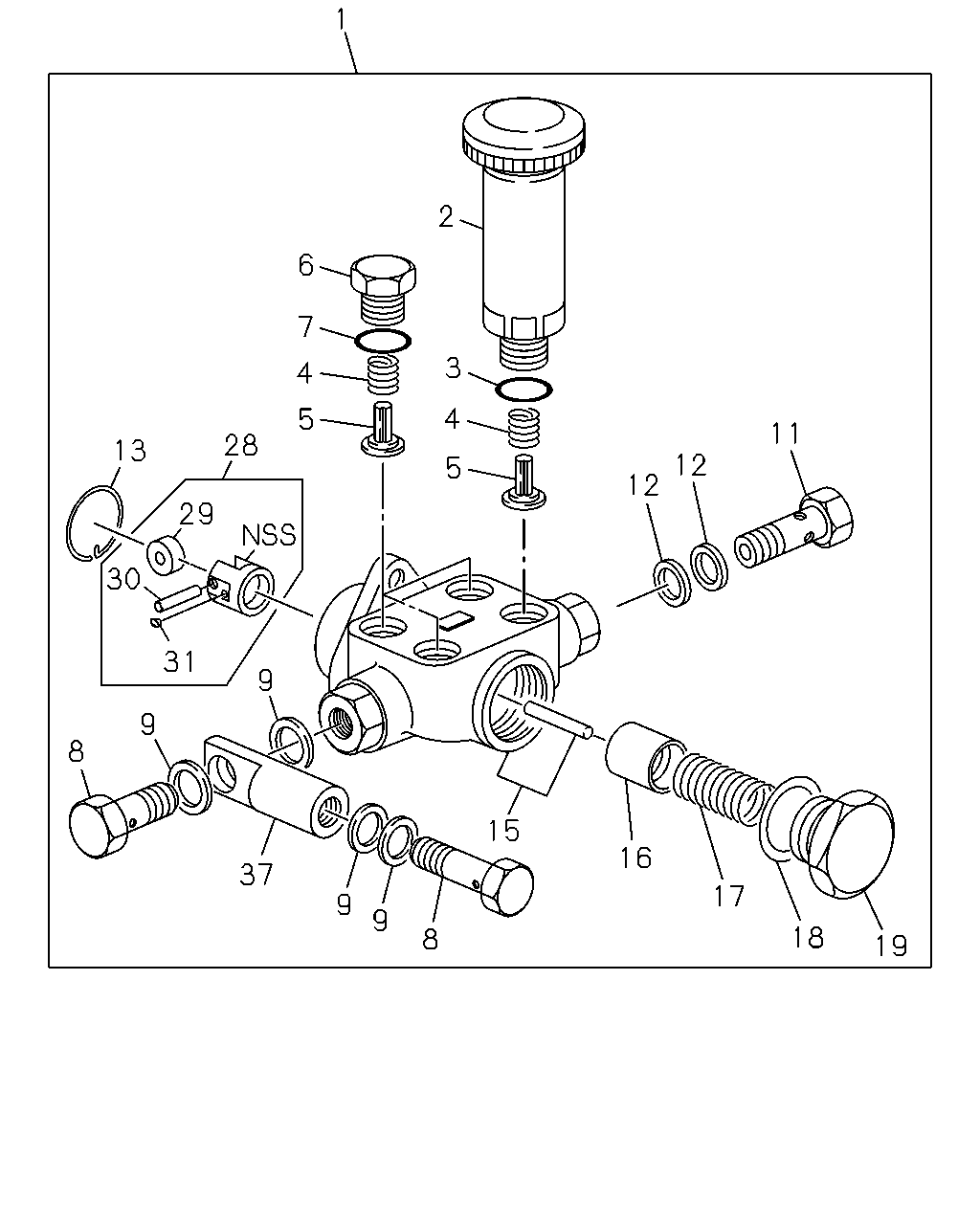

çizim 45944
1 2 6 7 3 4 4 5 11 28 13 12 5 12 29 30 31 9 9 8 15 16 37 17 9 9 18 8 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15740-549-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		1-15750-152-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15750-158-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5 		1-15750-190-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15761-006-1 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, F = 1-15603-377-2, G = 1-15603-408-0, I = 8-97609-726-0, J = 8-97610-929-0 		1-15755-002-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		9-81351-602-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, F = 1-15603-377-2, G = 1-15603-408-0, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-009-0 03 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-009-0 02 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-031-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-011-0 02 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
M14X30 ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		8-97203-957-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-09630-085-0 04 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, G = 1-15603-408-0, H = 1-15603-409-2 		1-09630-085-0 02 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15751-022-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15603-265-5 		1-15759-029-0 01 1 -0511
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: E = 1-15603-360-2, H = 1-15603-409-2 		1-15759-029-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		8-97203-957-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: A = 1-15603-265-5 		8-97203-957-0 01 1 0512-
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-09630-085-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15751-010-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: E = 1-15603-360-2, F = 1-15603-377-2, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15751-031-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5 		1-15751-046-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, D = 1-15603-359-0, E = 1-15603-360-2, F = 1-15603-377-2, G = 1-15603-408-0, H = 1-15603-409-2, I = 8-97609-726-0 		8-94171-185-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: J = 8-97610-929-0 		9-84171-185-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15754-005-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, E = 1-15603-360-2, F = 1-15603-377-2, H = 1-15603-409-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15754-006-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-055-0 01 1 -
29 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		9-81355-059-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-056-0 01 1 -
30 PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		9-81355-060-0 01 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-271-5, F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-057-0 02 1 -
31 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: D = 1-15603-359-0, G = 1-15603-408-0 		1-15759-078-0 02 1 -
37 EYE; FUEL OUTLET,FUEL FEED PUMP
ASM PART: F = 1-15603-377-2, I = 8-97609-726-0, J = 8-97610-929-0 		1-15759-068-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
