Isuzu WW
▶
PICKUP
▶
TFR
▶
51375 - TFR/TFS(EUROPE)-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

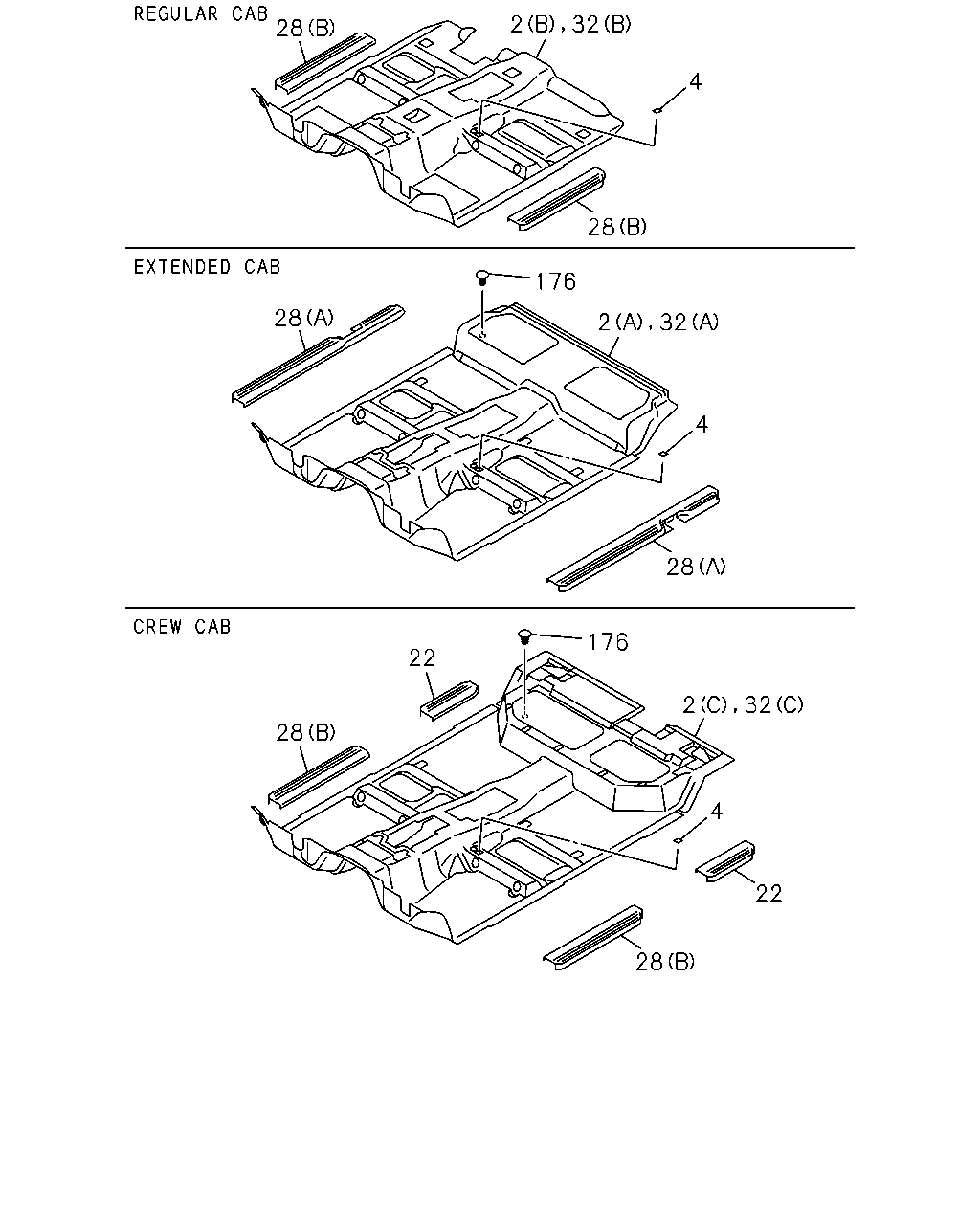

6-75 — MAT AND CARPET
(#79707) — 16 parça
Tümü
A - TFB5SF
B - TFS5SF
C - TFB5WF
D - TFS5WF
E - TFS5CF
28
4
28
176
28
32
2
4
28
176
22
28
4
22
28
2
32
2
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> (B) BLACK
8-97423-029-4
01
1
1203-
●
●
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> (C) BLACK
8-97423-044-5
01
1
1203-
●
●
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> (A) BLACK
8-97423-025-9
01
1
1203-
●
4
16.547 INSULATOR; FRT
8-98185-968-0
04
1
1203-
●
●
●
●
●
22
16.870 PLATE; SILL,RR
BLACK
8-97416-948-5
01
1
1203-
●
●
22
16.870 PLATE; SILL,RR
BLACK
8-97416-950-5
01
1
1203-
●
●
28
16.870 PLATE; SILL,FRT
(B) BLACK
8-97416-944-3
01
1
1203-
●
●
●
●
28
16.870 PLATE; SILL,FRT
(B) BLACK
8-97416-946-3
01
1
1203-
●
●
●
●
28
16.870 PLATE; SILL,FRT
(A) BLACK
8-97416-669-2
01
1
1203-
●
28
16.870 PLATE; SILL,FRT
(A) BLACK
8-97416-671-2
01
1
1203-
●
32
16.800 CARPET; FLOOR
EXC. COVERING FLOOR VINYL<B38> (B) BLACK
8-97417-422-5
01
1
1203-
●
●
32
16.800 CARPET; FLOOR
EXC. COVERING FLOOR VINYL<B38> (C) BLACK
8-97422-851-6
01
1
1203-
●
●
32
16.800 CARPET; FLOOR
JUMP SEAT<AJ2> EXC. COVERING FLOOR VINYL<B38> (A) BLACK
8-97422-845-9
01
1
1203-
●
32
16.800 CARPET; FLOOR
EXC. JUMP SEAT<AJ2>,COVERING FLOOR VINYL<B38> (A) BLACK
8-97422-844-8
01
1
1203-
●
176
16.870 RETAINER; CARPET
BLACK
8-97416-667-0
02
1
1203-
●
●
176
16.870 RETAINER; CARPET
BLACK
8-97416-667-0
10
1
1203-
●
●
●
