◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#79706) — 102 parça

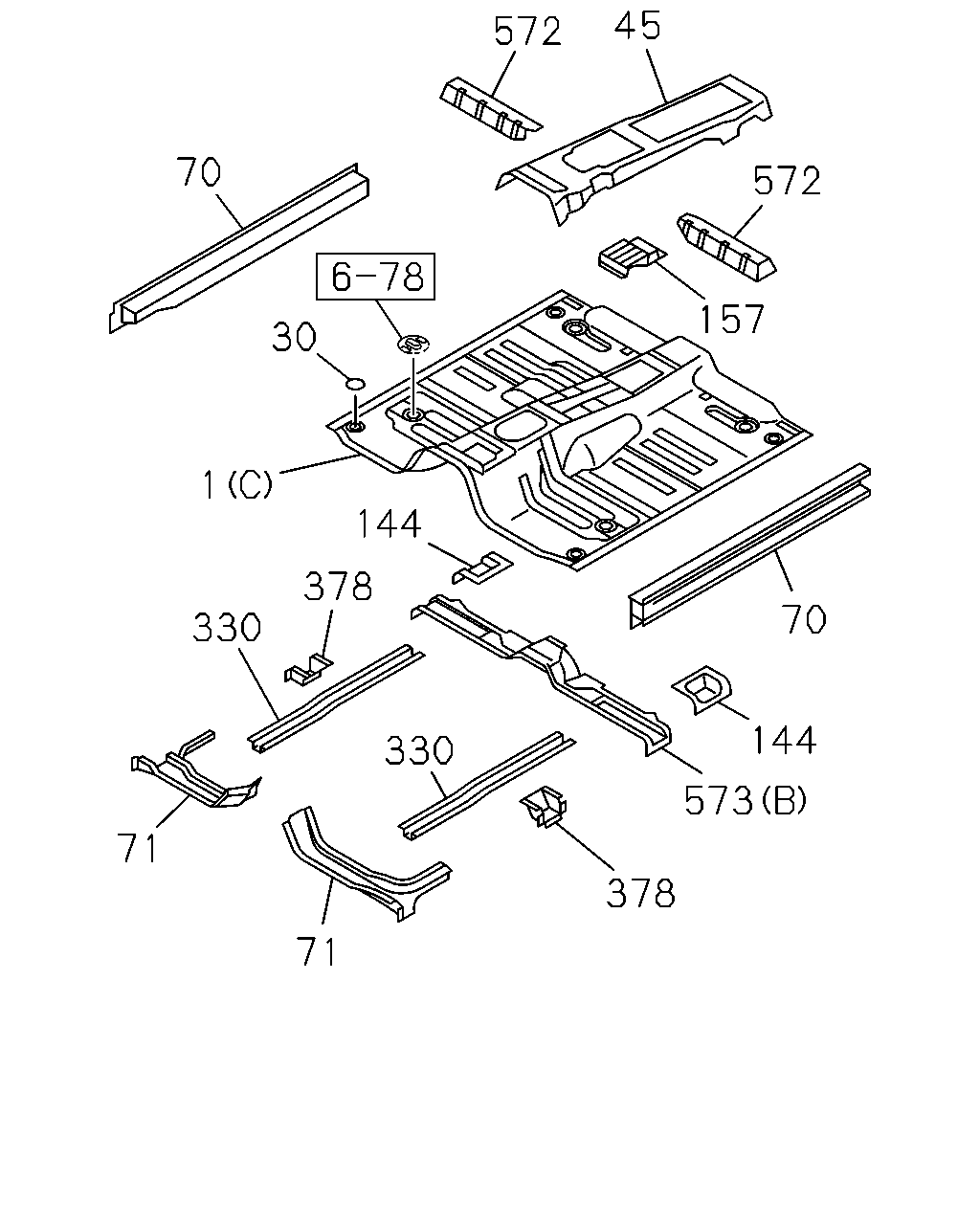

çizim 132171
45 572 70 572 157 30 1 144 378 70 330 144 330 573 71 378 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1203- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1203-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1203- ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1203-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
JUMP SEAT<AJ2> 16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1203-1301 ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1302-1506 ● ●
30 16.547 GROMMET; CAB MTG RAIL
JUMP SEAT<AJ2> OD=59 T=9 		8-98202-803-0 04 1 1302-1506 ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1507- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 06 1 1203-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1302- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1203- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1203- ● ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1203- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1203- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1203- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1203- ● ● ● ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1203- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1203- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1203- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1203- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1203- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1203- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1203- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1203- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1203- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1203- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1203- ● ●
573 16.576 SILL; FLOOR,RR
(A) 		8-98104-745-3 01 1 1203- ●

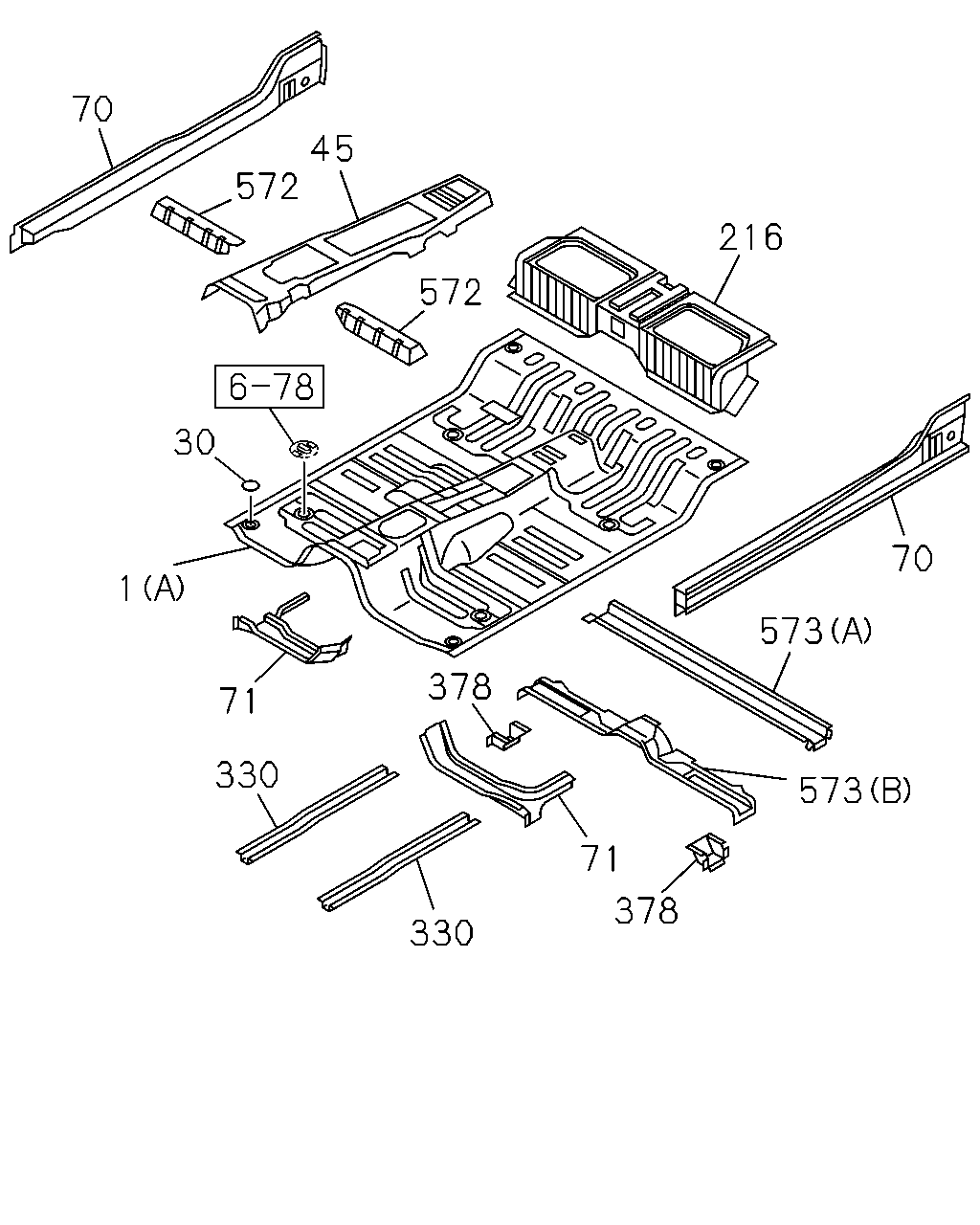

çizim 132500
70 45 572 216 572 30 70 1 573 378 71 330 573 71 378 330
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1203- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1203-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1203- ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1203-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
JUMP SEAT<AJ2> 16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1203-1301 ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1302-1506 ● ●
30 16.547 GROMMET; CAB MTG RAIL
JUMP SEAT<AJ2> OD=59 T=9 		8-98202-803-0 04 1 1302-1506 ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1507- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 06 1 1203-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1302- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1203- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1203- ● ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1203- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1203- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1203- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1203- ● ● ● ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1203- ● ●
216 16.670 PANEL; SEAT RISER 8-98104-744-8 01 1 1203- ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1203- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1203- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1203- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1203- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1203- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1203- ● ●
573 16.576 SILL; FLOOR,RR
(A) 		8-98104-745-3 01 1 1203- ●

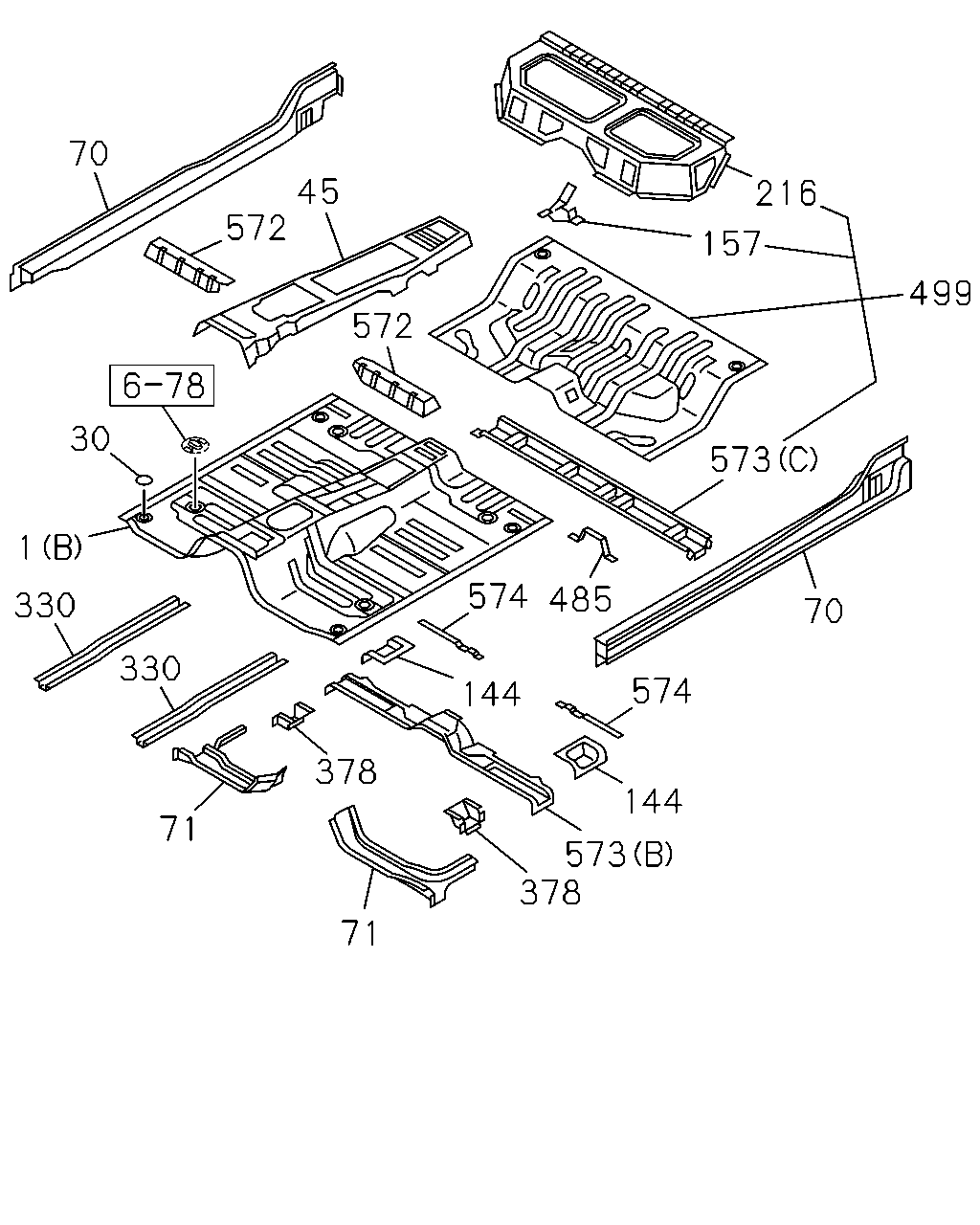

çizim 132503
70 45 572 216 157 499 572 30 573 1 574 485 330 70 330 574 144 378 144 71 573 378 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1203- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1203-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1203- ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1203-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
JUMP SEAT<AJ2> 16.800 OD=60 T=9.8 		8-94107-654-0 04 1 1203-1301 ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1302-1506 ● ●
30 16.547 GROMMET; CAB MTG RAIL
JUMP SEAT<AJ2> OD=59 T=9 		8-98202-803-0 04 1 1302-1506 ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1507- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
16.800 OD=60 T=9.8 		8-94107-654-0 06 1 1203-1301 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1302- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1203- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1203- ● ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-994-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-998-1 01 1 1203- ● ●
70 16.545 PANEL; ROCKER INNER 8-98101-006-5 01 1 1203- ●
70 16.545 PANEL; ROCKER INNER 8-98101-982-5 01 1 1203- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1203- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1203- ● ● ● ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1203- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1203- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1203- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1203- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1203- ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1203- ● ●
216 16.670 PANEL; SEAT RISER 8-98104-744-8 01 1 1203- ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1203- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1203- ● ● ● ● ●
485 16.800 SEAL; TAPE TYPE 8-94336-915-0 01 1 1203- ● ●
499 16.545 PANEL; FLOOR,RR 8-98116-646-9 01 1 1203-1506 ● ●
499 16.545 PANEL; FLOOR,RR 8-98322-482-0 01 1 1507- ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1203- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1203- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1203- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1203- ● ●
573 16.576 SILL; FLOOR,RR
(A) 		8-98104-745-3 01 1 1203- ●
574 16.800 TAPE; ADHESIVE 8-98178-885-0 02 1 1203- ● ●
