6-52 — REAR DOOR LOCK AND HANDLE (#79702) — 204 parça

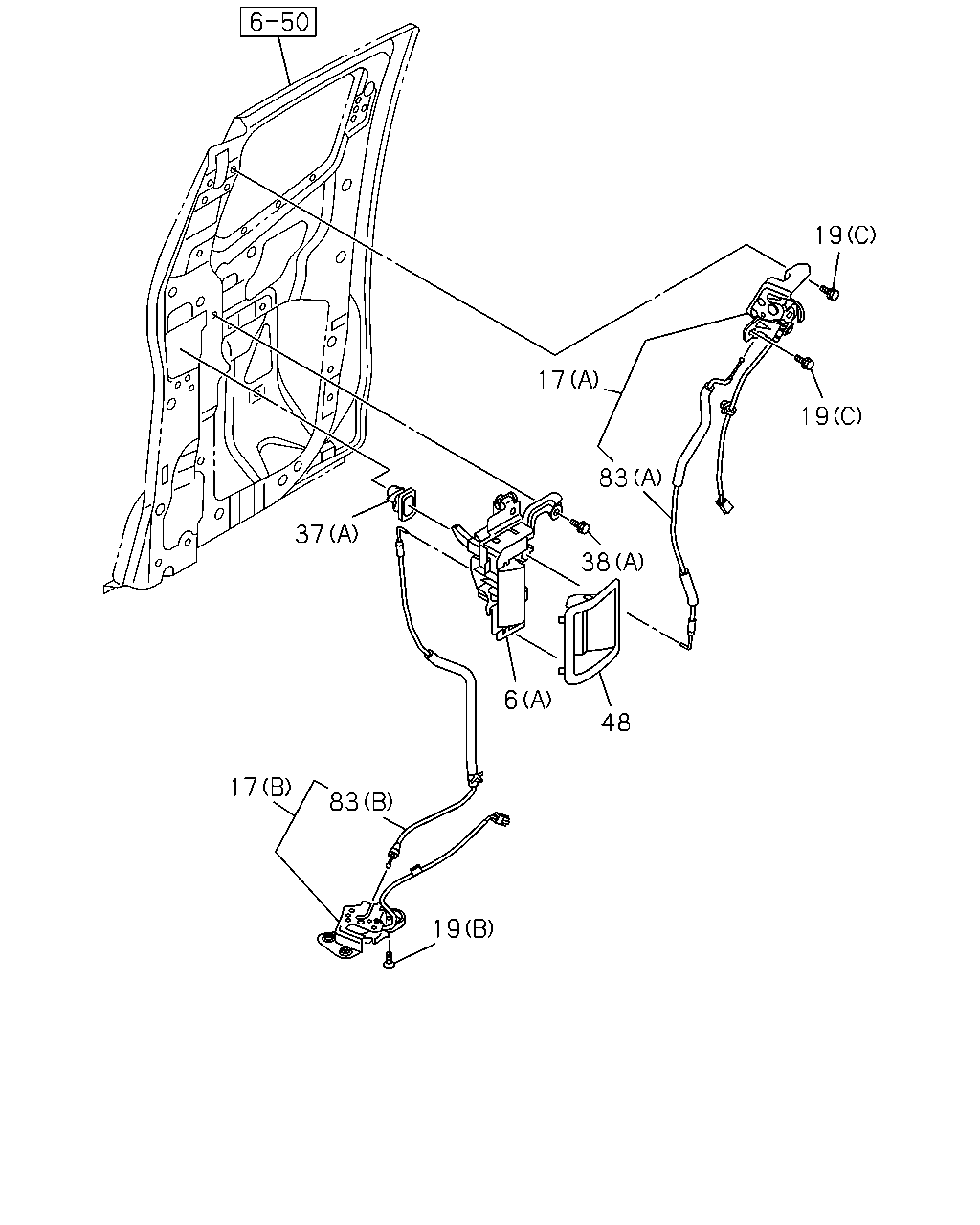

çizim 131260
19 17 19 83 37 38 6 48 17 83 19
BalonParca AdiParca NoAdetTipApplied Date A B C
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A) BLACK 		8-97421-775-4 01 1 1203- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A) BLACK 		8-97421-777-4 01 1 1203- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) (B) BLACK 		8-97416-726-4 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) (B) BLACK 		8-97416-728-4 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97416-730-3 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97416-732-3 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
(A) 		8-98103-157-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(A) 		8-98103-158-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(B) 		8-98103-159-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(B) 		8-98103-160-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98103-984-0 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98103-985-0 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) 		8-98103-986-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) 		8-98103-987-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98103-990-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98103-991-1 01 1 1203- ● ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 1203- ● ●
19 16.345 BOLT; RR DOOR LOCK
16.330 (B) SCREW M6X14.5 		8-98004-342-0 06 1 1203- ● ● ●
19 16.345 BOLT; RR DOOR LOCK
(C) M6X16 		8-98165-451-0 06 1 1203- ●
37 16.157 GROMMET; RR DOOR
(A) 		8-98212-205-0 02 1 1203- ●
37 16.157 GROMMET; RR DOOR
12.182 (B) OD=26 		8-94141-484-0 02 1 1203- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
02.343 (A) M6X16 FLANGE 		0-28650-616-0 06 1 1203- ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
(B) M5X14 TAPPING 		8-98184-363-0 02 1 1203- ● ●
48 16.345 COVER; INSIDE HANDLE,RR DOOR
BLACK 		8-97421-217-2 02 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-861-0 01 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-862-0 01 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-863-0 02 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(C) 		8-98193-717-0 01 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(C) 		8-98193-715-0 01 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(D) 		8-98193-716-0 02 1 1203- ● ●
çizim 131530
30 32 32 30 87 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
30 16.335 STRIKER; RR DOOR
(A) 		8-98103-162-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(A) 		8-98103-163-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(B) 		8-98103-164-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(B) 		8-98103-165-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(C) 		8-98012-203-0 02 1 1203- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1203- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 08 1 1203- ●
87 16.335 SPACER; STRIKER
(D) T=2.0 		8-98215-417-0 AR 1 1204- ●
87 16.335 SPACER; STRIKER
(E) T=1.0 		8-98215-418-0 AR 1 1204- ●
87 16.335 SPACER; STRIKER
(A) T=2.0 		8-98180-586-0 02 1 1203- ●
87 16.335 SPACER; STRIKER
(B) T=2.0 		8-98214-625-0 AR 1 1204- ●
87 16.335 SPACER; STRIKER
(C) T=1.0 		8-98214-626-0 AR 1 1204- ●

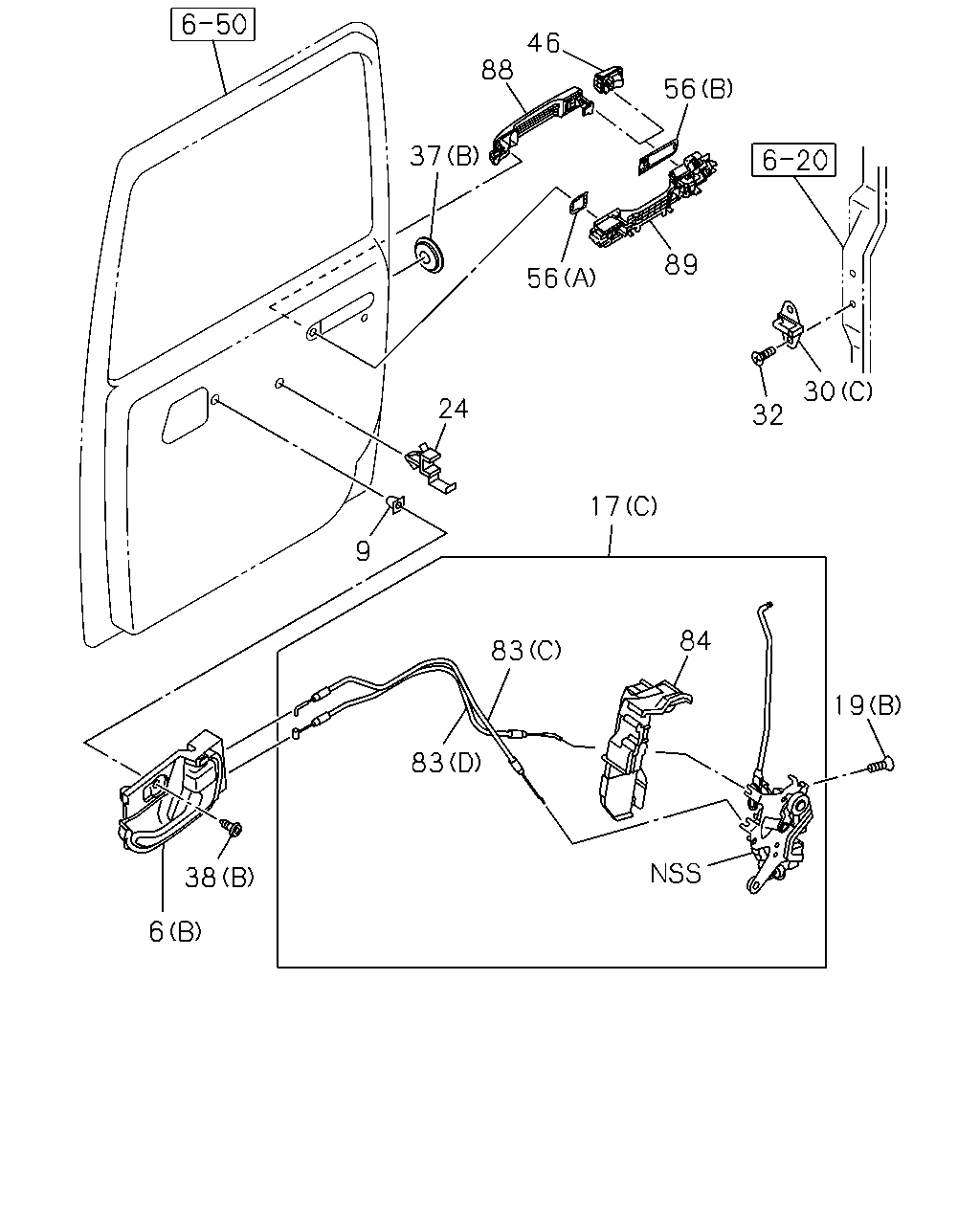

çizim 131614
46 88 37 56 56 89 24 30 32 17 83 83 6 38 84 19 9
BalonParca AdiParca NoAdetTipApplied Date A B C
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A) BLACK 		8-97421-775-4 01 1 1203- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A) BLACK 		8-97421-777-4 01 1 1203- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) (B) BLACK 		8-97416-726-4 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) (B) BLACK 		8-97416-728-4 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97416-730-3 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97416-732-3 01 1 1203- ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
10.565 		8-94152-494-0 02 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
(A) 		8-98103-157-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(A) 		8-98103-158-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(B) 		8-98103-159-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(B) 		8-98103-160-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98103-984-0 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98103-985-0 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) 		8-98103-986-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) 		8-98103-987-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98103-990-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98103-991-1 01 1 1203- ● ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 1203- ● ●
19 16.345 BOLT; RR DOOR LOCK
16.330 (B) SCREW M6X14.5 		8-98004-342-0 06 1 1203- ● ● ●
19 16.345 BOLT; RR DOOR LOCK
(C) M6X16 		8-98165-451-0 06 1 1203- ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE 8-97251-932-0 02 1 1203- ● ●
30 16.335 STRIKER; RR DOOR
(A) 		8-98103-162-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(A) 		8-98103-163-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(B) 		8-98103-164-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(B) 		8-98103-165-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(C) 		8-98012-203-0 02 1 1203- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1203- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 08 1 1203- ●
37 16.157 GROMMET; RR DOOR
(A) 		8-98212-205-0 02 1 1203- ●
37 16.157 GROMMET; RR DOOR
12.182 (B) OD=26 		8-94141-484-0 02 1 1203- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
02.343 (A) M6X16 FLANGE 		0-28650-616-0 06 1 1203- ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
(B) M5X14 TAPPING 		8-98184-363-0 02 1 1203- ● ●
46 16.345 COVER; OUTSIDE HANDLE
OUTSIDE HANDLE CHROME<E20> 16.270 PLATED 		8-98176-465-1 02 1 1203- ● ●
46 16.345 COVER; OUTSIDE HANDLE
EXC. OUTSIDE HANDLE CHROME<E20> 16.270 BLACK 		8-98176-463-1 02 1 1203- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
16.350 (A) 		8-98176-466-0 02 1 1203- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
(B) 		8-98176-467-2 02 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-861-0 01 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-862-0 01 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-863-0 02 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(C) 		8-98193-717-0 01 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(C) 		8-98193-715-0 01 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(D) 		8-98193-716-0 02 1 1203- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-079-0 01 1 1203- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-080-0 01 1 1203- ● ●
88 16.335 GRIP; RR DOOR
OUTSIDE HANDLE CHROME<E20> 16.330 PLATED 		8-98176-458-0 02 1 1203- ● ●
88 16.335 GRIP; RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 16.330 		8-98176-456-0 02 1 1203- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-472-4 01 1 1203- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-473-4 01 1 1203- ● ●

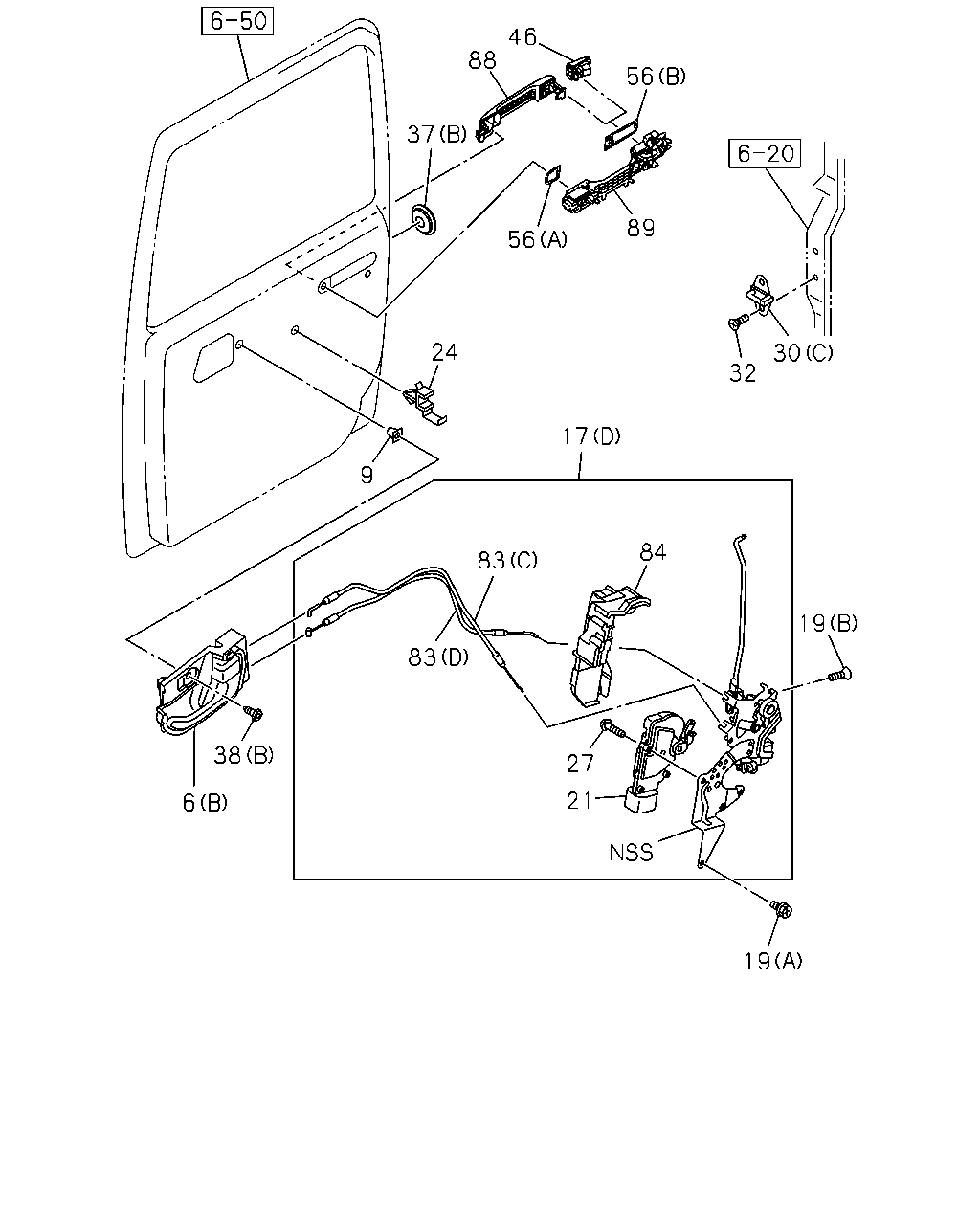

çizim 131698
46 88 56 37 89 56 24 30 32 17 9 84 83 19 83 38 27 21 6 19
BalonParca AdiParca NoAdetTipApplied Date A B C
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A) BLACK 		8-97421-775-4 01 1 1203- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A) BLACK 		8-97421-777-4 01 1 1203- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) (B) BLACK 		8-97416-726-4 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) (B) BLACK 		8-97416-728-4 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97416-730-3 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97416-732-3 01 1 1203- ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
10.565 		8-94152-494-0 02 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
(A) 		8-98103-157-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(A) 		8-98103-158-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(B) 		8-98103-159-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(B) 		8-98103-160-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98103-984-0 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98103-985-0 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) 		8-98103-986-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) 		8-98103-987-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98103-990-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98103-991-1 01 1 1203- ● ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 1203- ● ●
19 16.345 BOLT; RR DOOR LOCK
16.330 (B) SCREW M6X14.5 		8-98004-342-0 06 1 1203- ● ● ●
19 16.345 BOLT; RR DOOR LOCK
(C) M6X16 		8-98165-451-0 06 1 1203- ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-093-0 01 1 1203-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-024-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-094-0 01 1 1203-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-023-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-97351-081-0 01 1 1203-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98292-018-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-97351-082-0 01 1 1203-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98292-017-0 01 1 1503- ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE 8-97251-932-0 02 1 1203- ● ●
27 16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-997-0 04 1 1203- ● ●
30 16.335 STRIKER; RR DOOR
(A) 		8-98103-162-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(A) 		8-98103-163-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(B) 		8-98103-164-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(B) 		8-98103-165-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(C) 		8-98012-203-0 02 1 1203- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1203- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 08 1 1203- ●
37 16.157 GROMMET; RR DOOR
(A) 		8-98212-205-0 02 1 1203- ●
37 16.157 GROMMET; RR DOOR
12.182 (B) OD=26 		8-94141-484-0 02 1 1203- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
02.343 (A) M6X16 FLANGE 		0-28650-616-0 06 1 1203- ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
(B) M5X14 TAPPING 		8-98184-363-0 02 1 1203- ● ●
46 16.345 COVER; OUTSIDE HANDLE
OUTSIDE HANDLE CHROME<E20> 16.270 PLATED 		8-98176-465-1 02 1 1203- ● ●
46 16.345 COVER; OUTSIDE HANDLE
EXC. OUTSIDE HANDLE CHROME<E20> 16.270 BLACK 		8-98176-463-1 02 1 1203- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
16.350 (A) 		8-98176-466-0 02 1 1203- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
(B) 		8-98176-467-2 02 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-861-0 01 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-862-0 01 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-863-0 02 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(C) 		8-98193-717-0 01 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(C) 		8-98193-715-0 01 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(D) 		8-98193-716-0 02 1 1203- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-079-0 01 1 1203- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-080-0 01 1 1203- ● ●
88 16.335 GRIP; RR DOOR
OUTSIDE HANDLE CHROME<E20> 16.330 PLATED 		8-98176-458-0 02 1 1203- ● ●
88 16.335 GRIP; RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 16.330 		8-98176-456-0 02 1 1203- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-472-4 01 1 1203- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-473-4 01 1 1203- ● ●

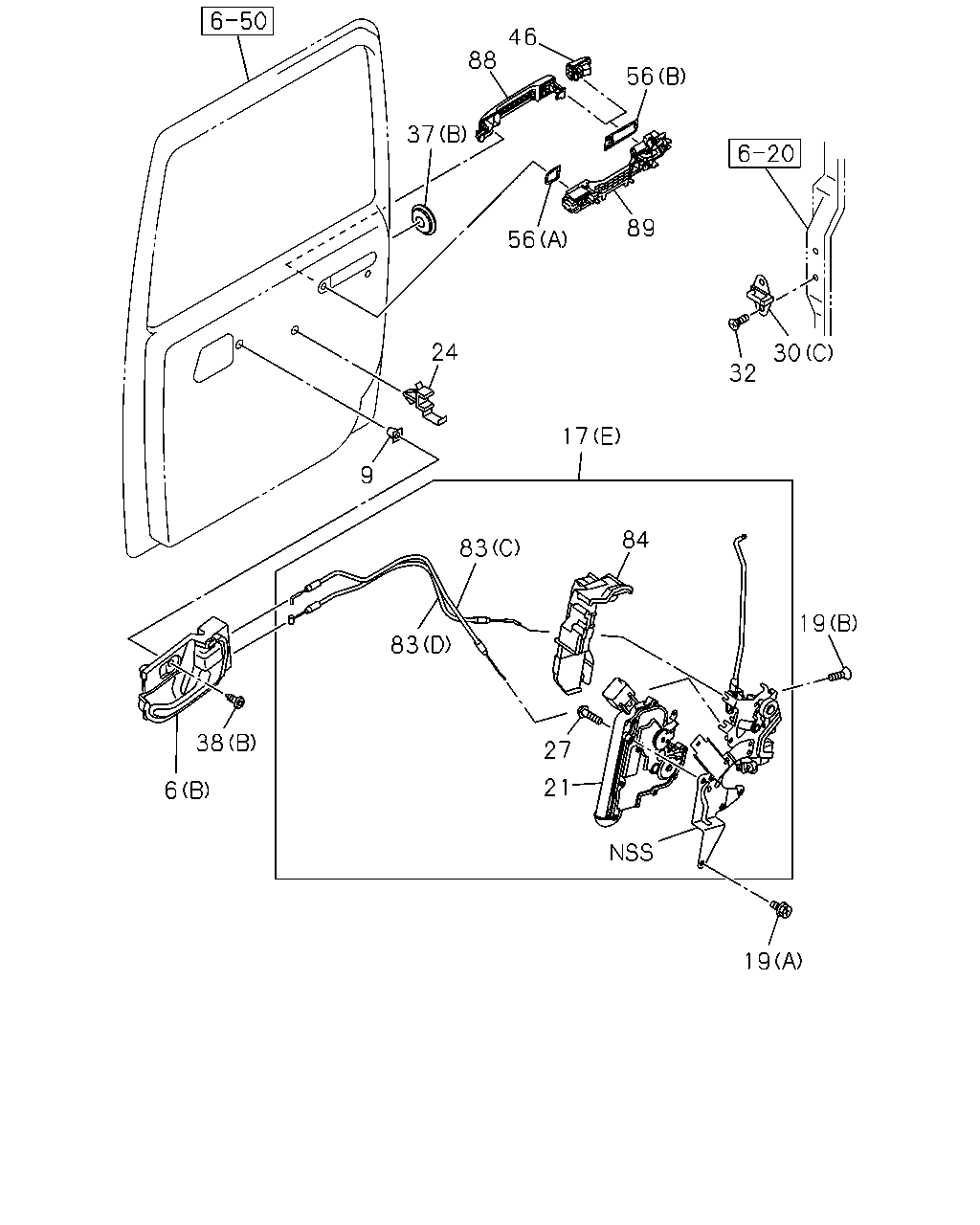

çizim 131735
46 88 56 37 89 56 24 30 32 17 9 84 83 19 83 38 27 21 6 19
BalonParca AdiParca NoAdetTipApplied Date A B C
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A) BLACK 		8-97421-775-4 01 1 1203- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A) BLACK 		8-97421-777-4 01 1 1203- ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) (B) BLACK 		8-97416-726-4 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) (B) BLACK 		8-97416-728-4 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97416-730-3 01 1 1203- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) (B) BLACK 		8-97416-732-3 01 1 1203- ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
10.565 		8-94152-494-0 02 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
(A) 		8-98103-157-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(A) 		8-98103-158-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(B) 		8-98103-159-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
(B) 		8-98103-160-5 01 1 1203- ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98103-984-0 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98103-985-0 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) 		8-98103-986-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (D) 		8-98103-987-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98103-990-1 01 1 1203- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98103-991-1 01 1 1203- ● ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 1203- ● ●
19 16.345 BOLT; RR DOOR LOCK
16.330 (B) SCREW M6X14.5 		8-98004-342-0 06 1 1203- ● ● ●
19 16.345 BOLT; RR DOOR LOCK
(C) M6X16 		8-98165-451-0 06 1 1203- ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-093-0 01 1 1203-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-024-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-094-0 01 1 1203-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-023-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-97351-081-0 01 1 1203-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98292-018-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-97351-082-0 01 1 1203-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98292-017-0 01 1 1503- ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE 8-97251-932-0 02 1 1203- ● ●
27 16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-997-0 04 1 1203- ● ●
30 16.335 STRIKER; RR DOOR
(A) 		8-98103-162-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(A) 		8-98103-163-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(B) 		8-98103-164-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(B) 		8-98103-165-3 01 1 1203- ●
30 16.335 STRIKER; RR DOOR
(C) 		8-98012-203-0 02 1 1203- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1203- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 08 1 1203- ●
37 16.157 GROMMET; RR DOOR
(A) 		8-98212-205-0 02 1 1203- ●
37 16.157 GROMMET; RR DOOR
12.182 (B) OD=26 		8-94141-484-0 02 1 1203- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
02.343 (A) M6X16 FLANGE 		0-28650-616-0 06 1 1203- ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
(B) M5X14 TAPPING 		8-98184-363-0 02 1 1203- ● ●
46 16.345 COVER; OUTSIDE HANDLE
OUTSIDE HANDLE CHROME<E20> 16.270 PLATED 		8-98176-465-1 02 1 1203- ● ●
46 16.345 COVER; OUTSIDE HANDLE
EXC. OUTSIDE HANDLE CHROME<E20> 16.270 BLACK 		8-98176-463-1 02 1 1203- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
16.350 (A) 		8-98176-466-0 02 1 1203- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
(B) 		8-98176-467-2 02 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-861-0 01 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-862-0 01 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-863-0 02 1 1203- ●
83 16.341 CABLE ASM; LOCK CONTROL
(C) 		8-98193-717-0 01 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(C) 		8-98193-715-0 01 1 1203- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(D) 		8-98193-716-0 02 1 1203- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-079-0 01 1 1203- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-080-0 01 1 1203- ● ●
88 16.335 GRIP; RR DOOR
OUTSIDE HANDLE CHROME<E20> 16.330 PLATED 		8-98176-458-0 02 1 1203- ● ●
88 16.335 GRIP; RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 16.330 		8-98176-456-0 02 1 1203- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-472-4 01 1 1203- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-473-4 01 1 1203- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
