6-05 — FRONT PANEL (#797) — 139 parça

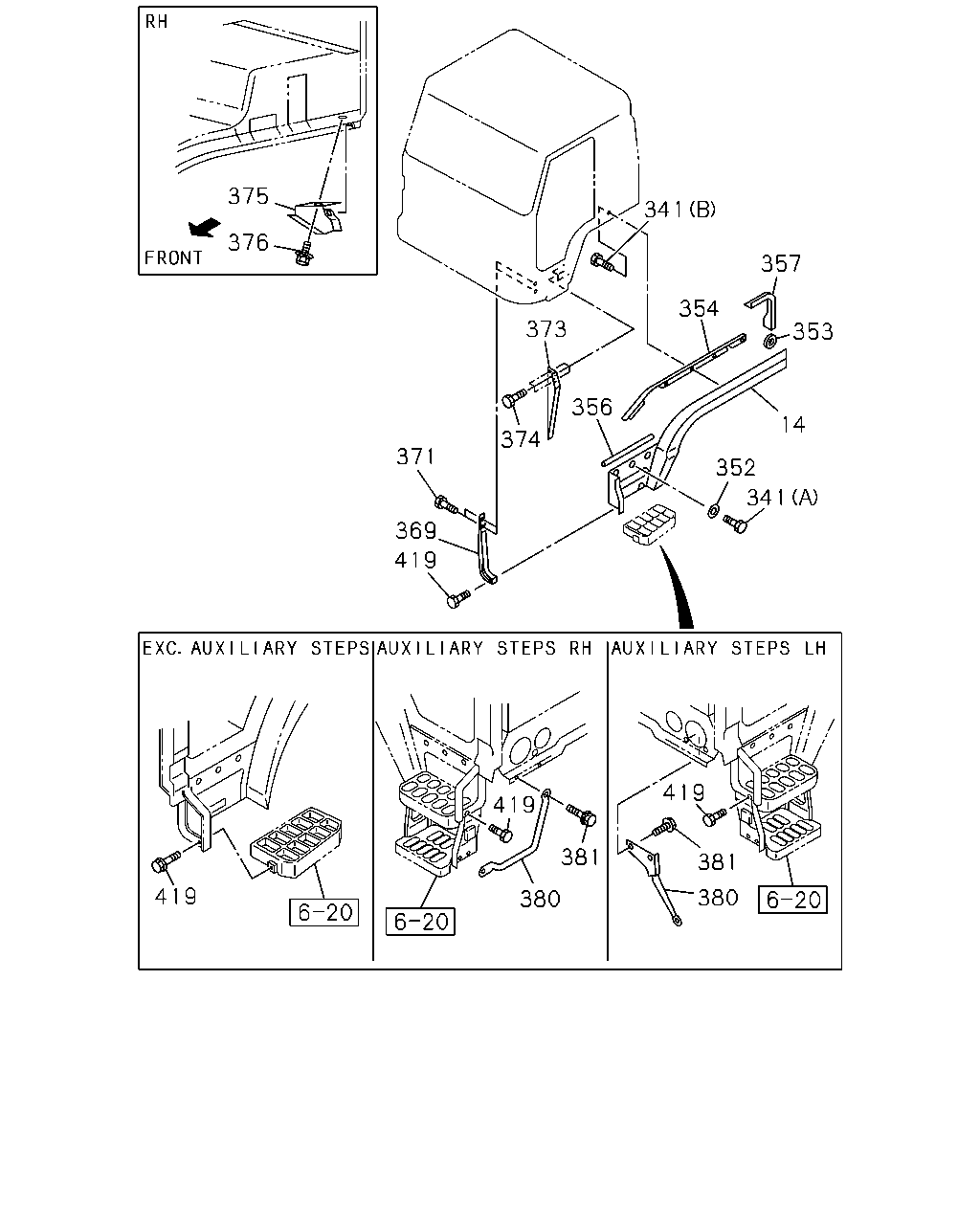

375 376 341 357 353 354 373 356 14 341 352 374 371 369 419 419 419 381 380 419 381 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	FENDER; FRT	1-65480-727-4	01	1	9202-	●	●
14	FENDER; FRT	1-65480-726-4	01	1	9202-	●	●
341	BOLT; FENDER TO COWL (A) M6X20 W/LK&PL WASHER	1-09980-493-0	06	1	9202-	●	●
341	BOLT; FENDER TO COWL (B) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	9202-	●	●
352	WASHER; NYLON	1-09985-171-0	06	1	9202-	●	●
353	SPACER; FENDER TO CAB ID=12.5	1-09503-171-0	02	1	9501-	●	●
354	SEAL; FENDER SIDE	1-71998-307-1	01	1	9202-	●	●
354	SEAL; FENDER SIDE	1-71998-306-1	01	1	9202-	●	●
356	FINISHER; STEP CLOSING,FENDER	1-71998-228-0	01	1	9202-	●	●
356	FINISHER; STEP CLOSING,FENDER	1-71998-148-1	01	1	9202-	●	●
357	FINISHER; WIDE FENDER RR	1-71998-311-0	01	1	9202-	●	●
357	FINISHER; WIDE FENDER RR	1-71998-310-0	01	1	9202-	●	●
369	SUPPORT; FENDER STEP FRT	1-65680-300-3	01	1	9202-	●	●
369	SUPPORT; FENDER STEP FRT	1-65680-299-3	01	1	9202-	●	●
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-496-0	04	1	9202-	●	●
373	SUPPORT; FENDER STEP REAR	1-65680-280-5	01	1	9202-	●	●
373	SUPPORT; FENDER STEP REAR	1-65680-279-5	01	1	9202-	●	●
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-496-0	08	1	9202-	●	●
375	SUPPORT; FENDER REAR	1-65680-663-0	01	1	9202-	●	●
376	BOLT; SUPPORT,FENDER RR M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9202-	●	●
380	STAY ASM; FENDER STEP FRT AUXILIARY STEPS<E29>	1-65680-795-0	01	1	9202-	●	●
380	STAY ASM; FENDER STEP FRT AUXILIARY STEPS<E29>	1-65680-792-0	01	1	9202-	●	●
381	BOLT; STAY,FENDER STEP AUXILIARY STEPS<E29> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-	●	●
381	BOLT; STAY,FENDER STEP AUXILIARY STEPS<E29> M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9202-	●	●
419	BOLT; STEP M8X20 W/LK&PL WASHER	1-09980-496-0	08	1	9202-	●	●

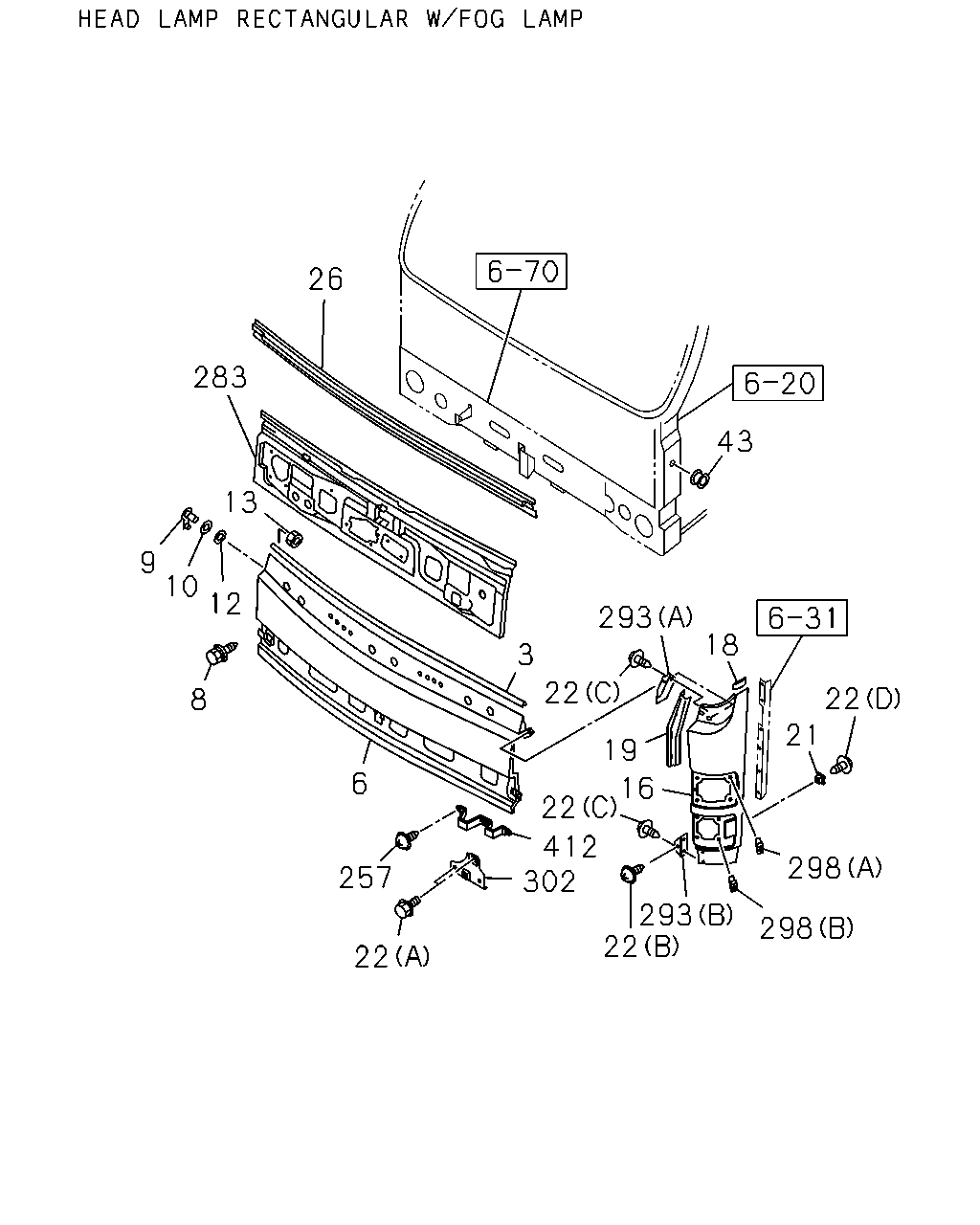

26 283 13 9 12 10 8 6 3 22 293 18 22 21 19 16 22 412 302 257 22 22 293 298 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	FINISHER; FRT PANEL UPR L=2100	1-71907-093-0	01	1	9202-	●	●
6	PANEL; FRONT	1-65480-910-0	01	1	9202-	●
6	PANEL; FRONT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65480-910-0	01	1	9202-		●
6	PANEL; FRONT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65481-151-0	01	1	9308-		●
8	SCREW; FRT PANEL M6X16 W/LK&PL WASHER	1-09980-574-0	07	1	9202-	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL	1-65570-152-1	02	1	9202-	●	●
10	WASHER; FRT PANEL TO SIDE PANEL ID=9 OD=20	1-09985-145-0	02	1	9202-	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL ID=8.4 OD=22	9-09160-708-0	02	1	9202-	●	●
13	NUT; FRT PANEL TO SIDE PANEL M8 FLANGE	1-09984-064-0	02	1	9202-	●	●
16	PANEL; FRONT,SIDE	1-65480-536-8	01	1	9202-	●
16	PANEL; FRONT,SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65480-536-8	01	1	9202-		●
16	PANEL; FRONT,SIDE	1-65480-533-8	01	1	9202-	●
16	PANEL; FRONT,SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65480-533-8	01	1	9202-		●
16	PANEL; FRONT,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65481-041-5	01	1	9308-		●
16	PANEL; FRONT,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65481-040-5	01	1	9308-		●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-172-1	01	1	9202-	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65570-172-1	01	1	9202-		●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-171-1	01	1	9202-	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65570-171-1	01	1	9202-		●
18	SEAL; A-POST UPR,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71998-531-0	01	1	9308-		●
18	SEAL; A-POST UPR,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71998-530-0	01	1	9308-		●
19	SEAL; FRT SIDE PANEL	1-65580-195-0	01	1	9202-	●
19	SEAL; FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65580-195-0	01	1	9202-		●
19	SEAL; FRT SIDE PANEL	1-65580-194-0	01	1	9202-	●
19	SEAL; FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65580-194-0	01	1	9202-		●
19	SEAL; FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71998-575-2	01	1	9308-		●
19	SEAL; FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71998-574-2	01	1	9308-		●
21	GROMMET; SCREW,FRT SIDE PANEL D=10X10 L=8 M6	1-09983-119-0	02	1	9202-	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=8 M6	1-09983-119-0	02	1	9202-		●
21	GROMMET; SCREW,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	06	1	9308-		●
22	SCREW; FRT PANEL SIDE (A) M6X16 W/LK&PL WASHER	1-09980-574-0	02	1	9202-	●
22	SCREW; FRT PANEL SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	02	1	9202-		●
22	SCREW; FRT PANEL SIDE (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9202-	●
22	SCREW; FRT PANEL SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9202-		●
22	SCREW; FRT PANEL SIDE (C) SCREW GROMMET D=10X16 L=8 M6	1-09983-118-0	02	1	9202-	●
22	SCREW; FRT PANEL SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) SCREW GROMMET D=10X16 L=8 M6	1-09983-118-0	02	1	9202-		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9308-		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M5X20	1-09981-454-0	06	1	9308-		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) M6X10	1-09981-520-0	02	1	9308-		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M5X16	1-09981-465-0	04	1	9308-9308		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9308-9308		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	08	1	9309-		●
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61480-408-5	01	1	9202-	●	●
257	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	06	1	9308-		●
283	PANEL ASM; FRT CENTER,INNER	1-61480-410-4	01	1	9202-9311	●	●
283	PANEL ASM; FRT CENTER,INNER	1-61480-410-4	01	1	9312-	●
283	PANEL ASM; FRT CENTER,INNER EXC. AUSTRALIA EQUIPMENT(RR3)	1-61480-410-4	01	1	9312-		●
283	PANEL ASM; FRT CENTER,INNER AUSTRALIA EQUIPMENT(RR3)	1-61480-756-0	01	1	9312-		●
293	BRACKET; PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-65481-043-3	01	1	9308-		●
293	BRACKET; PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-65481-045-1	01	1	9308-		●
293	BRACKET; PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-65481-042-3	01	1	9308-		●
293	BRACKET; PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-65481-044-1	01	1	9308-		●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL	8-94279-039-0	08	1	9202-	●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94279-039-0	08	1	9202-		●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M5	1-09983-116-0	08	1	9308-		●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M4	1-09983-117-0	08	1	9308-		●
302	BRACKET; FRT SIDE,HD LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65481-054-1	01	1	9308-		●
302	BRACKET; FRT SIDE,HD LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65481-053-1	01	1	9308-		●
412	BRACKET ASM; HD LAMP UPR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-79998-619-2	01	1	9308-		●
412	BRACKET ASM; HD LAMP UPR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-79998-895-1	01	1	9308-		●

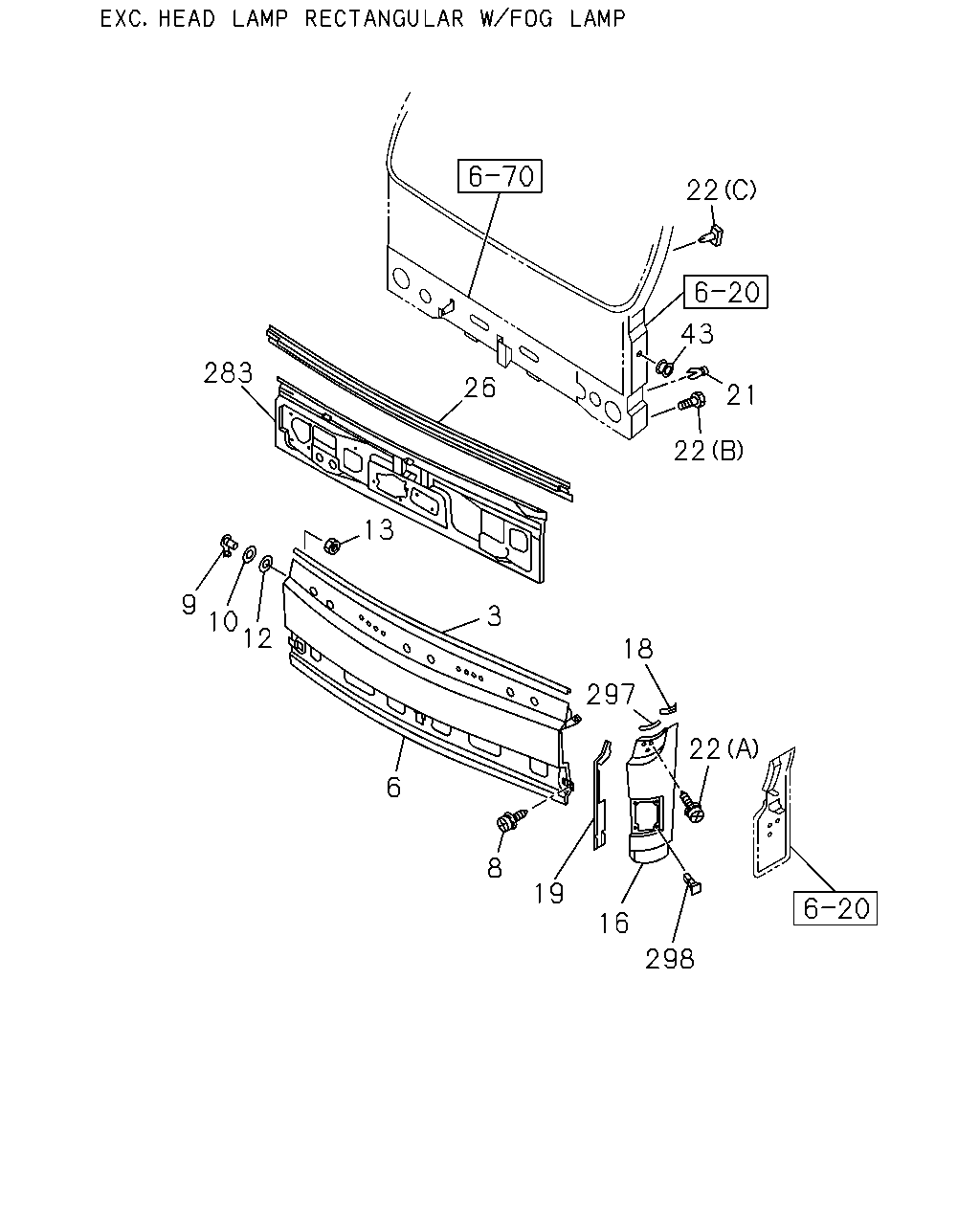

22 43 21 22 26 283 13 3 9 10 12 18 6 8 19 16 298 297 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	FINISHER; FRT PANEL UPR L=2100	1-71907-093-0	01	1	9202-	●	●
6	PANEL; FRONT	1-65480-910-0	01	1	9202-	●
6	PANEL; FRONT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65480-910-0	01	1	9202-		●
6	PANEL; FRONT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65481-151-0	01	1	9308-		●
8	SCREW; FRT PANEL M6X16 W/LK&PL WASHER	1-09980-574-0	07	1	9202-	●	●
9	FASTENER; FRT PANEL TO SIDE PANEL	1-65570-152-1	02	1	9202-	●	●
10	WASHER; FRT PANEL TO SIDE PANEL ID=9 OD=20	1-09985-145-0	02	1	9202-	●	●
12	WASHER; PL,FRT PANEL TO SIDE PANEL ID=8.4 OD=22	9-09160-708-0	02	1	9202-	●	●
13	NUT; FRT PANEL TO SIDE PANEL M8 FLANGE	1-09984-064-0	02	1	9202-	●	●
16	PANEL; FRONT,SIDE	1-65480-536-8	01	1	9202-	●
16	PANEL; FRONT,SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65480-536-8	01	1	9202-		●
16	PANEL; FRONT,SIDE	1-65480-533-8	01	1	9202-	●
16	PANEL; FRONT,SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65480-533-8	01	1	9202-		●
16	PANEL; FRONT,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65481-041-5	01	1	9308-		●
16	PANEL; FRONT,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65481-040-5	01	1	9308-		●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-172-1	01	1	9202-	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65570-172-1	01	1	9202-		●
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-171-1	01	1	9202-	●
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65570-171-1	01	1	9202-		●
18	SEAL; A-POST UPR,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71998-531-0	01	1	9308-		●
18	SEAL; A-POST UPR,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71998-530-0	01	1	9308-		●
19	SEAL; FRT SIDE PANEL	1-65580-195-0	01	1	9202-	●
19	SEAL; FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65580-195-0	01	1	9202-		●
19	SEAL; FRT SIDE PANEL	1-65580-194-0	01	1	9202-	●
19	SEAL; FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65580-194-0	01	1	9202-		●
19	SEAL; FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71998-575-2	01	1	9308-		●
19	SEAL; FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71998-574-2	01	1	9308-		●
21	GROMMET; SCREW,FRT SIDE PANEL D=10X10 L=8 M6	1-09983-119-0	02	1	9202-	●
21	GROMMET; SCREW,FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=8 M6	1-09983-119-0	02	1	9202-		●
21	GROMMET; SCREW,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=10.5 M5 WHITE	1-09983-115-0	06	1	9308-		●
22	SCREW; FRT PANEL SIDE (A) M6X16 W/LK&PL WASHER	1-09980-574-0	02	1	9202-	●
22	SCREW; FRT PANEL SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	02	1	9202-		●
22	SCREW; FRT PANEL SIDE (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9202-	●
22	SCREW; FRT PANEL SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9202-		●
22	SCREW; FRT PANEL SIDE (C) SCREW GROMMET D=10X16 L=8 M6	1-09983-118-0	02	1	9202-	●
22	SCREW; FRT PANEL SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) SCREW GROMMET D=10X16 L=8 M6	1-09983-118-0	02	1	9202-		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9308-		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M5X20	1-09981-454-0	06	1	9308-		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) M6X10	1-09981-520-0	02	1	9308-		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M5X16	1-09981-465-0	04	1	9308-9308		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9308-9308		●
22	SCREW; FRT PANEL SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	08	1	9309-		●
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61480-408-5	01	1	9202-	●	●
43	GROMMET; LOCATION HOLE,A-POST OD=36 BLACK	1-76798-018-0	02	1	9202-	●	●
283	PANEL ASM; FRT CENTER,INNER	1-61480-410-4	01	1	9202-9311	●	●
283	PANEL ASM; FRT CENTER,INNER	1-61480-410-4	01	1	9312-	●
283	PANEL ASM; FRT CENTER,INNER EXC. AUSTRALIA EQUIPMENT(RR3)	1-61480-410-4	01	1	9312-		●
283	PANEL ASM; FRT CENTER,INNER AUSTRALIA EQUIPMENT(RR3)	1-61480-756-0	01	1	9312-		●
297	FINISHER; SIDE PANEL,CAB SERVICED BY L=2040	1-71998-300-0	02	1	9202-	●
297	FINISHER; SIDE PANEL,CAB EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> SERVICED BY L=2040	1-71998-300-0	02	1	9202-		●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL	8-94279-039-0	08	1	9202-	●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94279-039-0	08	1	9202-		●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M5	1-09983-116-0	08	1	9308-		●
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M4	1-09983-117-0	08	1	9308-		●
