6-47 — MUD GUARD AND INSULATOR (#79699) — 53 parça

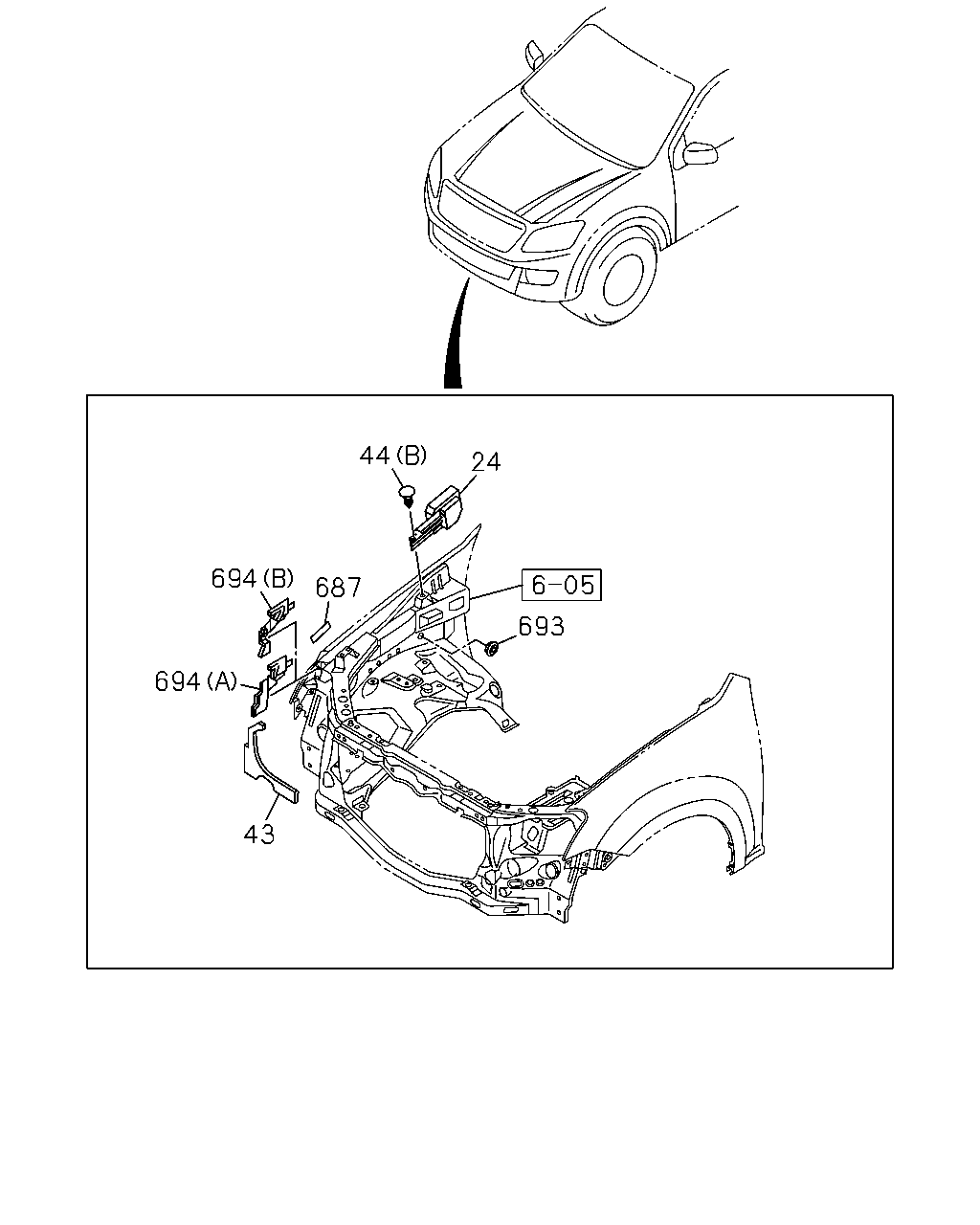

çizim 131246
694 694 687 43 44 24 693
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 08.155 PLATE; MUD COVER 8-98187-805-0 01 1 1203- ● ● ● ● ●
43 08.153 INSULATION; FENDER SIDE 8-98189-338-2 01 1 1203- ● ● ● ● ●
44 08.154 CLIP; ANCHOR
(A) OD=22 L=10.7 		8-94215-211-0 10 1 1203- ● ● ● ● ●
44 08.154 CLIP; ANCHOR
16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 1203- ● ● ● ● ●
687 08.155 TAPE; PROTECT 8-98191-602-1 02 1 1203- ● ● ● ● ●
693 08.155 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1203- ● ● ● ● ●
694 08.155 PROTECTOR; WHEEL HOUSE
(B) 		8-98187-812-0 01 1 1203- ● ●
694 08.155 PROTECTOR; WHEEL HOUSE
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-98187-812-0 01 1 1203- ● ● ●
694 08.155 PROTECTOR; WHEEL HOUSE
HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-98187-814-0 01 1 1203- ● ● ●

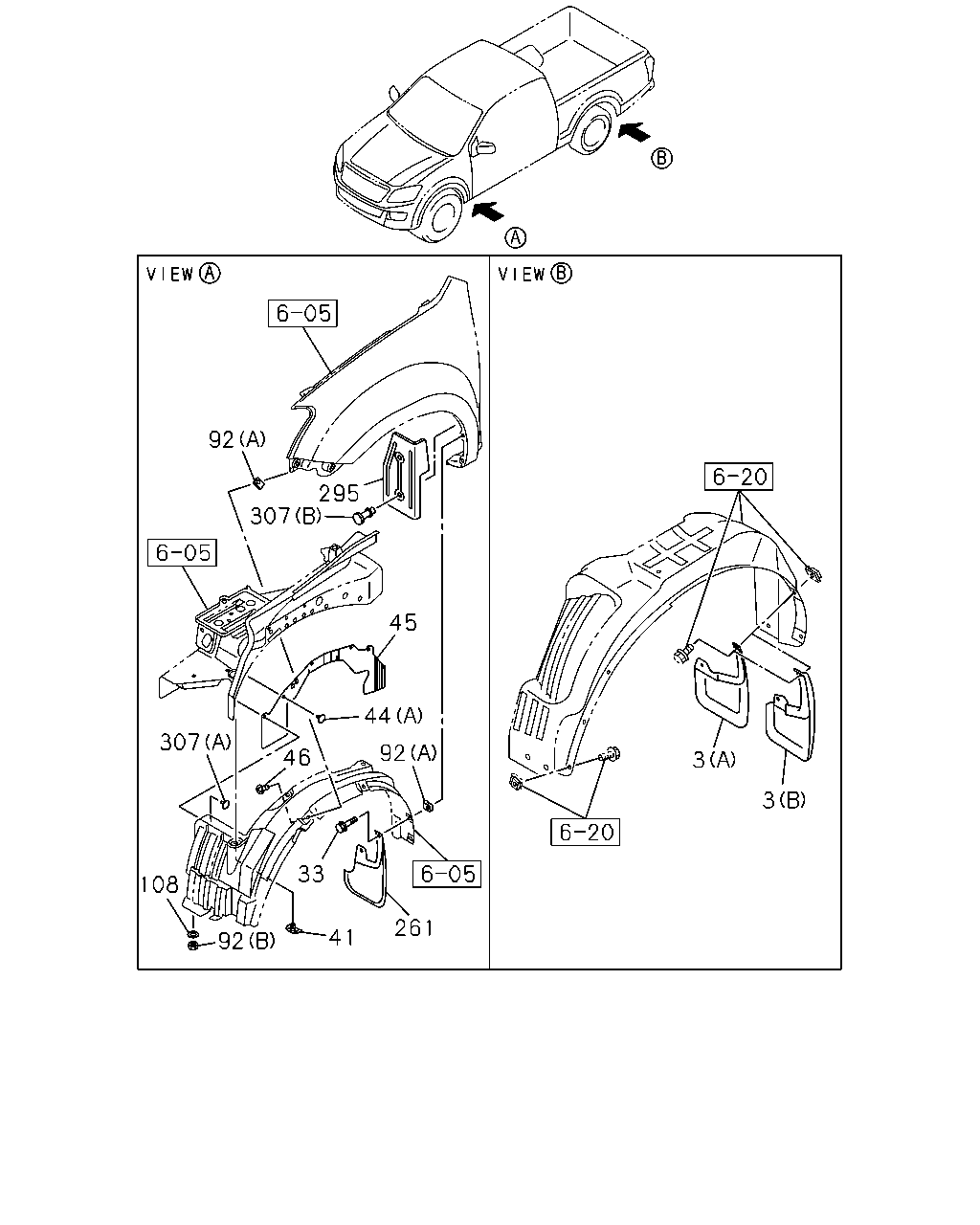

çizim 131680
92 295 307 45 44 307 92 46 3 3 33 108 261 41 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> (B) 		8-98119-330-2 01 1 1203- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98119-330-2 01 1 1203- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> (B) 		8-98119-331-2 01 1 1203- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98119-331-2 01 1 1203- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A) 		8-98077-276-1 01 1 1203- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-98077-276-1 01 1 1203- ● ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) (A) 		8-98077-279-1 01 1 1203- ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-98077-279-1 01 1 1203- ● ● ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1203- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 12 1 1203-1207 ● ● ● ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 10 1 1208- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> 08.154 		8-94221-150-0 06 1 1203- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
HIGH RIDE SUSPENSION(7YC) 08.154 		8-94221-150-0 04 1 1203- ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 02 1 1203- ● ● ●
44 08.154 CLIP; ANCHOR
(A) OD=22 L=10.7 		8-94215-211-0 10 1 1203- ● ● ● ● ●
44 08.154 CLIP; ANCHOR
16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 1203- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-267-1 01 1 1203- ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-267-1 01 1 1203- ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-269-0 01 1 1203- ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-269-0 01 1 1203- ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-270-0 01 1 1203- ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-270-0 01 1 1203- ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98176-526-0 01 1 1203- ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98176-526-0 01 1 1203- ● ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1203- ● ● ● ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1203- ● ● ● ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 04 1 1203- ● ● ● ● ●
92 08.155 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1203- ● ● ● ● ●
108 16.549 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1203- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98184-707-0 01 1 1203- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-707-0 01 1 1203- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98184-708-0 01 1 1203- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-708-0 01 1 1203- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-272-0 01 1 1203- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-272-0 01 1 1203- ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-274-0 01 1 1203- ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-274-0 01 1 1203- ● ● ●
295 08.153 COVER; WHEEL HOUSE 8-98187-396-1 01 1 1203- ●
295 08.153 COVER; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-396-1 01 1 1203- ●
295 08.153 COVER; WHEEL HOUSE 8-98187-397-1 01 1 1203- ●
295 08.153 COVER; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-397-1 01 1 1203- ●
307 08.155 RETAINER
(A) 		8-98050-462-0 02 1 1203- ● ● ● ● ●
307 08.155 RETAINER
03.602 (B) 		8-97372-006-0 04 1 1203- ●
307 08.155 RETAINER
EXC. HIGH RIDE SUSPENSION(7YC) 03.602 (B) 		8-97372-006-0 04 1 1203- ●
