◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-45 - MOLDING AND STRIPE ▶
6-45 — MOLDING AND STRIPE (#79698) — 8 parça

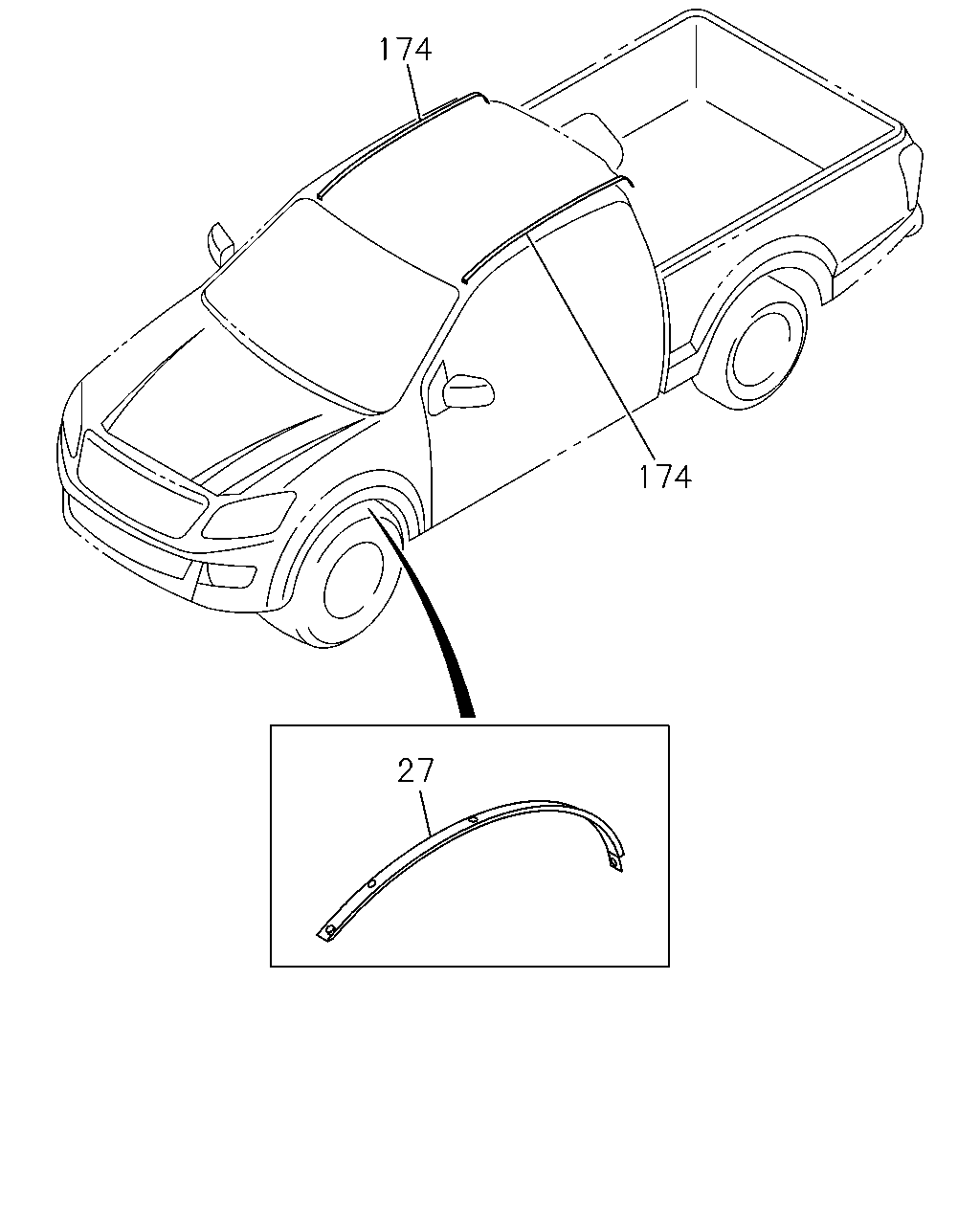

çizim 182930
174 174 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
27 08.132 MOLDING; FRT WHEEL ARCH,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98177-958-3 01 1 1203- ●
27 08.132 MOLDING; FRT WHEEL ARCH,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98177-959-3 01 1 1203- ●
174 16.450 MOLDING; ROOF 8-98097-373-2 01 1 1203- ● ●
174 16.450 MOLDING; ROOF 8-98097-374-2 01 1 1203- ● ●
174 16.450 MOLDING; ROOF
EXC. ROOF RAIL<7LC> 		8-98097-377-2 01 1 1203- ● ●
174 16.450 MOLDING; ROOF
EXC. ROOF RAIL<7LC> 		8-98097-378-2 01 1 1203- ● ●
174 16.450 MOLDING; ROOF 8-98097-375-2 01 1 1203- ●
174 16.450 MOLDING; ROOF 8-98097-376-2 01 1 1203- ●
