◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#79696) — 108 parça

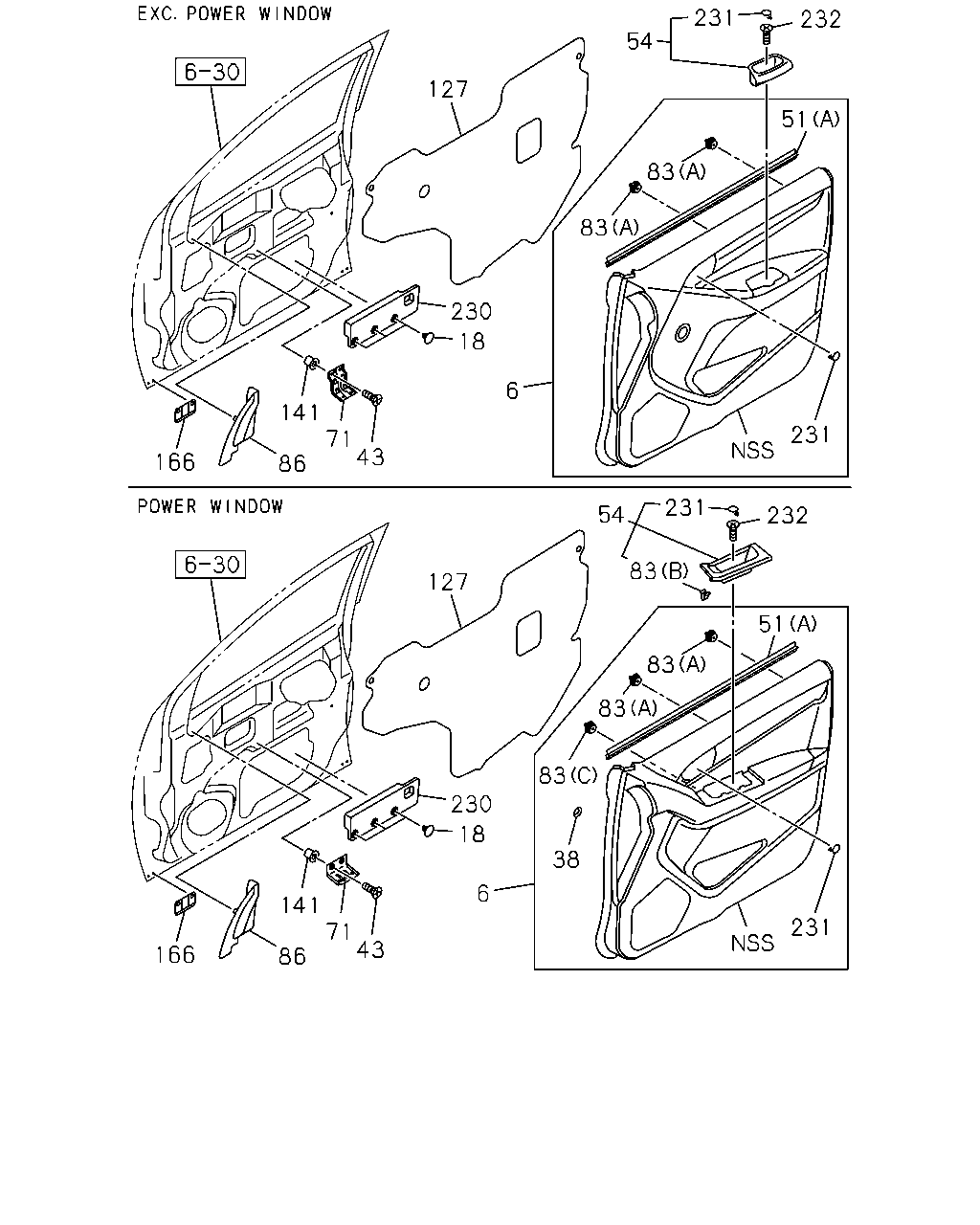

çizim 131074
232 231 54 127 83 51 83 231 230 18 6 166 86 141 71 43 54 231 232 83 127 51 83 83 83 38 231 230 18 6 141 71 43 86 166
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97425-708-1 01 1 1308- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97425-712-1 01 1 1308- ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-744-8 01 1 1203-1302 ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97425-710-1 01 1 1303-1307 ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97425-710-1 01 1 1308- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97425-710-1 01 1 1308- ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97416-746-8 01 1 1203-1302 ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97425-714-1 01 1 1303-1307 ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97425-714-1 01 1 1308- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97425-714-1 01 1 1308- ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-360-9 01 1 1203-1307 ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-360-9 01 1 1203-1307 ● ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-360-9 01 1 1308-1308 ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-360-9 01 1 1308-1308 ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-360-9 01 1 1308-1308 ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97427-717-0 01 1 1309- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97427-717-0 01 1 1309- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97427-717-0 01 1 1309- ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-387-9 01 1 1203-1307 ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-387-9 01 1 1203-1307 ● ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-387-9 01 1 1308-1308 ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-387-9 01 1 1308-1308 ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-387-9 01 1 1308-1308 ● ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97427-715-0 01 1 1309- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97427-715-0 01 1 1309- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97427-715-0 01 1 1309- ● ●
6 16.165 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-740-7 01 1 1203-1307 ● ●
6 16.165 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-740-7 01 1 1308- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-740-7 01 1 1308- ●
6 16.165 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-742-7 01 1 1203-1307 ● ●
6 16.165 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-742-7 01 1 1308- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-742-7 01 1 1308- ●
6 16.165 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-359-6 01 1 1203-1307 ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-359-6 01 1 1203-1307 ● ● ●
6 16.165 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-359-6 01 1 1308- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-359-6 01 1 1308- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-359-6 01 1 1308- ● ●
6 16.165 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-386-6 01 1 1203-1307 ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-386-6 01 1 1203-1307 ● ● ●
6 16.165 TRIM; DOOR,UPR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-386-6 01 1 1308- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-386-6 01 1 1308- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-386-6 01 1 1308- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-358-9 01 1 1203-1307 ● ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-358-9 01 1 1308-1308 ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-358-9 01 1 1308-1308 ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97427-716-0 01 1 1309- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97427-716-0 01 1 1309- ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-361-9 01 1 1203-1307 ● ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97419-361-9 01 1 1308-1308 ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97419-361-9 01 1 1308-1308 ● ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) BLACK 		8-97427-714-0 01 1 1309- ●
6 16.165 TRIM; DOOR,UPR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97427-714-0 01 1 1309- ● ●
18 16.165 CLIP; DOOR PAD
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 15.100 BLACK 		8-94204-281-0 06 1 1203-1307 ● ●
18 16.165 CLIP; DOOR PAD
15.100 BLACK 		8-94204-281-0 06 1 1203-1307 ● ● ●
18 16.165 CLIP; DOOR PAD
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 15.100 BLACK 		8-94204-281-0 06 1 1308- ● ● ●
18 16.165 CLIP; DOOR PAD
15.100 BLACK 		8-94204-281-0 06 1 1308- ● ●
38 16.183 STOPPER; DOOR SEAL,FRT
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 01.269 		8-98211-687-0 02 1 1303-1307 ● ●
38 16.183 STOPPER; DOOR SEAL,FRT
POWER WINDOW SAFETY DOOR<ABZ> 01.269 		8-98211-687-0 02 1 1303-1307 ● ● ●
38 16.183 STOPPER; DOOR SEAL,FRT
POWER WINDOW SAFETY DOOR<ABZ> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 01.269 		8-98211-687-0 02 1 1308- ● ● ●
38 16.183 STOPPER; DOOR SEAL,FRT
POWER WINDOW SAFETY DOOR<ABZ> 01.269 		8-98211-687-0 02 1 1308- ● ●
43 16.165 SCREW; DOOR POCKET
16.345 M5X14 TAPPING 		8-98184-363-0 04 1 1203- ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-544-3 01 1 1203- ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-545-3 01 1 1203- ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) 		8-98201-892-0 02 1 1203- ● ● ● ●
54 16.165 BOX; FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-750-1 01 1 1203- ● ● ● ● ●
54 16.165 BOX; FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-751-1 01 1 1203- ● ● ● ● ●
54 16.165 BOX; FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-752-5 01 1 1203- ● ● ● ● ●
54 16.165 BOX; FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-753-5 01 1 1203- ● ● ● ● ●
71 14.690 BRACKET; ARM REST
POWER WINDOW SAFETY DOOR<ABZ> 		8-98102-215-2 02 1 1203- ● ● ● ● ●
71 14.690 BRACKET; ARM REST
EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98102-216-4 02 1 1203- ● ● ● ● ●
83 16.165 CLIP; DOOR TRIM
POWER WINDOW SAFETY DOOR<ABZ> (C) 		8-98166-326-0 02 1 1309- ● ● ● ● ●
83 16.165 CLIP; DOOR TRIM
EXC. POWER WINDOW SAFETY DOOR<ABZ> (A) 		8-98160-729-0 18 1 1309- ● ●
83 16.165 CLIP; DOOR TRIM
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ> (A) 		8-98160-729-0 18 1 1309- ● ● ●
83 16.165 CLIP; DOOR TRIM
POWER WINDOW SAFETY DOOR<ABZ> (B) 		8-98164-677-0 02 1 1203- ● ● ● ● ●
83 16.165 CLIP; DOOR TRIM
(A) 		8-98160-729-0 18 1 1203-1308 ● ● ● ● ●
83 16.165 CLIP; DOOR TRIM
POWER WINDOW SAFETY DOOR<ABZ> (A) 		8-98160-729-0 16 1 1309- ● ● ● ● ●
86 16.155 COVER ASM; DOOR POCKET
BLACK 		8-97416-748-3 01 1 1203- ● ● ● ● ●
86 16.155 COVER ASM; DOOR POCKET
BLACK 		8-97416-749-3 01 1 1203- ● ● ● ● ●
127 16.183 SEAL; DOOR INNER
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-454-1 01 1 1203- ● ● ● ● ●
127 16.183 SEAL; DOOR INNER
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-455-1 01 1 1203- ● ● ● ● ●
127 16.183 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98103-523-1 01 1 1203-1307 ● ●
127 16.183 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98103-523-1 01 1 1308- ● ● ●
127 16.183 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98103-524-1 01 1 1203-1307 ● ●
127 16.183 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98103-524-1 01 1 1308- ● ● ●
127 16.183 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98178-181-1 01 1 1203-1307 ● ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98178-181-1 01 1 1203-1307 ● ● ●
127 16.183 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98178-181-1 01 1 1308- ● ● ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98178-181-1 01 1 1308- ● ●
127 16.183 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98178-182-1 01 1 1203-1307 ● ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98178-182-1 01 1 1203-1307 ● ● ●
127 16.183 SEAL; DOOR INNER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98178-182-1 01 1 1308- ● ● ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW SAFETY DOOR<ABZ> 		8-98178-182-1 01 1 1308- ● ●
141 16.165 GROMMET; SCREW,LWR COVER
10.565 		8-94152-494-0 04 1 1203- ● ● ● ● ●
166 16.155 PLUG; HOLE 8-98197-448-0 04 1 1203- ● ● ● ● ●
230 16.165 PAD; FRT DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98156-031-3 01 1 1203-1307 ● ●
230 16.165 PAD; FRT DOOR 8-98156-031-3 01 1 1203-1307 ● ● ●
230 16.165 PAD; FRT DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98156-031-3 01 1 1308- ● ● ●
230 16.165 PAD; FRT DOOR 8-98156-031-3 01 1 1308- ● ●
230 16.165 PAD; FRT DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98156-032-3 01 1 1203-1307 ● ●
230 16.165 PAD; FRT DOOR 8-98156-032-3 01 1 1203-1307 ● ● ●
230 16.165 PAD; FRT DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98156-032-3 01 1 1308- ● ● ●
230 16.165 PAD; FRT DOOR 8-98156-032-3 01 1 1308- ● ●
231 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1203- ● ● ● ● ●
231 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1203- ● ● ● ● ●
232 16.165 BOLT; DOOR TRIM
16.345 M5X14 TAPPING 		8-98184-363-0 02 1 1203- ● ● ● ● ●

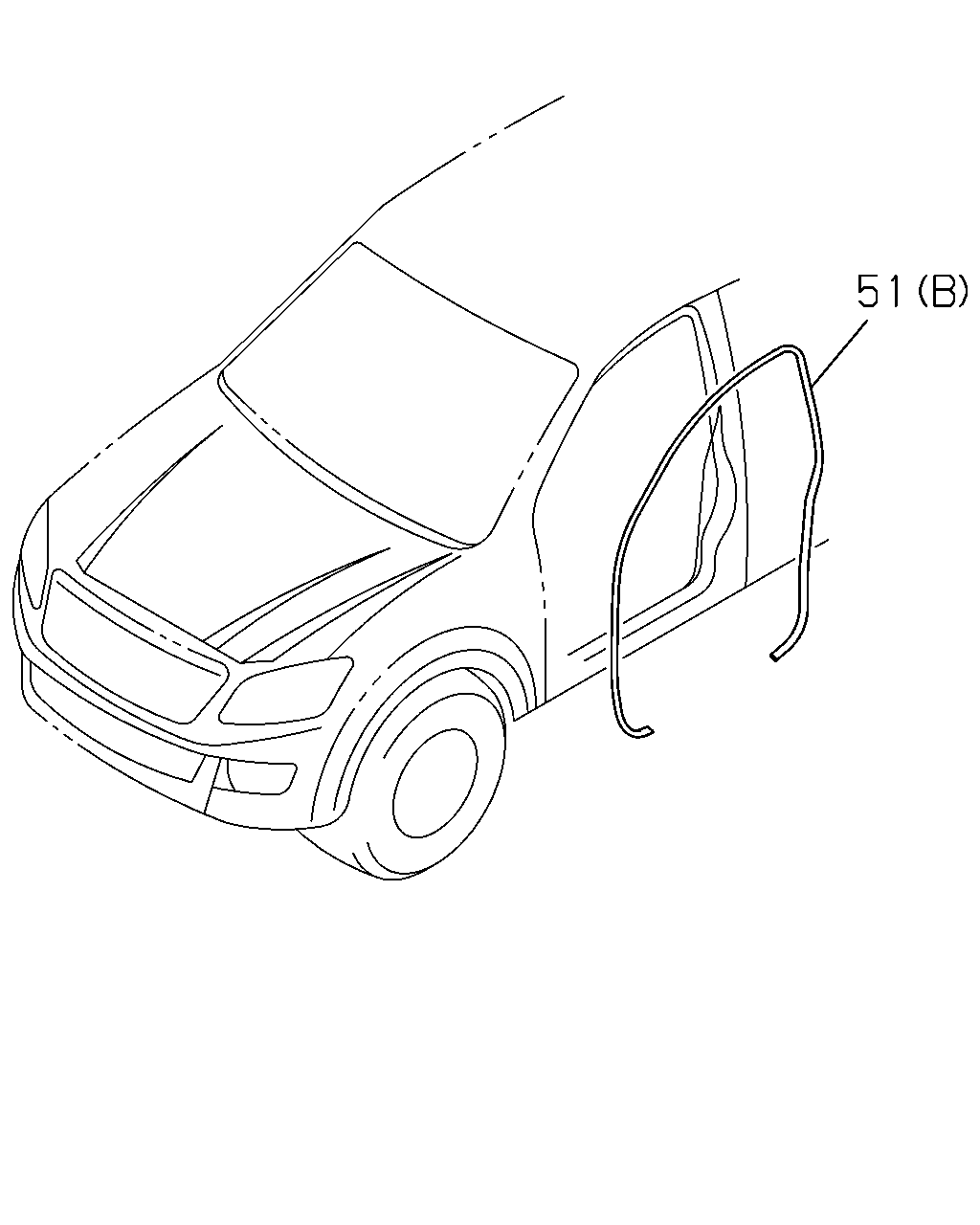

çizim 182929
51
BalonParca AdiParca NoAdetTipApplied Date A B C D E
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-544-3 01 1 1203- ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-98109-545-3 01 1 1203- ● ● ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) 		8-98201-892-0 02 1 1203- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
