◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#79694) — 60 parça

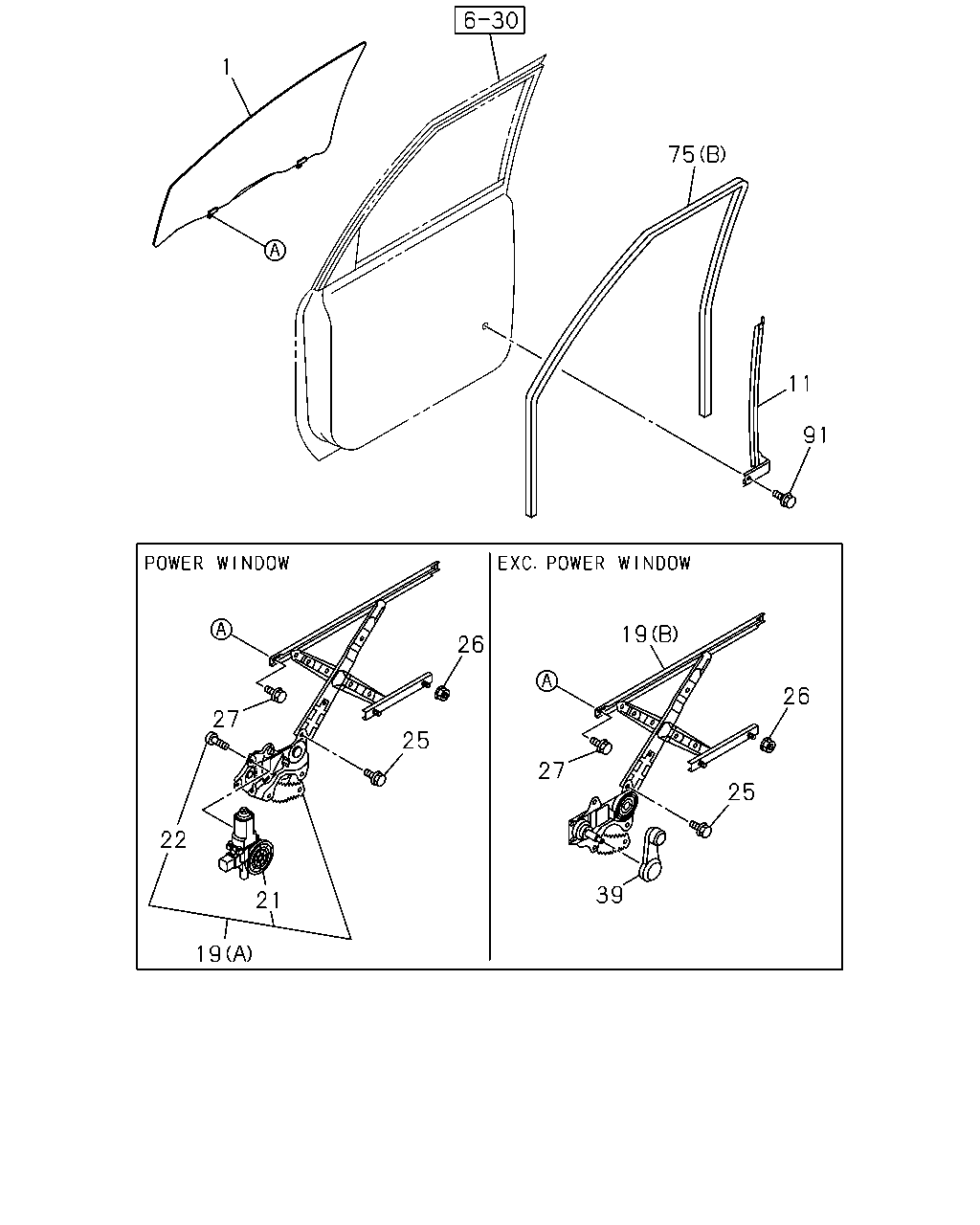

çizim 131022
1 75 11 91 19 26 26 27 25 27 25 22 39 21 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.180 GLASS; FRT DOOR 8-98073-843-2 01 1 1203- ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-98073-844-2 01 1 1203- ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-98100-794-6 01 1 1203- ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98100-794-6 01 1 1203- ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-98100-793-5 01 1 1203- ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98100-792-5 01 1 1203- ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98100-792-5 01 1 1203- ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> (A) 		8-98093-554-1 01 1 1203- ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> (A) 		8-98093-555-1 01 1 1203- ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ> (B) 		8-98093-551-1 01 1 1203- ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ> (B) 		8-98093-552-1 01 1 1203- ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> 		8-98160-724-0 01 1 1203- ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> 		8-98160-725-0 01 1 1203- ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW SAFETY DOOR<ABZ> 		8-98195-236-0 03 1 1203- ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW SAFETY DOOR<ABZ> 		8-98195-236-0 03 1 1203- ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1203- ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-98049-362-0 04 1 1203- ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
M6X10 FLANGE 		8-98188-381-0 04 1 1203- ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ> BLACK 		8-97416-724-0 02 1 1203- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1203- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1203- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98052-193-4 01 1 1203-1401 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-453-0 01 1 1402-1405 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1406- ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98052-194-4 01 1 1203-1401 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-454-0 01 1 1402-1405 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1406- ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-107-0 01 1 1203- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-108-0 01 1 1203- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98120-713-0 01 1 1203- ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98120-714-0 01 1 1203- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98101-047-8 01 1 1203-1401 ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-455-0 01 1 1402-1405 ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-672-0 01 1 1406- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98101-048-8 01 1 1203-1401 ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-456-0 01 1 1402-1405 ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-673-0 01 1 1406- ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1203- ● ● ● ● ●

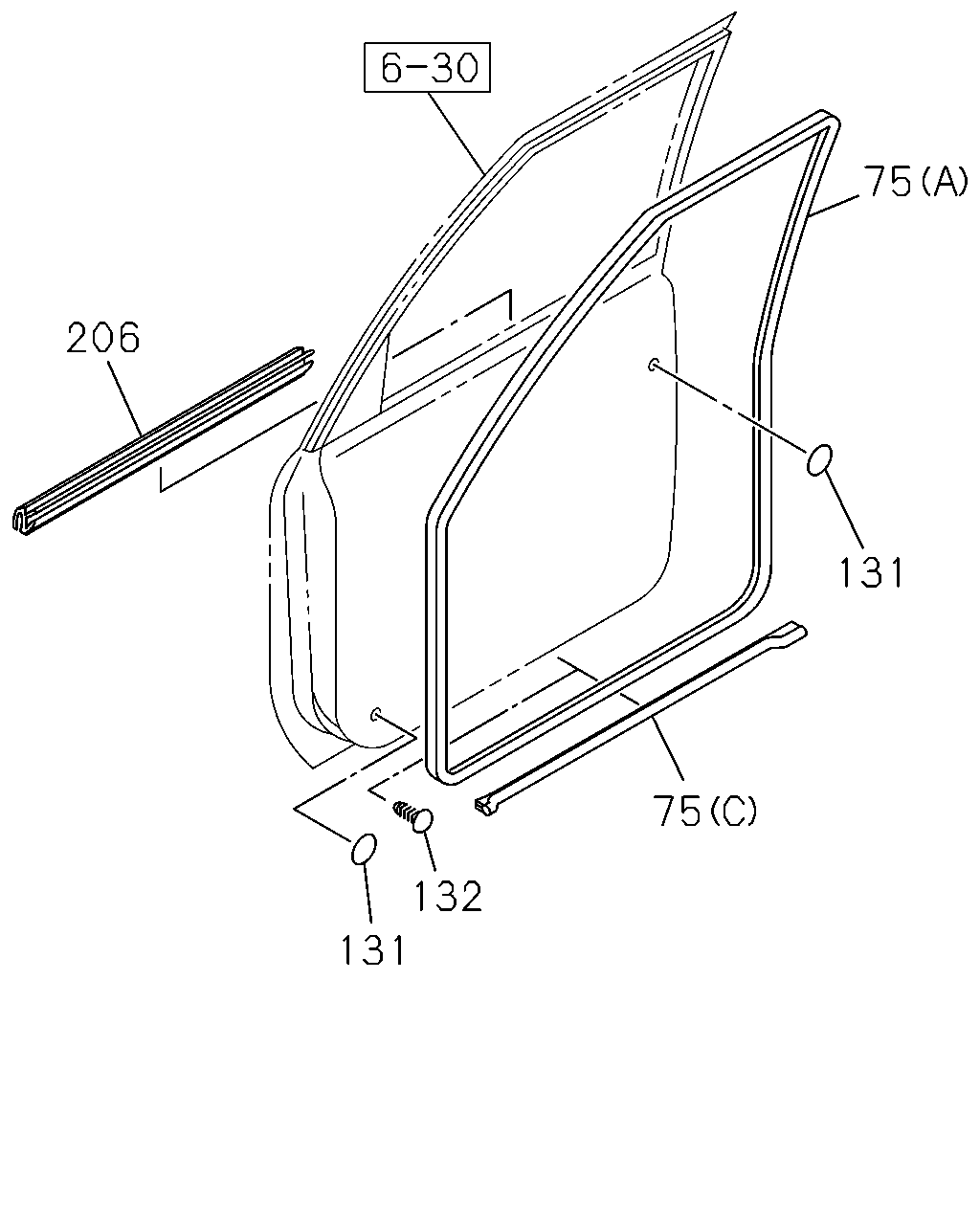

çizim 131134
75 206 131 75 132 131
BalonParca AdiParca NoAdetTipApplied Date A B C D E
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1203- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1203- ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98052-193-4 01 1 1203-1401 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-453-0 01 1 1402-1405 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1406- ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98052-194-4 01 1 1203-1401 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-454-0 01 1 1402-1405 ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1406- ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-107-0 01 1 1203- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98165-108-0 01 1 1203- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98120-713-0 01 1 1203- ●
75 16.183 WEATHERSTRIP; FRT DOOR
INTERIOR CUSTOM(RBD) (C) 		8-98120-714-0 01 1 1203- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98101-047-8 01 1 1203-1401 ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-455-0 01 1 1402-1405 ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-672-0 01 1 1406- ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98101-048-8 01 1 1203-1401 ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-456-0 01 1 1402-1405 ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-673-0 01 1 1406- ●
131 16.183 SEAL; FRT DOOR
16.165 OD=25 BLACK 		1-76798-019-0 04 1 1203- ● ● ● ● ●
132 16.183 CLIP; SEAL,DOOR
INTERIOR BASIC(RBA) 16.067 		8-94279-922-0 14 1 1203- ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98052-197-2 01 1 1203- ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98052-198-2 01 1 1203- ● ● ● ● ●
