◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-10 - ENGINE HOOD AND LOCK ▶
6-10 — ENGINE HOOD AND LOCK (#79690) — 34 parça

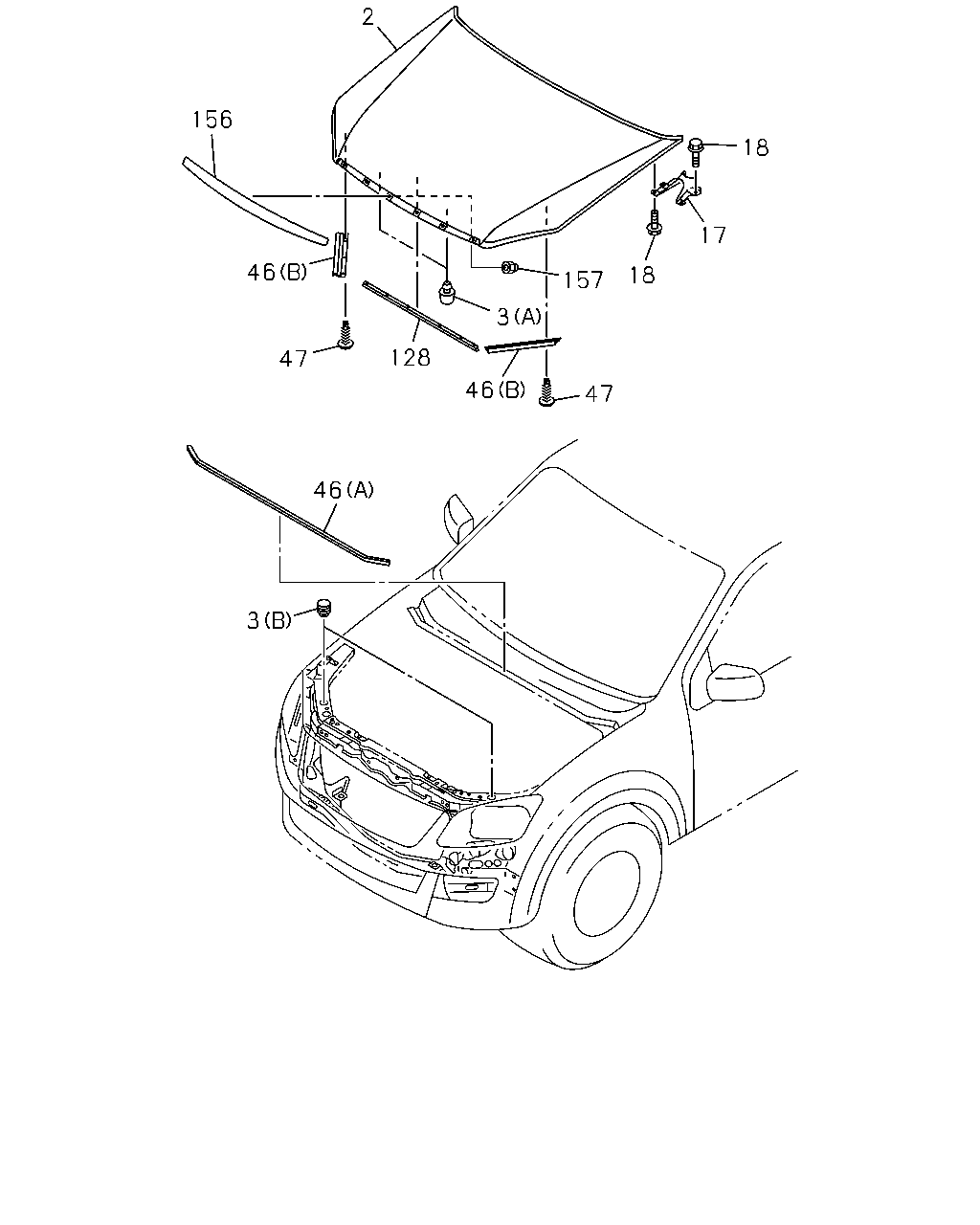

çizim 126649
2 156 18 17 46 18 157 3 128 47 46 47 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 08.000 PANEL; ENG HOOD 8-98193-818-0 01 1 1203- ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
16.400 (A) 		8-94358-581-0 02 1 1203-1308 ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(A) 		8-97948-266-0 02 1 1309- ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(B) 		8-98195-454-0 02 1 1203- ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-98104-099-2 01 1 1203- ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-98104-100-2 01 1 1203- ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 1203- ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 1203- ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
(A) 		8-98065-805-1 01 1 1203- ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
(B) 		8-98160-815-1 01 1 1203- ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
(B) 		8-98165-802-1 01 1 1203- ● ● ● ● ●
47 08.095 CLIP; HOOD SEAL
16.069 OD=12 L=14.8 		8-94279-921-0 06 1 1203- ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60) 		8-98102-230-0 01 1 1203- ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98102-230-0 01 1 1203- ● ● ●
156 08.010 MOLDING; HOOD 8-98181-163-3 01 1 1203- ● ●
156 08.010 MOLDING; HOOD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> 		8-98181-163-3 01 1 1203- ● ● ●
156 08.010 MOLDING; HOOD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> PLATED 		8-98181-164-3 01 1 1203-1401 ● ● ●
156 08.010 MOLDING; HOOD
BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> PLATED 		8-98269-566-0 01 1 1402- ● ● ●
157 08.010 NUT; MOLDING
08.155 M6 CAP NUT 		8-98049-850-0 06 1 1203- ● ● ● ● ●

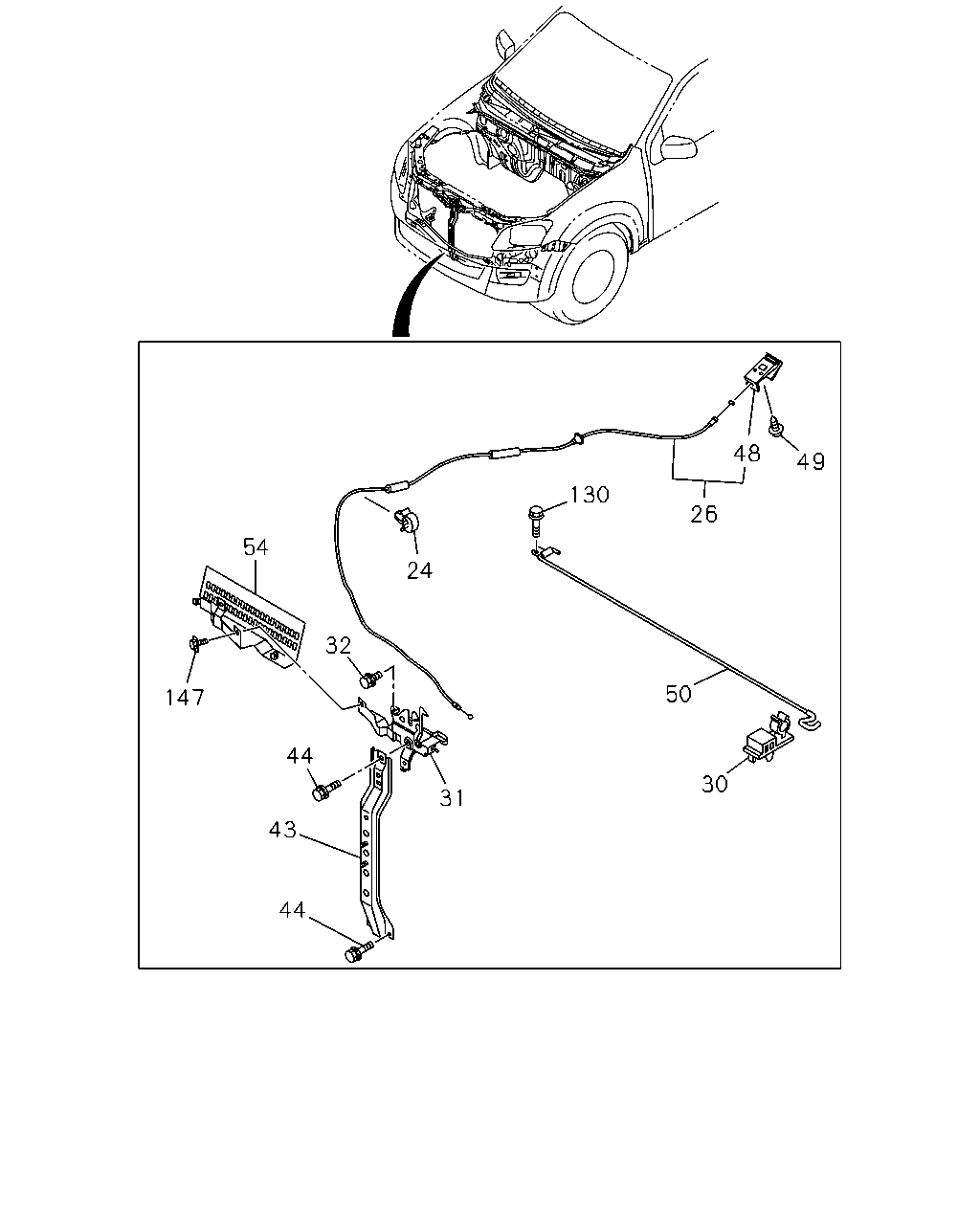

çizim 126769
147 44 31 43 44 32 54 24 130 26 50 30 48 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 08.077 CLIP; CONT CABLE 8-97182-405-0 03 1 1203- ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT 8-98071-759-1 01 1 1203- ● ● ● ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD 8-97301-356-0 01 1 1203- ● ● ● ● ●
31 08.083 LOCK; ENG HOOD 8-98074-561-4 01 1 1203- ● ●
31 08.083 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98074-561-4 01 1 1203- ● ● ●
31 08.083 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98074-562-4 01 1 1203- ● ● ●
32 08.077 BOLT; HOOD LK
M6X20 W/PL WASHER 		8-97370-668-0 02 1 1203- ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-98165-341-0 01 1 1203- ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97370-668-0 04 1 1203- ● ● ● ● ●
48 08.083 LEVER; ENG HOOD 8-98204-979-0 01 1 1203- ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98167-449-0 02 1 1203- ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD 8-98101-948-1 01 1 1203- ● ● ● ● ●
54 08.054 PROTECTOR; ENG HOOD CABLE 8-98160-811-2 01 1 1203- ● ● ● ● ●
130 08.077 BOLT; SUPPORT ROD,HOOD
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1203- ● ● ● ● ●
147 08.013 CLIP; COVER
08.154 		8-94221-150-0 02 1 1203- ● ● ● ● ●
