Sayfa 4-65 - Isuzu EPC

4-65 — REAR LEAF SPRING (#79678) — 172 parça

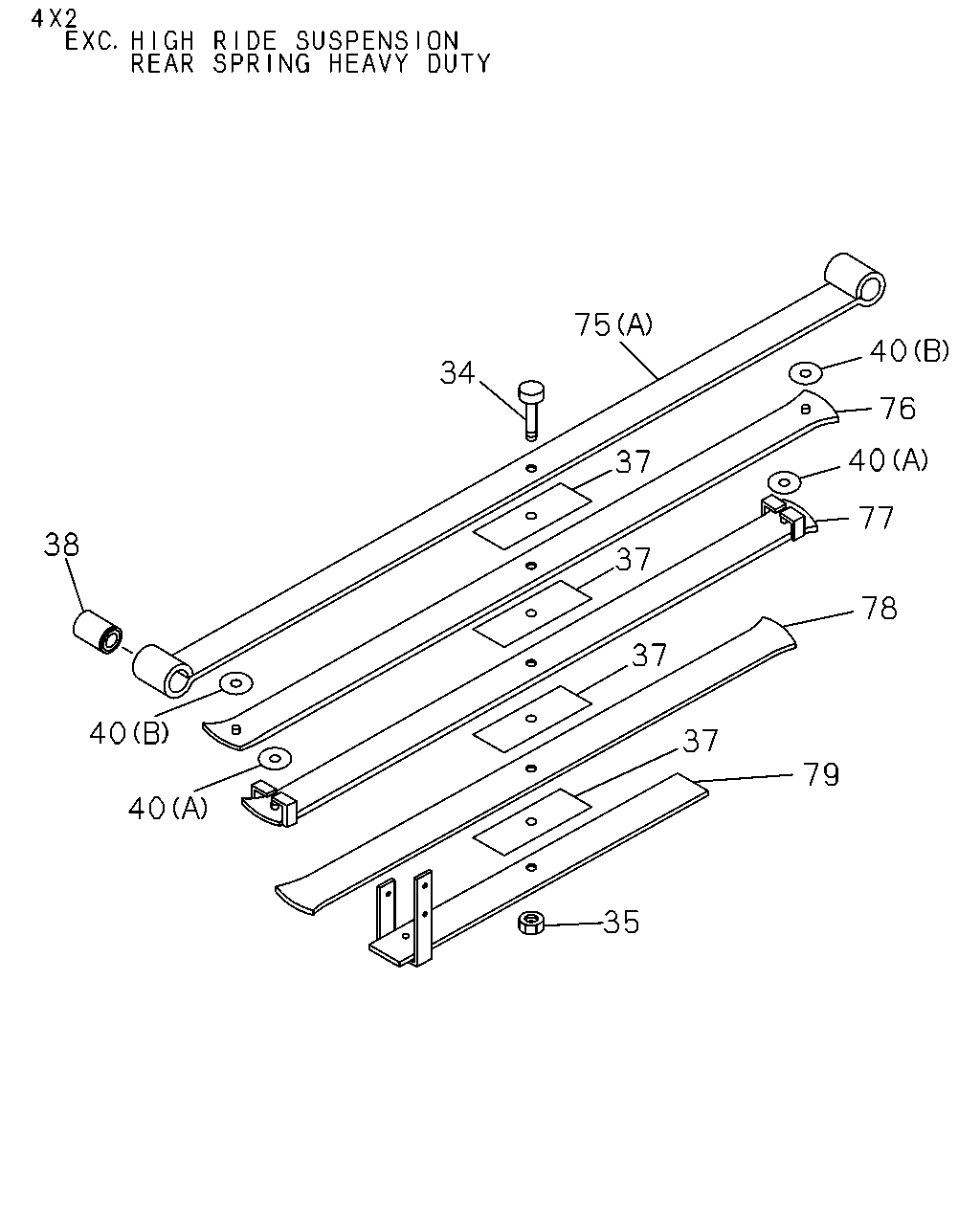

75 40 34 76 40 37 77 38 37 78 37 40 37 79 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, G = 8-98215-684-0, 98215684, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, G = 8-98215-684-0, 98215684, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677, H = 8-98218-543-0, 98218543	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677, H = 8-98218-543-0, 98218543	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684, H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-011-3, 97947011	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: H = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98215-882-0	01	1	-

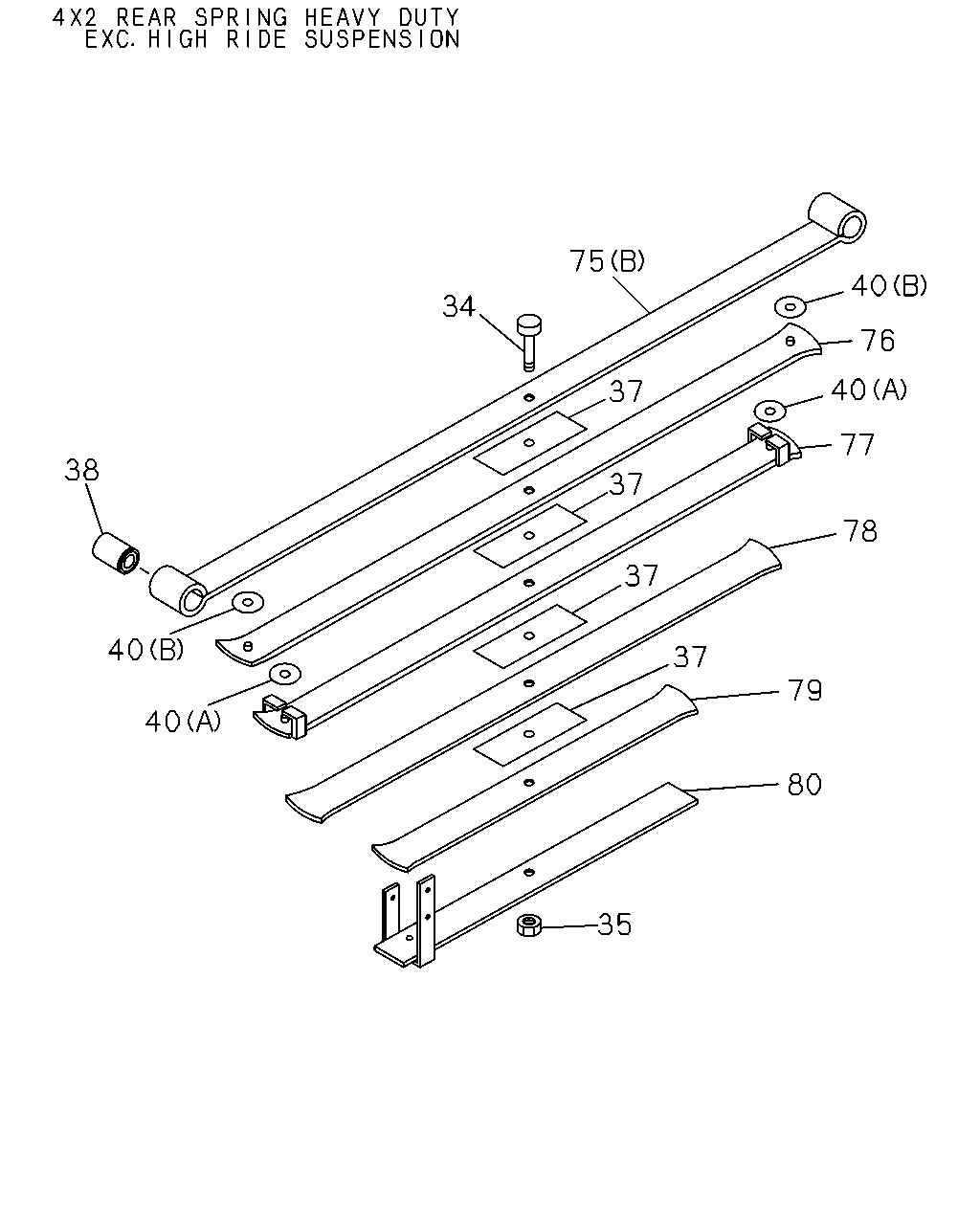

75 40 34 76 40 37 77 38 37 78 37 40 37 79 40 80 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, G = 8-98215-684-0, 98215684, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, G = 8-98215-684-0, 98215684, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677, H = 8-98218-543-0, 98218543	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677, H = 8-98218-543-0, 98218543	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684, H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-011-3, 97947011	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: H = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98215-882-0	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: B = 8-97947-009-2, 97947009	8-97947-435-1	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: F = 8-98215-677-0, 98215677	8-98215-879-0	01	1	-

75 40 35 76 40 37 77 38 37 37 40 78 40 79 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, G = 8-98215-684-0, 98215684, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, G = 8-98215-684-0, 98215684, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677, H = 8-98218-543-0, 98218543	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677, H = 8-98218-543-0, 98218543	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684, H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-011-3, 97947011	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: H = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98215-882-0	01	1	-

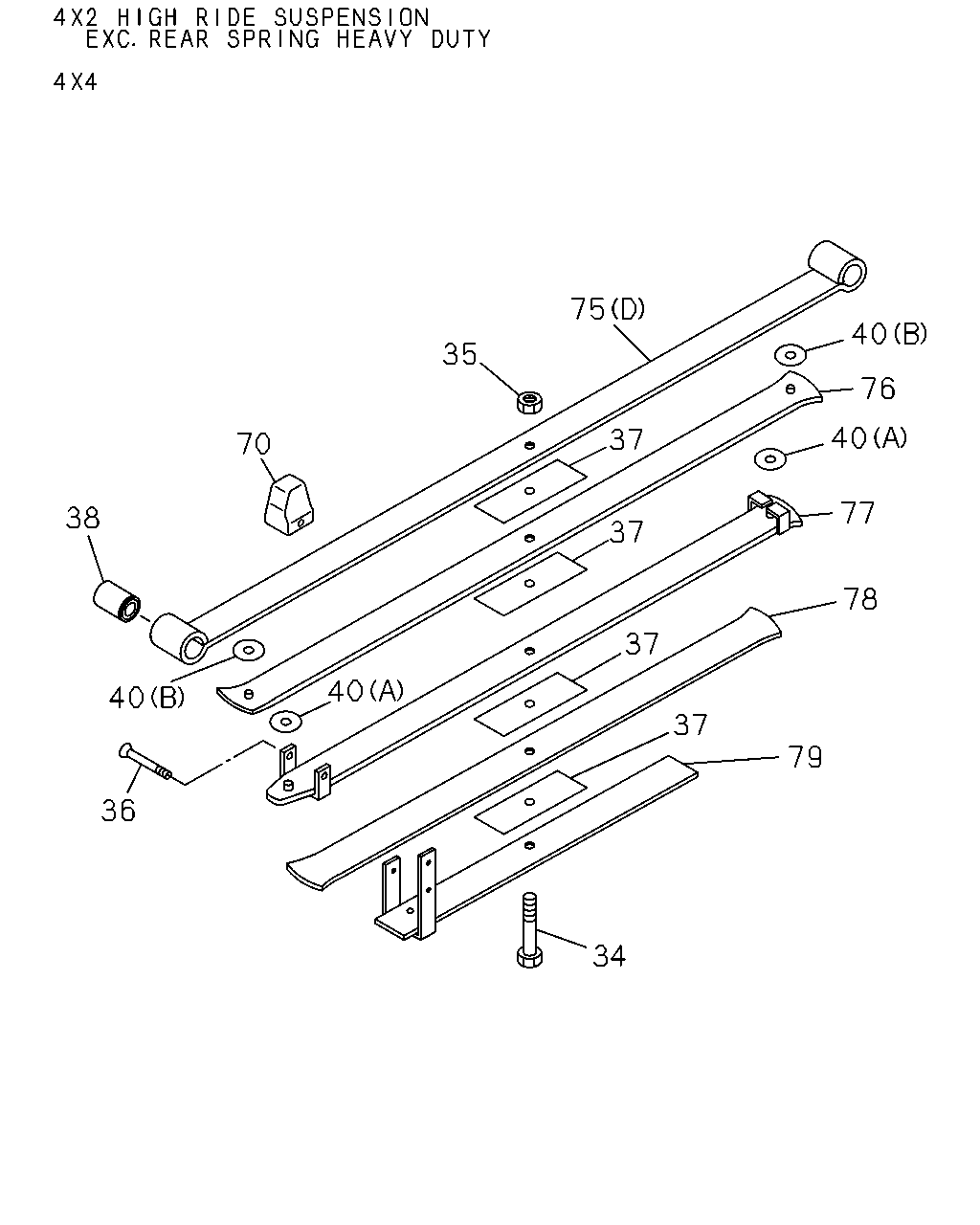

75 40 35 76 40 37 70 77 38 37 78 37 40 40 37 79 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, G = 8-98215-684-0, 98215684, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, G = 8-98215-684-0, 98215684, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677, H = 8-98218-543-0, 98218543	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677, H = 8-98218-543-0, 98218543	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684, H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97947-008-2, 97947008, B = 8-97947-009-2, 97947009, C = 8-97947-011-3, 97947011, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98215-677-0, 98215677, G = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: H = 8-98218-543-0, 98218543, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-584-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97947-008-2, 97947008, H = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-97947-011-3, 97947011	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-009-2, 97947009, F = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-97947-011-3, 97947011, G = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: H = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: I = 8-98218-551-0, 98218551, J = 8-98218-552-0, 98218552	8-98215-882-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
