4-60 — REAR SUSPENSION (#79676) — 114 parça

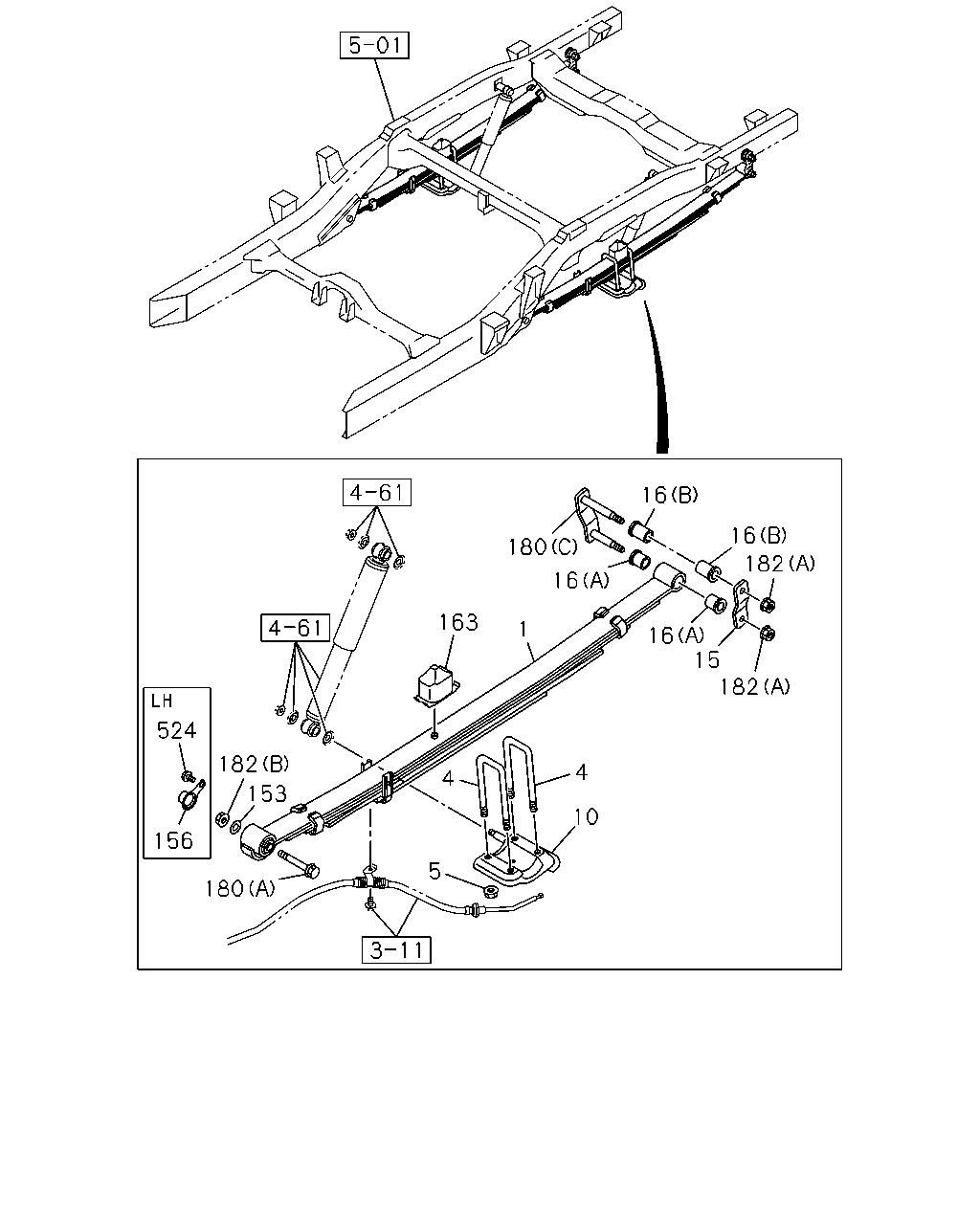

16 16 182 180 16 163 1 16 15 182 524 182 4 4 153 10 156 5 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50)	8-97947-009-2	02	1	1203-1207	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-009-2	02	1	1203-1207		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50)	8-98215-677-0	02	1	1208-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-98215-677-0	02	1	1208-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-008-2	02	1	1203-1207	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-97947-008-2	02	1	1203-1207		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) EXC. REAR SPRING HEAVY DUTY(G50)	8-98218-543-0	02	1	1208-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-98218-543-0	02	1	1208-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-97947-011-3	02	1	1203-1206		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-98215-684-0	02	1	1207-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-98193-439-2	02	1	1203-1207		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU)	8-98193-439-2	02	1	1203-1207			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-98218-552-0	02	1	1208-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU)	8-98218-552-0	02	1	1208-			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1)	8-98193-440-2	02	1	1203-1207			●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1)	8-98218-551-0	02	1	1208-			●		●
4	07.516 U-BOLT; RR SPR REAR SPRING HEAVY DUTY(G50) L=187	8-97248-621-1	04	1	1203-	●
4	07.516 U-BOLT; RR SPR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) L=187	8-97248-621-1	04	1	1203-		●
4	07.516 U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY(G50) L=175	8-97947-045-0	04	1	1203-	●
4	07.516 U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) L=175	8-97947-045-0	04	1	1203-		●
4	07.516 U-BOLT; RR SPR HIGH RIDE SUSPENSION(7YC) L=170	8-97946-550-0	04	1	1203-		●
4	07.516 U-BOLT; RR SPR L=170	8-97946-550-0	04	1	1203-			●	●	●
5	07.529 NUT; U-BOLT,RR SPR M14 FLANGE	8-97245-635-0	08	1	1203-	●	●	●	●	●
10	07.529 CLAMP; LWR,RR SPR	8-98160-070-0	01	1	1203-	●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-070-0	01	1	1203-		●
10	07.529 CLAMP; LWR,RR SPR	8-98160-083-0	01	1	1203-	●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-083-0	01	1	1203-		●
10	07.529 CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-850-1	01	1	1203-		●
10	07.529 CLAMP; LWR,RR SPR	8-98165-850-1	01	1	1203-			●	●	●
10	07.529 CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-851-1	01	1	1203-		●
10	07.529 CLAMP; LWR,RR SPR	8-98165-851-1	01	1	1203-			●	●	●
15	07.523 SHACKLE; RR SPR	8-98005-815-0	02	1	1203-	●
15	07.523 SHACKLE; RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-815-0	02	1	1203-		●
15	07.523 SHACKLE; RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-551-1	02	1	1203-		●
15	07.523 SHACKLE; RR SPR	8-97946-551-1	02	1	1203-			●	●	●
16	07.524 BUSHING; SHACKLE,RR SPR (C)	8-97357-492-0	08	1	1203-	●
16	07.524 BUSHING; SHACKLE,RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97357-492-0	08	1	1203-		●
16	07.524 BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (A)	8-97357-492-0	04	1	1203-		●
16	07.524 BUSHING; SHACKLE,RR SPR (A)	8-97357-492-0	04	1	1203-			●	●	●
16	07.524 BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (B)	8-97946-545-0	04	1	1203-		●
16	07.524 BUSHING; SHACKLE,RR SPR (B)	8-97946-545-0	04	1	1203-			●	●	●
153	07.529 WASHER; PL,SPRING PIN ID=14.5 OD=30	8-98005-921-0	02	1	1203-	●	●	●	●	●
156	07.526 PROTECTOR; LEAF SPRING,RR SUSP	8-97947-363-0	01	1	1203-	●	●	●	●	●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-803-1	02	1	1203-	●
163	07.529 RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-803-1	02	1	1203-		●
163	07.529 RUBBER; HELPER,RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-549-3	02	1	1203-		●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-549-3	02	1	1203-			●	●	●
180	07.529 PIN; RR SPR (A)	8-97947-078-0	02	1	1203-	●	●	●	●	●
180	07.529 PIN; RR SPR (B)	8-98005-814-0	02	1	1203-	●
180	07.529 PIN; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-814-0	02	1	1203-		●
180	07.529 PIN; RR SPR HIGH RIDE SUSPENSION(7YC) (C)	8-97946-547-1	02	1	1203-		●
180	07.529 PIN; RR SPR (C)	8-97946-547-1	02	1	1203-			●	●	●
182	07.529 NUT; PIN,RR SPR (A) M14 FLANGE	0-91180-114-0	04	1	1203-	●	●	●	●	●
182	07.529 NUT; PIN,RR SPR (B) M14 FLANGE	8-97245-651-0	02	1	1203-	●	●	●	●	●
524	07.516 BOLT; RR SPR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1203-	●	●	●	●	●

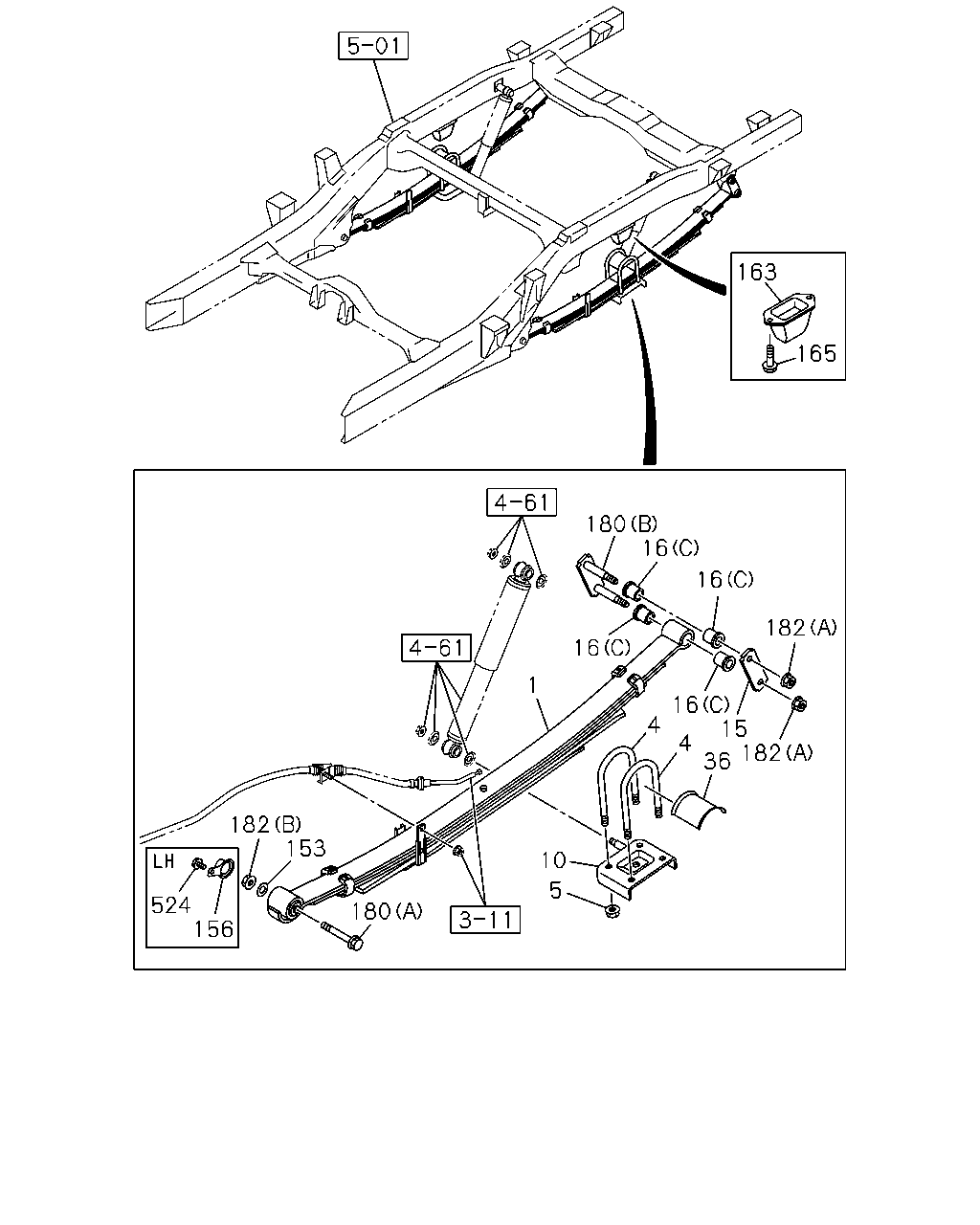

163 165 180 16 16 182 16 1 16 15 182 4 4 36 182 153 10 5 524 156 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50)	8-97947-009-2	02	1	1203-1207	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-009-2	02	1	1203-1207		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50)	8-98215-677-0	02	1	1208-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-98215-677-0	02	1	1208-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-008-2	02	1	1203-1207	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-97947-008-2	02	1	1203-1207		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) EXC. REAR SPRING HEAVY DUTY(G50)	8-98218-543-0	02	1	1208-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-98218-543-0	02	1	1208-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-97947-011-3	02	1	1203-1206		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-98215-684-0	02	1	1207-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-98193-439-2	02	1	1203-1207		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU)	8-98193-439-2	02	1	1203-1207			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-98218-552-0	02	1	1208-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. M/T AISIN 6 SPEED(RNU)	8-98218-552-0	02	1	1208-			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1)	8-98193-440-2	02	1	1203-1207			●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1)	8-98218-551-0	02	1	1208-			●		●
4	07.516 U-BOLT; RR SPR REAR SPRING HEAVY DUTY(G50) L=187	8-97248-621-1	04	1	1203-	●
4	07.516 U-BOLT; RR SPR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) L=187	8-97248-621-1	04	1	1203-		●
4	07.516 U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY(G50) L=175	8-97947-045-0	04	1	1203-	●
4	07.516 U-BOLT; RR SPR EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) L=175	8-97947-045-0	04	1	1203-		●
4	07.516 U-BOLT; RR SPR HIGH RIDE SUSPENSION(7YC) L=170	8-97946-550-0	04	1	1203-		●
4	07.516 U-BOLT; RR SPR L=170	8-97946-550-0	04	1	1203-			●	●	●
5	07.529 NUT; U-BOLT,RR SPR M14 FLANGE	8-97245-635-0	08	1	1203-	●	●	●	●	●
10	07.529 CLAMP; LWR,RR SPR	8-98160-070-0	01	1	1203-	●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-070-0	01	1	1203-		●
10	07.529 CLAMP; LWR,RR SPR	8-98160-083-0	01	1	1203-	●
10	07.529 CLAMP; LWR,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-083-0	01	1	1203-		●
10	07.529 CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-850-1	01	1	1203-		●
10	07.529 CLAMP; LWR,RR SPR	8-98165-850-1	01	1	1203-			●	●	●
10	07.529 CLAMP; LWR,RR SPR HIGH RIDE SUSPENSION(7YC)	8-98165-851-1	01	1	1203-		●
10	07.529 CLAMP; LWR,RR SPR	8-98165-851-1	01	1	1203-			●	●	●
15	07.523 SHACKLE; RR SPR	8-98005-815-0	02	1	1203-	●
15	07.523 SHACKLE; RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-815-0	02	1	1203-		●
15	07.523 SHACKLE; RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-551-1	02	1	1203-		●
15	07.523 SHACKLE; RR SPR	8-97946-551-1	02	1	1203-			●	●	●
16	07.524 BUSHING; SHACKLE,RR SPR (C)	8-97357-492-0	08	1	1203-	●
16	07.524 BUSHING; SHACKLE,RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97357-492-0	08	1	1203-		●
16	07.524 BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (A)	8-97357-492-0	04	1	1203-		●
16	07.524 BUSHING; SHACKLE,RR SPR (A)	8-97357-492-0	04	1	1203-			●	●	●
16	07.524 BUSHING; SHACKLE,RR SPR HIGH RIDE SUSPENSION(7YC) (B)	8-97946-545-0	04	1	1203-		●
16	07.524 BUSHING; SHACKLE,RR SPR (B)	8-97946-545-0	04	1	1203-			●	●	●
36	07.529 SEAT; HELPER RUBBER,RR SPR	8-98005-878-0	02	1	1203-	●
36	07.529 SEAT; HELPER RUBBER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-98005-878-0	02	1	1203-		●
153	07.529 WASHER; PL,SPRING PIN ID=14.5 OD=30	8-98005-921-0	02	1	1203-	●	●	●	●	●
156	07.526 PROTECTOR; LEAF SPRING,RR SUSP	8-97947-363-0	01	1	1203-	●	●	●	●	●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-803-1	02	1	1203-	●
163	07.529 RUBBER; HELPER,RR SPR EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-803-1	02	1	1203-		●
163	07.529 RUBBER; HELPER,RR SPR HIGH RIDE SUSPENSION(7YC)	8-97946-549-3	02	1	1203-		●
163	07.529 RUBBER; HELPER,RR SPR	8-97946-549-3	02	1	1203-			●	●	●
165	07.529 BOLT; HELPER RUBBER 07.068 M10X30 FLANGE	0-28661-030-0	04	1	1203-	●
165	07.529 BOLT; HELPER RUBBER EXC. HIGH RIDE SUSPENSION(7YC) 07.068 M10X30 FLANGE	0-28661-030-0	04	1	1203-		●
180	07.529 PIN; RR SPR (A)	8-97947-078-0	02	1	1203-	●	●	●	●	●
180	07.529 PIN; RR SPR (B)	8-98005-814-0	02	1	1203-	●
180	07.529 PIN; RR SPR EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98005-814-0	02	1	1203-		●
180	07.529 PIN; RR SPR HIGH RIDE SUSPENSION(7YC) (C)	8-97946-547-1	02	1	1203-		●
180	07.529 PIN; RR SPR (C)	8-97946-547-1	02	1	1203-			●	●	●
182	07.529 NUT; PIN,RR SPR (A) M14 FLANGE	0-91180-114-0	04	1	1203-	●	●	●	●	●
182	07.529 NUT; PIN,RR SPR (B) M14 FLANGE	8-97245-651-0	02	1	1203-	●	●	●	●	●
524	07.516 BOLT; RR SPR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1203-	●	●	●	●	●
