◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51375 - TFR/TFS(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#79673) — 32 parça

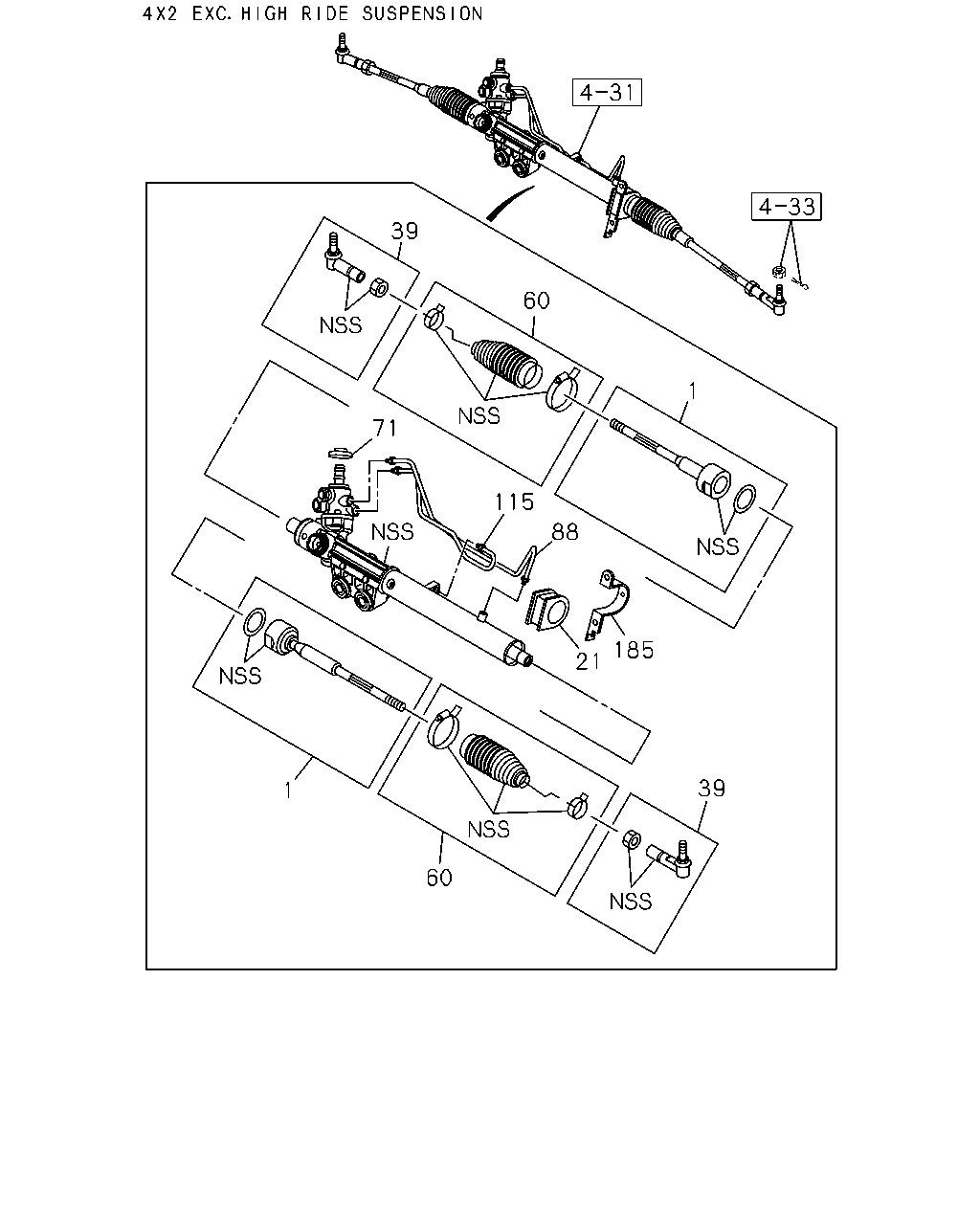

çizim 124327
39 60 1 71 115 88 185 21 39 1 60
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-967-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-055-0 02 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-97946-129-1, 97946129 		8-97304-908-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: B = 8-97946-131-1, 97946131 		8-97945-426-0 01 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-97946-129-1, 97946129 		8-98055-746-0 02 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: B = 8-97946-131-1, 97946131 		8-98056-551-0 01 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: B = 8-97946-131-1, 97946131 		8-97945-423-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-97946-129-1, 97946129 		8-98055-745-0 02 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-972-0 01 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-054-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-970-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-050-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-969-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-051-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-968-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-053-0 01 1 -

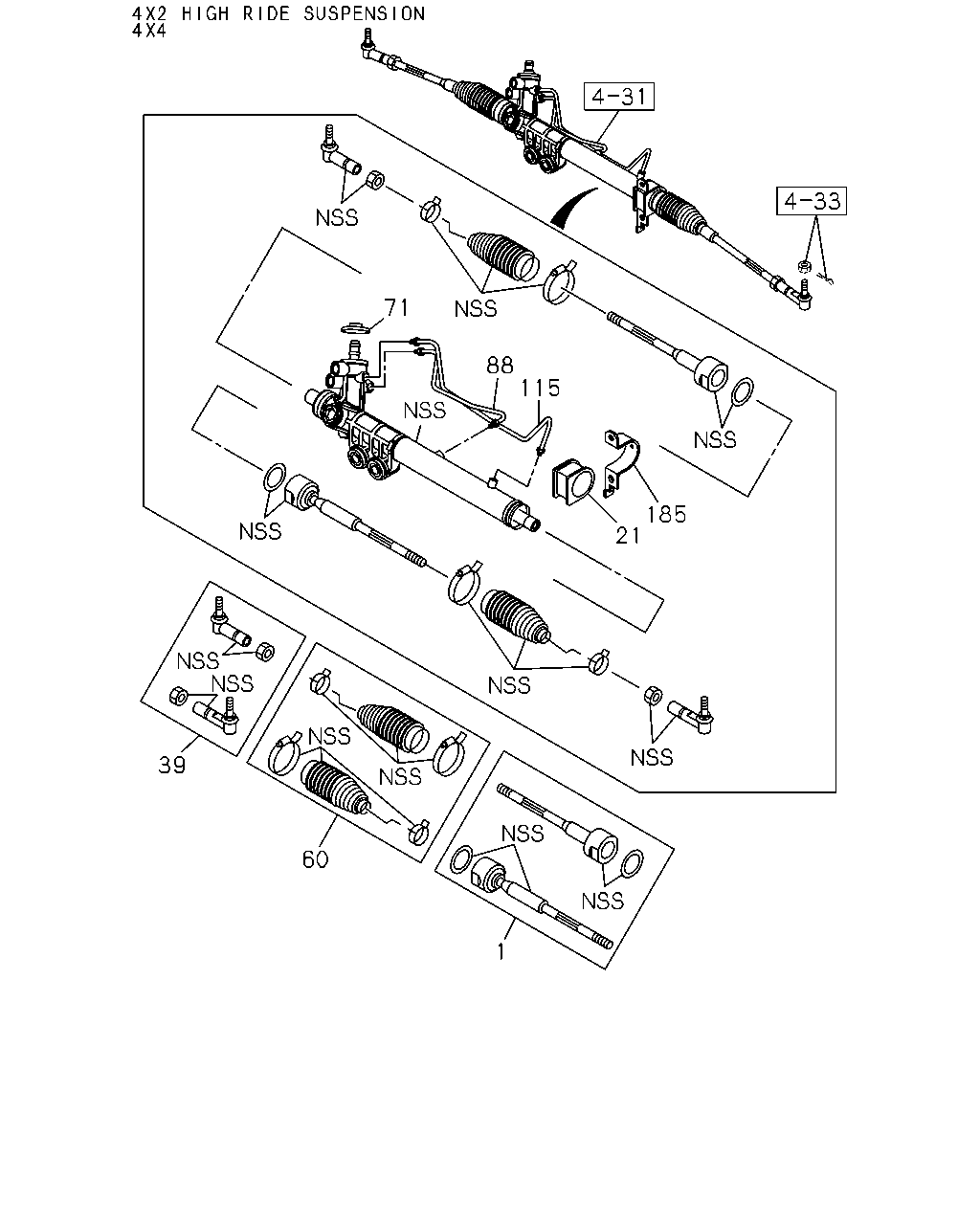

çizim 182917
71 88 115 185 21 39 60 1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-967-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-055-0 02 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-97946-129-1, 97946129 		8-97304-908-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: B = 8-97946-131-1, 97946131 		8-97945-426-0 01 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-97946-129-1, 97946129 		8-98055-746-0 02 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: B = 8-97946-131-1, 97946131 		8-98056-551-0 01 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: B = 8-97946-131-1, 97946131 		8-97945-423-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-97946-129-1, 97946129 		8-98055-745-0 02 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-972-0 01 1 -
71 06.242 COVER; DUST,STRG UNIT
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-054-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-970-0 01 1 -
88 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-050-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-969-0 01 1 -
115 06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-051-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: B = 8-97946-131-1, 97946131 		8-98164-968-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-97946-129-1, 97946129 		8-98165-053-0 01 1 -
