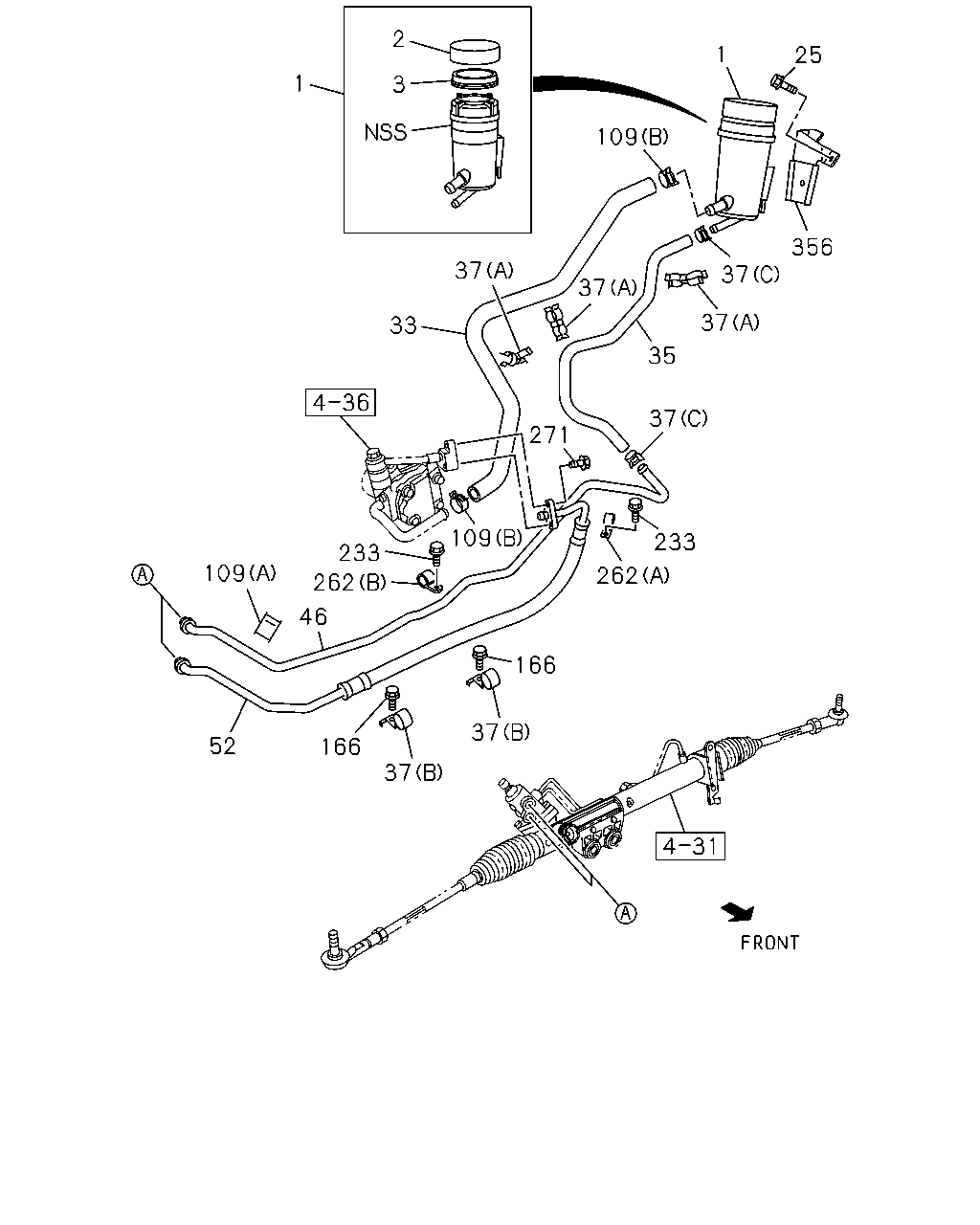

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#79671) — 28 parça

2 1 25 1 3 109 356 37 37 37 37 33 35 37 271 109 233 233 109 262 262 46 166 37 52 166 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1203-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1203-	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1203-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1203-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1203-	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1203-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S AIR CONDITIONER MANUAL CONT(C60) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1203-	●			●
37	01.762 CLIP; HOSE,P/S AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1203-		●	●		●
37	01.762 CLIP; HOSE,P/S 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1203-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5 L=21	8-97947-121-1	02	1	1203-1203	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1204-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1203-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97946-149-2	01	1	1203-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-149-2	01	1	1203-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK HIGH RIDE SUSPENSION(7YC)	8-97946-151-2	01	1	1203-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97946-151-2	01	1	1203-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97946-143-0	01	1	1203-	●
52	06.673 HOSE; FLEX,P/S CONT VLV EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-143-0	01	1	1203-		●
52	06.673 HOSE; FLEX,P/S CONT VLV HIGH RIDE SUSPENSION(7YC)	8-97946-145-0	01	1	1203-		●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-97946-145-0	01	1	1203-			●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=10X2 H=22	8-94252-455-2	01	1	1203-	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1203-	●	●	●	●	●
166	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1203-	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1203-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1203-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1203-	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1203-	●	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1203-	●	●	●	●	●
