4-11 — FRONT HUB AND DRUM OR ROTOR (#79663) — 121 parça

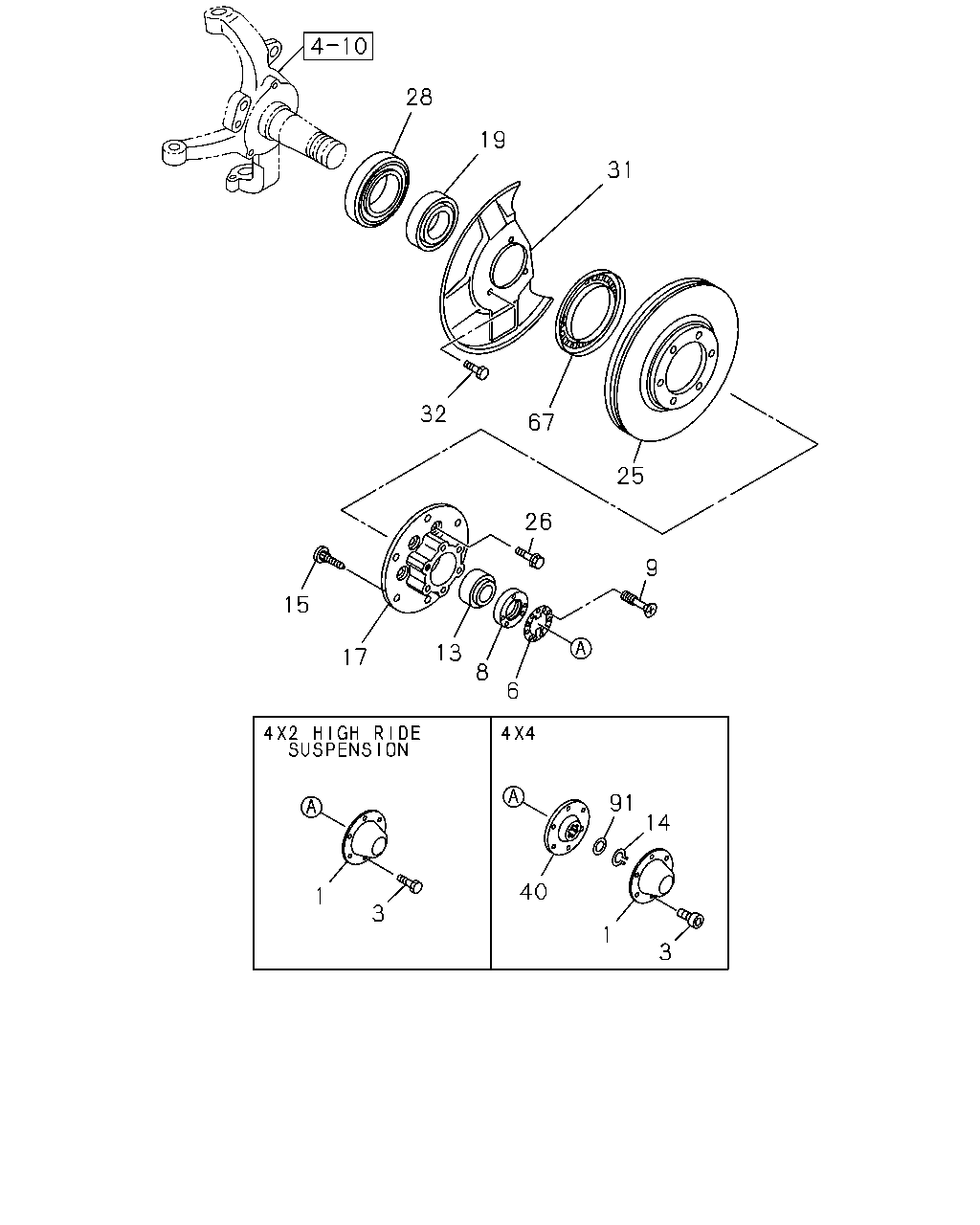

çizim 122533
28 19 31 32 67 25 26 9 15 13 17 8 6 91 14 40 1 3 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.330 CAP; HUB,FRT AXLE 8-98006-055-0 02 1 1203- ●
1 06.330 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-055-0 02 1 1203- ●
1 06.330 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-565-0 02 1 1203- ●
1 06.330 CAP; HUB,FRT AXLE 8-97944-565-0 02 1 1203- ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
HIGH RIDE SUSPENSION(7YC) 06.174 M10X20 		0-20951-020-0 12 1 1203- ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
M10X33 		8-98117-920-0 12 1 1203- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-97382-661-0 02 1 1203- ●
6 05.812 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-97382-661-0 02 1 1203- ●
6 05.812 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 1203- ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 1203- ● ● ●
8 05.812 NUT; ADJ,FRT HUB
HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8 		8-94442-399-1 02 1 1203- ●
8 05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 1203- ● ● ●
9 05.812 SCREW; ADJ,NUT
HIGH RIDE SUSPENSION(7YC) M4X8 CK-HEAD 		8-98008-301-0 06 1 1203- ●
9 05.812 SCREW; ADJ,NUT
M4X8 CK-HEAD 		8-98008-301-0 06 1 1203- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		8-94242-913-0 02 1 1203- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-913-0 02 1 1203- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 1203- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 1203- ● ● ●
14 05.813 RING; SPR,FRT WHEEL
08.934 ID=25.9 		9-09180-028-0 02 1 1203- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97944-564-1 12 1 1203- ● ● ● ● ●
17 06.307 HUB; FRT AXLE 8-97238-417-1 02 1 1203-1509 ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-417-1 02 1 1203-1509 ●
17 06.307 HUB; FRT AXLE 8-98303-347-0 02 1 1510- ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98303-347-0 02 1 1510- ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98054-665-0 02 1 1203-1509 ●
17 06.307 HUB; FRT AXLE 8-98054-665-0 02 1 1203-1509 ● ● ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98303-348-0 02 1 1510- ●
17 06.307 HUB; FRT AXLE 8-98303-348-0 02 1 1510- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 1203- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 1203- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 1203- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 1203- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97360-677-2 02 1 1203-1509 ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97360-677-2 02 1 1203-1509 ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-259-1 02 1 1510- ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-259-1 02 1 1510- ●
25 05.809 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98124-663-4 02 1 1203-1509 ●
25 05.809 ROTOR; DISC BRK,FRT 8-98124-663-4 02 1 1203-1509 ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98124-664-3 02 1 1510- ●
25 05.809 ROTOR; DISC BRK,FRT 8-98124-664-3 02 1 1510- ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE 		8-98006-065-0 12 1 1203- ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-593-0 02 1 1203- ●
28 06.326 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98036-593-0 02 1 1203- ●
28 06.326 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION(7YC) 		8-98036-594-0 02 1 1203- ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-594-0 02 1 1203- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-98008-148-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-148-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE 8-98008-149-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-149-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) 		8-98062-190-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE 8-98062-190-0 01 1 1203- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) 		8-98062-191-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE 8-98062-191-0 01 1 1203- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98006-352-0 06 1 1203- ● ● ● ● ●
40 06.308 FLANGE; FRT WHEEL HUB 8-94173-313-0 02 1 1203-1207 ● ● ●
40 06.308 FLANGE; FRT WHEEL HUB 8-98197-869-0 02 1 1208- ● ● ●
67 05.811 ROTOR; SENSOR 8-97238-278-0 02 1 1203- ●
67 05.811 ROTOR; SENSOR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-278-0 02 1 1203- ●
67 05.811 ROTOR; SENSOR
HIGH RIDE SUSPENSION(7YC) 		8-97238-280-0 02 1 1203- ●
67 05.811 ROTOR; SENSOR 8-97238-280-0 02 1 1203- ● ● ●
91 06.056 SPACER; HUB BRG
06.323 T=0.20 		8-94178-929-0 AR 1 1203- ● ● ●
91 06.056 SPACER; HUB BRG
06.323 T=0.30 		8-94178-930-0 AR 1 1203- ● ● ●
91 06.056 SPACER; HUB BRG
06.323 T=0.50 		8-94178-931-0 AR 1 1203- ● ● ●
91 06.056 SPACER; HUB BRG
06.323 T=1.00 		8-94178-932-0 AR 1 1203- ● ● ●

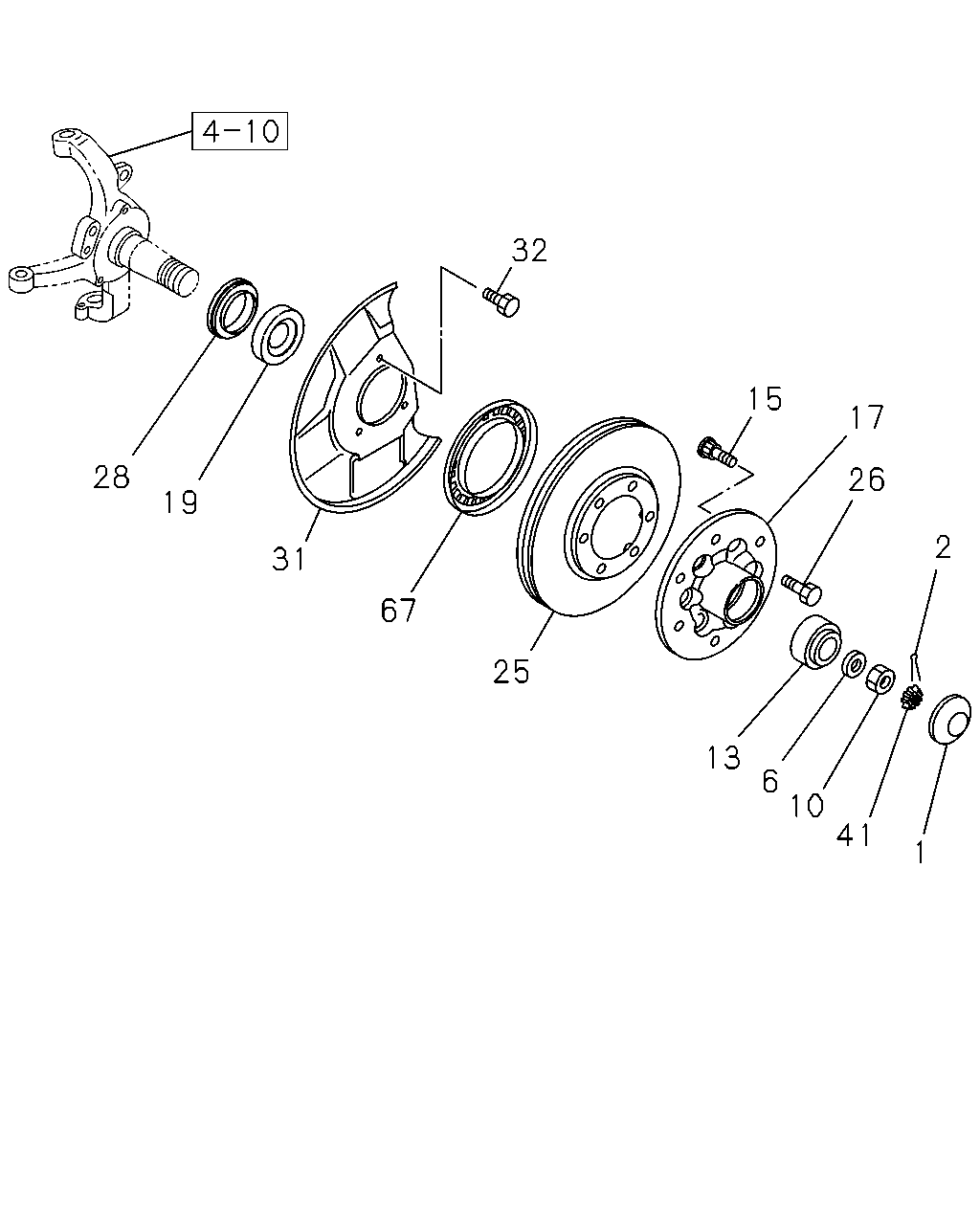

çizim 122650
32 15 17 28 26 19 2 31 67 25 13 6 10 41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.330 CAP; HUB,FRT AXLE 8-98006-055-0 02 1 1203- ●
1 06.330 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-055-0 02 1 1203- ●
1 06.330 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-565-0 02 1 1203- ●
1 06.330 CAP; HUB,FRT AXLE 8-97944-565-0 02 1 1203- ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=30 		0-81124-030-0 02 1 1203- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. HIGH RIDE SUSPENSION(7YC) OD=3.7 L=30 		0-81124-030-0 02 1 1203- ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-97382-661-0 02 1 1203- ●
6 05.812 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-97382-661-0 02 1 1203- ●
6 05.812 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 1203- ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 1203- ● ● ●
10 05.812 NUT; FRT HUB BRG
M18 		8-94243-927-1 02 1 1203- ●
10 05.812 NUT; FRT HUB BRG
EXC. HIGH RIDE SUSPENSION(7YC) M18 		8-94243-927-1 02 1 1203- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		8-94242-913-0 02 1 1203- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-913-0 02 1 1203- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 1203- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 1203- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97944-564-1 12 1 1203- ● ● ● ● ●
17 06.307 HUB; FRT AXLE 8-97238-417-1 02 1 1203-1509 ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-417-1 02 1 1203-1509 ●
17 06.307 HUB; FRT AXLE 8-98303-347-0 02 1 1510- ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98303-347-0 02 1 1510- ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98054-665-0 02 1 1203-1509 ●
17 06.307 HUB; FRT AXLE 8-98054-665-0 02 1 1203-1509 ● ● ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98303-348-0 02 1 1510- ●
17 06.307 HUB; FRT AXLE 8-98303-348-0 02 1 1510- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 1203- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 1203- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 1203- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 1203- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97360-677-2 02 1 1203-1509 ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97360-677-2 02 1 1203-1509 ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-259-1 02 1 1510- ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-259-1 02 1 1510- ●
25 05.809 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98124-663-4 02 1 1203-1509 ●
25 05.809 ROTOR; DISC BRK,FRT 8-98124-663-4 02 1 1203-1509 ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-98124-664-3 02 1 1510- ●
25 05.809 ROTOR; DISC BRK,FRT 8-98124-664-3 02 1 1510- ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE 		8-98006-065-0 12 1 1203- ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-593-0 02 1 1203- ●
28 06.326 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98036-593-0 02 1 1203- ●
28 06.326 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION(7YC) 		8-98036-594-0 02 1 1203- ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-594-0 02 1 1203- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-98008-148-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-148-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE 8-98008-149-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-149-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) 		8-98062-190-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE 8-98062-190-0 01 1 1203- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) 		8-98062-191-0 01 1 1203- ●
31 04.665 COVER; DUST,FRT BRAKE 8-98062-191-0 01 1 1203- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98006-352-0 06 1 1203- ● ● ● ● ●
41 05.812 RETAINER; NUT,FRT HUB 8-94243-928-1 02 1 1203- ●
41 05.812 RETAINER; NUT,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-94243-928-1 02 1 1203- ●
67 05.811 ROTOR; SENSOR 8-97238-278-0 02 1 1203- ●
67 05.811 ROTOR; SENSOR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-278-0 02 1 1203- ●
67 05.811 ROTOR; SENSOR
HIGH RIDE SUSPENSION(7YC) 		8-97238-280-0 02 1 1203- ●
67 05.811 ROTOR; SENSOR 8-97238-280-0 02 1 1203- ● ● ●
